Description

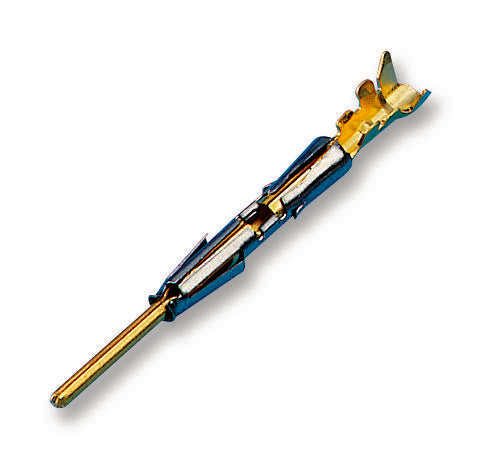

The SM20WL3TK6 is a Female SM Stamped and Formed Contact, made of copper alloy with preplated tin all over finish. Available in #16 size, it accepts 22 to 20AWG wires. The SM contact is two piece strip formed crimp snap-in pin and sockets. These contacts consist of a crimp body made of high conductive copper alloy and a stainless steel retaining spring featuring retention in the housing cavity and a closed entry socket to prevent probe damage. Two piece construction with dual purpose spring which serves for contact retention and protects the body against damage. The SM stamped contact can be used in any contact position with MS-M/MSG Rectangular connectors, SMS Qikmate, UT-Bantam, UTG Metalok Bantam, UTP Full plastic Bantam, MBG Bantamate II and TRIM TRIO circular connectors.
- 13A Current rating
- 6mR Contact resistance
- 65N Minimum contact retention in body
- 3.5N Maximum individual insertion force
- 0.55N Minimum individual withdrawal force
Industrial
Other details
| Brand | SOURIAU-SUNBANK / EATON |
| Part Number | SM20WL3TK6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
