Description

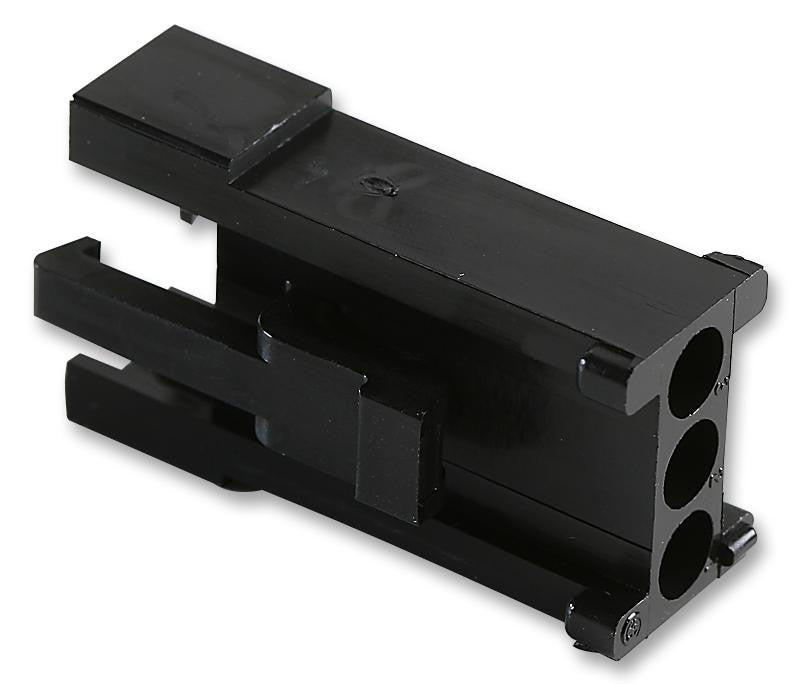

The SMS3P1 is a 3-way Cable Plug without strain relief hood and discrimination cavities, made of UL94V-2 rated polyamide. The versatile and easy to use SMS series quick mating panel and cable connectors are a highly cost-effective system approach to solving the constant demand for more interconnection solutions and techniques. A full plastic solution offered in either wire attachment or PCB mounting options to provide rapid assembly installation without requiring additional mounting hardware. Cable plugs quickly connect and disconnect with positive retention locks. Just push to mate then press and release to un-mate. In addition, cable plug connectors also feature pin-protection skirts, positive polarization and are offered with or without integrated strain relief hoods.
- Black colour
- IP40 Protection rating
- 2000VAC Test potential voltage
- 5000MR Minimum insulation resistance
- 500 Mating and unmating cycles durability
Applications
Industrial
Product details
| Gender | Plug |
| No. of Positions | 3Ways |
| Product Range | SMS QIKMATE Series |
| For Use With | TRIM TRIO Removable Snap-lock Pin Contacts |
| Pitch Spacing | - |
Other details
| Brand | SOURIAU |
| Part Number | SMS3P1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
