| ₹ 187.07 includes GST and import duties. | |
| B2B customers can avail ₹ 28.53 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

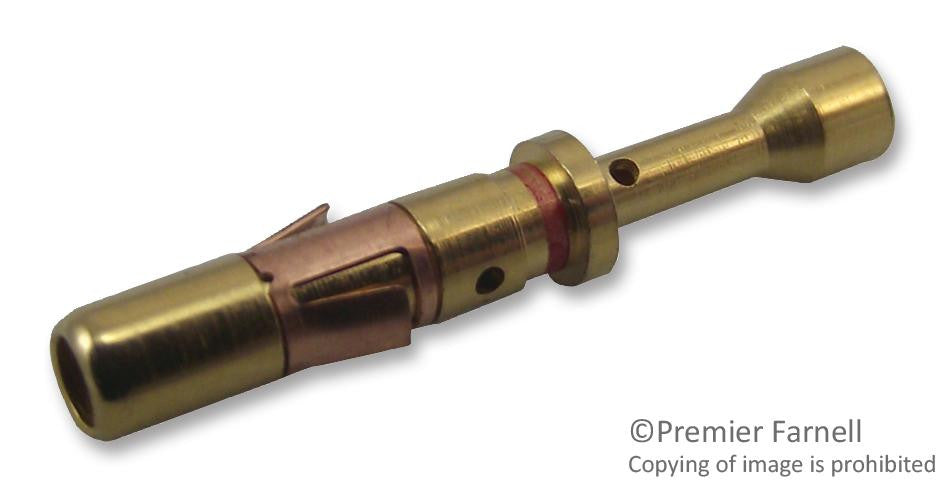

The RC24M9K is a solid machined contact for TRIM TRIO connectors, socket type, 0.13 to 0.20mm� wire. The contact is precision solid machined crimp snap-in sockets for heavy -duty top performance requirements. Springs on both contacts are made of spring-tempered, heat-treated, beryllium copper. The socket inner spring supplies high contact pressure to ensure low-resistance contact between socket. The socket contact features closed entry to prevent probe damage. Crimp barrels have insulation grips for vibration support and are provided with a cable stop and inspection hole.
- Closed entry design on RC socket contact to prevent probe damage
- 13A Current rating
- <=3mR Contact resistance
- 110N Minimum contact retention in body
Applications
Industrial
Product details
| Wire Size AWG Max | 24AWG |
| Contact Plating | Gold Plated Contacts |
| Product Range | Trim Trio Series |
| Contact Material | Copper |
| Contact Termination Type | Crimp |
| For Use With | TRIM TRIO Connectors |
| Wire Size AWG Min | 26AWG |
| Contact Gender | Socket |
Other details
| Brand | SOURIAU |
| Part Number | RC24M9K |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 183.33 |
| 3-5 | ₹ 181.46 |
| 5-10 | ₹ 177.72 |
| 10+ | ₹ 173.98 |
Bulk discount will be automatically applied during checkout based on quantity.
