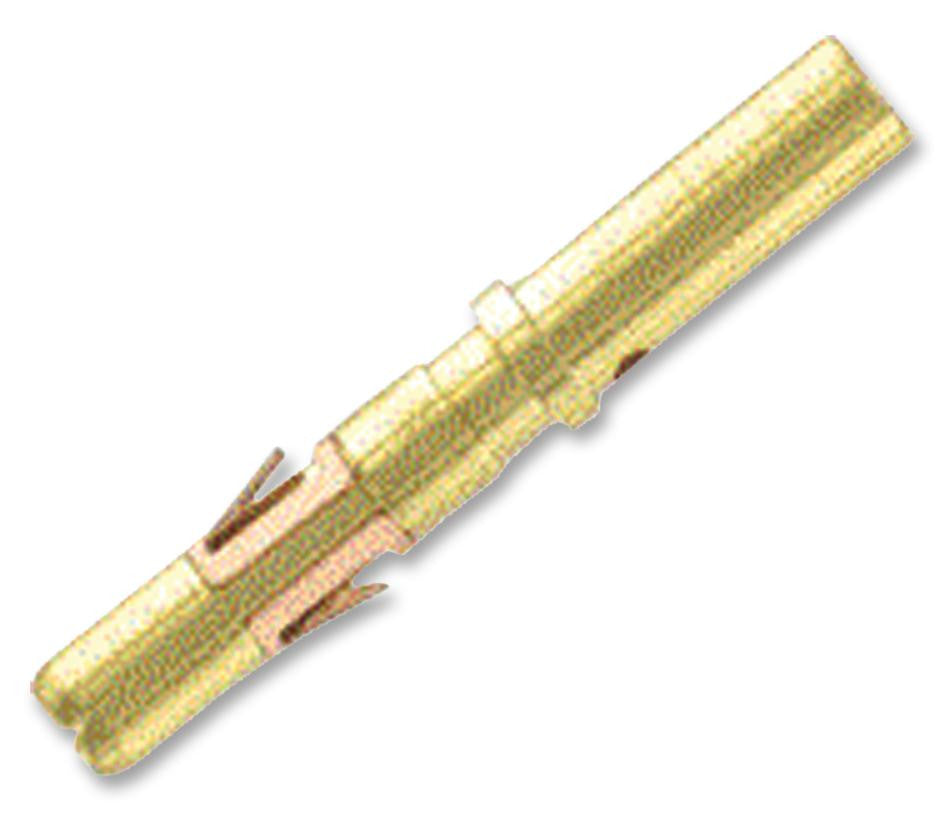

The RC16M23K from Souriau is a green colour, size 16 solid machined socket contact for TRIM TRIO connectors. This is precision solid machined crimp snap-in contact for heavy duty top performance requirements. This contact is tempered, heat treated beryllium copper locking springs assure proper locking and alignment of contacts in the housing.
- Wire size range from 20AWG to 16AWG (0.52mm² to 1.5mm²)
- Maximum wire diameter of 1.82mm
- High conductive copper alloy with gold over nickel plate finish
- 0.0625inch (1.6mm) diameter contacts
- Closed entry design to prevent probe damage
- Current rating of 13A
- Contact resistance is less than or equal to 3mohm
- Operating voltage of 750Vrms
- Easy mounting and dismounting
Product details
| Wire Size AWG Max |
16AWG |
| Contact Plating |
Gold Plated Contacts |
| Product Range |
Trim Trio Series |
| Contact Material |
Copper Alloy |
| Contact Termination Type |
Crimp |
| For Use With |
TRIM TRIO Series Circular Connectors |
| Wire Size AWG Min |
20AWG |
| Contact Gender |
Socket |
Other details
| Brand |
SOURIAU |
| Part Number |
RC16M23K |
| Quantity |
Each |
