Description
SoundTube Entertainment RS4-EZ Overview

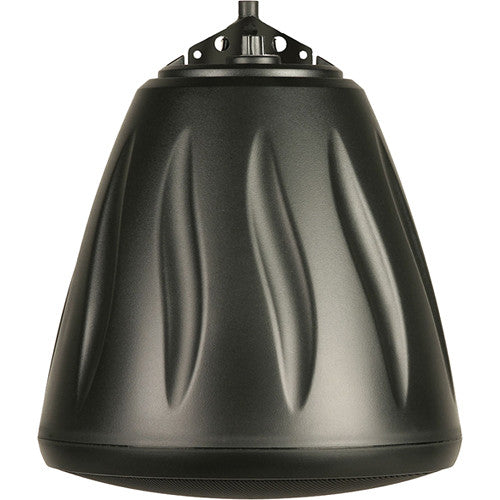

The black RS4-EZ 4� Open-Ceiling Speaker from SoundTube Entertainment is a full-range, ported speaker with an open-ceiling enclosure design. It features a 4� full-range, treated fiber driver mounted to an ABS baffle. Hanging hardware is included and features a SpeedClamp self-locking wire grip for fast, easy and secure installation. The driver and electro-acoustic network deliver high-performance sound. The RS4-EZ speaker incorporates a low-profile grille and a five-position tap switch with transformer bypass position.
Designed for indoor and outdoor background to mid-level SPL applications, the RS4-EZ Speaker includes a single-point mounting system for rapid open-ceiling installations. This speaker is suitable for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows, and conference rooms.
In the Box
- SoundTube Entertainment RS4-EZ 4" Open-Ceiling Speaker (Black)
- Euroblock Connector
- Terminal Weather Boot
- Hanging Hardware
- Limited 5-Year Manufacturer Warranty
SoundTube Entertainment RS4-EZ Specs
| System Type | 4" (102 mm) full-range, open-ceiling, ported (20 W transformer for 25/70.7/100 V or transformer bypass) |
| Nominal Impedance | 8 ? |
| Sensitivity | 2.83 V/m and 1 W/m: 90 dB |
| Frequency Response |
-3 dB: 185 Hz to 13 kHz -10 dB: 98 Hz to 22 kHz |
| Maximum Power |
Program Power: 40 W Continuous Power RMS: 20 W |
| Max SPL Level | 103 dB @ 3.3' (1.0 m) |
| Coverage Angle | -6 dB @ 2 kHz: 160° -6 dB @ 10 kHz: 60° Averaged from 2 to 10 kHz: 95° |
| Directivity Factor | Q, 4.3 (averaged 100 Hz to 10 kHz); 3.8 (2 kHz) |
| Directivity Index | DI, 4.9 dB (averaged 100 Hz to 10 kHz); 5.8 dB @ 2 kHz |
| Tap Selector | Weather-proof, five-position tap switch with transformer bypass position |
| Low Frequency Driver | 1 x 4" (102 mm) paper cone, treated cloth surround |
| Voice Coil | 0.8" (2.0 cm) |
| Enclosure Material | Injection-molded ABS, glass fiber reinforced |
| Grille Material | Steel with powder-coat finish |
| Inputs | 1 x four-pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Transformer Taps | 70.7 V Output: 20 W (103 dB), 10 W (100 dB), 5 W (97 dB), and 2.5 W (94 dB) 100 V Output: 20 W (103 dB), 10 W (100 dB), and 5 W (97 dB) 25 V Output: 2.5 W (94 dB), 1 W (91 dB), 0.63 W (88 dB), and 0.31 W (85 dB) |
| Approvals | UL 2239 (hanging cable), CE, and RoHS |
| Dimensions | 7.7 x 8.8" (19.6 x 22.3 cm) |
| Weight | 3.9 lb (1.8 kg) |
| Package Weight | 6.045 lb |
| Box Dimensions (LxWxH) | 10.7 x 10.5 x 9.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
