Description
Sony XDCAM Overview
- 1Description
- 2Archive Management System
- 3Turnkey File-based Content Archiving Solution
- 4Ingest
- 5Catalog
- 6Search
- 7Archive
- 8Export
- 9Shelf Retrieve
- 10Web-based Interface
- 11File Exchange and Distribution
- 12Online/Offline Archive Management
- 13Online Streaming Proxy
- 14Customizable Metadata Fields
- 15Additional features

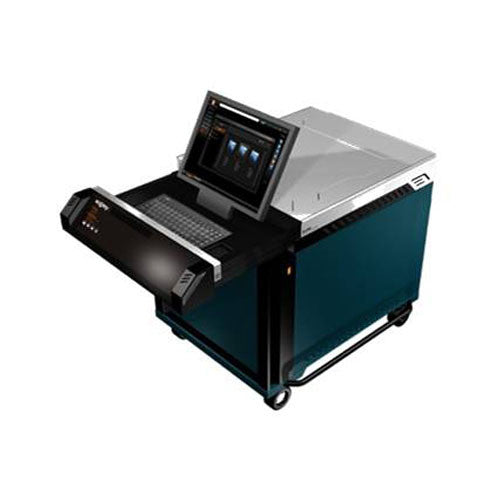

The Sony XDCAM Archive Management System, (3 Server Package) is an easy to use system that helps manage, find and archive all your media and metadata. This management system can be used in conjunction with various news/edit systems, workstations, connected devices, and users in the field � making it the perfect set of tools for on and offline content. This turnkey file-based content archive management solution comes pre-installed with all client applications that are accessible through a standard IT network, making setup and integration into existing systems a breeze.
Using a central server, the XDCAM archive system can manage all your material and uses XDCAM Professional Discs as the offline shelf archive format. Like XDCAM Professional Discs, all clips on the archive system have a low resolution proxy and a hi-resolution version. The proxy files are always available on the system server, while the hi-resolution files are either kept online or archived offline to the XDCAM Professional Discs. Not just video, XDCAM archive manages all your documents, pictures, music clips, and graphics; in fact anything you want!
This intuitive system offers great tools for digitizing, importing, cataloguing, and archiving, besides supporting ingesting of video content from both file-based and tape-based materials. With the XDCAM archive system, you get a fast and convenient method to add and edit metadata fields for video content. Additionally, it also allows you to customize your search parameters and quickly locate any file on the system.
Archive Management System
Manages multi-format content (file-based and tape-based) that include operations from ingesting to archiving
Quick file-based search capabilities, customizable metadata fields, and streaming proxies
Turnkey File-based Content Archiving Solution
Quick system setup
Pre-installed client applications for easy access via a standard IT network
Ingest
Media types include XDCAM, XDCAM EX, NXCAM, P2*1, Apple ProRes2, Avid DNxHD3, audio, pictures, documents, Flash, SDI4 capture, etc
Compatible with USB devices such as the PDW-U1/U2*1, SxS card readers, P2 card readers, and HDDs
Supports file upload from local folders or shared storage folders
Archive ingest client SDI option allows clip and essence mark preview, partial, full, and batch file import, storyboard creation, upload of files from a hot folder/FTP server, and tape-based real-time ingest
Real-time logging, batch capture, and proxy data creation
Converts tape content to be transitioned to file-based workflows for web browsing, and sharing
Medium Import application saves online storage space and allows web access to the extracted metadata and the system generated H.264 proxy for search, browse, and catalog functions
Catalog
Allow you to preview, view original extracted metadata, add multiple catalog layers and key frames to the timeline, set head frames for clips and picture packages
View the file list (file path/duration/size), set the content category and security level, and mark shot locations using the mark-on map button
Search
Keyword searches and advanced queries for registered content
Allows creation and import date ranges, specify content type, and storage status
Quick location of files via filters such as content category and import time
Metadata search allows search results to be shown as thumbnail lists which can be viewed without any latency
Archive
Easy replication of physical media for offline shelf storage
Restoration of media by organizing online storage as individual virtual (graphic illustration) XDCAM Professional Discs
Preview disc content via virtual thumbnail
Drag-and-drop process from a virtual disc to an XDCAM recording device
Automatic organization of virtual online and offline disc content based on preset conditions for disc grouping and shelf assignment
Online content deleted based on archive deletion policy
Export
Exports content in original format or transcodes it to a supported output format (with an XML file)
Supports export to network-attached production systems, FTP devices, or to a local HDD
Order list can be exported to form compilation of clips and/or data files for distribution on a single XDCAM Professional Disc
Supports export of created storyboard from the order list
Shelf Retrieve
For managing and tracking content that's available online in RAID storage or offline
Printable list of XDCAM Professional Discs with disc barcode ID and shelf location information
Web-based Interface
Content can be accessed over a LAN or internet VPN using a standard web browser
Web interface supports all key functions such as ingest, catalog, storyboard creation, archive, search, export, and system administration
File Exchange and Distribution
Distributes content by copying one or more clips and/or files to physical XDCAM Professional Discs
Once extracted metadata and proxy are generated files placed in the import hot folders are registered in the XDCAM Archive system automatically
Predefined category assignments of hot folders for quick search results and self management
Exports content to production systems, FTP devices, and users over a secure internet VPN connection
Online/Offline Archive Management
Organizes and displays online storage as virtual XDCAM discs
User-friendly GUIs for easy user operation
Backup copy and retrieve function for offsite disaster recovery purposes
Online view of format and capacity status of the virtual disc metadata
Add/modify archive groups
Online Streaming Proxy
H.264 proxies allow quick preview of video content
Easy-to-read metadata such as barcode ID, material title, material type, document, audio, video, etc.
Quick filters based on conditions such as content type, time, date, category, etc.
Batch catalog of content for users to simultaneously edit the metadata of several clips
Customizable Metadata Fields
Enhanced keyword searching and metadata entry
Data types include pull-down lists, string, numeric, date, Boolean, complex, and text data
Additional features
Quick configure tool for fast system configuration and use
Task monitor of checking the status of various tasks
Portlet window for a dynamic view of the XDCAM Archive system's statistical information
System integration with Sony and compatible third-party systems via the web service API
Automatic database backup
Displays content on a map by linking it with GPS information
Interface to the Media Backbone news solution, XDNEWS, Sonaps, and XPRI NS systems
Interface to Apple Final Cut Pro 7
Supports NAS (Network Attached Storage) expansion and configuration
Transcription using proxy data via the network
In the Box
- Sony XDCAM Archive Management System, (3 Server Package)
- Limited Lifetime Warranty
Table of Contents
- Description
- Archive Management System
- Turnkey File-based Content Archiving Solution
- Ingest
- Catalog
- Search
- Archive
- Export
- Shelf Retrieve
- Web-based Interface
- File Exchange and Distribution
- Online/Offline Archive Management
- Online Streaming Proxy
- Customizable Metadata Fields
- Additional features
Sony XDCAM Specs
| Concurrent Streaming Clients | 100 |
| Hi-Res Capacity (Hour) | 800 |
| Hi_Res Capacity (TB) | 18 |
| Installable SDI Ingest Workstation | 5 |
| Installable XDCAM Decks | 6 |
| Streaming Proxy Capacity (Hour) | 85,000 |
| Streaming Proxy Capacity (TB) | 18 |
