Description
Sony UTX-B40 Overview
- 1Description
- 2High-Quality Sound with Digital Audio Processing
- 3Automatic NFC Sync Mode
- 4Auto-Gain Mode to Prevent Mic Distortion
- 5High-Visibility OLED Display for Indoor/Outdoor Use
- 6DSP Filter Removes Occupancy Sensors Artifacts
- 7Multiple Powering Options
- 8Other Features
- 9Compatibility with Other Sony Wireless Systems

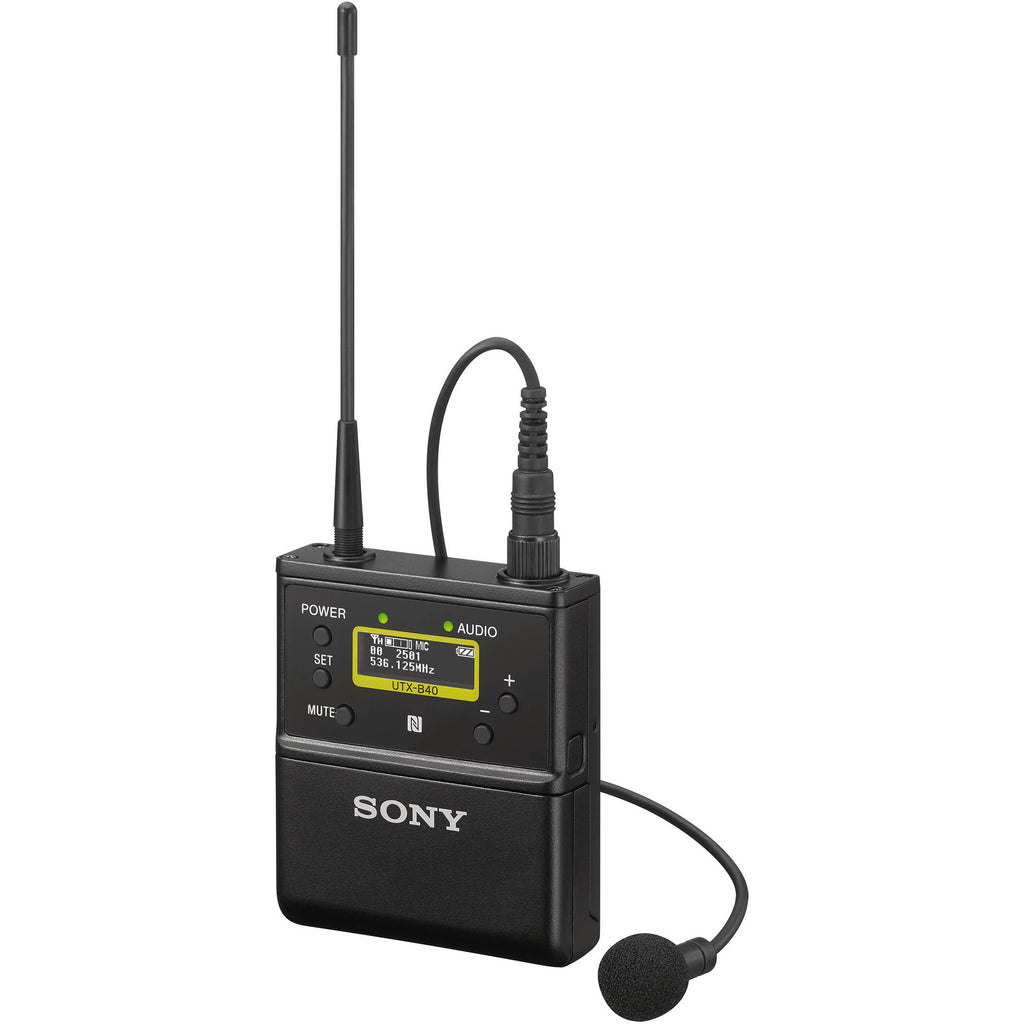

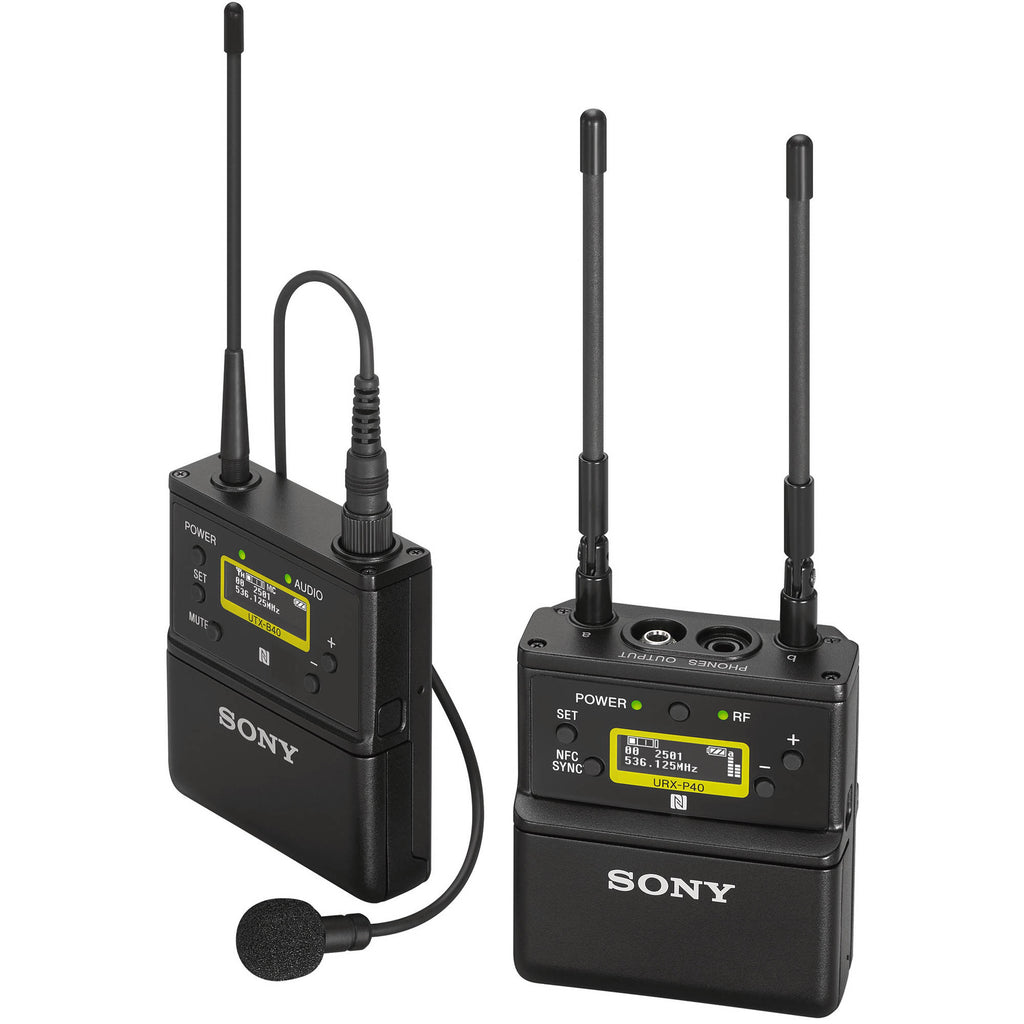

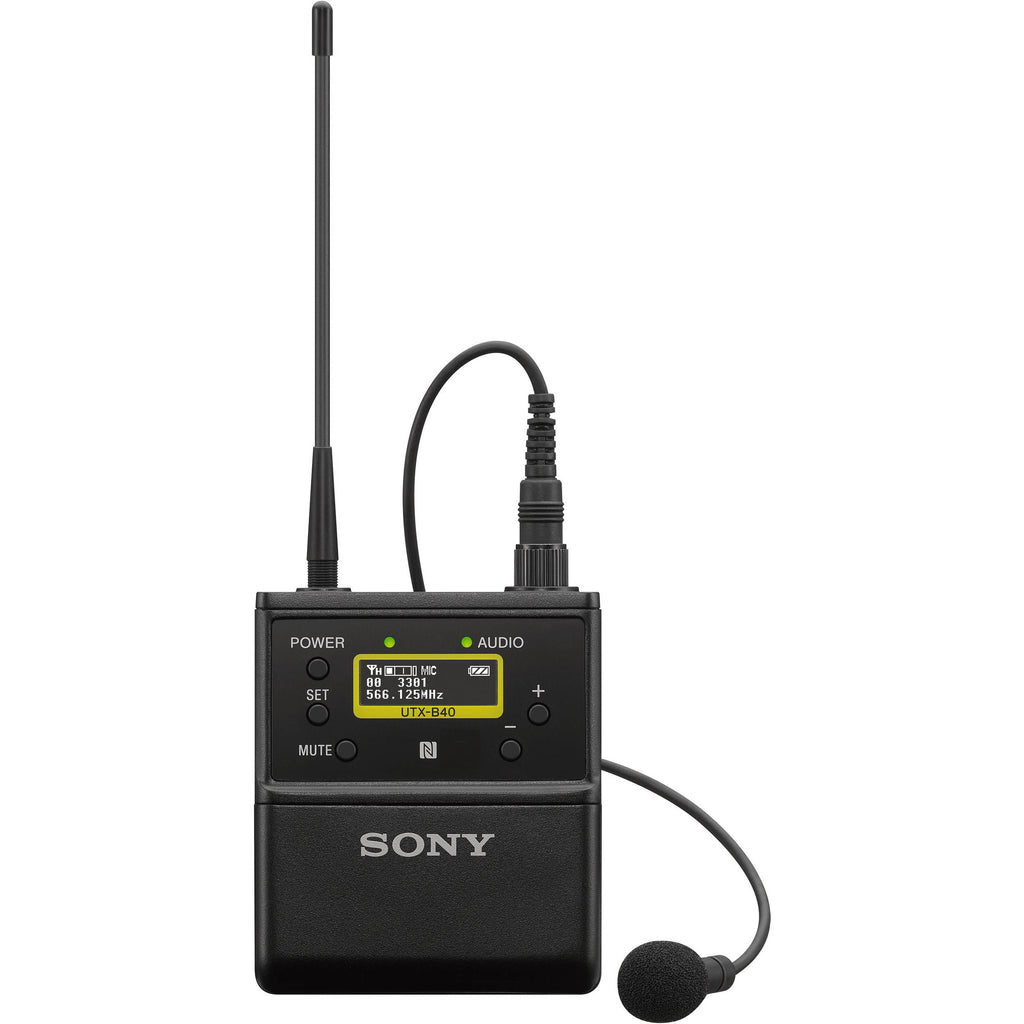

The Sony UTX-B40 is a wireless bodypack transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight with a robust, all-metal construction, this bodypack is well suited for tough operating conditions, while remaining comfortable for the talent to wear. It provides up to 8 hours of operation on two AA batteries, with a selectable 5/30mW RF power output and a transmission range up to 330'.
The UTX-B40 comes with an ECM-V1BMP omnidirectional lavalier microphone optimized for speech. The transmitter has a locking, 3.5mm BMP-type microphone input connector with an adjustable input level to accommodate other compatible lavalier or headset microphones of your choice. The transmitter offers a 18 MHz bandwidth with 654 selectable UHF frequencies.
The UTX-B40 is backward-compatible with Sony WL-800 and UWP Series systems.
High-Quality Sound with Digital Audio Processing
The ECM-V1BMP lavalier mic is optimized for capturing clear and intelligible speech. This omnidirectional mic picks up sound from every direction, allowing for a variety of placement options and freedom of movement.
Automatic NFC Sync Mode
Unlike purely digital systems, the UTX-B40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.
Auto-Gain Mode to Prevent Mic Distortion
The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter�s mouth and the audio level is insufficient.
Manual input-level setting is also available.
High-Visibility OLED Display for Indoor/Outdoor Use
DSP Filter Removes Occupancy Sensors Artifacts
Multiple Powering Options
The unit can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
A battery count-up timer allows for accurate reading of battery running time to minute accuracy.
Other Features
- Switchable Mic/Line input level so you can set the correct gain level for your sound source.
- Low-cut filter reduces noise caused by wind or machinery�Off / Low (100 Hz) / Mid (150 Hz) / High (200 Hz).
- Simple menus make navigation easy. Advanced menus for in-depth control are also available.
- The variable mute button on the transmitter can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
- You can operate up to 14 mics in one location.
Compatibility with Other Sony Wireless Systems
In the Box
- Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC90: 941 to 960 MHz)
- Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
- Windscreen
- Mic Clip
- Belt Clip
- Limited 1-Year Warranty
Not in the Box
- Essential Batteries & Power (Not Included)
- Description
- High-Quality Sound with Digital Audio Processing
- Automatic NFC Sync Mode
- Auto-Gain Mode to Prevent Mic Distortion
- High-Visibility OLED Display for Indoor/Outdoor Use
- DSP Filter Removes Occupancy Sensors Artifacts
- Multiple Powering Options
- Other Features
- Compatibility with Other Sony Wireless Systems
Sony UTX-B40 Specs
| Wireless Transmission | Analog UHF |
| RF Frequency Band | 941 to 960 MHz |
| RF Bandwidth | 18 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 330' / 100.6 m (Typical) |
| Max Systems per Setup | 14 |
| Latency | 0.35 ms |
| Encryption | None |
| Modulation | FM |
| Form Factor | Bodypack |
| RF Output Power | 5 / 30 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Muting | Mute Switch |
| Audio Input Level | -60 dBV (Mic Level) +4 dBu (Line Level) |
| Auto-Level Control | Yes |
| Gain Range | 0 to 27 dB (3 dB Steps) |
| Frequency Response | 23 Hz to 18 kHz |
| Sync Method | NFC |
| Antenna | 1 x 1/4 Wave External, Fixed |
| Power Requirements | Battery, Bus Power (USB) |

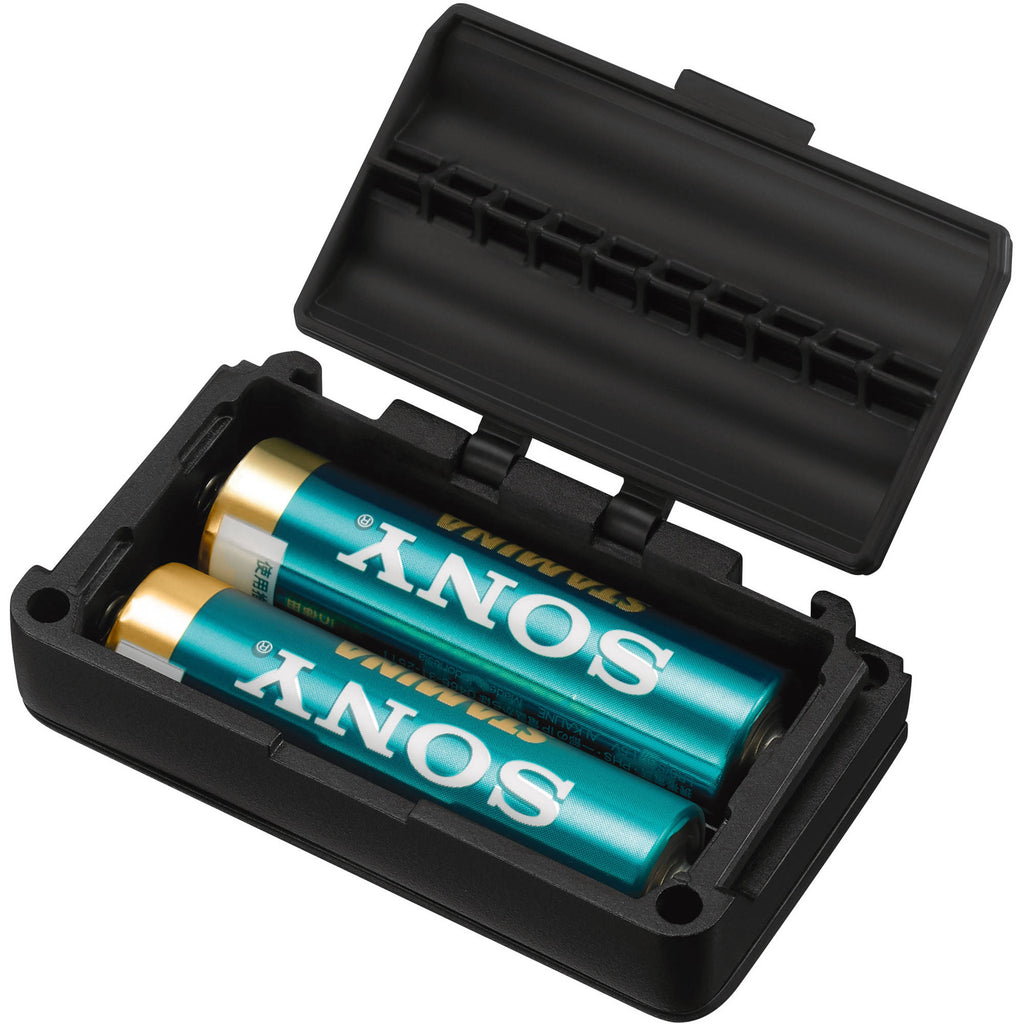

| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
| Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
| Housing | Metal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Dimensions | 2.5 x 2.9 x 0.7" / 63 x 73 x 19 mm (without Antennas) |
| Weight | 2.9 oz / 83 g (without Batteries) |
| Form Factor | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 40 Hz to 20 kHz |
| Sensitivity | -43 dB at 1 kHz |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 3.9' / 1.19 m |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Length | 0.77" / 19.5 mm |
| Diameter | 0.27" / 6.8 mm |
| Weight | 0.57 oz / 16.2 g |
| Package Weight | 1.035 lb |
| Box Dimensions (LxWxH) | 12.2 x 7.4 x 2.8" |
