Description
Sony URX-S03D Overview
- 1Description
- 2True Diversity Reception System for Stable Reception
- 3Digital Audio Processing
- 4Direct Digital Connection to Camcorders
- 5Automatic Channel Setting Mode
- 6Easy Channel Scan
- 7Compatible with Sony 800 & UWP Series Wireless
- 8Wide Frequency Coverage
- 9PLL Synthesized System

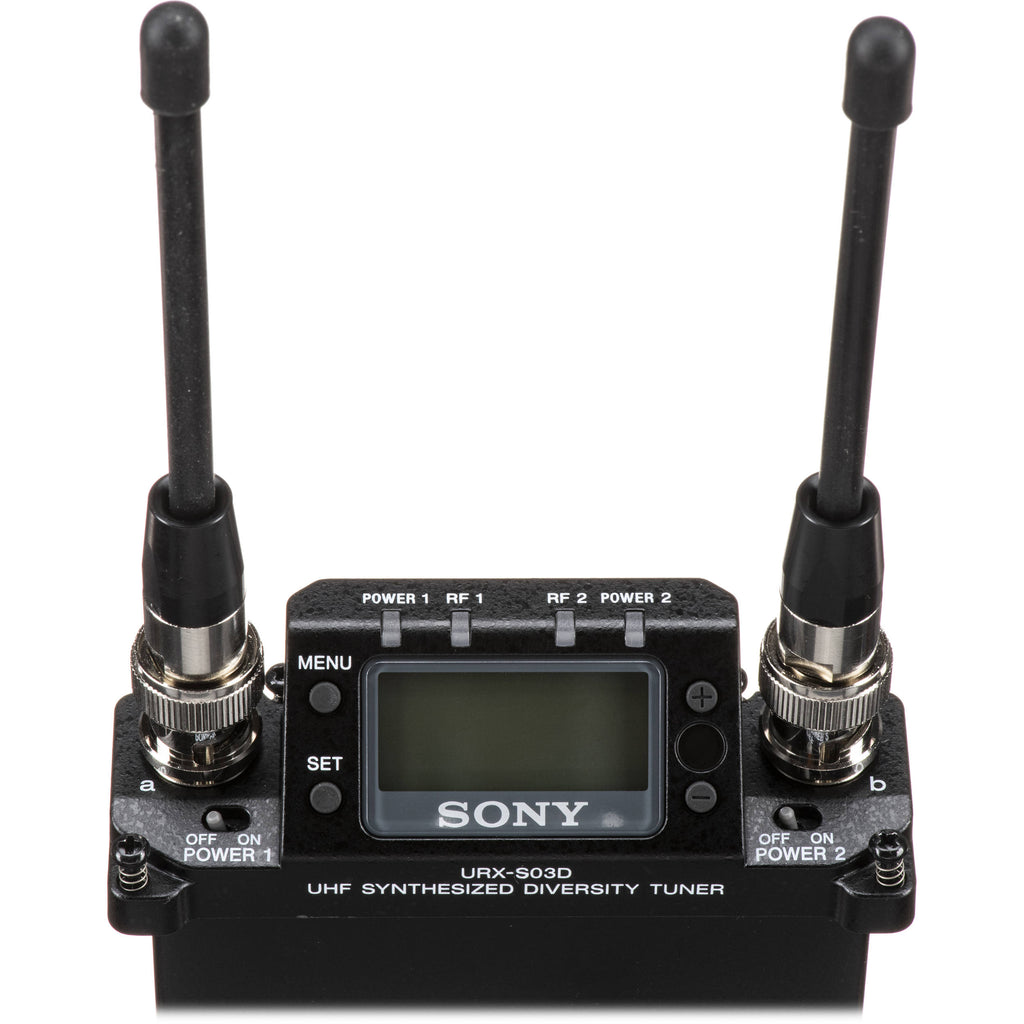

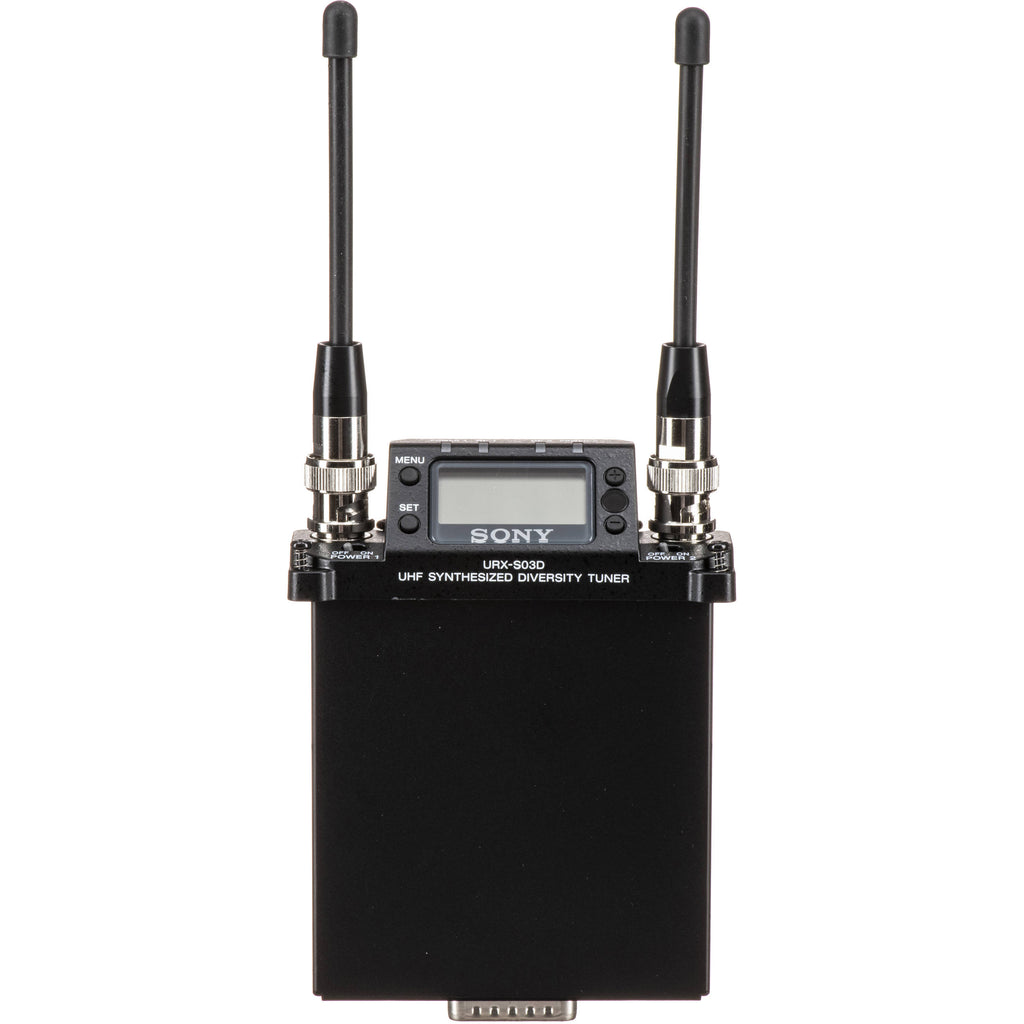

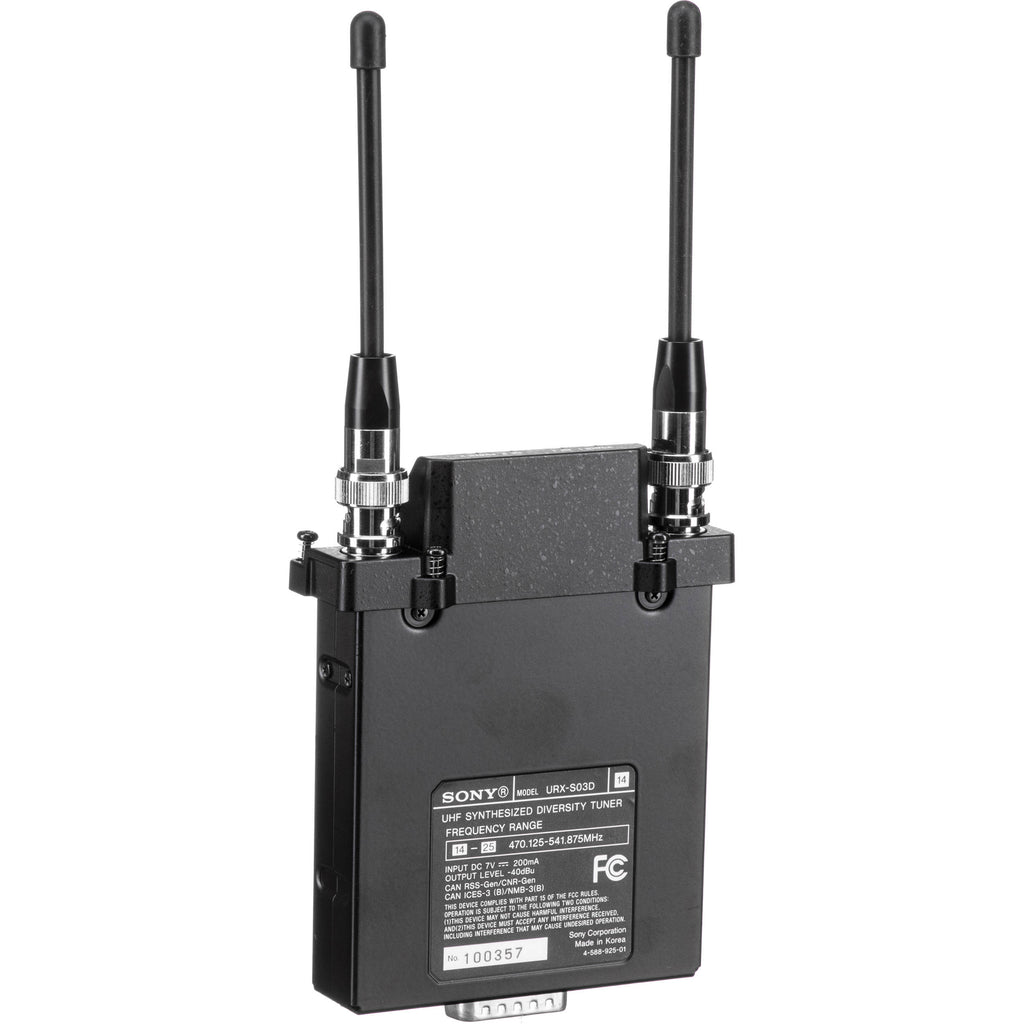

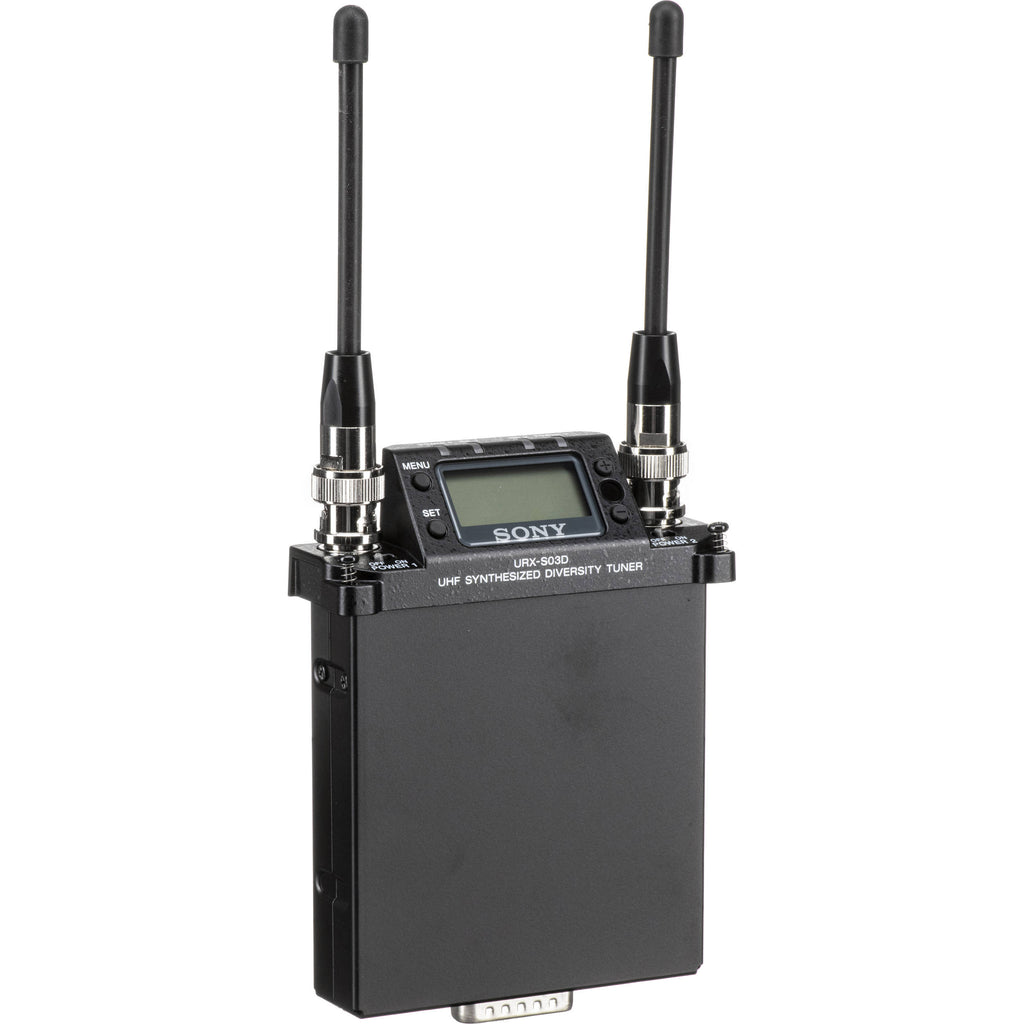

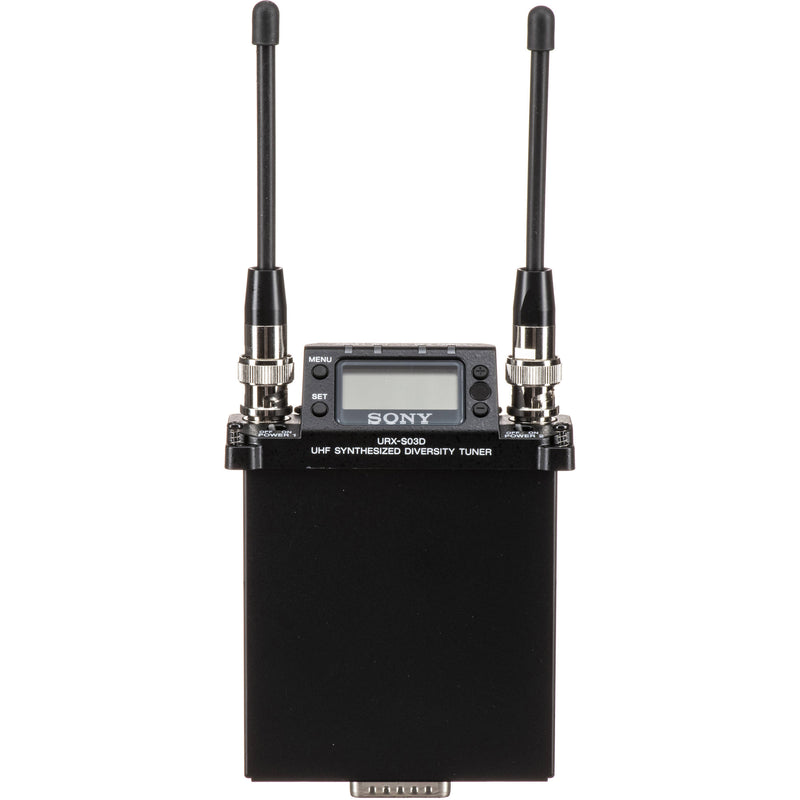

This URX-S03D UWP-D Dual-Channel Slot-In Wireless Receiver from Sony operates in the UC90 band on UHF frequencies 941 to 960 MHz and fits directly in the slot of Sony XDCAM and HDCAM camcorders. It can be used to capture audio when paired with the UTX-B03HR beltpack transmitter & microphone (sold separately) and features easy channel setting functions, stable RF transmission, and Digital Audio Processing technology for wireless audio and video applications.
The receiver can access 654 frequencies and offers True Diversity reception. It is built with a robust metal body and has a weatherproof structure, a selectable squelch, and wide frequency coverage with a choice of channels available. In addition, it also works seamlessly with Sony 800 and UWP Series transmitters. It includes two whip antennas.
True Diversity Reception System for Stable Reception
Wireless microphone transmission systems are typically subject to interruptions in reception (RF signal dropout). The UWP-D series reduces this to a minimum and utilizes a true diversity reception per channel. It compares the RF signals from the two antennas and automatically selects the stronger signal for output.
Digital Audio Processing
Sony Digital Audio Processing is used to improve sound quality and transient response performance compared to conventional analog wireless systems. Analog companding systems cannot accurately reproduce sounds such as a bell, tee shot, or handclap, but Sony Digital Audio Processing reproduces them faithfully.
Direct Digital Connection to Camcorders

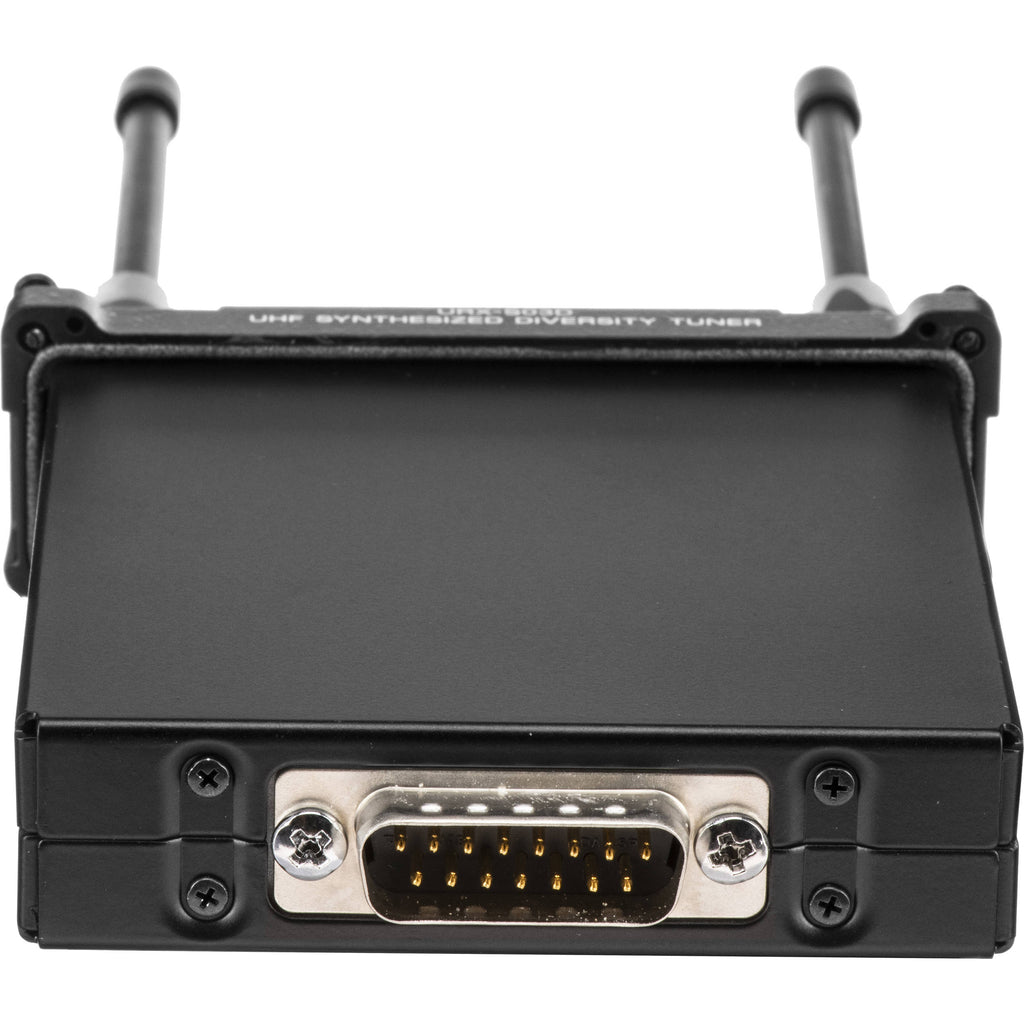

The URX-S03D provides a two-channel digital connection to XDCAM camcorders or a single-channel connection to HDCAM camcorders via a D-sub 15-pin interface. With HDCAM camcorders, two audio signals from two transmitters can be output in the single channel as a two-channel mixing function. Sony camcorders can also show each wireless microphone's RF/AF level in the viewfinder.
Automatic Channel Setting Mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.
Easy Channel Scan
With its Clear Channel Scan, Active Channel Scan function, and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically for fast and easy system setup.
Compatible with Sony 800 & UWP Series Wireless
DSP enables a digital compander to match Sony's analog wireless system. The WP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series and UWP Series, allowing users to switch between different companding modes.
Wide Frequency Coverage
The switching bandwidth covers a wide area and has a wide choice of channels available.
PLL Synthesized System
The receiver achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies. This system is used in both the transmitters and tuners, so that a stable carrier is generated at the transmitter and accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of both 25 and 125 kHz.
UPC: 027242920323
In the Box
- Sony URX-S03D UWP-D Dual-Channel Slot-In Wireless Receiver (UC90: 941 to 960 MHz)
- 2 x Whip Antennas
- Limited 1-Year Warranty
Table of Contents
- Description
- True Diversity Reception System for Stable Reception
- Digital Audio Processing
- Direct Digital Connection to Camcorders
- Automatic Channel Setting Mode
- Easy Channel Scan
- Compatible with Sony 800 & UWP Series Wireless
- Wide Frequency Coverage
- PLL Synthesized System
Sony URX-S03D Specs
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 654 |
| Diversity | True Diversity |
| RF Frequency Band | 941 to 960 MHz |
| RF Bandwidth | 18 MHz |
| Frequency Step Size | 25 kHz 125 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 330' / 100.6 m |
| Max Systems per Setup | 14 |
| Latency | 0.38 ms |
| Modulation | FM |
Receiver
| Form Factor | Slot-Mount |
| Mounting Options | Slot-Mount |
| Antenna | 2 x External, BNC (Top-Mount) |
| Number of Audio Channels | 2 |
| Audio I/O | 1 x DE-15/DB-15 Unbalanced Output |
| Audio Output Level | -40 dBu |
| Frequency Response | 23 Hz to 18 kHz |
| Word Clock I/O | None |
| Squelch | 15 dBμV |
| Power Requirements | DC Input |
| Display & Indicators | 1 x LCD (AF Level, Frequency, Group, Peak, RF Level) |
| Housing | Metal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Dimensions | 3.5 x 4.6 x 1.2" / 88 x 116.2 x 31.2 mm (without Antennas) |
| Weight | 10.7 oz / 303 g (with Antenna) |
Packaging Info
| Package Weight | 1.26 lb |
| Box Dimensions (LxWxH) | 9.7 x 5.8 x 3.7" |
