Description
Sony MPES3D01/01 Overview
- 1Description
- 2Camera Alignment Correction
- 3Color Correction
- 4Video Outputs for Monitoring
- 5Convergence Settings / Snapshot
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19

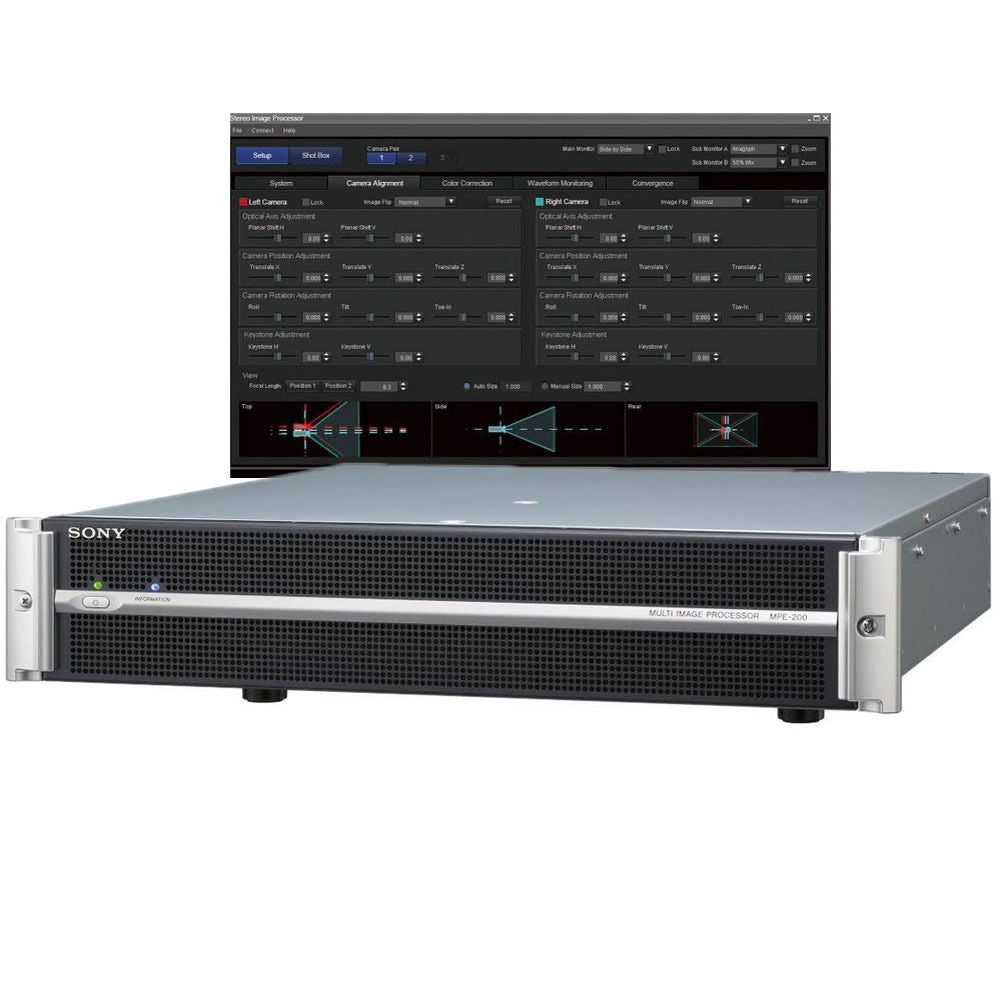

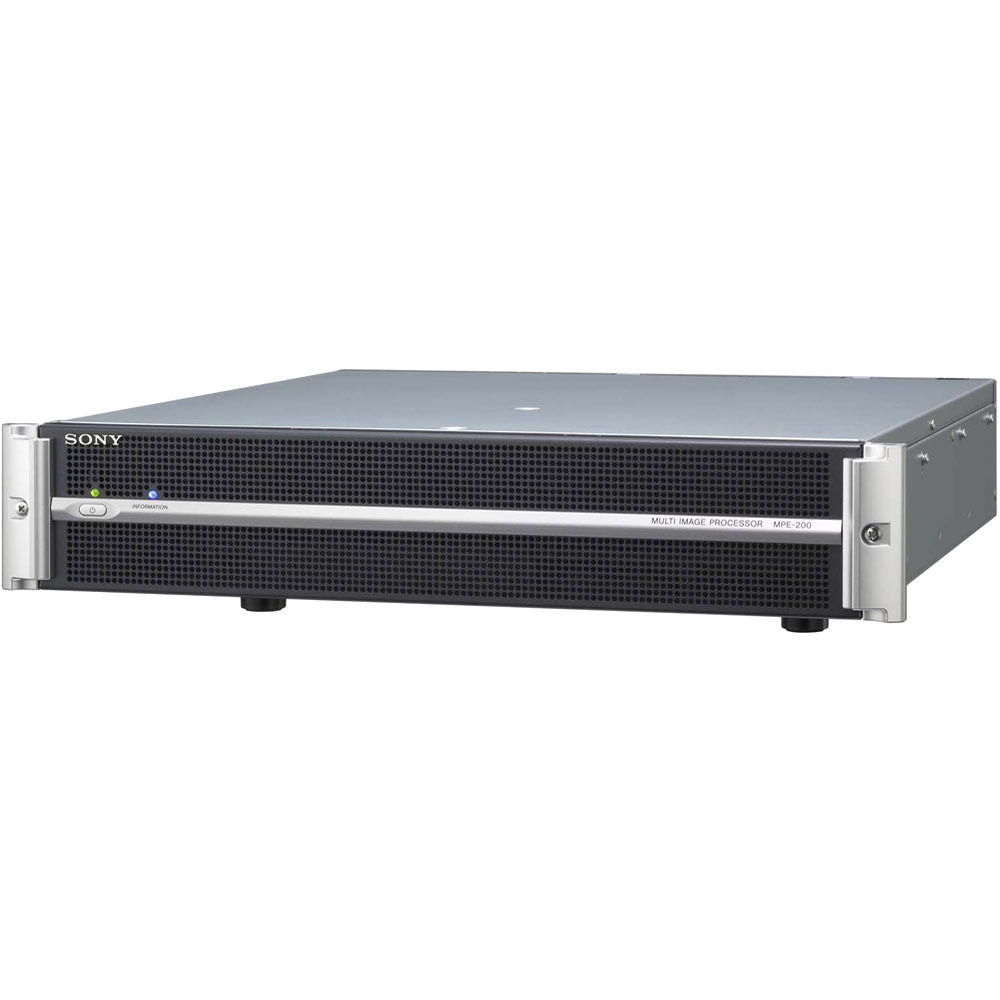

The Stereo Image Processor Software from Sony is an innovative stereo image processor that allows you to analyze 3D images with a built-in waveform monitoring function and makes fine adjustments to the appearance through digital signal processing. It reduces the cumbersome and time consuming task of mechanical fine adjustment of the 3D camera rigs. You can control several MPE-200 processors with this software via a computer installed with the GUI software.
Camera Alignment Correction
Correction for left / right camera optical axis shift, alignment, roll shift and other alignment errors, using digital signal processing technology
Color Correction
Adjusts the white balance, black balance and gamma curve values to achieve color matching for the image from the left and right camera
Video Outputs for Monitoring
The 3D box outputs video signals to its two monitors: the stereo monitor and the wave form monitor
Convergence Settings / Snapshot
Modifies the final appearance of the 3D image by adjusting the horizontal offset, toe-in angle and zoom scale
Real-time 3D image processing software update
Element Technica mechanical rig control
F3 1.37" (35 mm) imager support for cine applications
Supports up to 12 3D camera pairs
HTTP server metadata output
RS422 option board
3D analysis functions including depth guide / warning / statistics
Built-in waveform monitoring function
Fine adjustment of camera alignment signal processing, such as optical axis shift and mechanical factors
Color matching between a pair of cameras
Convergence adjustment, such as horizontal offset and toe-in angle of a pair of cameras, to modify the final appearance of 3D images
Setup and snapshot features to save / recall settings and status
Camera metadata (lens information) integration with the HDC-1500R series multi-format HD camera or the HDC-P1 HD multi-purpose camera
Multi-processor control from a PC GUI via an Ethernet connection
Table of Contents
- Description
- Camera Alignment Correction
- Color Correction
- Video Outputs for Monitoring
- Convergence Settings / Snapshot
Sony MPES3D01/01 Specs
| System Requirements | Operating System: Windows Vista 32-bit, English Version, Service Pack 2 Windows 7 32-bit / 64-bit, English Version Java: Version 6 Update 22 CPU: 1.6 GHz or higher RAM: 2 GB or more Graphics Chip: Intel or NVIDIA Hard Disk Drive: 500 MB or more free space Monitor Resolution: 1280 x 800 pixels or 1280 x 1024 pixels |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
