Description
Sony PVM-X3200 Overview
- 1Description
- 2Positioning in Sony Monitor Lineup
- 3Color Matching with BVM-Series Monitors
- 4Inputs and Outputs
- 5Quadview Display
- 63D LUT Support
- 7VPID Support
- 8Internal Scopes
- 9New Shallow Menu Structure

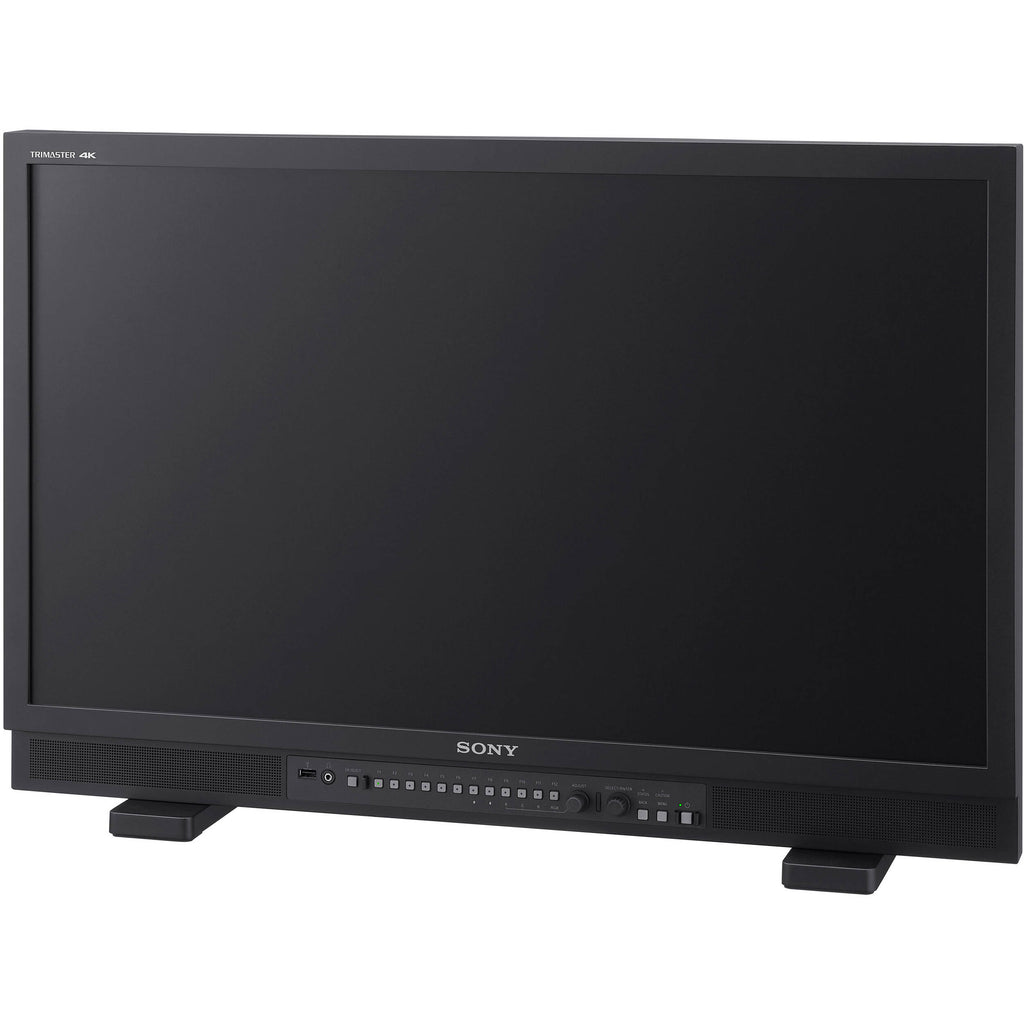

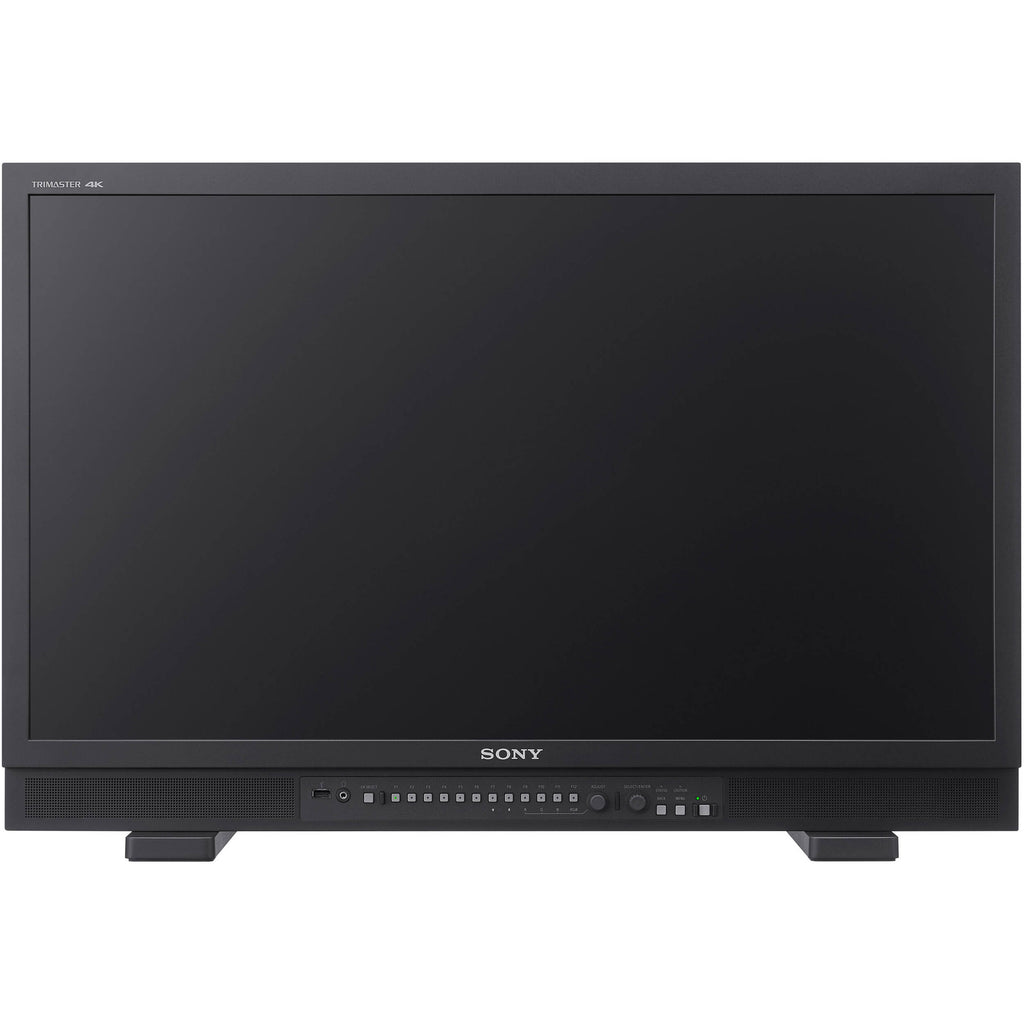

The 32" Sony PVM-X3200 4K HDR Trimaster High-Grade Picture Monitor is an addition to Sony's Grade 2 monitor hierarchy, and it is also designed to replicate the color space of Grade 1 BVM-series monitors, including the popular Trimaster BVM-HX310 color grading master monitor.
The PVM-X3200 features a UHD 4K display resolution and supports 4K and HD signals via four SDI inputs and an HDMI input. It also allows you to create a quadview of four HD signals for comparison and other purposes. Each signal can have a different EOTF and different LUT applied. An HDR workflow is supported by a 1000 cd/m² brightness and wide color gamut. A wide range of supported HDR EOTFs include 2.4 (HDR), ITU-R BT.2100 (HLG), SMPTE ST2084, S-Log3, and S-Log3 (Live HDR). Other features include built-in scopes, zoom mode, VPID support, and more.
Positioning in Sony Monitor Lineup
The PVM-X3200 monitor falls into Sony's Grade 2 monitor hierarchy, suitable for viewing applications such as on set (DIT cart, video village), on location (in the field or in mobile trucks), and in editing suites or broadcast studios (playback, audio mixing, monitor wall, or machine room).
Color Matching with BVM-Series Monitors
The PVM-X3200 supports a wide color gamut. By design, it replicates the same color space as that of the Grade 1, BVM-series monitors, including the Trimaster BVM-HX310 color grading master monitor. With accurate color reproduction between the two types, content creators can be confident that content viewed on set will be reproduced in the color grading suite. The PVM-X3200 supports both UHD 4K and HD formats as well as a wide range of HDR EOTFs including 2.4 (HDR), ITU-R BT.2100 (HLG), SMPTE ST2084, S-Log3, and S-Log3 (Live HDR).

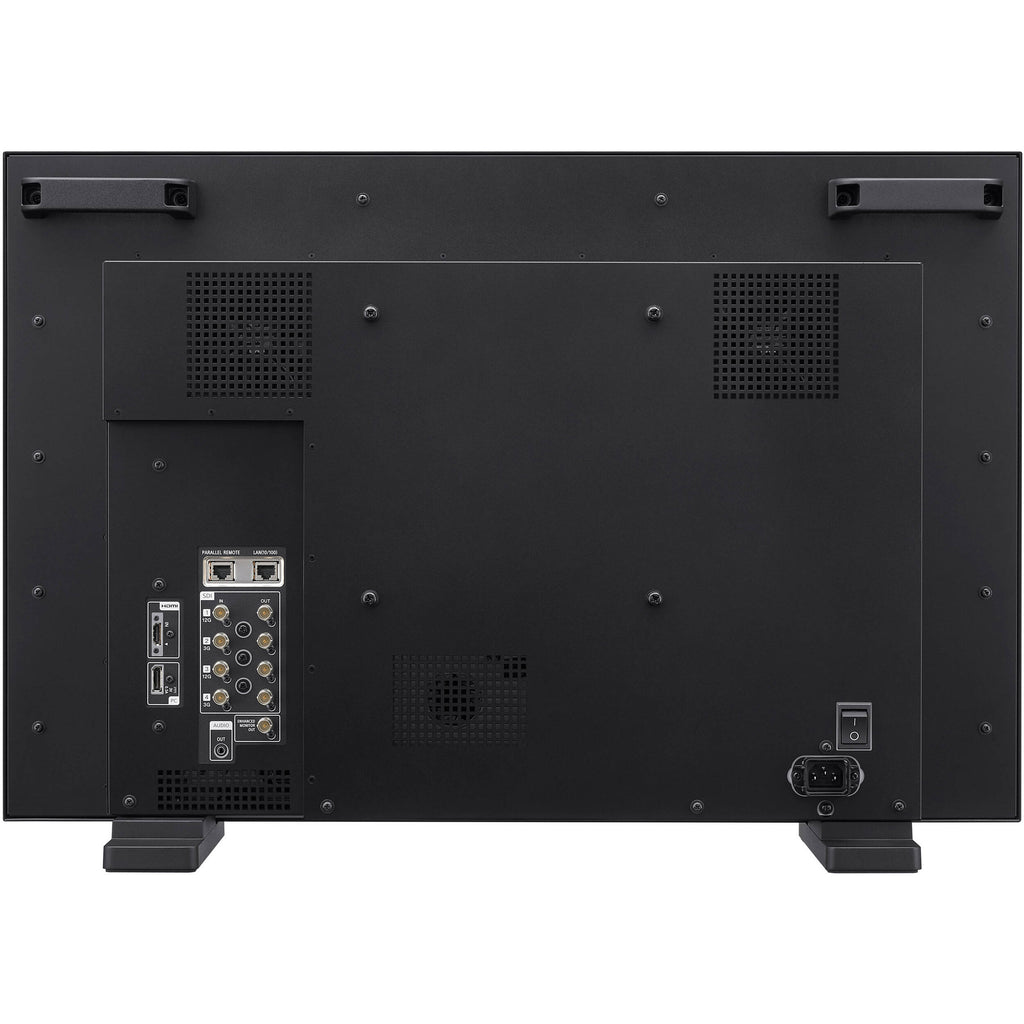

Inputs and Outputs
The monitor provides two 12G/6G-SDI and two 3G-SDI inputs in addition to an HDMI input. This enables support for a 4K signal using a single cable. The inputs also support four 3G quad-link inputs for 4K, four independent HD inputs, or four HD signals fed to quadview display.
Quadview Display
The PVM-X3200 can be used to display a single UHD 4K or HD picture or can be put into quad-split view mode, enabling the simultaneous display of four independent HD signals. Each signal can have a different EOTF and different LUT applied. The quadview mode is ideal for comparing different "looks", verifying exposure between cameras, or to monitor four different signals for space-saving convenience.
3D LUT Support
The monitor supports 3D user LUTs in .cube 33x33x33 and 17x17x17 formats. LUT files can be loaded via the USB port located at the front of the monitor. Up to 30 files can be stored. A user LUT can also be applied to signals connected over HDMI.
VPID Support
Video Payload Identifier (VPID) is ancillary data that can be set in the SDI input signal to assist a device to quickly decode the incoming video format. It is part of the SMPTE ST352 standard and is used to identify video format, color encoding, colorimetry, aspect ratio, and other factors. If a signal contains VPID data and the VPID feature is switched on, the PVM-X3200 monitor will automatically detect the flag and set monitor settings such as EOTF, RGB range, color space, and matrix to display the content correctly.
Internal Scopes
The PVM-X3200 provides internal scopes that can be used to measure and verify incoming signals. These include waveform (Luma (Y), RGB parade, YCbCr parade, and RGB overlay), SDR/HDR scales, vectorscope, and audio level meters, and all can be displayed simultaneously. Scope position is also selectable.
New Shallow Menu Structure
The user interface of the monitor has been improved to simplify day-to-day operations. The menu structure is shallower, and the status page now allows changes to be made to settings directly without the need to search within the menu for specific parameters. In addition, user presets can now be named to make identification clearer. For Example, "User 1 Preset" can be assigned an actual name to give it context for easy identification.
UPC: 027242922419
In the Box
- Sony PVM-X3200 4K HDR Trimaster High-Grade Picture Monitor (32")
- AC Power Cord
- AC Plug Holder
- Limited 1-Year Warranty
Table of Contents
- Description
- Positioning in Sony Monitor Lineup
- Color Matching with BVM-Series Monitors
- Inputs and Outputs
- Quadview Display
- 3D LUT Support
- VPID Support
- Internal Scopes
- New Shallow Menu Structure
Sony PVM-X3200 Specs
Display
| Panel Type | TFT LCD |
| Display Size | 32.00" / 81.3 cm |
| Screen Area | 27.89 x 15.69" / 708.48 x 398.52 mm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 1000 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 137 ppi |
I/O
| Video | 2 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Input 2 x BNC (3G-SDI/HD-SDI) Input 1 x HDMI Type A (HDMI 1.4) Input 2 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Output 2 x BNC (3G-SDI/HD-SDI) Output |
| HDCP Support | Yes, Version 2.3 |
| Audio | 1 x 1/8" / 3.5 mm Monitor Output 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 x 2 W |
| Other I/O | 1 x Parallel (RJ45) Input 1 x LAN (RJ45) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 280 W |
Environmental
| Operating Temperature | 32 to 95°F / 0 to 35°C 68 to 86°F / 20 to 30°C (Recommended) |
| Operating Humidity | 30 to 85% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Storage Humidity | 0 to 90% |
General
| Dimensions | 29.6 x 19.5 x 6.1" / 752 x 494.5 x 155 mm, Excluding Stand 29.6 x 20.2 x 9.1" / 752 x 513 x 229.9 mm, Including Stand |
| Weight | 34.2 lb / 15.5 kg |
| Warranty Length | Limited 1-Year Warranty |
Packaging Info
| Package Weight | 40.755 lb |
| Box Dimensions (LxWxH) | 33.9 x 25 x 13.5" |
