Sony Portable Data Transmitter

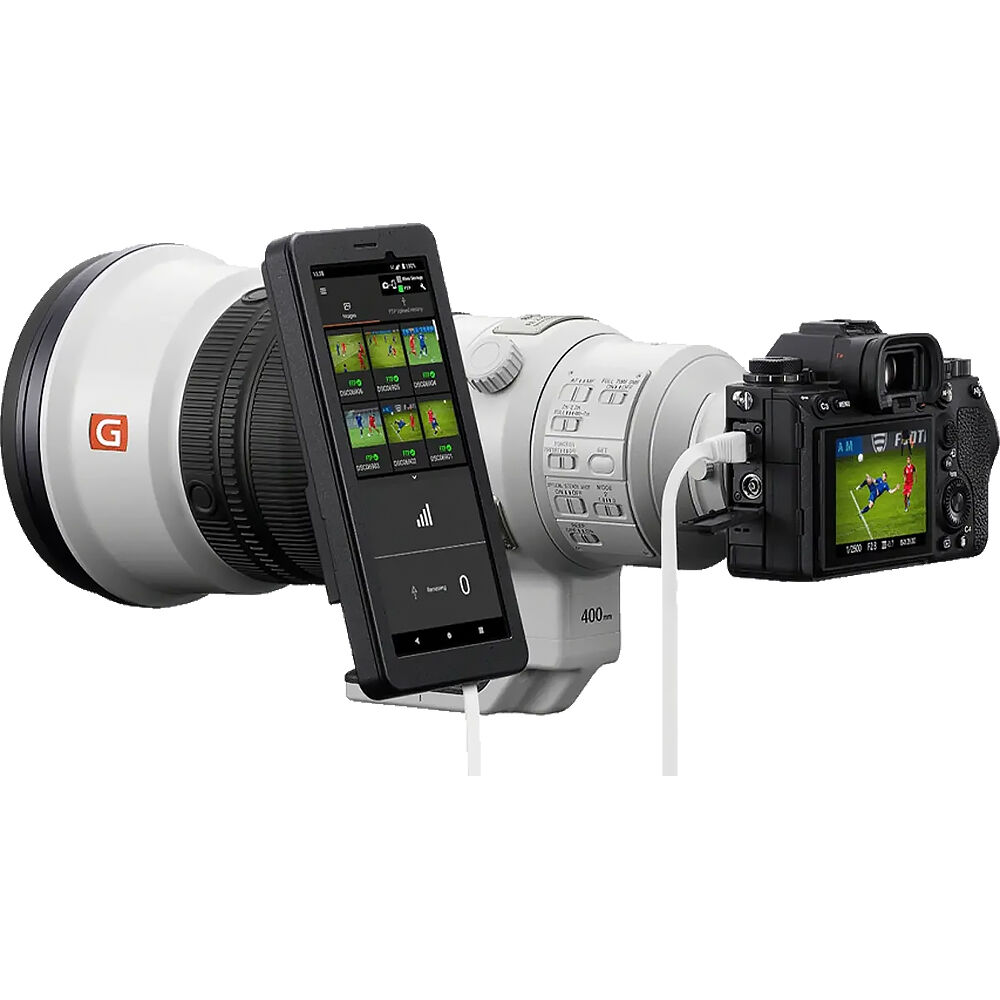

Transmit your photos and live stream videos quickly and remotely with the Portable Data Transmitter from Sony. The compact transmitter is designed with internal antennas and connects to your camera using USB or HDMI tethering. It can transmit photos or live stream up to UHD 4K video using wired LAN, Bluetooth, USB-C, or 5G/LTE cellular connections using separately available nanoSIMs or eSIMs. It also supports dual SIM operation for network failover using nanoSIM + eSIM technology.

The bright 6.1" OLED display allows you to preview your camera image and display network status data. The internal battery provides up to 4 hours of operation time in LTE mode, and it can be powered and/or charged using USB PD fast charging. Internal 256GB storage allows you to store data, you can add a microSD card up to 1TB for additional storage, or you can connect to Sony's Creator's Cloud for transfer and streaming support.

Deliver your vision with the PDT-FP1. Integrating optimal antenna design, an effective heat dissipation structure, and versatile input interfaces, it delivers high-speed and stable communication that fully caters to professional remote camera connectivity demands, all while offering simple operability.

The internal antenna design is optimized to maximize reception sensitivity, enabling high-speed, low-latency communication over a wide range of bands, including LTE and both 5G Sub6 and mmWave (where available).

With a wide variety of compatible communication options, including both local and private 5G, the PDT-FP1 enables fast and efficient data transmission worldwide. It also supports single or dual SIMs (nanoSIM + eSIM) for transmitting data while automatically switching to a stronger network.

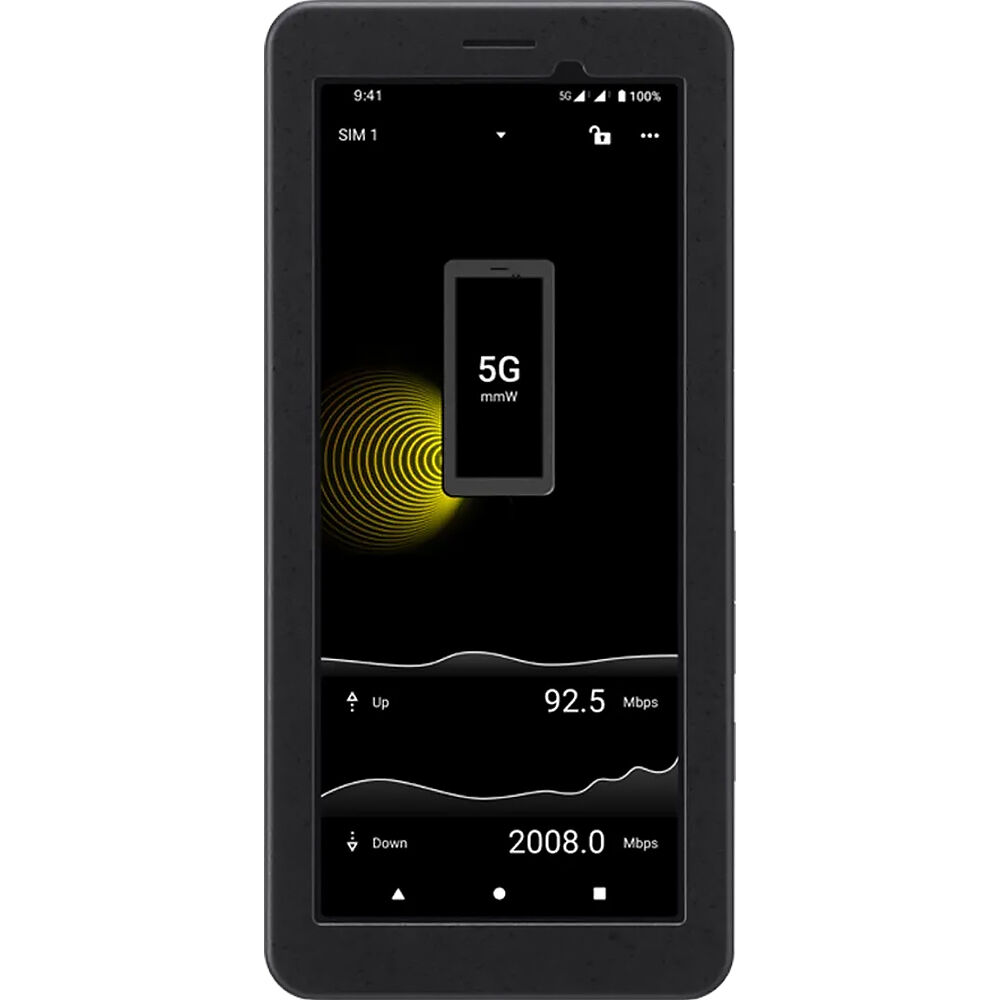

The PDT-FP1 features a large 6.1" OLED display that features a 2520 x 1080 resolution. The display can input up to UHD 4K60 video for preview during transmission, and it can also display network statistics and camera data.

To ensure reliability in challenging environments, the PDT-FP1 incorporates a newly developed cooling fan and a duct structure designed for heat dissipation and quiet operation. It effectively prevents thermal shutdown, even in temperatures as high as 104°F, for continuous transmission during shooting.

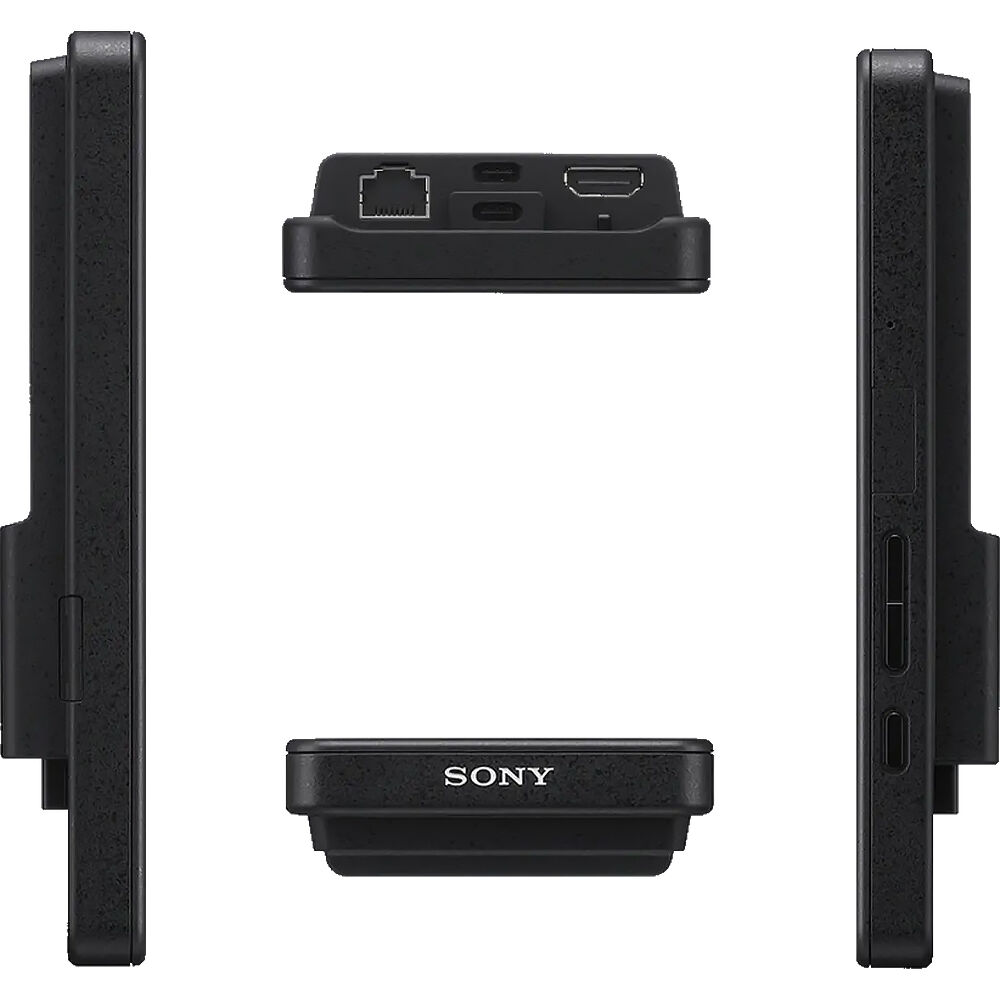

The PDT-FP1 is equipped with two USB-C ports that support USB PD (Power Delivery). One handles both data communication and charging, while the other is solely for charging. Using two ports, the PDT-FP1 can be charged while transferring data, allowing you to shoot without worrying about the battery level.

The PDT-FP1 offers versatile input interfaces, ensuring fast and stable data communication. A wired LAN terminal can connect to a compatible camera for data transfer and streaming, and an HDMI type A terminal is also provided for video data transmission.

The PDT-FP1 is equipped with 256GB of internal storage, expandable up to 1TB with the optional microSD card. This allows for stable data transfers while ensuring ample storage space.

Effortlessly transfer files to a designated FTP server or Creators' Cloud by connecting compatible Sony cameras via USB or Ethernet. Once the initial setup is complete, the "Camera Wired Connection" setting will automatically transfer files without the need to configure settings each time.

The "Camera Wired Connection" setting offers automatic file delivery to the C3 Portal and Ci Media Cloud for improved workflow. Together with its large 6.1" display and "Network Visualizer", transfer status can be visibly monitored before and while shooting. Also, low-latency, low bit rate, high-quality live streaming is possible with 5G connectivity by using the optional CBK-RPU7 and NXL-ME80 as a receiver.

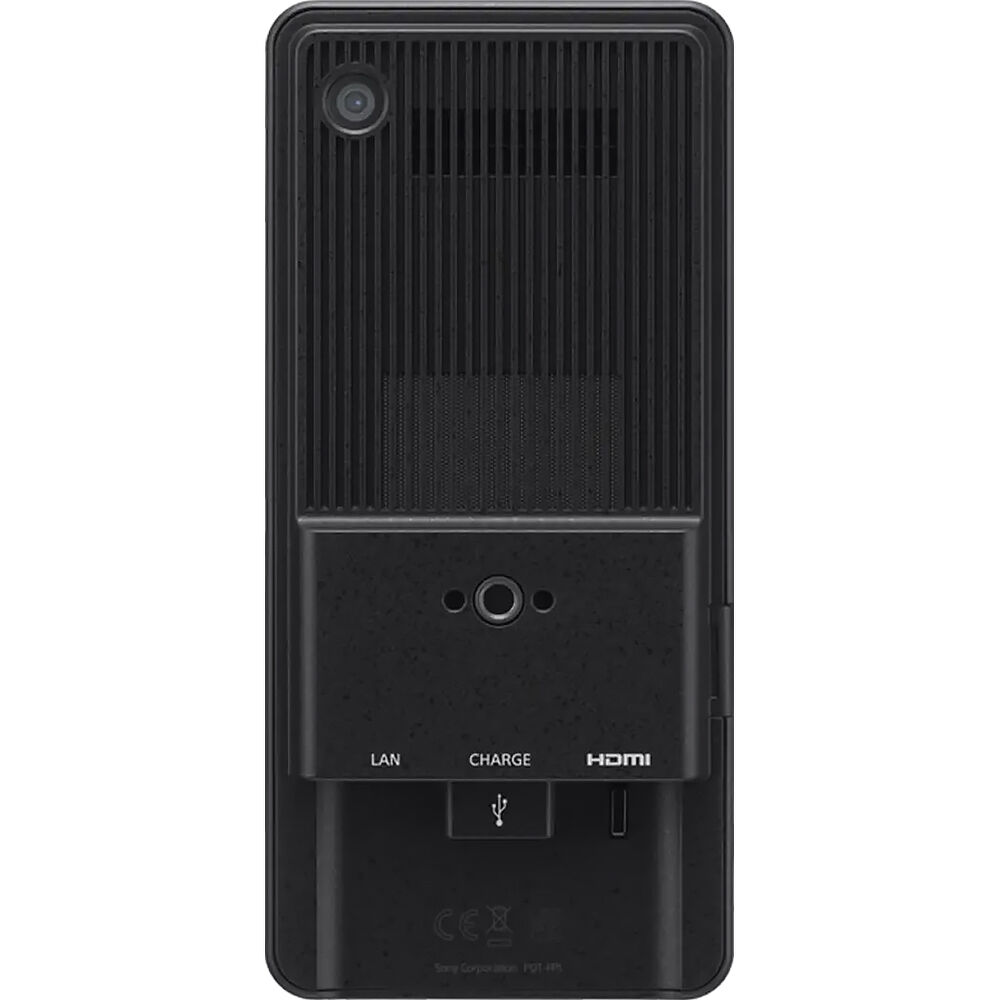

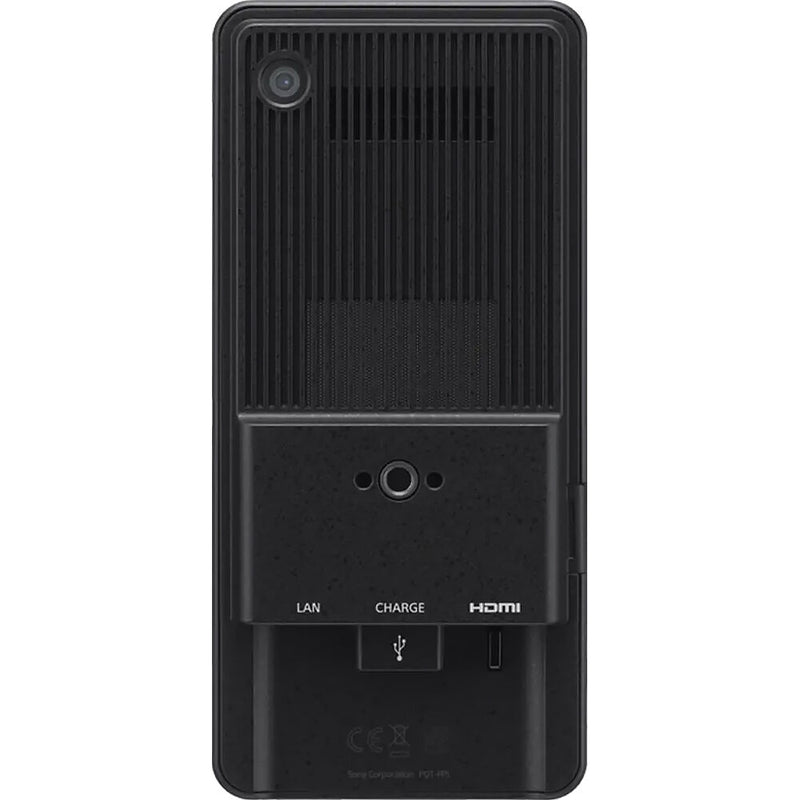

The PDT-FP1 features a 1/4"-20 (5.5mm) tripod screw hole on the rear for mounting onto a tripod or camera, and it features a strap hole for effective cable management.

Sony PDT-FP1 Specs

Display Size	6.1" / 15.5 cm
Native Resolution	2520 x 1080
Touchscreen	No
HDR Support	No
Video I/O	1x HDMI (Unspecified Signal) Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC [1 TB Maximum]
Video Format	HDMI (4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 720p: 60/50/30/25/24 480p: 60 576p: 60 480i: 60
Built-In Battery	5000 mAh
Mounting	1x 1/4"-20 Female

Panel Type	OLED
Display Size	6.1" / 15.5 cm
Native Resolution	2520 x 1080
Aspect Ratio	16:9
Touchscreen	No
HDR Support	No
Pixels Per Inch (ppi)	449 ppi

Video I/O	1x HDMI (Unspecified Signal) Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
Embedded Audio	HDMI/LAN (RJ45)/USB
Audio I/O	No
Built-In Speaker	Mono
Power I/O	1x USB-C Input
Other I/O	1x RJ45 (LAN) Input/Output
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC [1 TB Maximum]

Wireless Range	Not Specified by Manufacturer
Wi-Fi	Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth	5.3
Mobile App Compatible	No

Video Format	HDMI (4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 720p: 60/50/30/25/24 480p: 60 576p: 60 480i: 60
Audio Format	2-Channel

Built-In Battery	5000 mAh
Mounting	1x 1/4"-20 Female

Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	6.7 x 3.1 x 1" / 170 x 80 x 26.6 mm
Weight	10.86 oz / 308.00 g

Package Weight	0.94 lb
Box Dimensions (LxWxH)	7.9 x 3.6 x 1.9"
