Description
Sony MSU1500 Overview
- 1Description
- 2Large and Flexible System Configuration
- 3Ethernet LAN Capability
- 4Customizable Switch and Menu

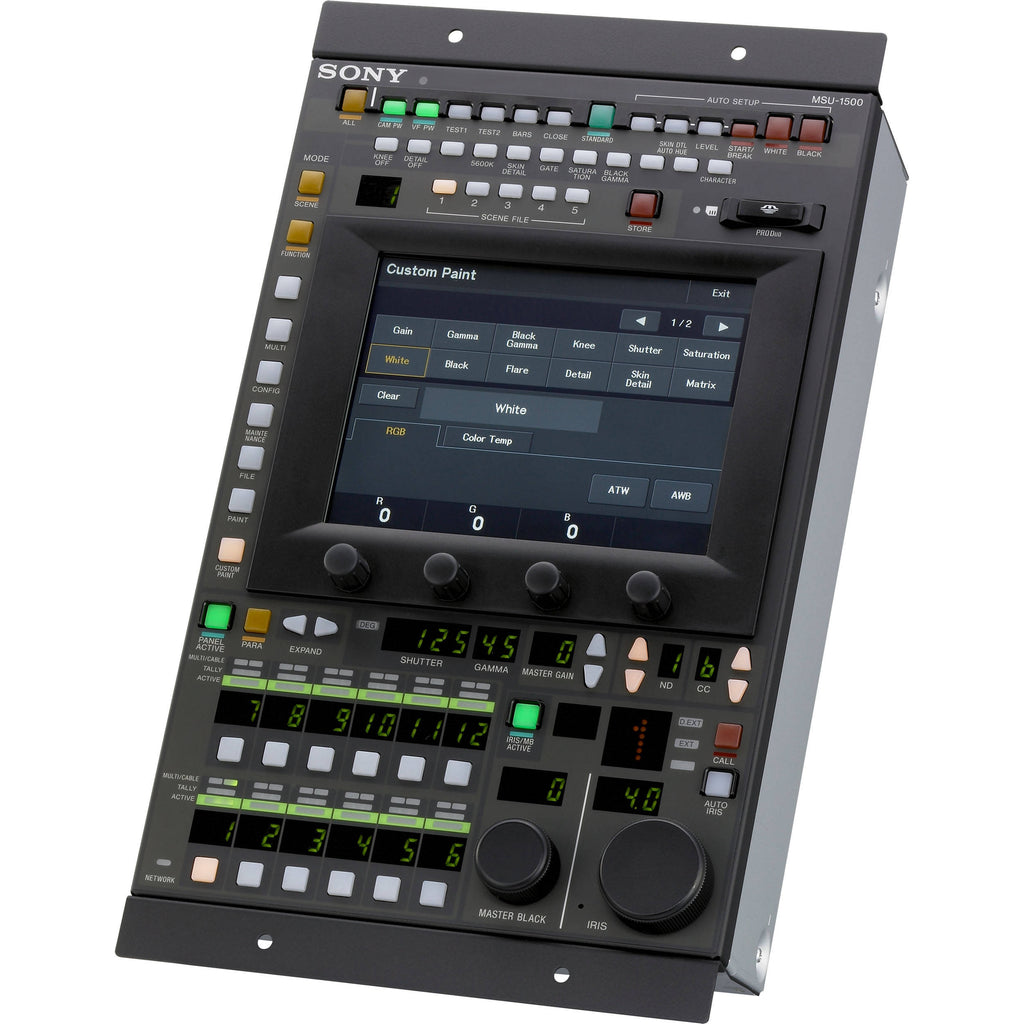

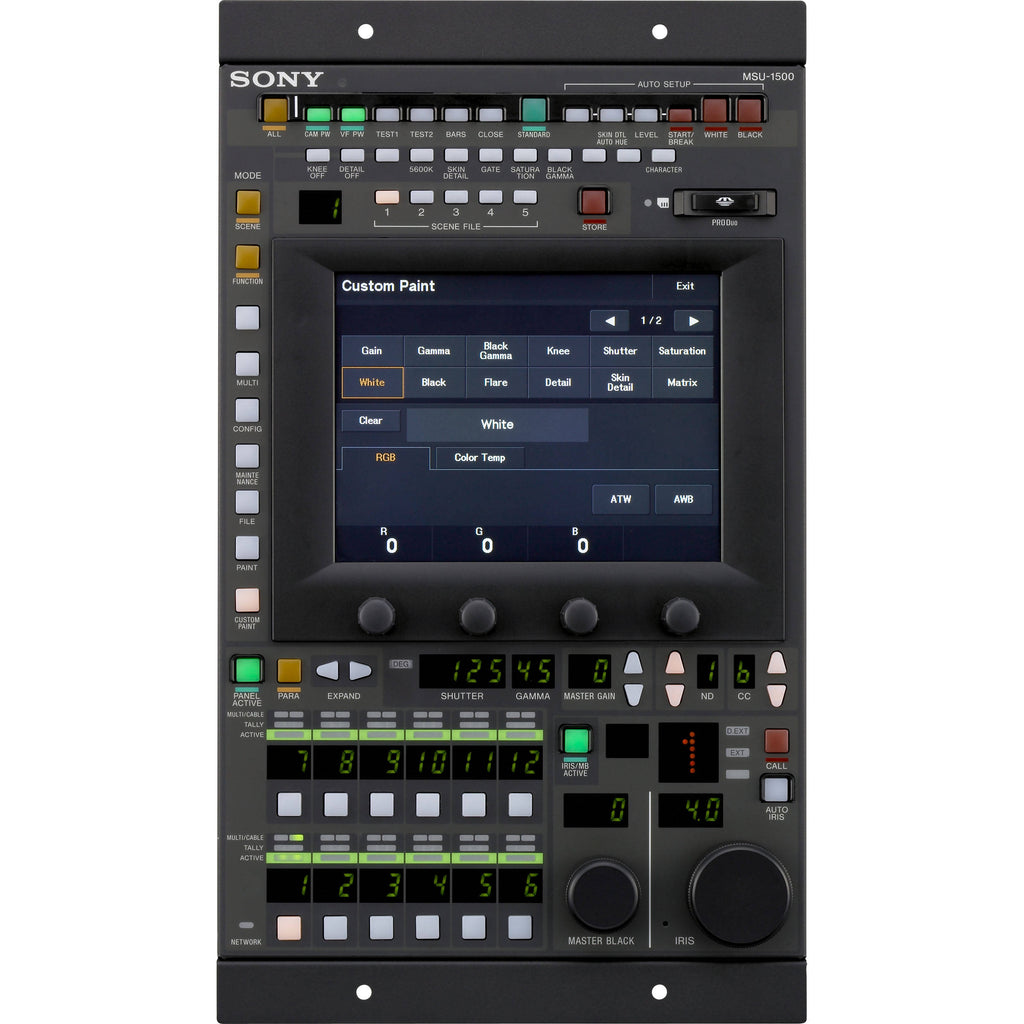

The Sony MSU-1500 Master Setup Unit is a vertically oriented control panel designed for camera configuration and maintenance. Control of multiple camera systems is possible via an optional CNU-700 Camera Command Network Unit or using an Ethernet LAN--which allows control of up to 96 cameras.
Large and Flexible System Configuration
The MSU-1500 is part of a family of products that provides flexibility in the configuration of large and small camera control systems.
Ethernet LAN Capability
The MSU-1500 supports interconnectivity using an Ethernet LAN as well as a CNU-700.
Customizable Switch and Menu
MSU-1500 users can map any function to an assignable switch or menu item.
In the Box
- Sony MSU-1500 Master Setup Unit (Vertical Type)
- 1 Year Warranty
Table of Contents
- Description
- Large and Flexible System Configuration
- Ethernet LAN Capability
- Customizable Switch and Menu
Sony MSU1500 Specs
| Input and Output Connectors | Ethernet: 8-pin RJ-45 (x1) CCU/CNU: 8-pin Multi-connector, female (x1) AUX: 8-pin Multi-connector, female (x1) EXT I/O: 50-pin D-Sub, female (x1) AC IN: 3-pin (x1) DC IN: 4-pin (x1) |
| Power Supply | 100-240VAC, 50/60 Hz, 0.35 A (max) 10.5-17VDC, 1.2 A (max) |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Dimensions (WxHxD) | 8.13 x 14 x 2.75" (20.4 x 35.4 x 6.7 cm) |
| Weight | 7.9 lbs (3.6kg) |
Packaging Info
| Package Weight | 10.95 lb |
| Box Dimensions (LxWxH) | 19 x 12 x 10" |
