Description
Sony HKSP-105 Overview
- 1Description
- 2AES/EBU Multiplexed with HD SDI Signal
- 3(2) Outputs
- 4Expansion
- 5Adjustable Audio Delay
- 6Control

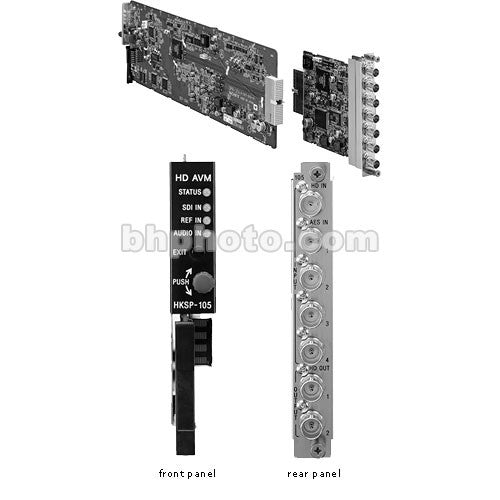

The HKSP-105 Audio-Video Multiplexer Board from Sony is designed to multiplex (4) AES/EBU digital audio signals (8 channels) with an HD SDI video signal. The unit provides (2) outputs of the multiplexed signal. An additional (4) signals and a total of (16) channels can be achieved by cascading (2) HKSP-105 boards.
The audio delay of this unit is adjustable up to a maximum of (2) video frames. Auto selection of HD multi-format is a standard feature. This unit also masks and retains HANC area and embedded audio data, transfers UMID and VITC data, and provides a simple signal generator. External reference input is provided as PFV-SP Series Signal Processing Unit. The board may be controlled through your system or remotely through an optional UCP-8060 Universal Control Panel (Ethernet 100BASE-TX).
AES/EBU Multiplexed with HD SDI Signal
(2) Outputs
Expansion
Adjustable Audio Delay
Control
In the Box
- Sony HKSP-105 Audio-Video Multiplexer Board
- Multiplexer Board
- 1 Year Parts, 90 Days Labor
- Description
- AES/EBU Multiplexed with HD SDI Signal
- (2) Outputs
- Expansion
- Adjustable Audio Delay
- Control
Sony HKSP-105 Specs
| Inputs | x1 HD SDI, BNC |
| Outputs | x2 HD SDI, BNC |
| Bandwidth | HD serial digital signal conforming to SMPTE291M/292M/299M, 1.4835 or 1.485 Gbs |
| Impedance | 75�, unbalanced |
| Return Loss | 15 dB or less (at 742.5 MHz) |
| Power | Power Requirements: +12 VDC: less than 1.0A Power Consumption: Approx. 12W |
| Dimensions | Board (HxW): 4-1/2 x 15-3/8" (112.2 x 388.3mm) Connector Panel (HxDxW): 5-1/8 x 6-1/8 x 7/8" (130 x 152.5 x 19mm) |
