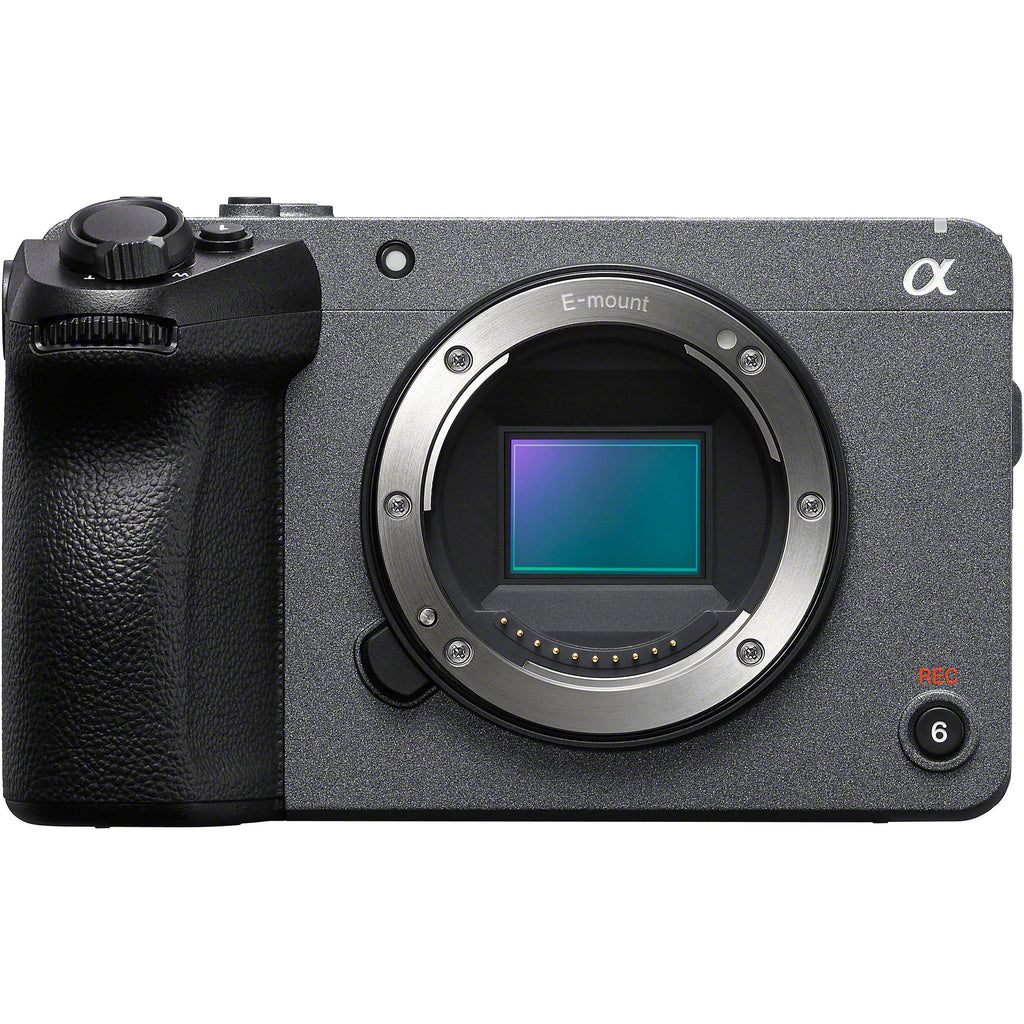

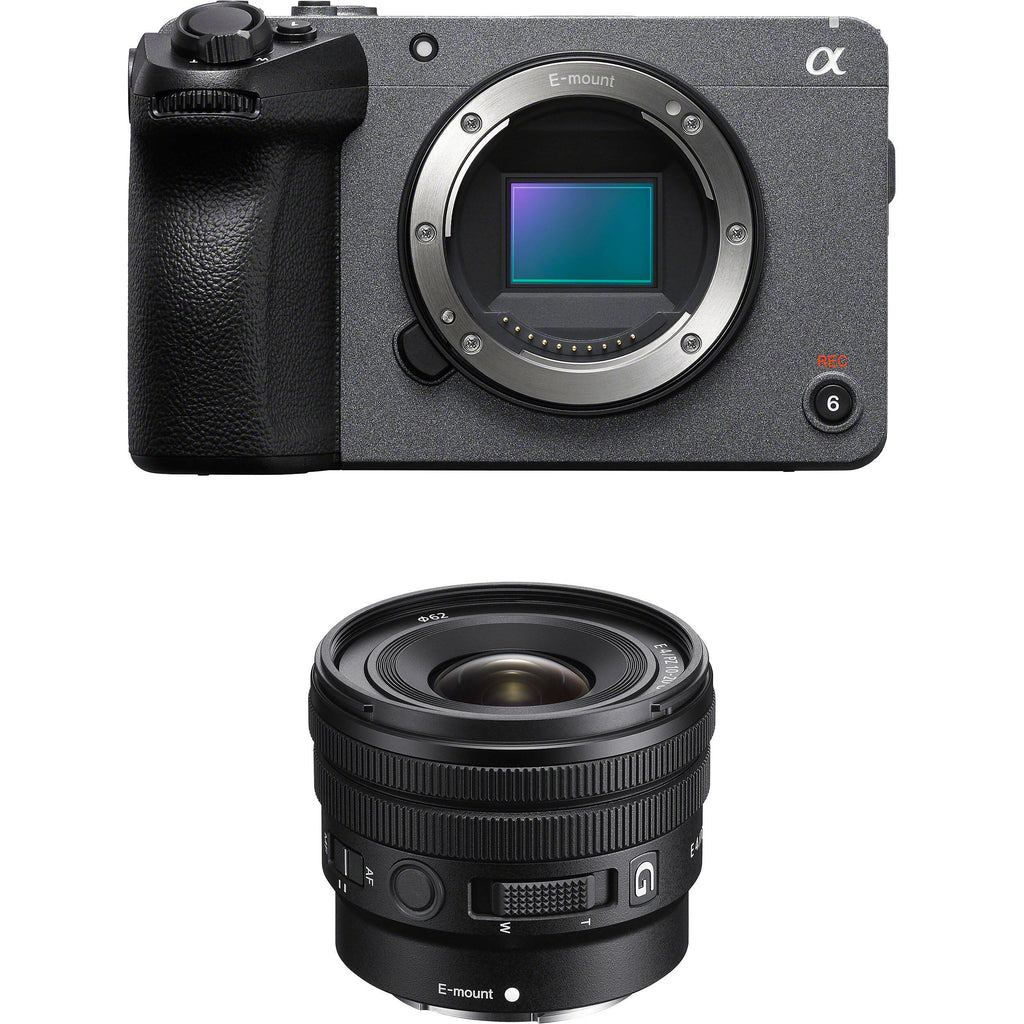

Sony FX30 Digital Cinema Camera with 10-20mm Lens Kit

Leveraging the power of a newly developed APS-C sensor, the Sony FX30 provides everyday content creators and aspiring filmmakers with a powerful, yet accessible cinema camera with which to push their cinematic journey to new heights. It blends an imaging pipeline designed for cinematic capture with a comprehensive feature set and intuitive operation to create a complete system for all levels of filmmaking.

26MP APS-C/Super 35 Exmor R BSI CMOS Sensor

The FX30's advanced imaging system is on par with other options in Sony's Cinema Line?capturing detailed 10-bit UHD 4K imagery at up to 120 fps?giving it specs fitting a true cinema camera. The newly developed 26MP APS-C Exmor R CMOS sensor and BIONZ XR processor are able to create high-quality 4K images with the Super 35 (16:9) area. This system is capable of capturing 14+ stops of dynamic range and benefits from Dual Base ISO architecture to improve low-light performance.

Firmware Update Version 6.0.0

Firmware update v6.0.0 provides the following revisions for easier capture, monitoring, and recording:

• The BIG6 home screen provides a clear, easy-to-read display of essential settings used in video recording, including FPS (frames per second), EI (exposure index), Shutter, Iris, Look, and WB (white balance).
• Fixed/Variable: This new mode lets you directly specify your frame rate without having to set the S&Q mode.
• Adds Focus Magnifier and Auto Magnifier support in the MF settings when using Bright Monitoring.
• De-Squeeze Display now includes 1.5 and 1.6x magnification.
• Record Blackmagic RAW video output via HDMI (see the BMD site for compatible products).
• Use Creators' app v3.1.0 or later to directly upload videos to Creators' Cloud based on OK/NG/KEEP flags.
• Supports Manual Framing and Clip Flag notes using the Monitor & Control app v2.4.0 or later.
• Discontinues the Security (IPsec) function in favor of the more secure Access Authentication.
• Discontinues the WPA and WEP Wi-Fi functions in favor of the more secure WPA2 or WPA3.
• Additional v6.0.0 features include automatic recognition of and connection to the separate USB-LAN adapter, display of the remaining capacity of both storage devices during video recording using Simultaneous or Auto Switch Media modes, metadata recording of the optical density of preregistered ND filters, and filtering of images for smartphone and FTP transfer using Clip Flag.

• High-sensitivity recording up to ISO 32000 and Dual Base ISO (800/2500).
• When using S-Log3, the FX30 can capture 14+ stops of dynamic range.
• Record in 10-bit 4:2:2 using advanced XAVC HS and XAVC S-I formats.
• Full pixel readout from the 6K sensor creates high-quality UHD 4K video at up to 60 fps.
• High-speed shooting is possible in 4K at up to 120 fps with a 1.6x crop and in Full HD at up to 240 fps.
• The HDMI output supports 16-bit raw video to select, separately available recorders.

Professional Picture Control

Filmmakers will be able to capture images that are immediately ready to publish for projects with fast turnarounds or opt for maximum quality and flexibility in post thanks to a wide array of picture control options:

• S-Cinetone uses the same color science as Sony's advanced cinema cameras, including the VENICE line, with natural mid-tones, soft colors, and smooth highlight roll-off.
• Picture Profiles, such as S-Log3 and HLG, will capture images with expanded dynamic range and flexibility for editors.
• Creative Looks can be baked into the recorded footage to create a specific mood during recording and minimize the need for editing.
• Up to 16 user-created LUTs and three presets can be set for accurately monitoring footage or previewing a specific look during shooting. These can be applied to the camera's monitor or EVF as well as the HDMI output.



Operation for All Levels

Professional features will help ensure beginners to professionals can make the most of the FX30. This includes three log shooting modes:

• Flexible ISO uses standard ISO settings for simple operation and the greatest flexibility.

• Cine EI ensures maximum dynamic range capture by recording at a manually selected base ISO setting and applying adjustments to metadata for monitoring and post-production.
• Cine EI quick will automatically switch between the two base ISO settings for easier operation and great quality.

Sony has equipped the FX30 with a 5-axis in-body image stabilization system that will help create smooth imagery even when working handheld. An Active Mode is available that blends optical systems with digital optimizations to capture ultra-smooth footage. The FX30 can also record gyro movement when the optical stabilizers are turned off, which can be used in post to create a stable shot.

Fast Hybrid AF

Enjoy high-speed and highly accurate autofocus performance in every mode, including 4K up to 120 fps, using an advanced Fast Hybrid AF system that uses 495 points spread across 90% of the image sensor.

• Real-time Eye AF and Real-time Tracking will track the eyes of humans and animals.
• AF Assist function will automatically switch to manual focus with a turn of the lens' focus ring.
• Focus Map makes it easier to visualize the region of focus in your scene

Comprehensive Feature Set

Plenty of Sony's cinema features have found their way into the FX30:

• Breathing compensation works with select lenses in 4K up to 60p in camera or up to 120p using Catalyst software after recording.
• Timecode sync input with optional VMC-BNCM1 Timecode Adapter Cable
• Tally lights for an easy indication that the camera is recording.

For recording high-bitrate footage at high frame rates the FX30 uses an advanced, versatile set of media slots. The camera features dual CFexpress Type A/SD card slots, allowing users to select between different media types for different situations. CFexpress Type A has ultra-fast speeds that can be used for the FX30's most advanced recording functions while SD cards are often more common and still have great speed and high capacities.

Catalyst Browse and Prepare Integration

The FX30 records a comprehensive array of metadata that can be read and used for advanced post-production work using Sony's Catalyst Browse and Prepare software.

Metadata recorded includes:

• Embedded LUT and Exposure Index (EI) data.
• Gyro and lens stabilization metadata to further reduce camera shake.
• Breathing compensation can be manually controlled and adjusted.
• Camera rotation metadata will ensure the footage is displayed as intended.
• Shot marks can be added to clips during or after recording for reference

Lightweight and compact, the FX30 (in a design that matches the FX3) offers users the ability to shoot without needing a cage. Users can also enjoy smooth handheld footage thanks to a 5-axis in-body image stabilization system.

The body features multiple threaded mounting points that are ideal for accessories and a Multi Interface Shoe that supports advanced accessories. Additionally, an integrated fan ensures reliable performance during extended takes.

• Lightweight body weighs just 1.2 lb.
• Dedicated zoom rocker.
• Fully customizable button layout.
• Five 1/4"-20 threaded mounting points for accessories.
• Multi Interface Shoe supports advanced accessories.
• Active cooling fan permits uninterrupted shooting during extended takes.
• Sporting a matching design to the FX3, the FX30 can use many of the same accessories, such as cages, without any modifications required.

Updated Menu System

The FX30 benefits from a tweaked control menu that makes it more intuitive to operate:

• The main menu provides a quick view of all your most important video settings, including Picture Profile, recording format, white balance, aperture, ISO, and more.
• The shooting screen relocates the information on settings and status icons to the edges of the screen so that the image remains clear.

The FX30 is equipped with a wide array of connections to ensure maximum customization and flexibility on set:

• Full-size HDMI output features clean output up to 4K 60p as well as 16-bit raw video.
• Audio is supported on the body with a 3.5mm headphone output and a 3.5mm microphone input.
• USB-C connection can be used for high-speed data transfer or for powering the camera.
• Multi-Terminal (Micro-USB) supports various accessories, such as remotes, for expanded functionality.
• Timecode sync is available through the use of the separately available VMC-BNCM1 Timecode Adapter Cable.
• Multi Interface Shoe supports advanced accessories, including the optional XLR Handle Unit.

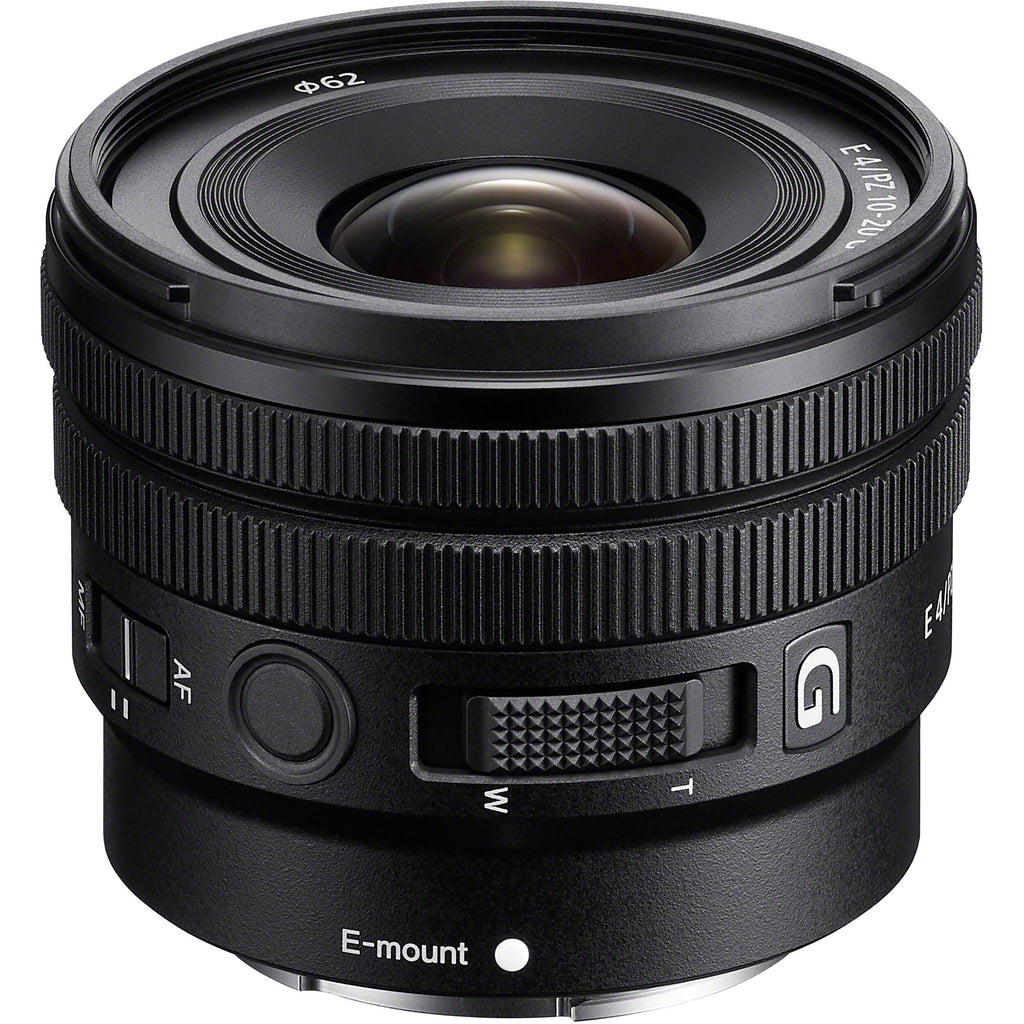

A lens built with the hybrid shooter in mind, the Sony E 10-20mm f/4 PZ G is a lightweight and versatile ultra-wide-angle APS-C zoom ideally suited for vlogging and content creation needs. Featuring Power Zoom, intuitive handling, and advanced optics, this portable go-to lens excels at daily shooting applications and the updated autofocus performance also brings it up to speed for stunning video production capabilities.

Built with vlogging in mind, this lens's key attributes relate to video recording performance, ease of use, and a highly versatile design:

• Electronically controlled internal Power Zoom mechanism enables making smooth zooms during takes, with control possible via the lens body, using either the zoom lever or the zoom ring, or from select camera bodies.
• Internal zoom and internal focus design maintains the overall lens length during operation and also helps to reduce any shifts to the lens's center of gravity for better performance when mounted to a handheld gimbal.
• Linear AF system is especially quiet and smooth and also supports Linear Response MF for natural manual focusing control.
• Smooth Motion Optics (SMO) suppresses focus breathing to help maintain compositional accuracy when changing focus. This lens is also compatible with the Breathing Compensation function in select Alpha cameras.

Ultra-wide-angle zoom offers a versatile 15-30mm equivalent focal length range, striking an ideal balance between being wide enough for handheld, selfie style vlogging and narrow enough for natural, everyday recording. Also, the constant f/4 maximum aperture offers consistency throughout the zoom range and marries brightness with a compact design.

• Three aspherical elements help achieve high sharpness and suppress distortion and spherical aberrations.
• Two ED elements promote greater clarity and color accuracy by reducing chromatic aberrations.
• One ED Aspherical element further contributes to impressive image quality by correcting for a variety of aberrations.
• Circular diaphragm contributes a smooth and natural bokeh quality.

Linear Motor system uses two separate motors to provide quick, quiet, and precise autofocus and tracking performance. This design also contributes to more natural, intuitive Linear Response manual focus control and an AF/MF switch is located on the lens barrel for quick focus mode switching.

• Internal focusing design offers more responsive focusing performance and maintains a consistent overall lens length during operation.
• Suitable for close-up shooting, the minimum focusing distance at the 10mm position is 5.1" and, at the 20mm position, is 6.7" with a 0.18x maximum magnification; both of these close-up distances are only possible with manual focus. When using autofocus, the minimum focusing distance is 7.9" with a 0.14x maximum magnification.

This 10-20mm f/4 prioritizes compactness and sports a lightweight design while still managing impressive optical performance and notable f/4 constant maximum aperture. The lens is also weather-sealed and has an intuitive design for easy operability, making it a versatile wide-angle go-to lens for hybrid shooters and content creators.

• Impressively lightweight design weighs 6.3 oz and the sleek design measures 2.2" long; making this lens ideal for everyday handheld use and travel applications.
• Dust- and moisture-resistant design suits working in inclement conditions.
• Both an integrated Power Zoom lever on lens barrel and a dedicated zoom ring can be used for simple focal length adjustment. When used on select Sony cameras, Power Zoom can also be used via on-camera controls.
• With select Alpha cameras, the zoom ring rotation direction can also be adjusted.
• Remote zoom control is also possible via the optional GP-VPT2BT Wireless Shooting Grip or from a linked smartphone.

Key Specs
