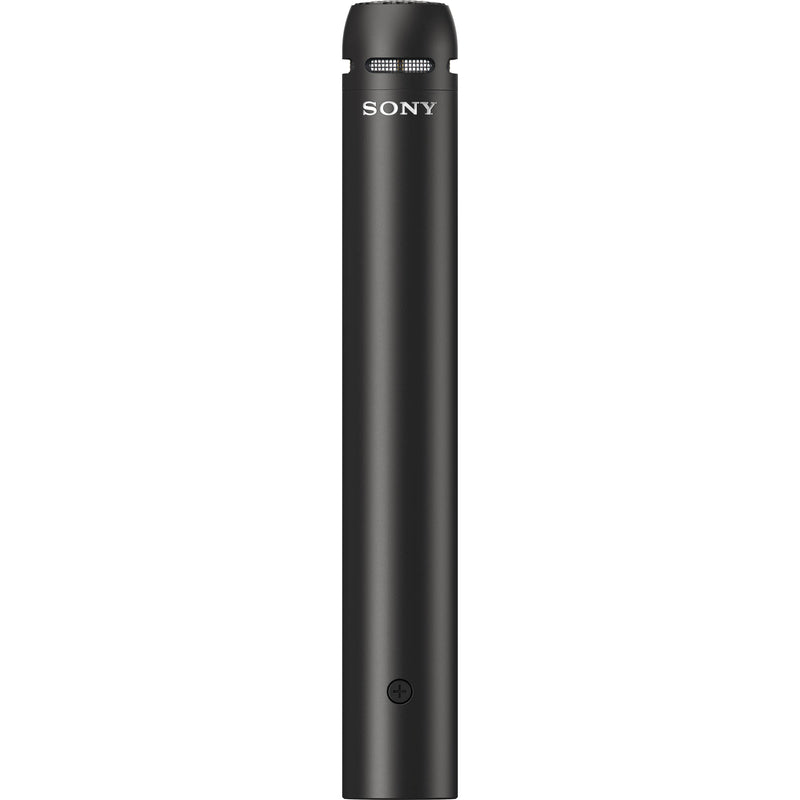

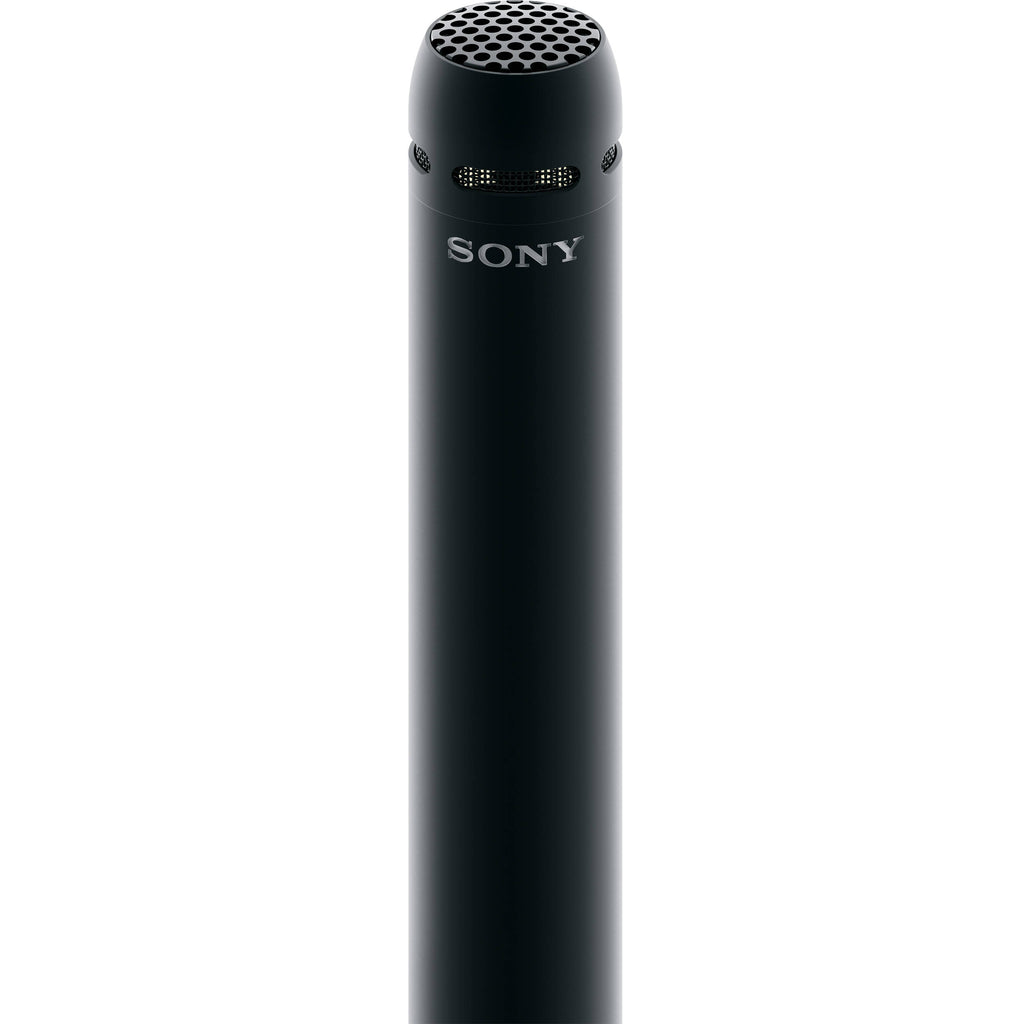

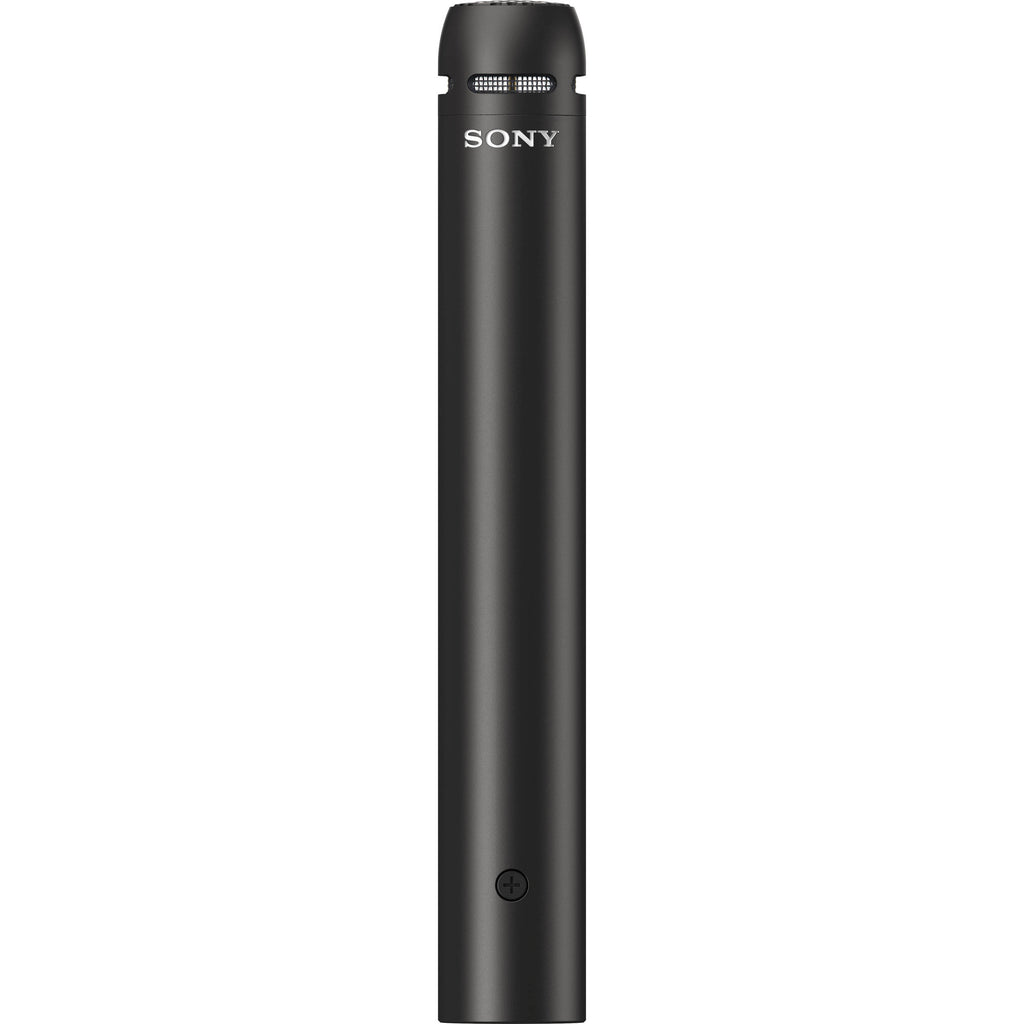

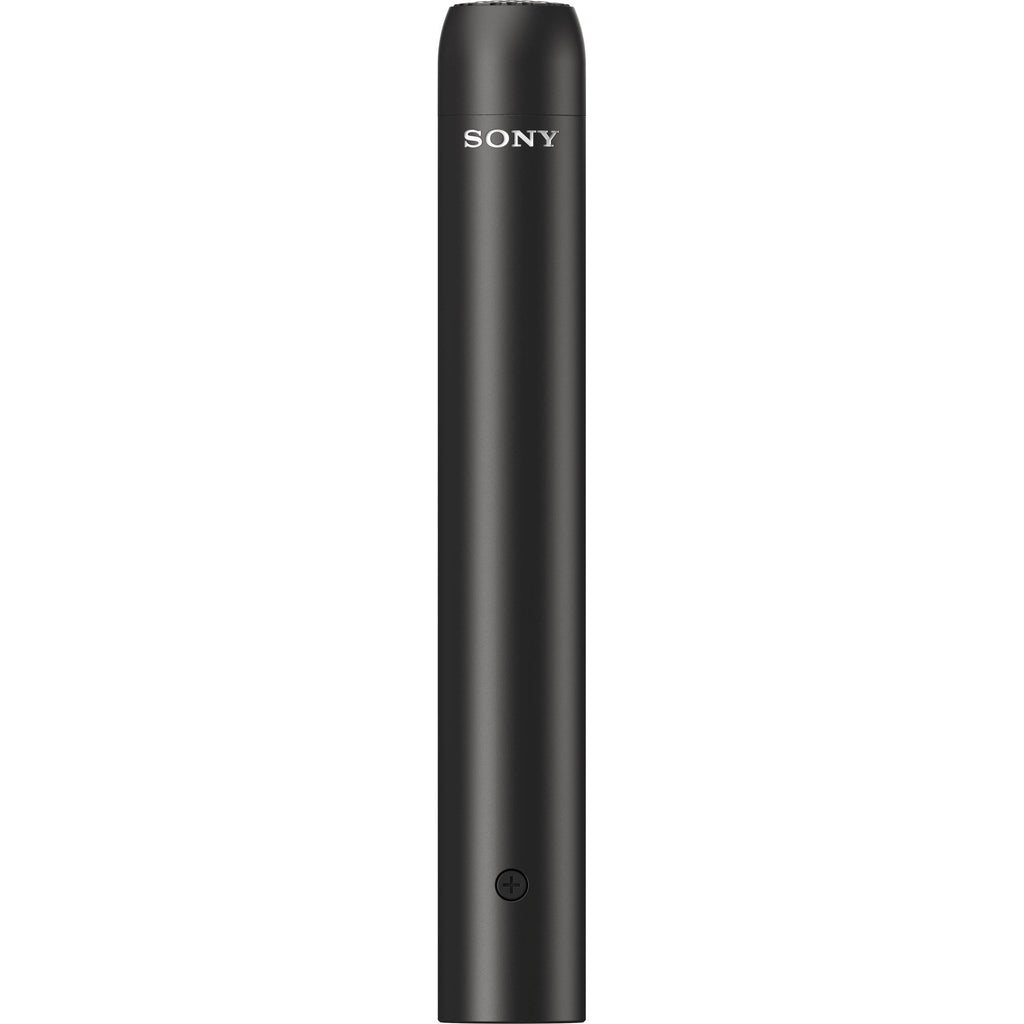

Sony EMC-100U High-Resolution Microphone (Cardioid)

High-Resolution Recording

Small Diaphragm Capsule: 17mm

Frequency Response: 20 Hz to 50 kHz

Cardioid Pattern

Sony C100 & ECM100 Hi-Res Mics - Todd Whitelock at Power Station/BerkleeNYC Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

Well suited for instrument recording, the Sony EMC-100U is a high-resolution, small diaphragm electret-condenser microphone with low distortion and noise. The 17mm diaphragm delivers a wide and flat frequency response of 20 Hz to 50 kHz. The two-part metallic body utilizes the same noise elimination construction employed by Sony's C800G microphone, which prevents acoustic vibration and ensures low noise and clear sound.

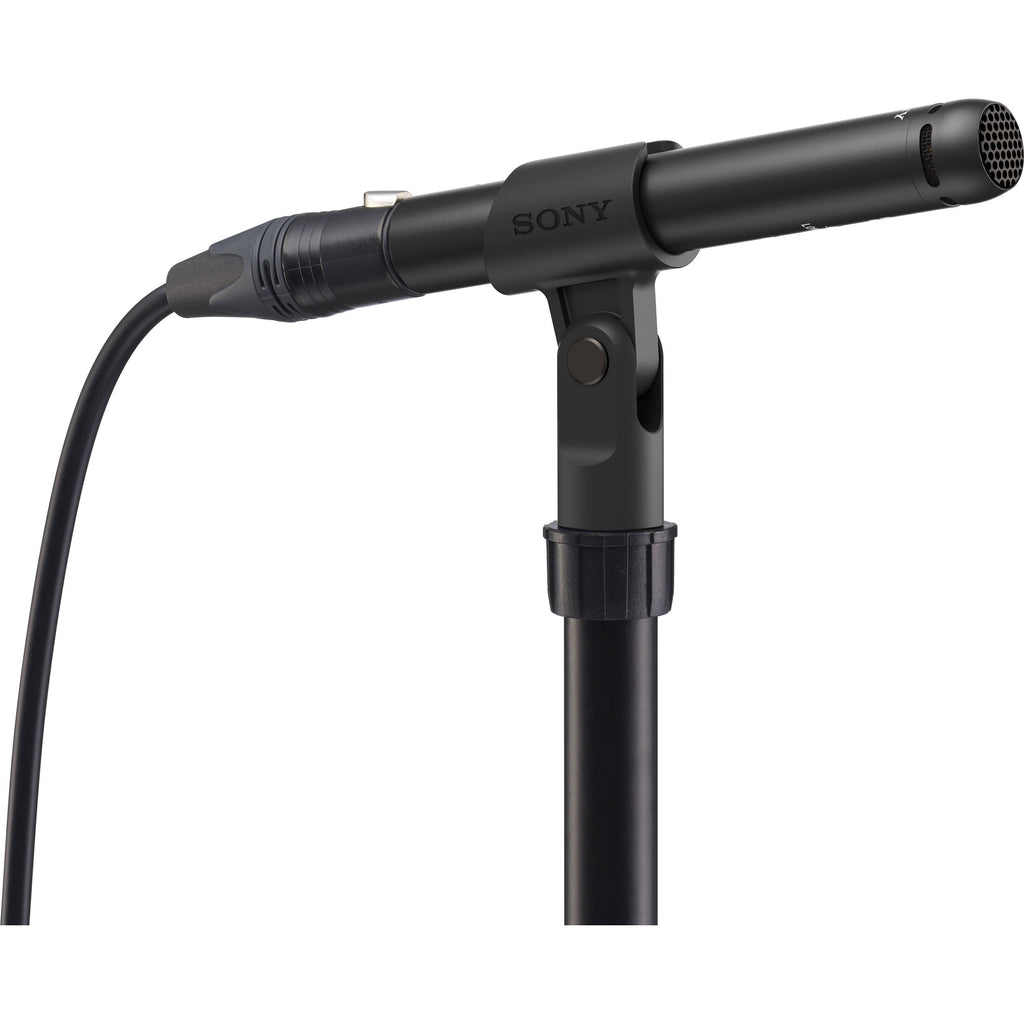

A 30 Hz low cut filter helps tame low frequency rumble, while the -10dB pad maximizes headroom and minimizes distortion caused by transient peaks. The Sony EMC-100U ships with a microphone clip, wind screen, mic stand adapter, and carrying case.

• Ideal for Instrument Recording: Small diaphragm (17mm) microphone capsule with a cardioid pick up pattern delivers the authentic sound of instruments with extremely low distortion
• Flat and Wide Frequency Response: The ECM-100U microphone has a flat and wide frequency response (20 Hz to 50 kHz) and provides professional sound reproduction quality for high-resolution audio
• Noise Elimination Construction: Two-part metallic body structure originally employed in the C-800G microphone prevents acoustic vibration, resulting in low noise and clear sound
• Low-Cut Filter: Low-Cut filter switch helps eliminate low-frequency noise and proximity effect
• Pad Switch: -10dB pad switch on ECM-100U microphone provides added headroom and minimizes distortion caused by transient peaks

UPC: 027242910928

Sound Field	Mono
Operating Principle	Pressure Operated
Capsule	Electret Condenser
Diaphragm	0.67" / 17 mm (Electret Condenser)
Polar Pattern	Cardioid
Pad	-10 dB
High-Pass Filter	30 Hz

Frequency Range	20 Hz to 50 kHz
Maximum SPL	Cardioid: 142 dB SPL RMS
Impedance	100 Ohms ± 15%
Load Impedance	None
Sensitivity	Cardioid: -41 dB at 1 kHz
Dynamic Range	Cardioid: 121 dB
Signal-to-Noise Ratio	73 dB A-Weighted
Equivalent Noise Level	21 dB A-Weighted

Output Connectors (Analog)

1 x XLR 3-Pin

Operating Voltage	42 to 52 V
Operating Current Consumption	25 mA

Dimensions	ø: 0.75 x L: 5.12" / ø: 19 x L: 130 mm
Weight	4.59 oz / 130 g

Package Weight	1.275 lb
Box Dimensions (LxWxH)	9.8 x 5.35 x 2.9"
