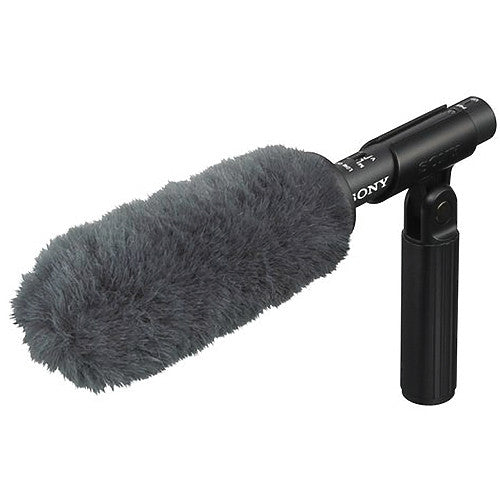

Sony ECM-VG1 Short Shotgun Microphone

For Indie Films, TV & Documentaries

Phantom Powered

Switchable Low-Cut Filter

High Sensitivity Requires Less Gain

Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

With an ultralightweight body and smooth tone, the Sony ECM-VG1 shotgun microphone offers strong, clean output signal for event video shoots, indie film production, TV and documentary shooting, court room depositions, and more. Plus, at a mere 2.3 ounces, it can be placed atop a camcorder or mounted on a boompole with virtually no impact on the weight of the rig.

The ECM-VG1 features a supercardioid polar pattern for excellent directivity and minimal noise at the off-axis sections of the capsule, resulting in intelligible voice pickup even in noisy environments. The microphone's wide, flat frequency response yields natural, accurate signal reproduction with crisp detail and minimal coloration.

The ECM-VG1 runs on 40 to 52 VDC phantom power, making it compatible with a variety of professional camcorders, multitrack field recorders, and portable audio recorders. The supplied furry windshield delivers up to 20 dB of wind noise reduction for high-quality audio capture in outdoor environments. It also includes microphone spacers and a mic holder to accommodate camera-mount and stand-/boompole-mount configurations.

Ultralightweight Metal Body The ECM-VG1 has been designed as a compact and ultralightweight shotgun microphone, measuring 8.3" in length and weighing a mere 2.3 ounces to ensure good balance even when mounted on compact camcorders. Its metal body offers rugged durability to handle the rigors of location recording. Smooth Frequency Response With its flat and wide frequency response of 40 Hz to 20 kHz, the ECM-VG1 provides sound reproduction that is smooth and natural. High Sensitivity The ECM-VG1 offers an elevated sensitivity of -33 dB and low self-noise level of less than 18 dB SPL, allowing the microphone to be used for clear voice capture even in noisy environments. Onboard Low-Cut Filter The onboard two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise such as rumble. Phantom Powered The ECM-VG1 can be driven by 40 to 52 VDC phantom power for consistent, battery-free operation with professional camcorders, multitrack field recorders, and portable audio recorders. Furry Windshield The ECM-VG1 comes with a special furry windshield that has an internal frame to rigidly fix the windshield. This creates a space between the microphone and the outside part of the windshield, helping it achieve up to 20 dB of wind noise reduction. It also protects the ECM-VG1 from contact noise in harsh operational environments such as outdoor shooting. Included Accessories The ECM-VG1 is supplied with a short XLR cable, a microphone holder (for use on a boompole or mic stand), two stand adapters, and a microphone spacer (for attachment to a camcorder's mic holder). UPC: 027242814646

Form Factor	Stand/Boom Mount
Sound Field	Mono
Operating Principle	Pressure Gradient
Capsule	1 x Electret Condenser
Polar Pattern	Supercardioid
Orientation	End Address
Circuitry	Solid-State
Pad	None
High-Pass Filter	Yes
Tone Adjustment	None
Indicators	None
On-Board Controls	High-Pass Filter
Windscreen	Windsock/Windjammer (Included)

Frequency Range	40 Hz to 20 kHz
Maximum SPL	127 dB SPL (1 kHz, 1% THD)
Off-Axis Rejection	>3 dB at 60° >15 dB at 120° 20 dB at 180°
Impedance	60 Ohms ± 20% at 1 kHz (Balanced)
Sensitivity	-33 dBV/Pa at 1 kHz
Dynamic Range	109 dB
Signal-to-Noise Ratio	76 dB A-Weighted (1 kHz)
Equivalent Noise Level	18 dB SPL

Output Connectors (Analog)	1 x XLR 3-Pin Male
Headphone Connector	None
Cable Length	19.69" / 50 cm

Operating Voltage	40 to 52 V (Phantom Power)
Operating Current Consumption	2.5 mA

Mounting	Mic Clip (Included)
Construction Material	Metal
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	ø: 0.79 x L: 8.27" / ø: 20 x L: 210 mm
Weight	2.33 oz / 66 g

Package Weight	0.92 lb
Box Dimensions (LxWxH)	9.4 x 5.2 x 3.05"
