Sony ECM90 Overview

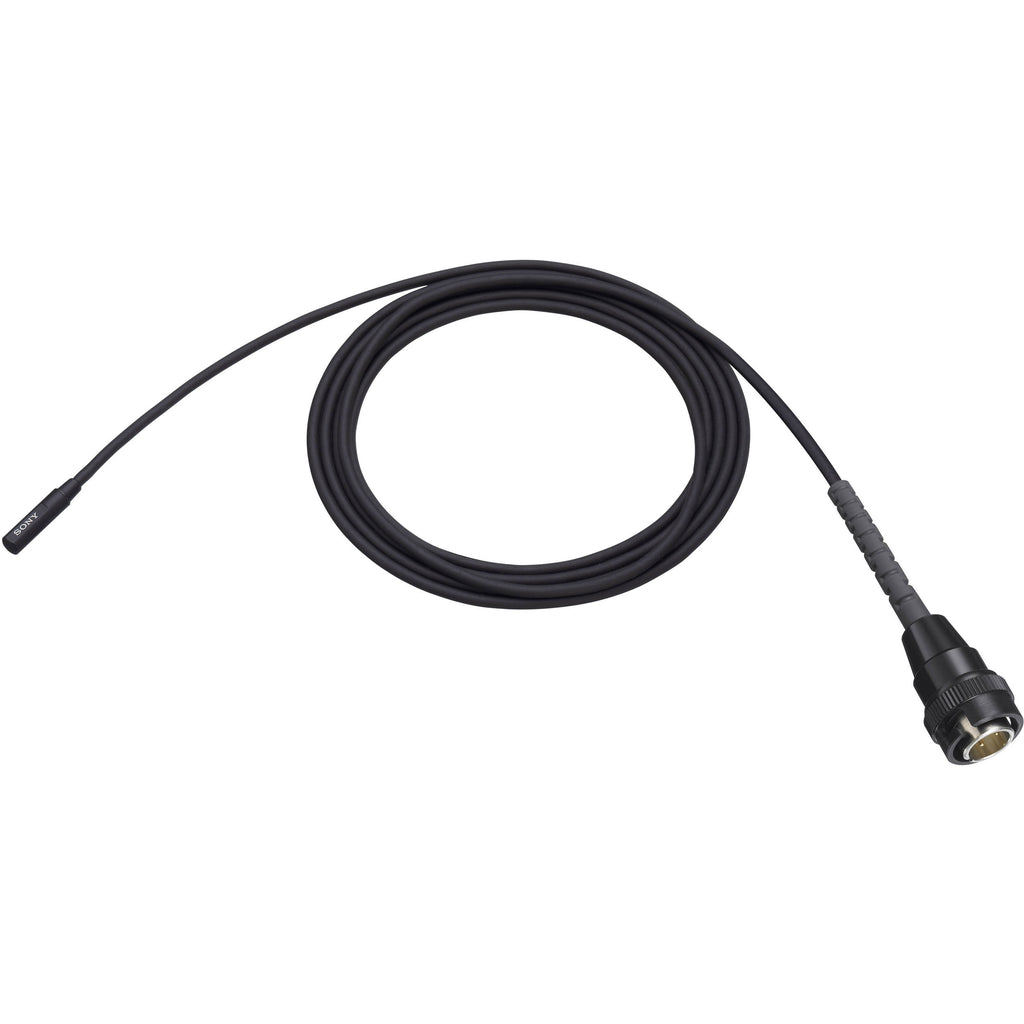

The ECM-90BC Ultra-Compact Dual-Diaphragm Electret Condenser Microphone from Sony is a microphone with an omnidirectional polar pattern, a flat-and-wide frequency response, and a splash-proof design that terminates in a Sony 4-pin (SMC9-4P) connector. It can be used to capture audio for live stage, theater, broadcast, and TV applications when paired with a wireless transmitter (sold separately). Additionally, the microphone includes a 3.9' cable, urethane type windscreen, and vertical and horizontal tie clips.
UPC: 027242915299
In the Box
- Sony ECM-90BC Ultra-Compact Dual-Diaphragm Electret Condenser Microphone
- Urethane Windscreen
- Vertical Tie Clip
- Horizontal Tie Clip
- Limited 1-Year Warranty
Sony ECM90 Specs
Sound Field |
Mono |
Capsule |
Electret Condenser |
Polar Pattern |
Omnidirectional |
Frequency Range |
20 Hz to 20 kHz |
Maximum SPL |
125 dB SPL Peak |
Impedance |
2.5 Kilohms |
Sensitivity |
38 dB at 1 kHz |
Dynamic Range |
99 dB A-Weighted |
Signal-to-Noise Ratio |
68 dB A-Weighted |
Equivalent Noise Level |
26 dB A-Weighted |
Output Connector |
4-Pin Hirose |
Cable Length |
3.9' / 1.19 m |
Operating Voltage |
1.1 to 10.0 V |
Length |
0.81" / 20.5 mm |
Diameter |
0.14" / 3.5 mm |
Weight |
0.04 oz / 1.13 g |
Packaging Info
Package Weight |
0.165 lb |
Box Dimensions (LxWxH) |
6.6 x 1.65 x 1" |
