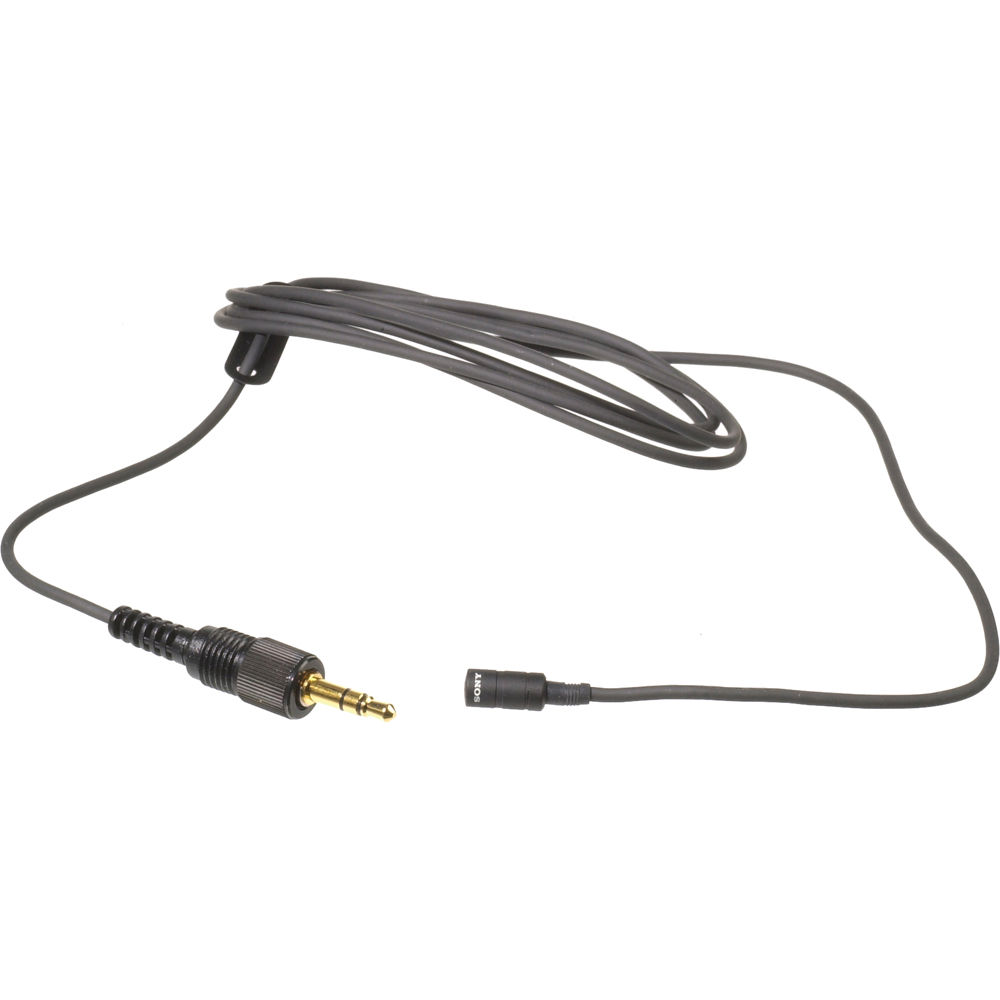

Sony ECM-77BMP Omnidirectional Lavalier Microphone with 3.5mm Locking Mini Jack for Sony Transmitters

For TV, Stage, ENG & Broadcast

Omnidirectional Condenser Element

40 Hz to 20 kHz Frequency Response

Powered via 1.1 to 10 VDC

Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

The Sony ECM-77BMP is a miniature omnidirectional lavalier microphone designed for professional broadcast, sound reinforcement, and recording applications. The condenser element features a miniature profile allowing it to be easily concealed in performance and broadcast situations. The omnidirectional polar pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.

The ECM-77BMP provides a wide frequency response of 40 Hz to 20 kHz for accurate reproduction of audio signal from a variety of sources. The attached 3.9' cable features a 3.5mm locking mini jack for use with WRT-805 bodypack transmitters and UWP Series beltpack transmitters such as the UTX-B1 and UTX-B03. Phantom power is supplied via the connected bodypack transmitters. The ECM-77BMP includes a windscreen and tie clip.

Omnidirectional Pattern The omnidirectional pattern provides even sensitivity and frequency response at the direct and off-axis sections of the microphone capsule. Miniature Profile The miniature, unobtrusive profile enables the microphone to be easily concealed in broadcast and performance situations. 3.5mm Mini Wireless Transmitter Connection The ECM series is available in a variety of connections; this version features a 3.5mm (1/8") locking mini jack for use with WRT-805 bodypack transmitters and UWP Series transmitters equipped with 3.5mm jacks. Phantom power is supplied via the connected transmitters. UPC: 027242632509

Sound Field	Mono
Operating Principle	Pressure Operated
Capsule	Electret Condenser
Polar Pattern	Omnidirectional

Frequency Range	40 Hz to 20 kHz
Maximum SPL	120 dB SPL
Impedance	2.5 Kilohms ± 30% at 1 kHz
Sensitivity	-39 dB at 1 kHz
Dynamic Range	90 dB
Signal-to-Noise Ratio	64 dB A-Weighted
Equivalent Noise Level	30 dB

Output Connector	1/8" / 3.5 mm Locking
Cable Length	3.9' / 1.19 m

Operating Voltage	1.1 to 10 V
Operating Current Consumption	0.4 mA

Length	0.49" / 12.5 mm
Diameter	0.22" / 5.6 mm
Weight	0.8 oz / 22.7 g

Package Weight	0.115 lb
Box Dimensions (LxWxH)	6.6 x 1.7 x 0.9"
