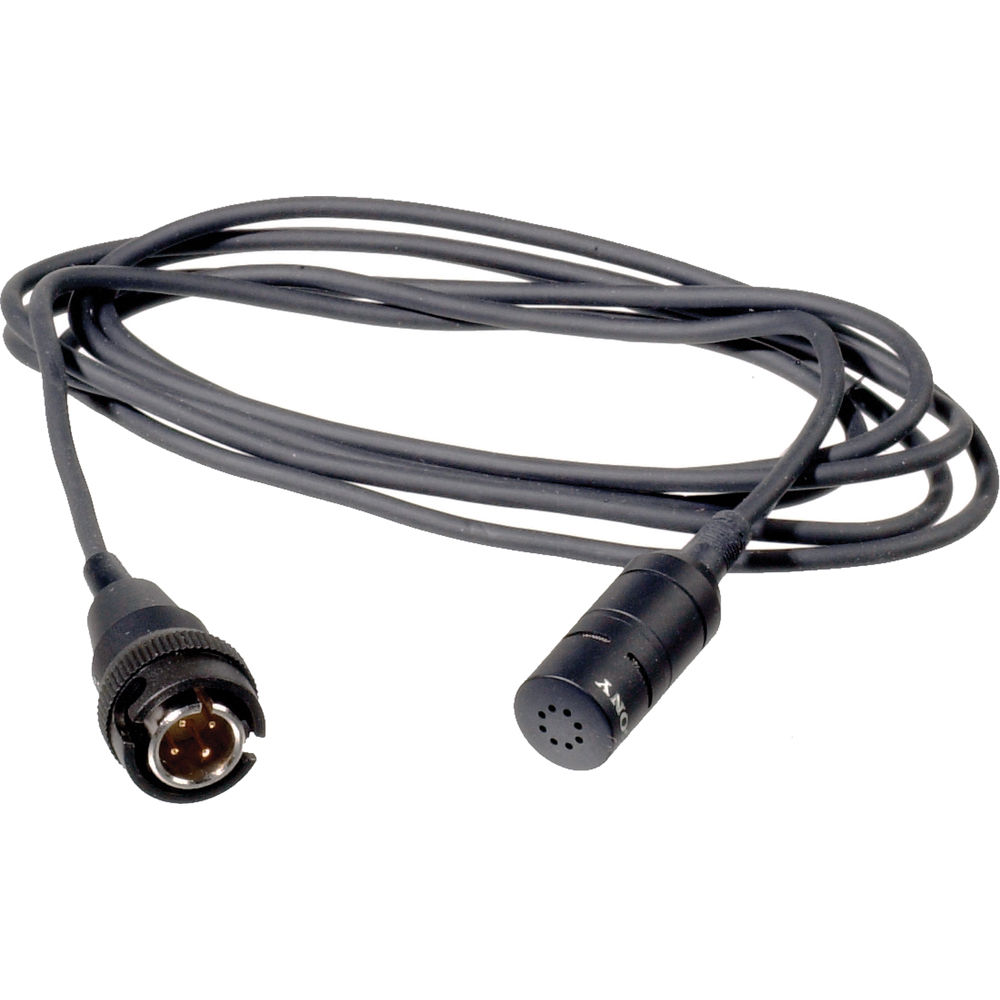

Sony ECM-66BC Unidirectional Condenser Lavalier Microphone

Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

The design of the ECM-66BC yields clean, natural reproduction of musical instruments while maintaining excellent isolation from the acoustic environment. Unlike most miniature microphones, this mic has a uni-directional polar pattern, carefully contoured for better control of feedback. The higher voltage supplied to the microphone by the built in DC to DC converter increases the maximum input sound pressure level to an amazing 130 dB SPL. This special construction also complements the electret condenser design, resulting in excellent transient response and thus better tonal quality. For added versatility. The battery on/off switch on the power supply helps save the battery. An LED illuminates to show battery condition when power is turned on. A uni-directional miniature microphone developed specifically for recording musical instruments and voice when superb rejection of the ambient sound is desirable, the ECM-66BC will make a welcome addition to your microphone arsenal.

Designed for instrumental applications. 130dB SPL maximum input sound pressure level. Durable, black Finish.

Transducer	Electret Condenser
Polar Pattern	Unidirectional
Frequency Response	70 Hz - 14 kHz
Dynamic Range (Typical)	Greater than 101 dB
Signal-to-Noise Ratio	65 dB @ 1 kHz
Maximum Input Sound Level	130 dB
Power Requirements	This Microphones Power is Durived from the Beltpack Transmitters
Output Impedance	100 Ohms (1 kHz)
Output Connectors	1.2m Cable with a SMC9-4P Connector for Use with the WRT-822A and WRT-860A Beltpack Transmitters
Case	Protective Carrying Case
Pad	None
Low Frequency Roll-Off	None
Applications	Designed for Instrumental Applications
Dimensions	.96 x .44" (24.2 x 10.6mm) LxW
Weight	.25 oz. (7 g)

Package Weight	0.14 lb
Box Dimensions (LxWxH)	6.6 x 1.8 x 1"
