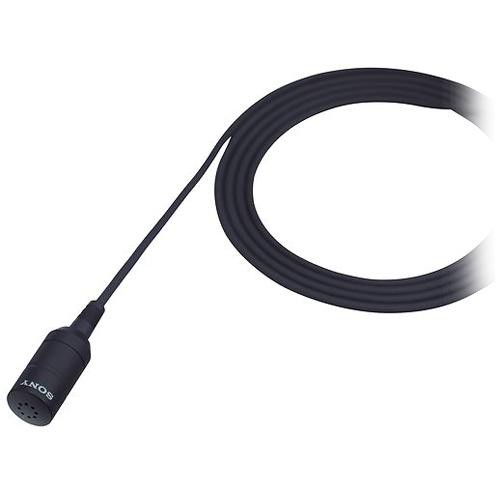

Sony ECM-55B Omnidirectional Lavalier Microphone with XLR 3-Pin Output

For TV, Stage, ENG & Broadcast

Omnidirectional Condenser Element

30 Hz to 18 kHz Frequency Response

Operated via Battery or Phantom Power

Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

The Sony ECM-55B is an omnidirectional lavalier microphone designed for broadcast, sound reinforcement, and recording applications. The condenser element features a compact profile allowing it to be easily concealed in performance and broadcast situations. The omnidirectional polar pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.

The ECM-55B provides a wide frequency response of 30 Hz to 18 kHz for accurate reproduction of audio signal from a variety of sources. The attached 9.8' cable features a power unit with an XLR 3-pin output. It may be operated via the internal battery or 12 to 48 VDC phantom power. The ECM-55B includes tie clips, a metal mesh windscreen, and a microphone case.

The directivity is optimized to ensure uniform, dependable output, regardless of the direction of the sound source. The metal mesh windscreen effectively eliminates both wind noise outdoors and pop noise in close-up situations. 2-way powering system via internal battery or external 48 VDC phantom power Includes metal mesh windscreen, tie clips, and microphone case Frequency response tailored for enhanced presence and improved voice quality in lavalier applications UPC: 027242632462

Transducer	Electret Condenser
Polar Pattern	Omnidirectional
Frequency Response	30 Hz to 18 kHz
Dynamic Range (Typical)	? 98 dB
Signal-to-Noise Ratio	? 66 dBA at 1 kHz, 1 Pa
Maximum Input Sound Level	126 dB SPL at 1 kHz
Output Impedance	100 Ohms (± 20%, 1 kHz Balanced)
Output Connector	XLR 3-Pin Male
Cable Length	9.8' / 3 m
Pad	None
Low Frequency Roll-Off	None
Battery Life	Up to 6000 Hours
Power Requirements	1.5 VDC AA Battery or 12 to 48 VDC Phantom Power
Power Consumption	Internal Battery: ? 0.3 mA External Battery: ? 2 mA
Dimensions (Diam. x L)	Microphone Head: 0.4 x 0.8" / 10.6 x 21.0 mm Power Supply: 0.8 x 5.2" / 20 x 133 mm
Weight	4.5 oz / 126.5 g with Power Supply Unit

Package Weight	0.93 lb
Box Dimensions (LxWxH)	9.45 x 4.3 x 1.8"
