Description
Sony DWT-P30 Overview
- 1Description
- 2Superb Audio Quality Wireless Transmission and Reception
- 3High-Density Multichannel Operation
- 4Low Audio Latency and High-Quality Sound
- 5Flexible Audio Input Control
- 6Selectable RF Output Power
- 7USB for Power Supply
- 8Flexible Battery Options and Long Battery Life
- 9Cross Remote Monitor/Control Functions
- 10Wide Bandwidth
- 11Four Codec Modes for Wide Range of Applications
- 12Low-Noise Head Amplifier
- 13User Settings Memory
- 14Easy-to-Read Dot-Matrix OLED Screen

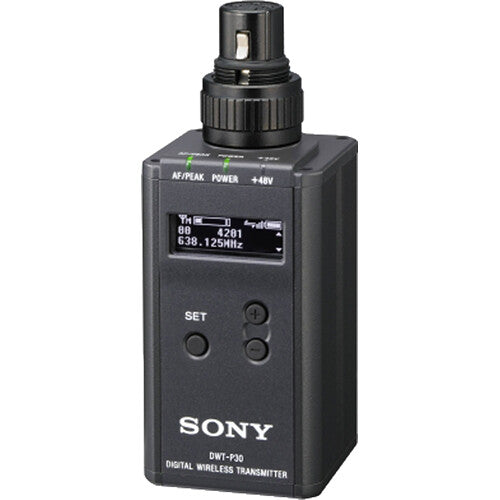

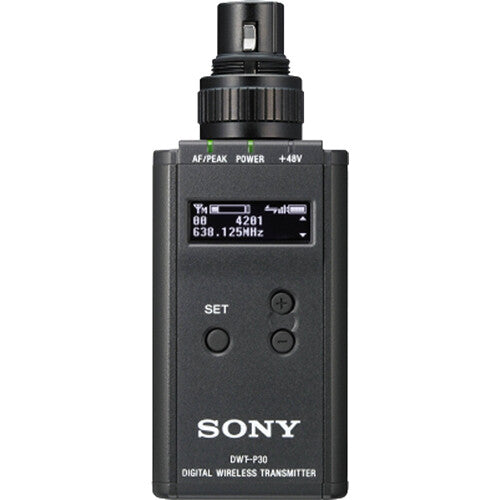

The Sony DWT-P30 is a third-generation DWX Digital Series wireless plug-on transmitter compatible with the DWR-R03D rackmount and DWR-S03D slot-in receivers as well as all previous DWX Digital Series receivers.

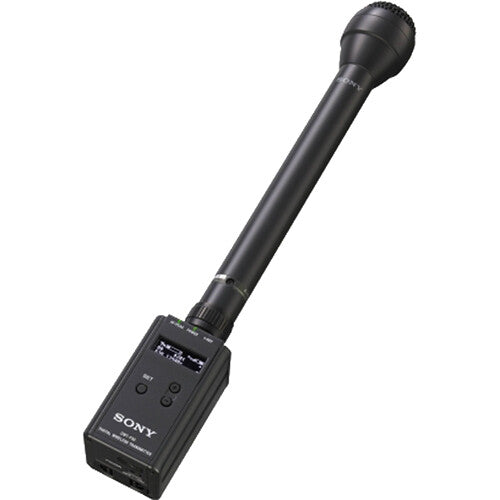

The compact transmitter features tough magnesium housing and a standard 3-pin XLR input connector, allowing you to plug in the handheld XLR mic of your choice for performances, interviews, and presentations. The unit delivers professional-quality, 24-bit digital audio and is ideal for large-scale, multichannel applications, including broadcast and film production.
The DWT-P30 operates in a single, ultrawide 140 MHz UHF bandwidth and offers selectable 2/10/25mW RF output power, extremely low latency, and a transmission range up to 300'. Four codec modes provide flexible options, allowing you to prioritize sound quality, latency, or compatibility with previous generations. AES 256-bit encryption is on board for secure transmission. Two AA batteries power the unit for up to 6 hours, while the micro-USB port can also supply power while in operation.
Transmitter functions, including gain control, RF frequency selection, RF power output, low-cut filter, and low-power sleep mode, can all be controlled remotely from the portable DWR-S03D receiver or the rackmount DWR-R03D receiver. The DWR-R03D features networking capabilities, allowing you to control multiple transmitters via a computer running Sony's Wireless Studio control software, for high-channel count applications.
Additional compatible receivers include the DWR-R02DN, DWR-S02DN, DWR-S02D, DWR-R02D, DWR-R01D, and the DWR-S01D.
MODE2: Prioritises short latency times while maintaining transmission stability and high audio quality.
MODE3: Additional signal processing suppresses noise caused by unexpected pulse interference.
MODE4: Prioritises audio quality while maintaining transmission stability and low delay time.
In the Box
- Sony DWT-P30 Digital Wireless Plug-On Transmitter (UC: 470 to 616 MHz)
- Limited 1-Year Manufacturer Warranty
- Description
- Superb Audio Quality Wireless Transmission and Reception
- High-Density Multichannel Operation
- Low Audio Latency and High-Quality Sound
- Flexible Audio Input Control
- Selectable RF Output Power
- USB for Power Supply
- Flexible Battery Options and Long Battery Life
- Cross Remote Monitor/Control Functions
- Wide Bandwidth
- Four Codec Modes for Wide Range of Applications
- Low-Noise Head Amplifier
- User Settings Memory
- Easy-to-Read Dot-Matrix OLED Screen
Sony DWT-P30 Specs
| Wireless Technology | UHF |
| RF Frequency Band | 470.125 to 607.875 MHz 614.125 to 615.875 MHz |
| RF Bandwidth | 140 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Manual |
| Max Operating Range | 300' / 91.4 m |
| Built-In Recorder | No |
| Timecode Support | No |
| Latency | 0.7 to 1.8 ms |
| Encryption | AES 256, Proprietary |
| Modulation | Proprietary |
| THD | ?0.3 % |
| Transmitter Type | Plug-On |
| RF Output Power | 2 / 10 / 25 mW (Switchable) |
| Audio I/O | 1 x XLR 3-Pin Female Balanced Input (Lockable) |
| Included Cable Connector | None |
| Phantom Power | +48 V |
| Muting | None |
| Audio Input Level | -22 to +24 dBu (Max) |
| Auto-Level Control | No |
| Gain Range | 0 Up to +48 dB (3 dB Steps) |
| Frequency Response | 20 Hz to 22 kHz |
| Sync Method | Proprietary |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA |
| Approx. Battery Life | 6 Hours (Alkaline) |
| USB/Lightning I/O | 1 x Micro-USB |
| Display & Indicators | OLED (Audio Level, Multifunction, Peak, Power, RF Output Power, Sync) |
| Housing | Magnesium |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 1.7 x 4.5 x 1.7" / 44 x 113.5 x 44 mm |
| Weight | 8.6 oz / 245 g (with Batteries) |
| Package Weight | 1.125 lb |
| Box Dimensions (LxWxH) | 8.9 x 7.3 x 3.8" |
