Description
Sony DWT-B03R Overview

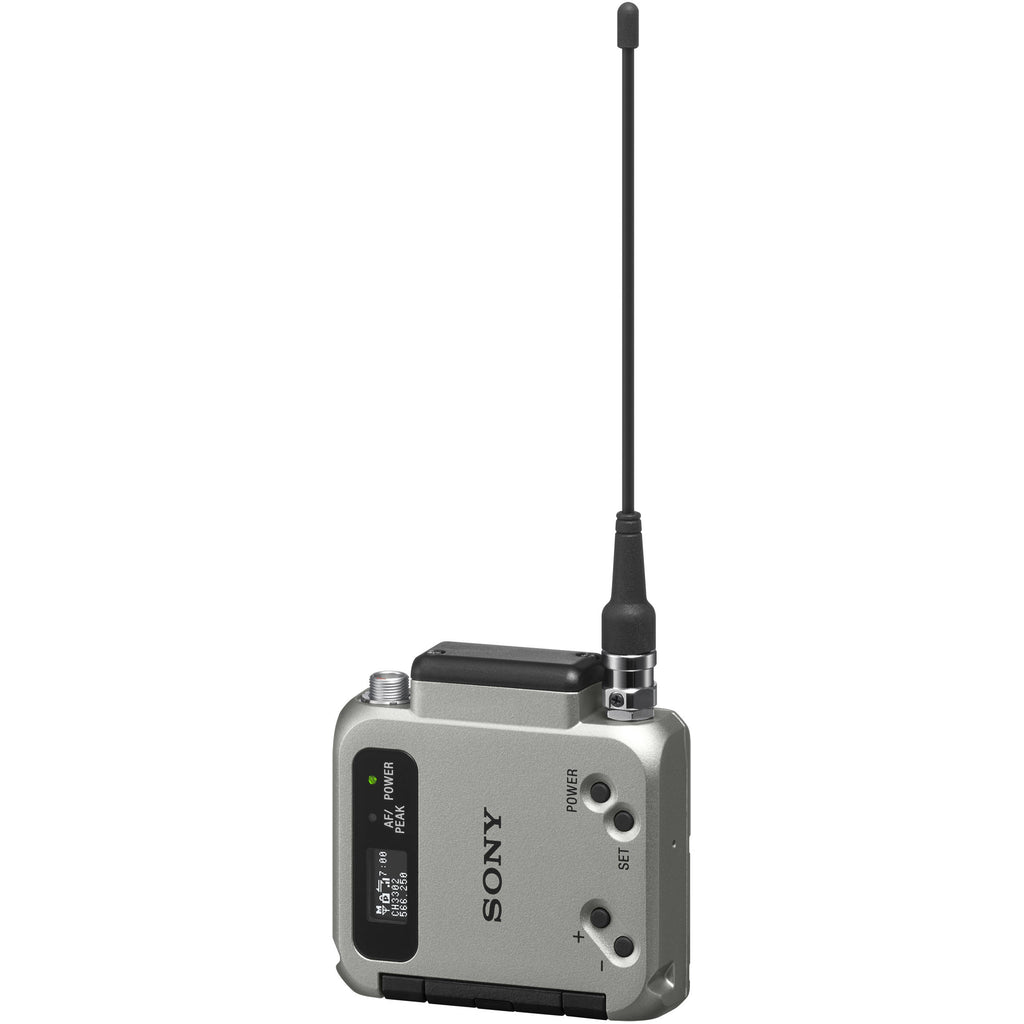

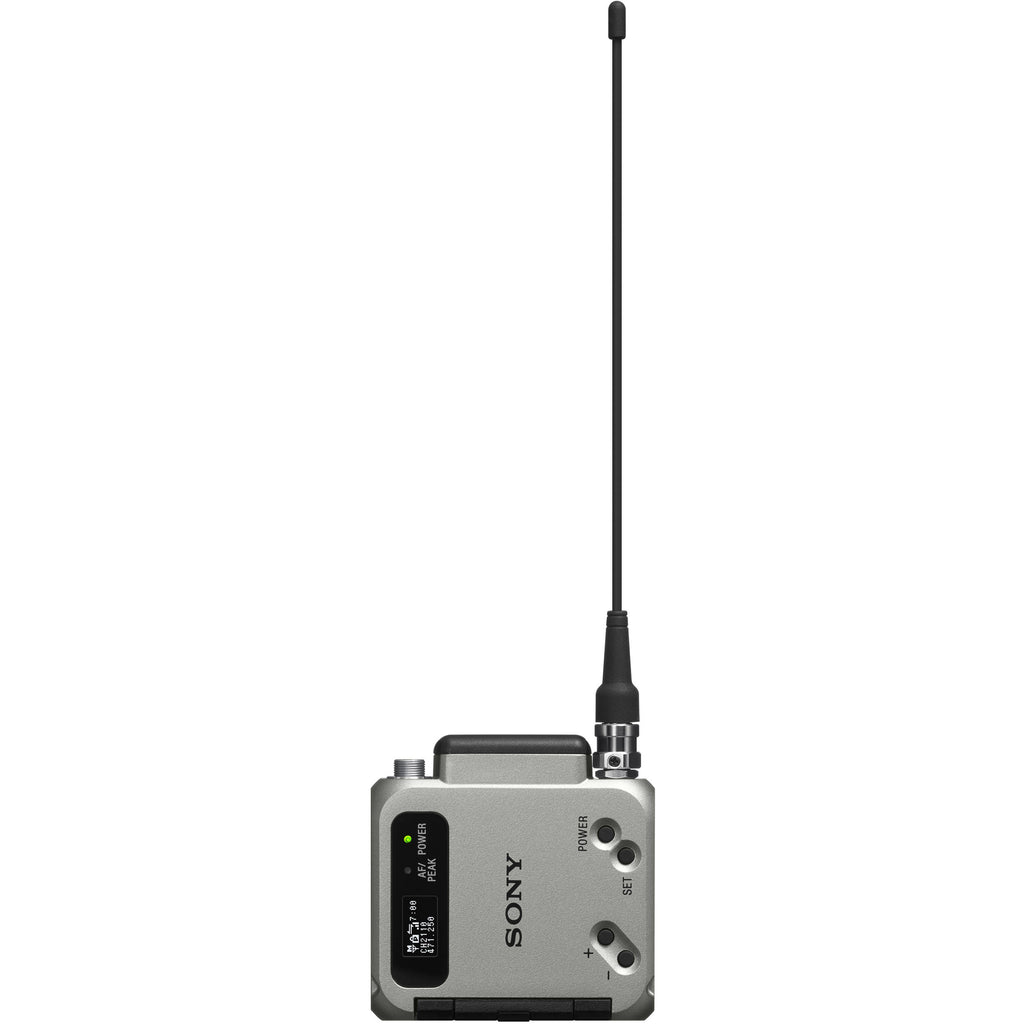

The Sony DWT-B03R is a third-generation DWX Digital Series wireless miniature bodypack transmitter compatible with the DWR-R03D rackmount and DWR-S03 slot-in receivers as well as all previous DWX Digital Series receivers.

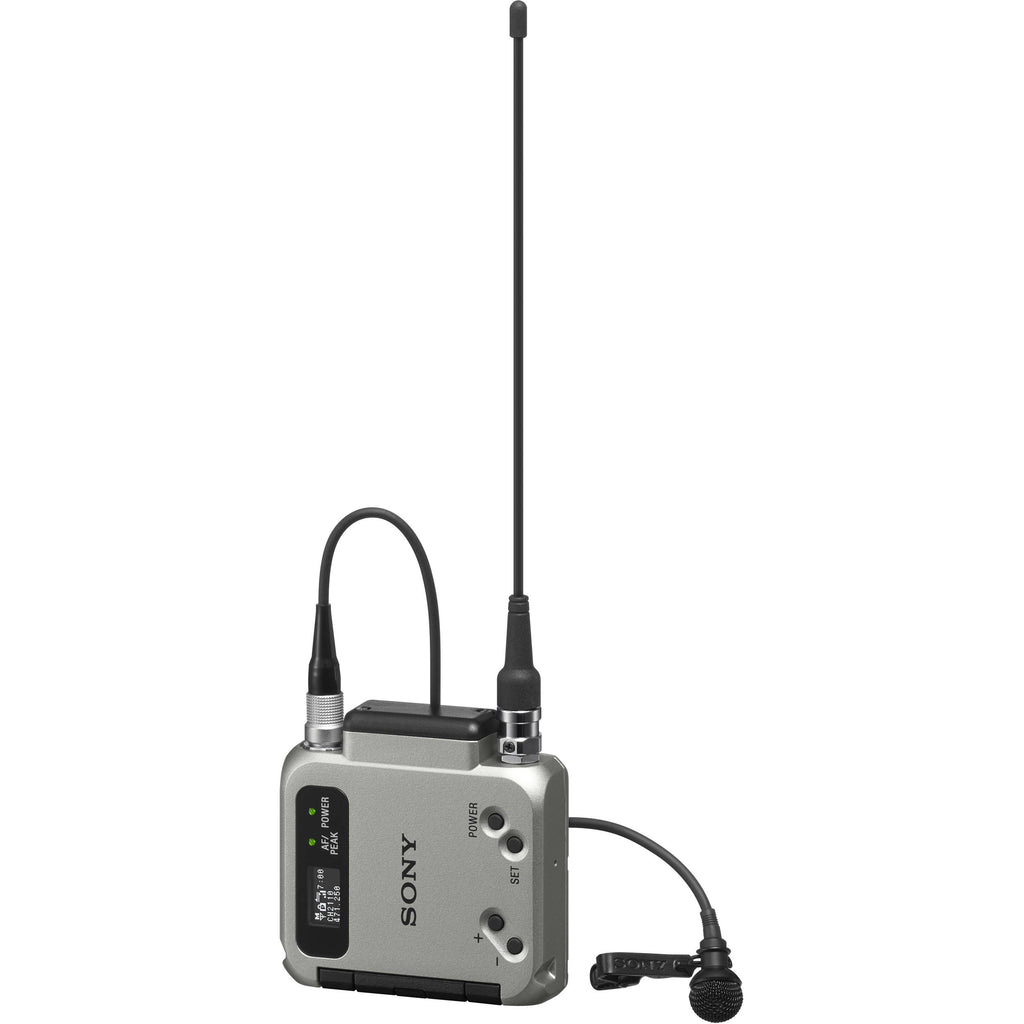

The transmitter offers an ultracompact, die-cast magnesium chassis that is robust, comfortable to wear, and easy to conceal?making it ideal for theater and concert events where a low-profile solution is paramount. It features a moisture-resistant 3-pin LEMO-type connector allowing you to plug in the lav or headset mic of your choice for hands-free performances as well as interviews and presentations. The unit delivers professional-quality, 24-bit digital audio and is built to handle large-scale, multichannel applications, including broadcast and film production.
The DWT-B03R operates in a single, ultrawide 140 MHz UHF bandwidth and offers selectable 2/10/25mW RF output power, extremely low latency, and a transmission range up to 300'. Four codec modes provide flexible options allowing you to prioritize sound quality, latency, or compatibility with previous generations. AES 256-bit encryption is on board for secure transmission.

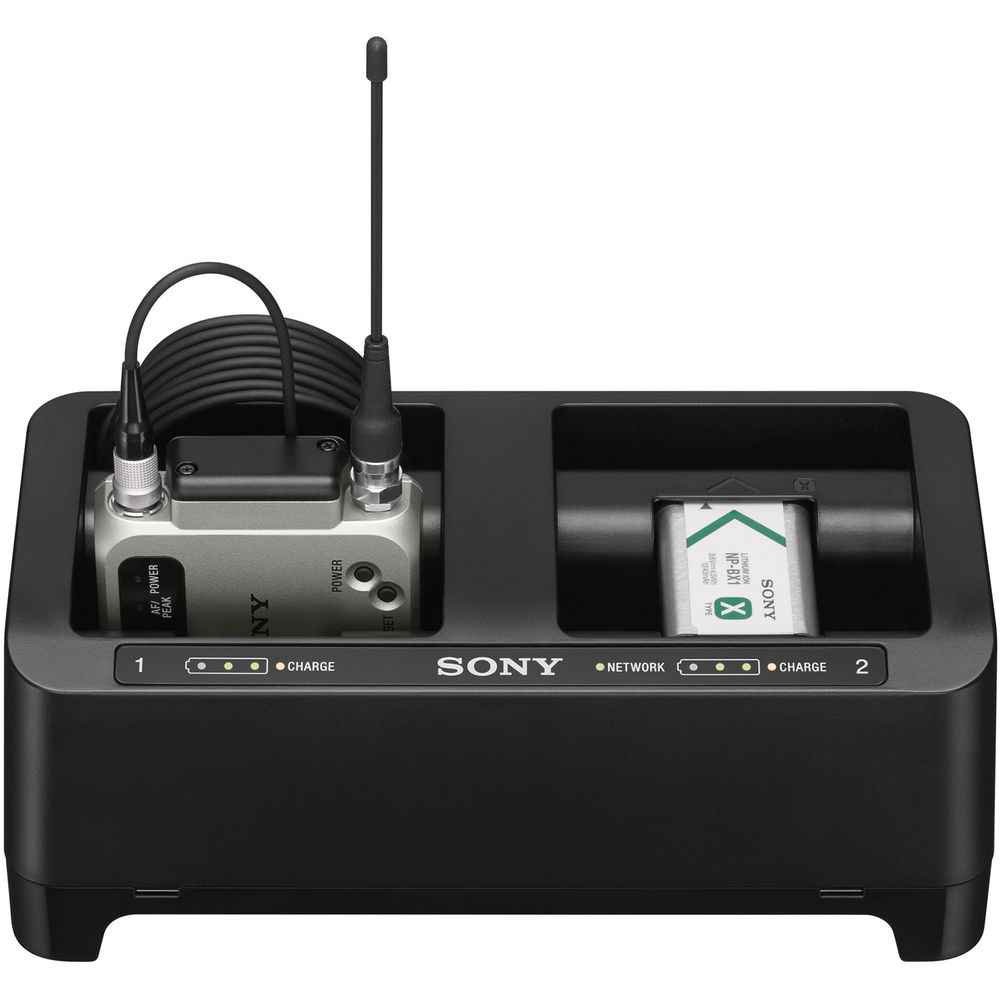

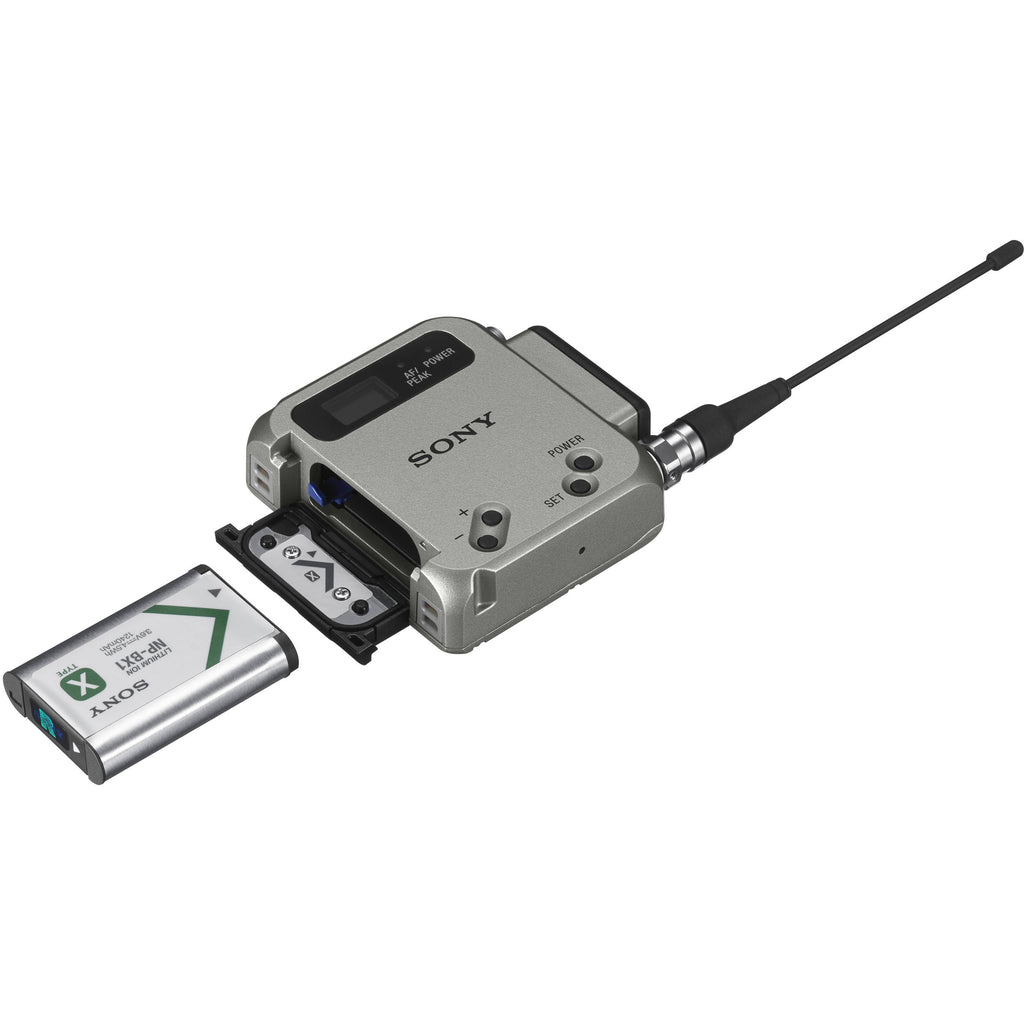

The included NP-BX1 rechargeable battery powers the unit for up to 7 hours. Outside charging contacts allow you to recharge the battery while inside the transmitter using the BC-DWX1 battery charger (available separately).
Transmitter functions, including gain control, RF frequency selection, RF power output, low-cut filter, and low-power sleep mode, can all be controlled remotely from the portable DWR-S03D receiver or the rackmount DWR-R03D receiver. The DWR-R03D features networking capabilities, allowing you to control multiple transmitters via a computer running Sony's Wireless Studio control software, for high-channel-count applications.
Other compatible receivers include: DWR-R02DN, DWR-S02DN, DWR-S02D, DWR-R02D, DWR-R01D, and the DWR-S01D.
High-Density 375-kHz Channel Plan: 16 full-quality channels per 6-MHz TV channel deliver reliable transmissions with less interference during complex, multichannel shoots
Ultralow Latency: Latency times as low as 1.2ms ensure coherent sound and accurate monitoring
Four Codec Modes: The system offers 4 different codecs tailored for different applications, with Mode 4 offering the highest quality sound and low latency
Adjustable RF Output Power: The selectable 2/10/25mW of RF power gives you the flexiblity to overcome interference in challenging environments
- Remote control of transmitter settings (including gain and low-cut filter) and automatic frequency change of the transmitter and receiver
- Menu-selectable, two-channel, scanning and transmitter setting mode in one process
Microphone Settings
- The ultracompact bodypack transmitter can accept mic- and line-level signals with input gain ranging from 0 to 48 dB, adjustable in 3 dB steps
- The low-cut filter offers multiple frequency settings from 20 to 220 Hz or can be turned off entirely
OLED display
- The adjustable, easily readable OLED display shows transmission status, remaining battery life, RF power, audio level, peak indications, lock status, and the Cross Remote signal level
User Memory Function
- Easily store and recall multiple transmitter settings for quick setup in the field
Lock Function:
- Avoid accidental changes during a shoot by locking the transmitter's settings
- AES 256-bit encryption ensures secure transmission with all 3rd-generation DWX components
- Proprietary Secure Key encryption option is a backward compatible mode that works with 1st- and 2nd-generation DWX components
Powering
- The DWT-B03R will run for up to 7 hours on the included NP-BX1 rechargeable battery
- Low-power sleep mode preserves battery life when transmitter is not active
Items Included
- Sony DWT-B03R Digital Wireless Mini Bodypack Transmitter (UC7: 470 to 616 MHz)
- Sony NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
- Belt Clip
- Carrying Case
- Limited 1-Year Manufacturer Warranty
Additional Resources
Sony DWT-B03R Specs
| Wireless Technology |
Digital UHF
|
| Max Operating Range |
300' / 91.4 m
|
| Included Transmitters |
1x Bodypack
|
| Microphone Type |
No Microphone Included
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| RF Frequency Band |
470.125 to 607.875 MHz
614.125 to 615.875 MHz |
| Max Operating Range |
300' / 91.4 m
|
| Latency |
0.7 to 3.7 ms
|
| Encryption |
AES 256 / Proprietary
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Included Transmitters |
1x Bodypack
|
| RF Output Power |
10 / 2 / 25 mW (Selectable)
|
| Antenna |
Removable 1/4 Wave External
|
| Input Level |
Microphone / Line
|
| Audio I/O |
1x LEMO 3-Pin Female Input
|
| Bias/Plug-In & Phantom Power |
Bias/Plug-In Power is Unspecified by Manufacturer
No Phantom Support |
| USB I/O |
No
|
| Gain Range |
0 to +48 dB (3 dB Steps)
|
| Auto-Level/Gain |
No
|
| Frequency Response |
20 Hz to 22 kHz
|
| Sync Method |
Proprietary
|
| Display |
OLED
|
| Microphone Type |
No Microphone Included
|
| Transmitter Battery Type |
1x Rechargeable - 1240 mAh (Included, Replaceable)
|
| Transmitter Battery Life |
7 Hours (Lithium Rechargeable)
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
No
|
| Environmental Resistance |
No
|
| Housing |
Magnesium
|
| Dimensions |
2.1 x 2.4 x 0.7" / 53 x 60 x 17 mm (without Antennas)
|
| Weight |
3.5 oz / 99 g
|
| Package Weight |
1.605 lb
|
| Box Dimensions (LxWxH) |
15.2 x 6.3 x 3.9"
|
