Description
- 4K Resolution Images at Up to 30p
- 1" Back-Illuminated Exmor R CMOS Sensor
- Dual-Link 3G-SDI, HDMI & Ethernet Output
- 12x Optical Zeiss Zoom (9.3-111.6mm)
- 2x Digital Zoom, 24x Total Zoom
- Flexible PoE+ Installation
- Low Light Rating - 1.7 lux @ 1/30s
- Wide 64.6 Angle of View
- Genlock for Multi-System Integration
- Up to 16 Preset Positions

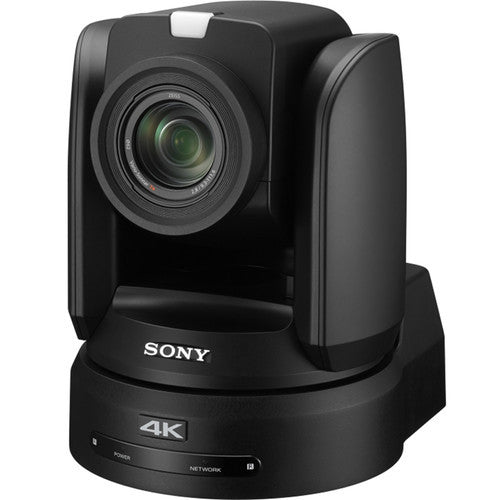

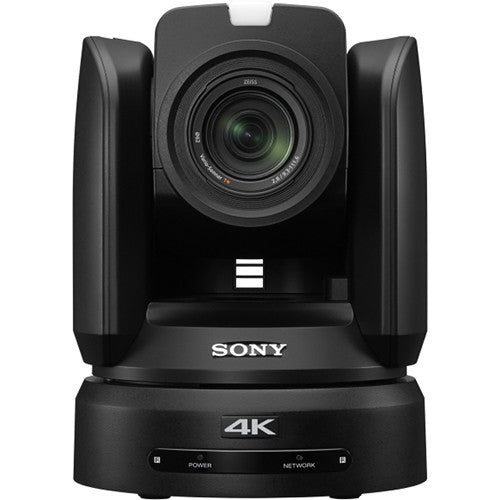

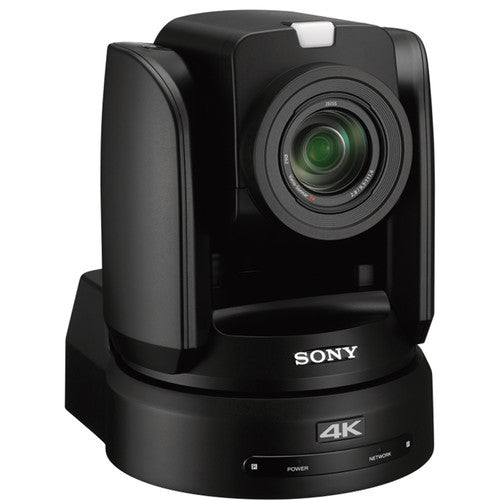

The BRC-X1000 4K PTZ Camera from Sony features a 1" Exmor CMOS image sensor, a 12x Zeiss optical zoom, and PoE+ transmission. This PTZ camera captures 4K video using the back-illuminated, 1" Exmor R CMOS sensor and a 9.3-111.6mm / f/2.8-f/4.5 optical zoom lens. The large image sensor enables you to create attractive bokeh effects with shallow depth of field. Its 1.7-lux sensitivity is suitable for shooting in low ambient-light situations. For capturing tight sports shots, etc. the 12x Zeiss zoom lens extends to a 24x digital range. The BRC-X1000 features flexible PoE+ (power over Ethernet) installation, utilizing a single cable to carry both IP camera control and power. For multi-camera productions, a Genlock feature is used to integrate the BRC-X1000 with other systems. Up to 16 camera positions can be preset on the BRC-X1000, enabling a single operator to control multiple units.
The BRC-X1000 4K PTZ Camera features HDMI, dual-link 3G-SDI, Ethernet, and RS-422 control interfaces. Remote control functions include pan, tilt, zoom, focus, iris, shutter speed, and gain. The BRC-X1000 is suitable for use in broadcast studios, remote on-air setups, houses of worship, and live sports applications. The front and rear tally lights are useful for on-air broadcasting and have adjustable brightness levels. Camera function upgrades may be applied by the user via its IP connection. The BRC-X1000 4K PTZ camera is ceiling and desktop�mountable.
- PoE+ capability uses a single cable for IP camera control and power
- Dual-link 3G-SDI, Ethernet, and HDMI interfaces provide a range of output choices
- 4K-resolution PTZ camera with remotely controllable pan, tilt, zoom, focus, iris, and shutter speed
- The camera features a 1" Exmor R CMOS back-illuminated image sensor and a 1.7-lux sensitivity
- The 12x Zeiss optical zoom lens extends to a 24x digital zoom for capturing even closer images
- Genlock function for integration with other systems in multi-camera setups

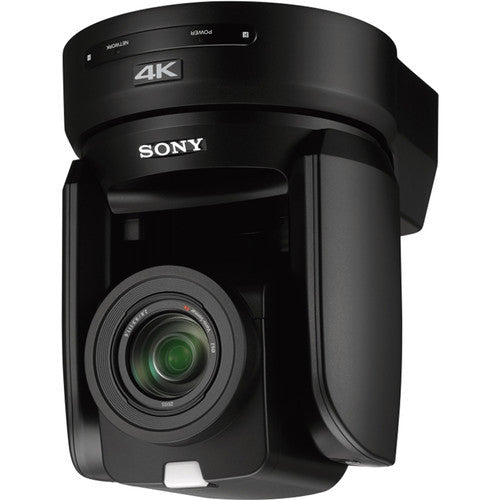

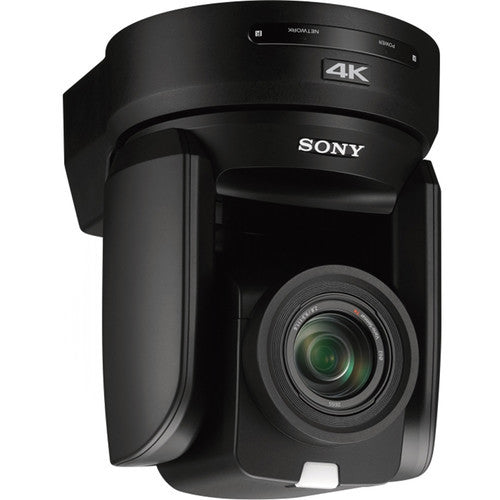

- Up to 16 programmable preset camera positions; flexible desktop or ceiling�mounting

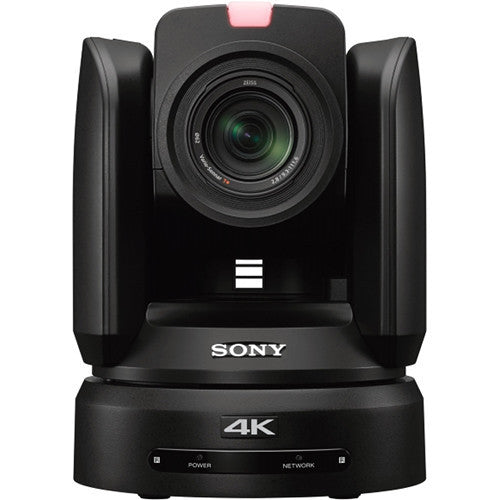

- For on-air broadcasting, the camera features adjustable front and rear tally lights
- Firmware updates are user-accessible through the camera's IP connection
- IR Remote Control
- Mounting Bracket
- Limited 1-Year Warranty
| Camera | |
|---|---|
| Sensor | 1" Exmor R CMOS |
| Resolution | 14.2 MP (approximate) |
| Signal System | 2160p: 29.97/25 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 |
| Minimum Illumination | 1.7 lux (50 IRE, 1/30 second, iris/gain auto) |
| Gain | Auto/Manual: -3 to 33 dB |
| Shutter Speed Range | 59.94: 1/10,000-1/8/second 50: 1/10,000-1/6/second |
| Exposure Control Modes | Auto, Manual Priority Mode (Shutter Priority, Iris Priority, Gain Priority) EV compensation, Backlight, Spotlight |
| White Balance Modes | Auto1, Auto2, One-Push, Indoor, Outdoor, Manual |
| Optical System | |
|---|---|
| Zoom Ratio | 12x optical 2x digital 24x total |
| Focusing Modes | Auto, manual |
| Horizontal Angle of View | 64.6� |
| Focal Length | 9.3-111.6mm (f/2.8-4.5) |
| Mechanical Specification | |
|---|---|
| Pan/Tilt | Pan Angle -170 to +170� Tilt Angle -30 to +90� Pan/Tilt Speed 0.3 to 60�/sec |
| Presets | Programmable Presets 16 |
| Output Format/Interface | |
|---|---|

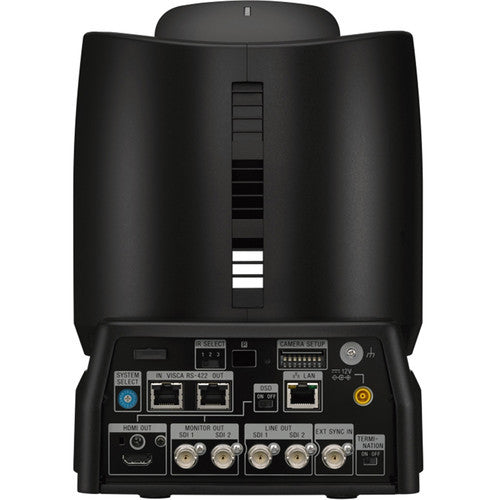

| Video Output Connectors | 2 x dual-link 3G-SDI 1 x HDMI 1 x Ethernet HD Bi-Level VD Tri-Level SYNC |
| Camera Control | RS-422 (VISCA) / VISCA over IP |
| General | |
|---|---|
| Day/Night | Both |
| Flicker Correction | On/Off |
| Power Requirements | 10.8-13.2 VDC PoE+ (IEEE802.3at compliant) |
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Body Color | Black |
| Dimensions (WxHxD) | 7.8 x 10.2 x 9.4" (198 x 260 x 238 mm) |
| Weight | 9.5 lb (4.3 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 19.5 lb |
| Box Dimensions (LxWxH) | 22.0 x 18.5 x 16.5" |
