Description
Sony BKPF-L642 Overview

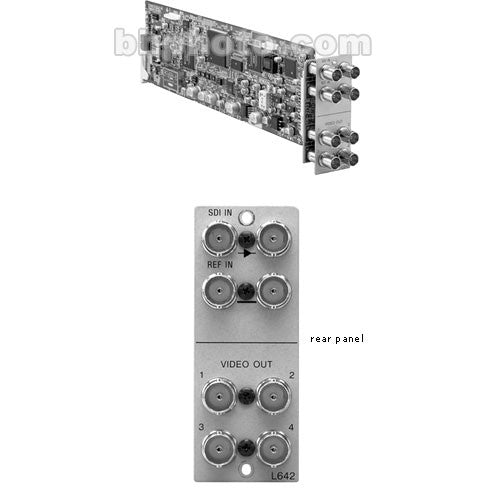

The Sony BKPF-L642 is a conversion board for the PFV-L10 compact interface unit. The board converts 525/625 line SDI video signals to analog NTSC or PAL composite out.
In the Box
- Sony BKPF-L642 SDI (525/625 Line) to NTSC/PAL Composite Conversion Board for PFV-L10 19" Rack Mountable Compact Interface Unit
- 90 Day Warranty
Sony BKPF-L642 Specs
| Inputs/Outputs | SDI: BNC (x1 Input) Reference: BNC (x1 Input) Composite Video: BNCx4 (x1 Output) |
| Power Requirements | 5 VDC (Supplied from the PFV-L Series InterfaceUnit) |
| Dimensions (WxH) | Main Board 10.75 x 3.125" (26.7 x 7.7cm) Connector Panel 1.31 x 3.325" (3.3 x 8.5cm) |
| Weight | 0.56 lbs (0.26kg) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
