Description
Sonifex S1 Overview

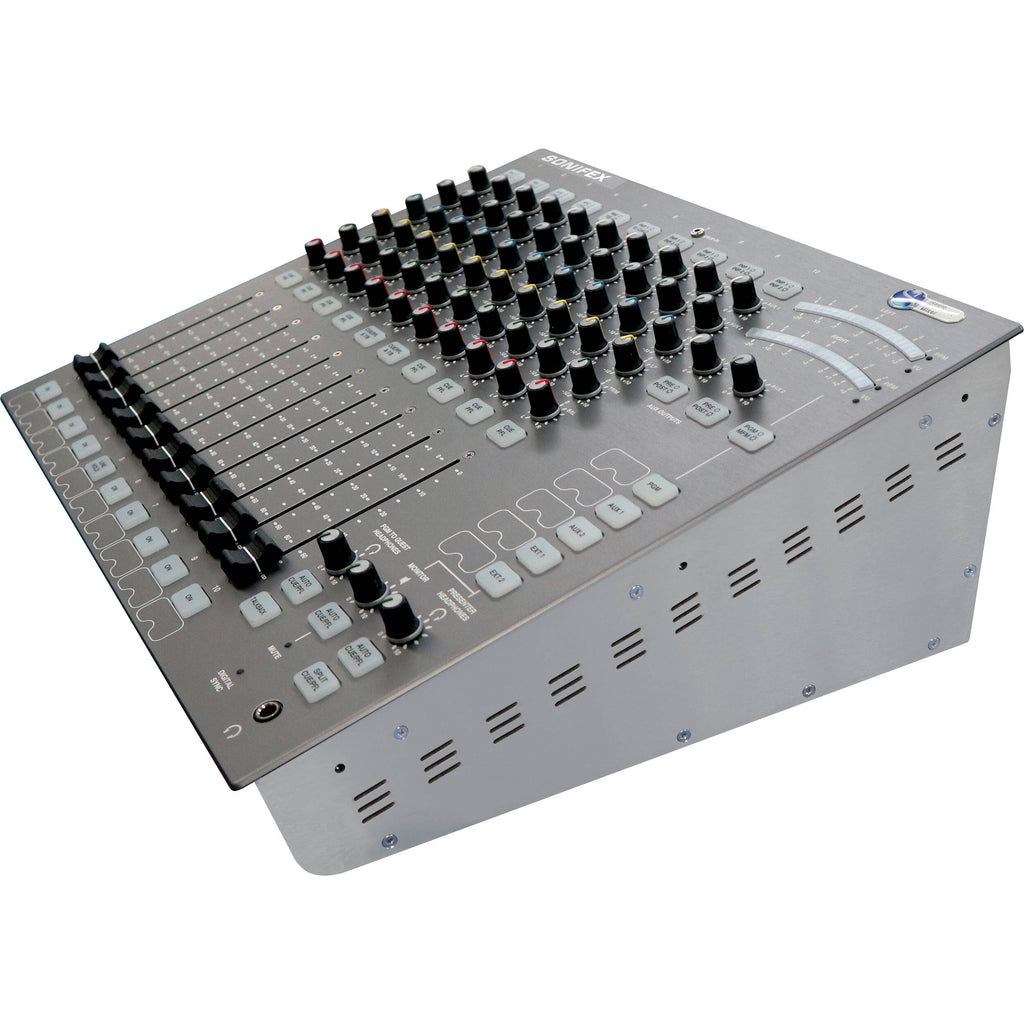

The S1 from Sonifex is a fixed-format broadcast mixer with analog and digital connections well suited for use in small-scale radio operations and instructional applications, or as a secondary or back up on-air mixer. The console can be fitted flush into a desktop or rackmounted and combines quality components with a streamlined and easy-to-use front panel that even novices can understand clearly.

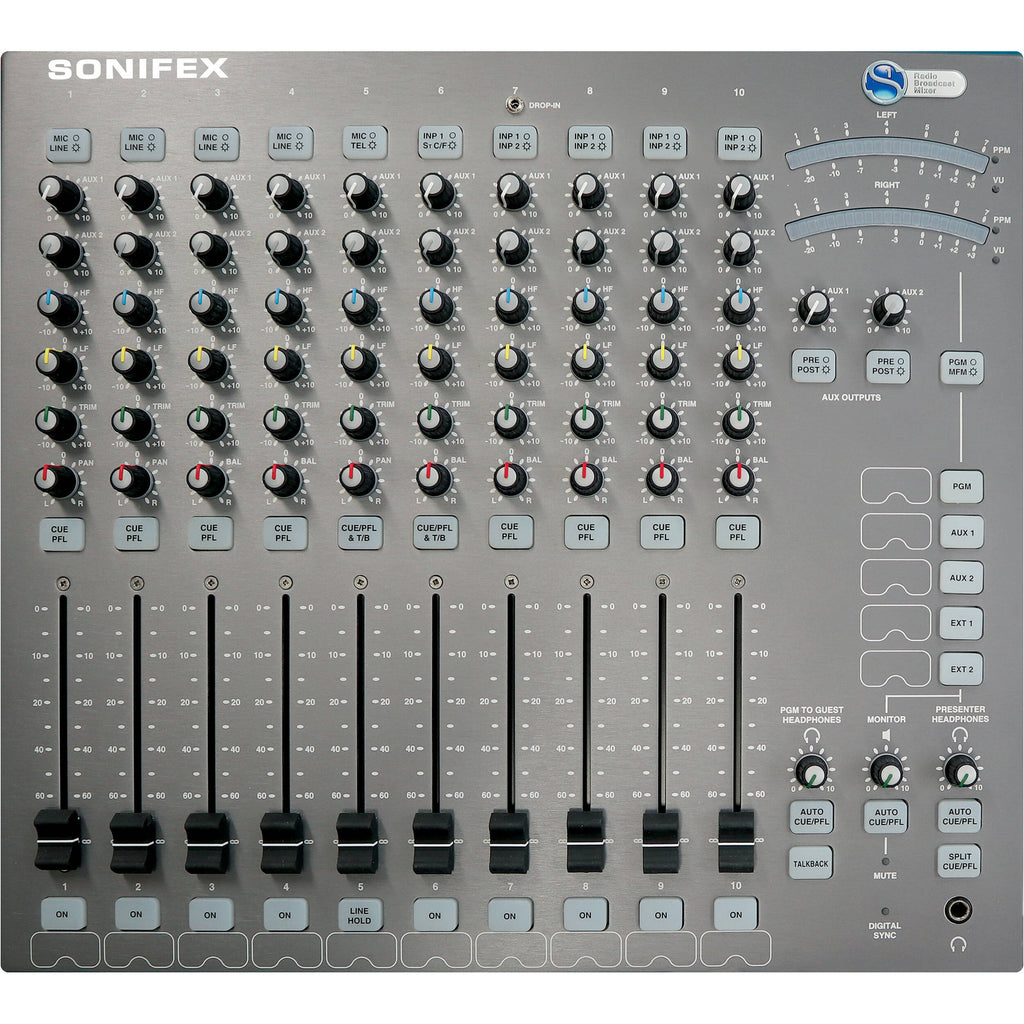

A total of 10 input channels are available, featuring switchable inputs that include 5 mic, 4 mono line, 10 stereo analog, 2 stereo digital inputs, 1 telco, and 1 stereo cleanfeed. All of the balanced XLR input connectors have a 10 dB gain switch on the rear panel for use with unbalanced or low-level input sources. The microphone inputs each feature a gain calibration pot with up to 64 dB of gain, while the input trim pots provide ±12 dB of gain. Each channel offers a 2-band EQ, panning knob, 2 Aux sends, Cue/PFL switch, Mute switch, and an ALPS 100mm long-throw fader.

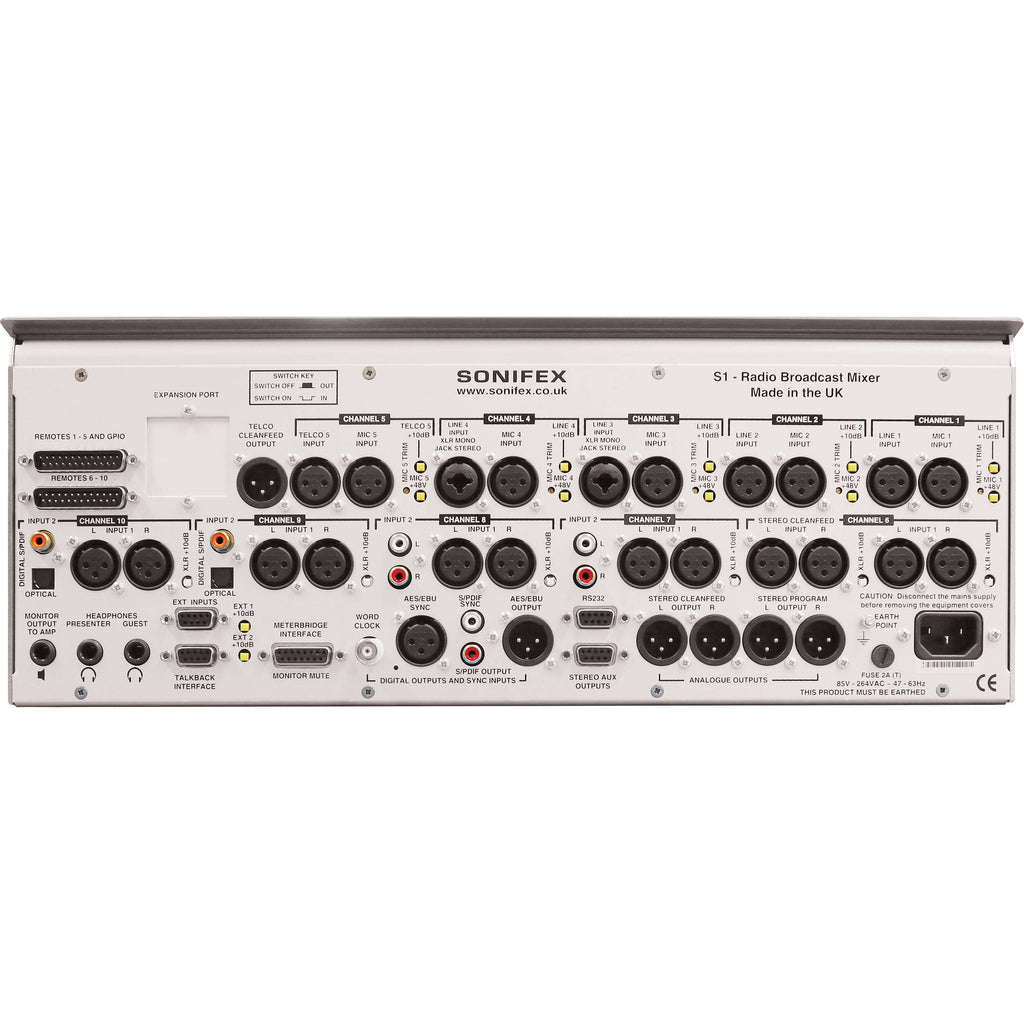

Analog output connections include a balanced XLR stereo Program output, 2 balanced stereo Aux outputs on a 9-way D-type connector, a mono cleanfeed output, a stereo cleanfeed output, three 1/4" jacks for headphones and monitors. Talkback and metering outputs are also provided. A digital stereo program output is supplied using XLR AES/EBU or RCA S/PDIF connectors. Synchronization sources can be connected via the S/PDIF, AES/EBU, or BNC wordclock.
- High-performance, ultra-reliable on-air radio mixer
- Cost effective and easy to use
- Small footprint for flush-mounting or rackmounting
- Analog & digital inputs & outputs
- Main stereo output buss plus 2 Aux output buses, pre or post fader selectable
- Rotating rear panel for ease of installation
- Integrated power supply
- Remote outputs per channel
- Fader start of ancillary equipment such as CD players
- Programmable general purpose I/O
- Monitor muting on mic live
- Mic-live/on-air sign switching
- Monitor outputs for presenter and guest headphones and speakers
- Bright LED meter display PPM/VU selectable with separate meter bridge output
- 100mm ALPS long-throw faders with control via VCAs
- Separate telco I/O & stereo cleanfeed output for use with a telephone hybrid & codec respectively
- Advanced automation facilities
- Remote control via free SCi software
In the Box
- Sonifex S1 10-Channel Digital/Analog Radio Broadcast Mixer
- IEC Power Cable
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Sonifex S1 Specs
| Number of Analog Input Channels |
19 (9 Mono / 10 Stereo)
|
| Number of Mic Preamps |
5
|
| Analog Output Channels |
1 x Stereo Master Output
2 x Stereo Aux Send Output 1 x Stereo Direct Output |
| Mix Routing |
Stereo Main Mix per Input Channel
|
| Faders & Level Adjustment |
10 x 3.9" / 100 mm Channel Fader
|
| Meters |
Channel Meter:
2 x Multi-Segment LED |
| Gain/Trim Range |
XLR Mic Input:
+21 dB to +64 dB Line/Mic Input: ±12 dB |
| Dynamic Processing |
No
|
| EQ |
No
|
| Graphic EQ |
No
|
| Channel Output/Source Monitoring |
PFL
|
| Built-In Effects |
No
|
| Frequency Response |
Mic Input:
40 Hz to 20 kHz -1 dB Line Input: 20 Hz to 20 kHz -0.5 dB |
| Output Level |
XLR Mix Output:
+26 dBu (Balanced) |
| I/O Impedance |
XLR Mic Input:
> 1.5 Kilohms (Balanced) Stereo RCA Line Input: > 20 Kilohms (Unbalanced) |
| Crosstalk |
< 80 dBu
|
| CMRR |
Mic Input:
> 60 dB |
| EIN |
Mic Input:
-130 dB Line Input: -92 dBu |
| THD |
0.015%
|
| Analog Inputs |
5 x XLR 3-Pin Balanced Mic Input
2 x XLR 3-Pin Balanced Line Input 2 x Combo XLR-1/4" Input 1 x XLR 3-Pin Input 10 x XLR 3-Pin Balanced Line Input (5 Stereo Pairs) 4 x RCA Coaxial Unbalanced Line Input (2 Stereo Pair) 1 x 1/8" / 3.5 mm TRS Unbalanced Insert Input |
| Analog Outputs |
4 x XLR 3-Pin Balanced Main Output (2 Stereo Pair, Post-Fader)
1 x XLR 3-Pin Balanced Headphone Output |
| Phantom Power |
+48 V, Selectable On/Off
|
| Digital I/O |
2 x TOSLINK S/PDIF Input
|
| AC Input Power |
85 to 264 VAC, 50 / 60 Hz
|
| AC Power I/O |
1 x IEC Input
|
| Power Consumption |
50 W (Maximum)
|
| Rack Mountable |
Yes
|
| Storage Temperature |
32 to 122°F / 0 to 50°C
|
| Dimensions |
17.5 x 6.1 x 15.7" / 44.5 x 15.6 x 40 cm
|
| Weight |
26.4 lb / 12 kg
|
