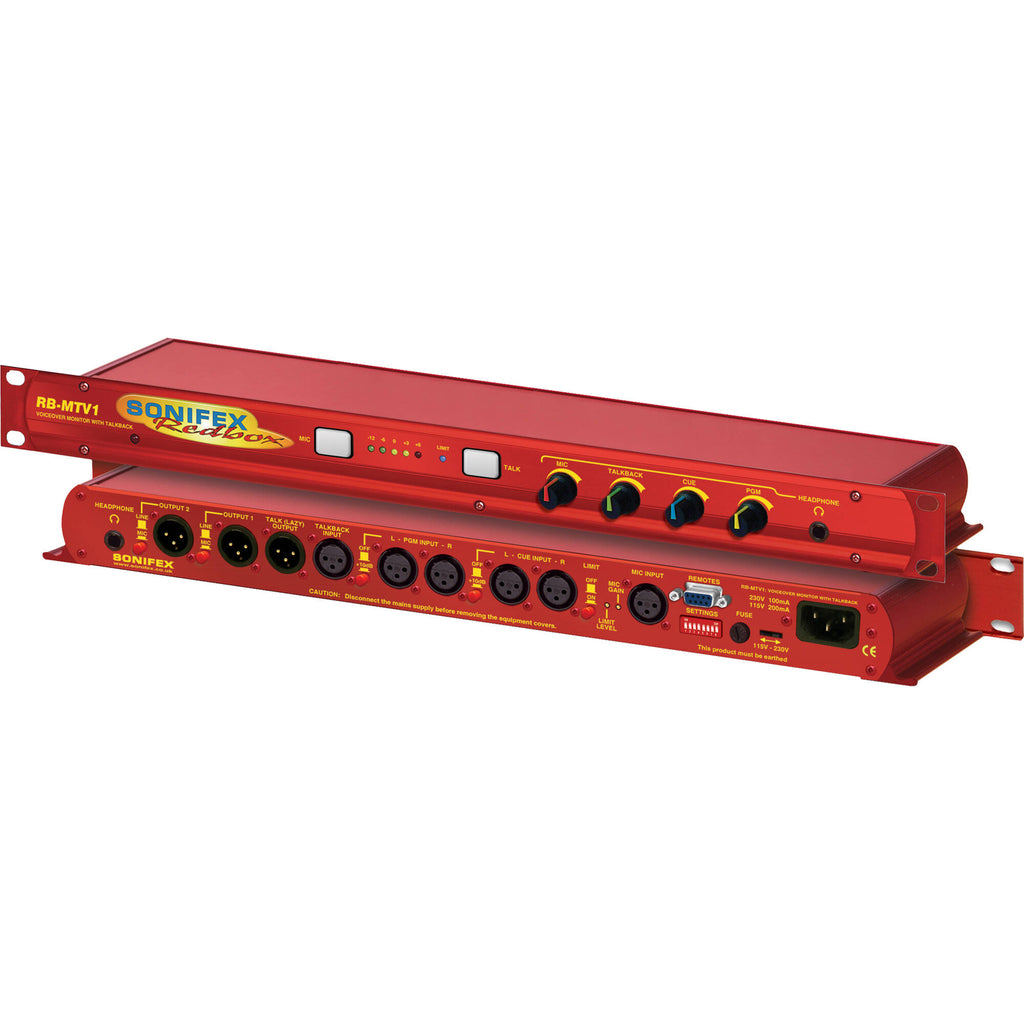

Sonifex Contribution Voiceover Monitor with Talkback (1 RU)

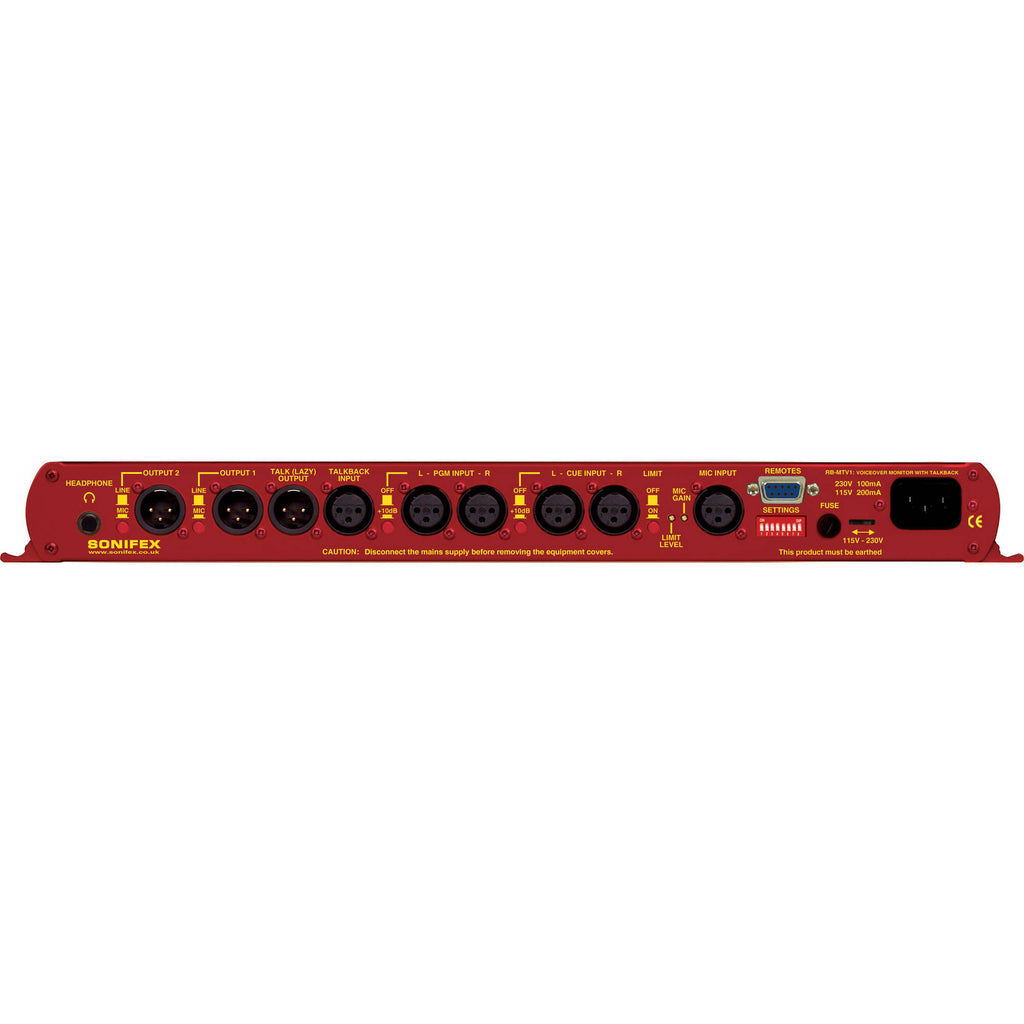

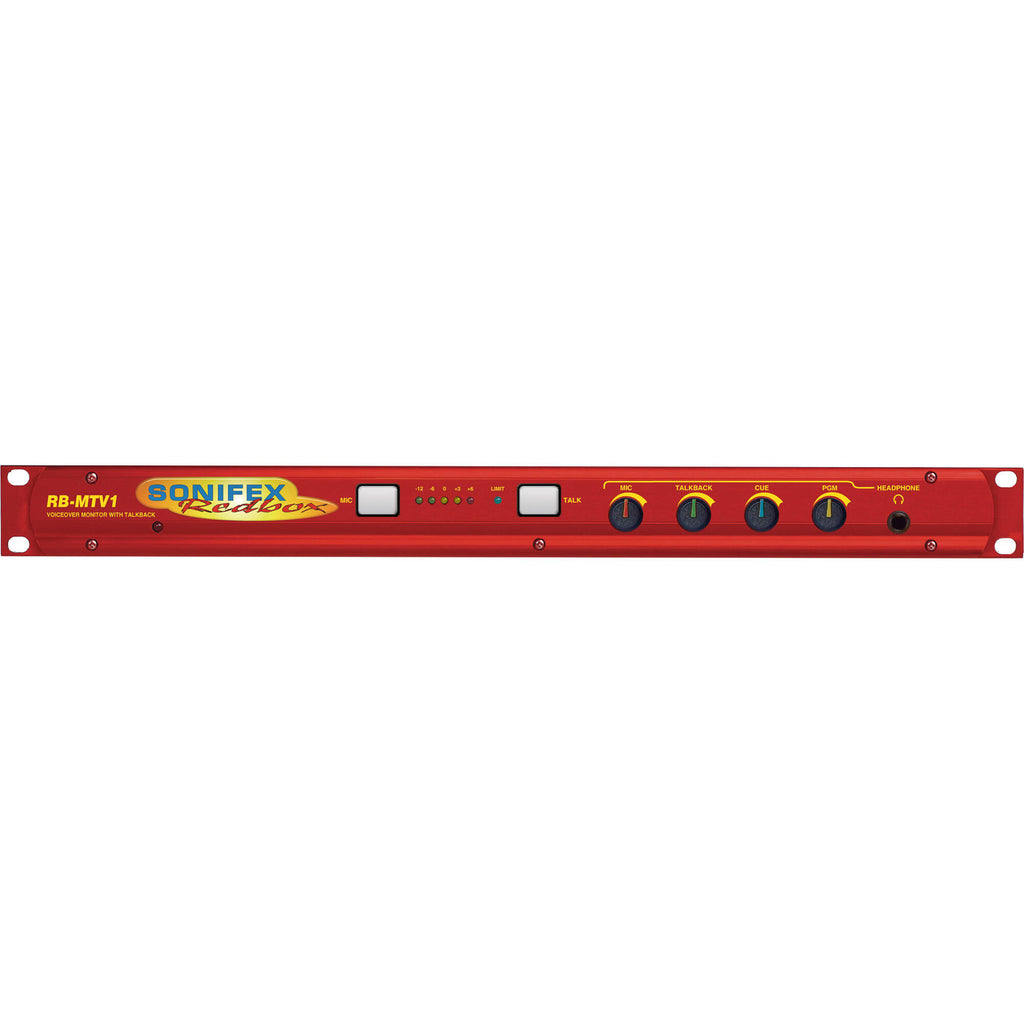

The Sonifex Contribution Voiceover Monitor with Talkback is a 1 RU rackmount unit designed to be used in voice-over booths, news booths, commentary locations, for continuity announcements and for any other similar applications where voice needs to be added to program content and then monitored. It has four inputs and two outputs, a mono microphone input on XLR with switched coarse gain and variable fine gain control using a multi-turn preset potentiometer to give an overall gain range from +20 to +80 dB. There is also a switched LF rumble filter, switched +48V phantom power and switched level limiting control. A rear-panel multi-turn preset potentiometer allows adjustment of the threshold at which the limiter begins to operate, from -8 to +26 dBu. The integrated meter can be configured to either show the MIC signal activity in normal operation, i.e. when TALK is pressed the meter is off, or the meters can permanently show the MIC activity, even when the TALK button is on or the MIC button is off.
