Sonifex AVN-PX8X4C Overview

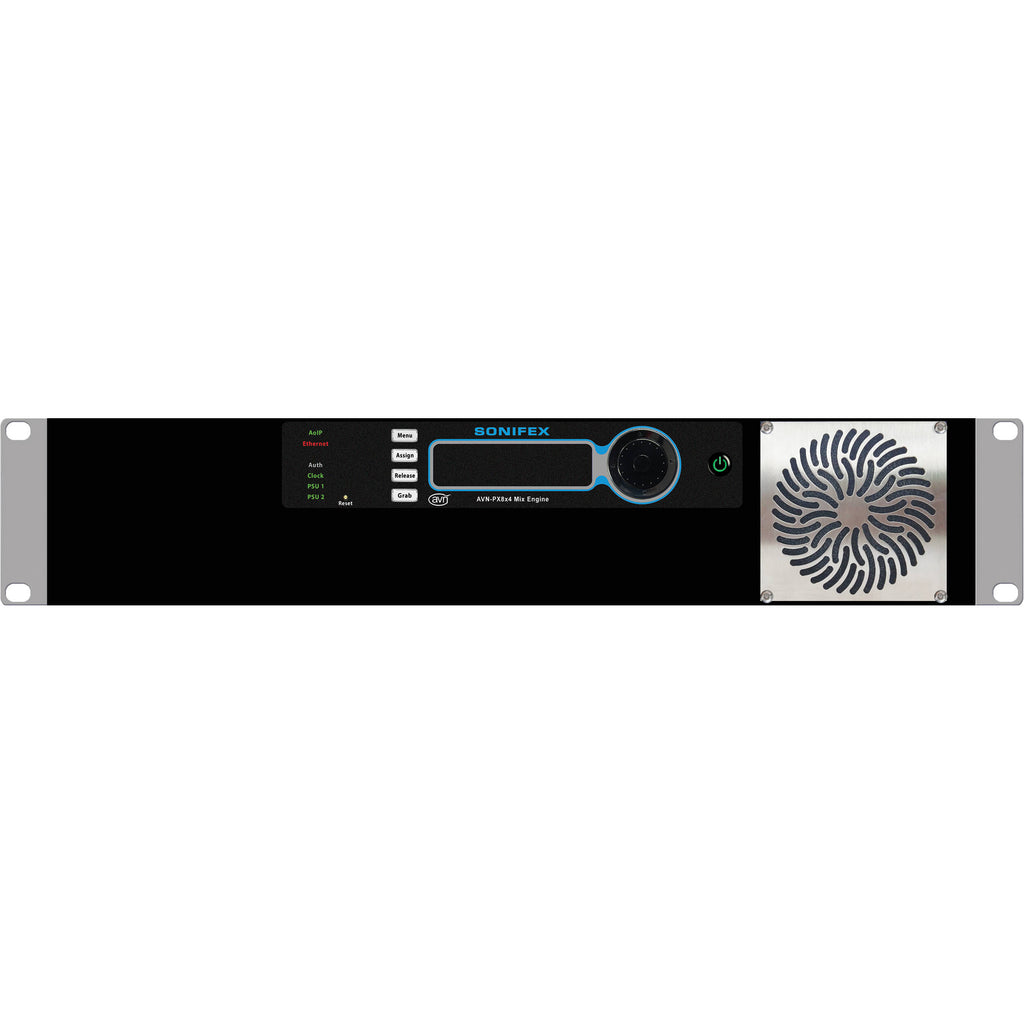

fThe Sonifex AVN-PX8X4C is a 2 RU mix engine at the heart of Sonifex's presenter mixer system, an in-ear monitoring (IEM) solution that lets the presenter adjust audio levels using the AVN-MPPR Presenter's Remote Unit in the studio while also letting the technician adjust levels using the AVN-MPTR Technician's Remote Unit (both available separately) from the control room. All three units are connected to a common RAVENNA-based audio-over-internet-protocol (AoIP) network.

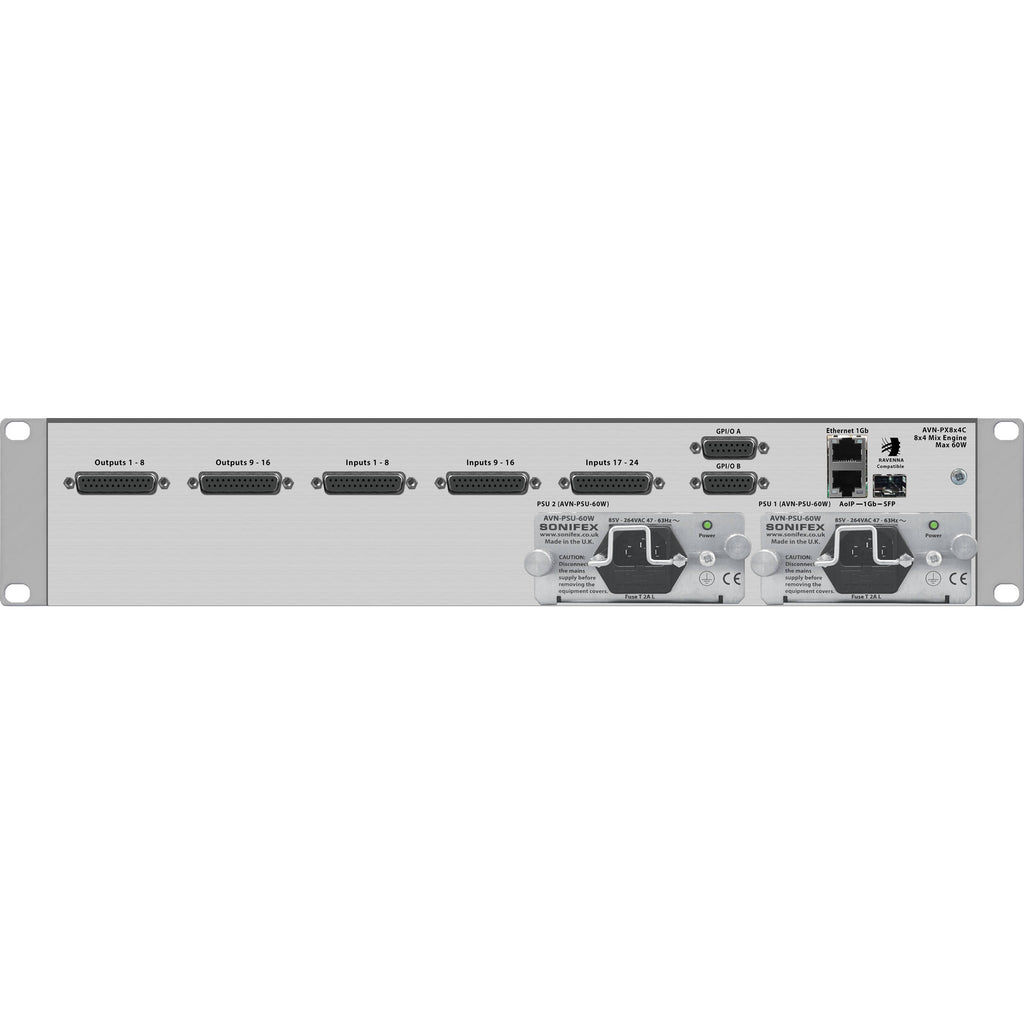

The AVN-PX8X4C provides 24 mono analog inputs on three DB25 connectors and 16 mono analog outputs on two DB25 connectors. Eight virtual mixers are on board, each with four mono inputs (from the analog inputs or AoIP streams) and one mono output available locally at an output or via an AoIP stream. The mix engine will allow a maximum of 32 audio over IP input streams and each stream can contain up to 8 channels. Use the built-in webserver to configure I/O settings and assign the AVN-MPPR and AVN-MPTR units to the appropriate streams. Up to 4 AVN-MPPRs can be assigned to each Virtual Mixer on a first-come-first-served basis. Two AVN-MPTRs can also be assigned to the same virtual mixer, so a maximum of 6 devices can control the mix levels of a single virtual mixer.
- 8 virtual mixers, each with 4 mono channel inputs to one mono output
- Virtual mixers controlled by connected technician and presenter remote controls
- Sophisticated configuration via webserver
- 24 analog inputs and 16 analog outputs on D-sub connectors
- 32 logical inputs and 10 logical outputs using AoIP
- Dual hot-swappable AC power supplies
- Two Gigabit Ethernet ports and one SFP port
- Status LEDs and OLED display
- 20 configurable GPIO ports
In the Box
- Sonifex AVN-PX8X4C 8x4 Channel Mix Engine for Presenter Mix System
- Limited 1-Year Manufacturer Warranty (Extends 1 Additional Year upon Registration)
Sonifex AVN-PX8X4C Specs
| Number of Analog Input Channels |
24
|
| Number of Mic Preamps |
No
|
| Number of Analog Output Channels |
16
|
| Mix Routing |
8 x Mono Subgroup
|
| Display |
Main Display:
OLED |
| Faders & Level Adjustment |
No
|
| EQ |
No
|
| Real Time Analyzer |
No
|
| Audio Delay |
No
|
| dBFS Reference Level |
Line Inputs:
+15 / +18 / +20 / +22 / +24 dBu = 0 dBFS (Selectable) |
| Frequency Response |
20 Hz to 20 kHz
|
| I/O Impedance |
Line Input:
20 Kilohms (Balanced) |
| Crosstalk |
< 100 dB
|
| CMRR |
> 70 dB
|
| Noise Floor |
< -110 dB
|
| Analog Inputs |
3 x DB-25 Balanced Line Input
|
| Analog Outputs |
2 x DB-25 Balanced Line Output
|
| Phantom Power |
No
|
| Digital I/O |
2 x etherCON Input/Output (Network)
|
| MIDI I/O |
No
|
| USB |
No
|
| AC Input Power |
85 to 264 VAC, 50 / 60 Hz at 2 A
|
| AC Power I/O |
2 x IEC Input (Locking)
|
| Rack Mountable |
Yes
|
| Rackmount Size |
2 RU
|
| Dimensions |
18.9 x 10.6 x 3.5" / 48 x 27 x 8.8 cm
|
| Weight |
12.6 lb / 5.7 kg
|
