Description

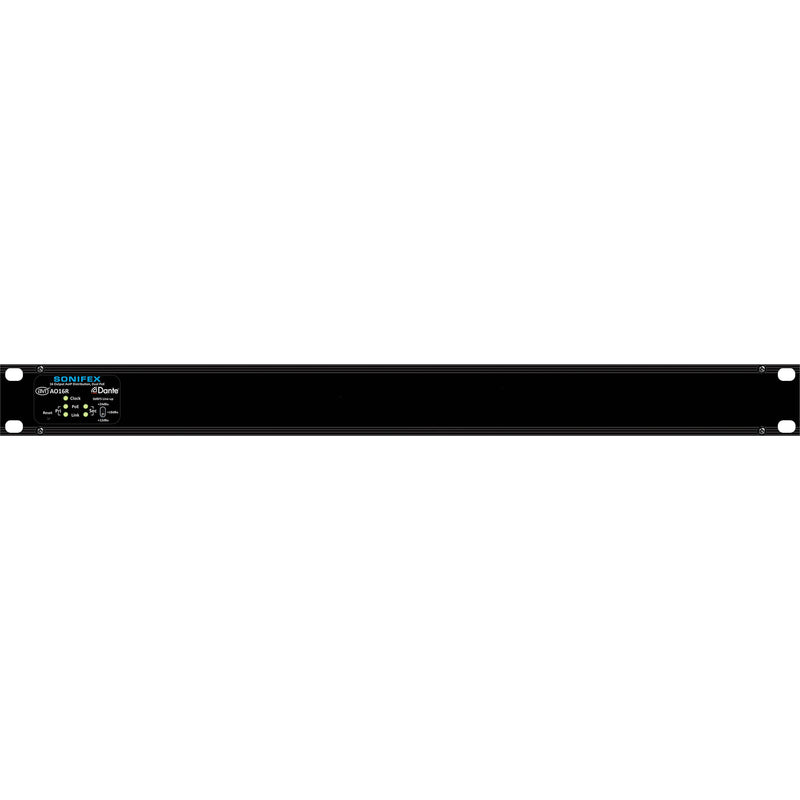

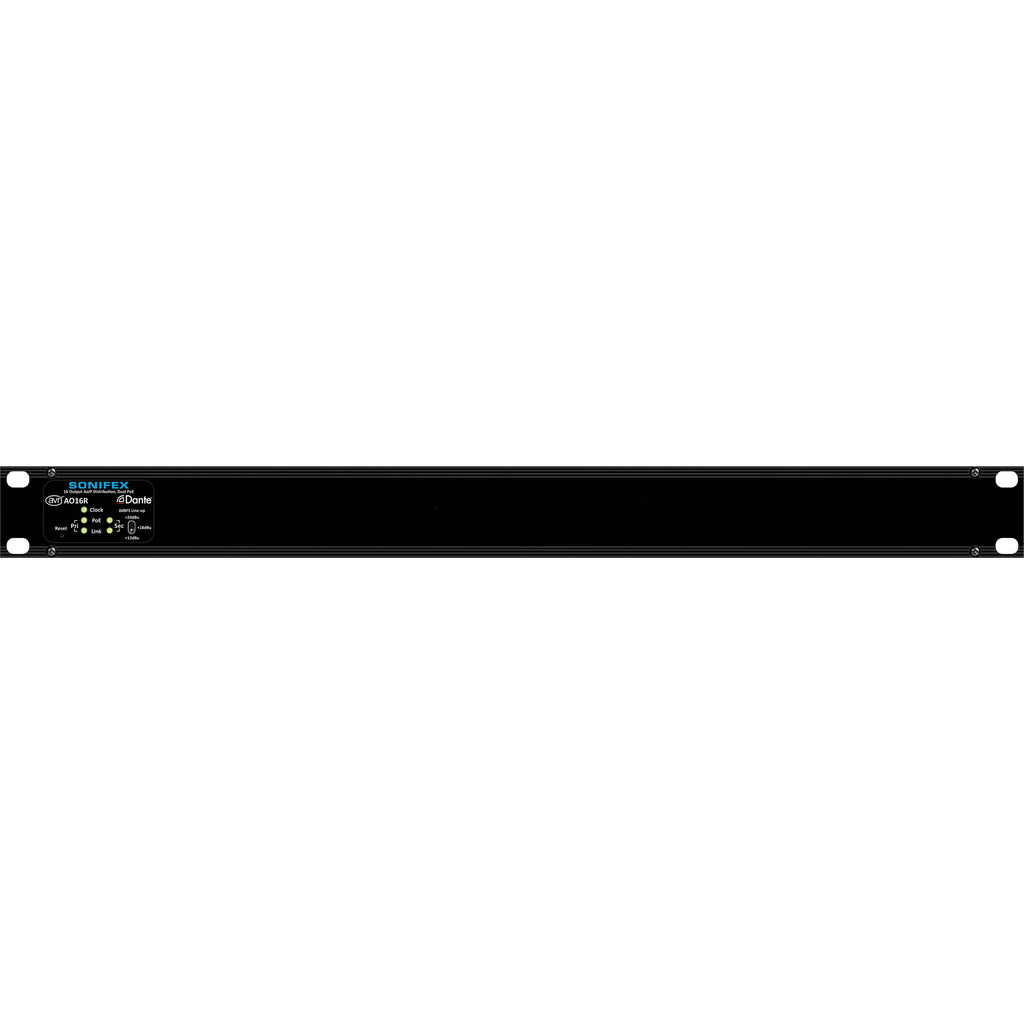

Sonifex AVN-AO16R Overview

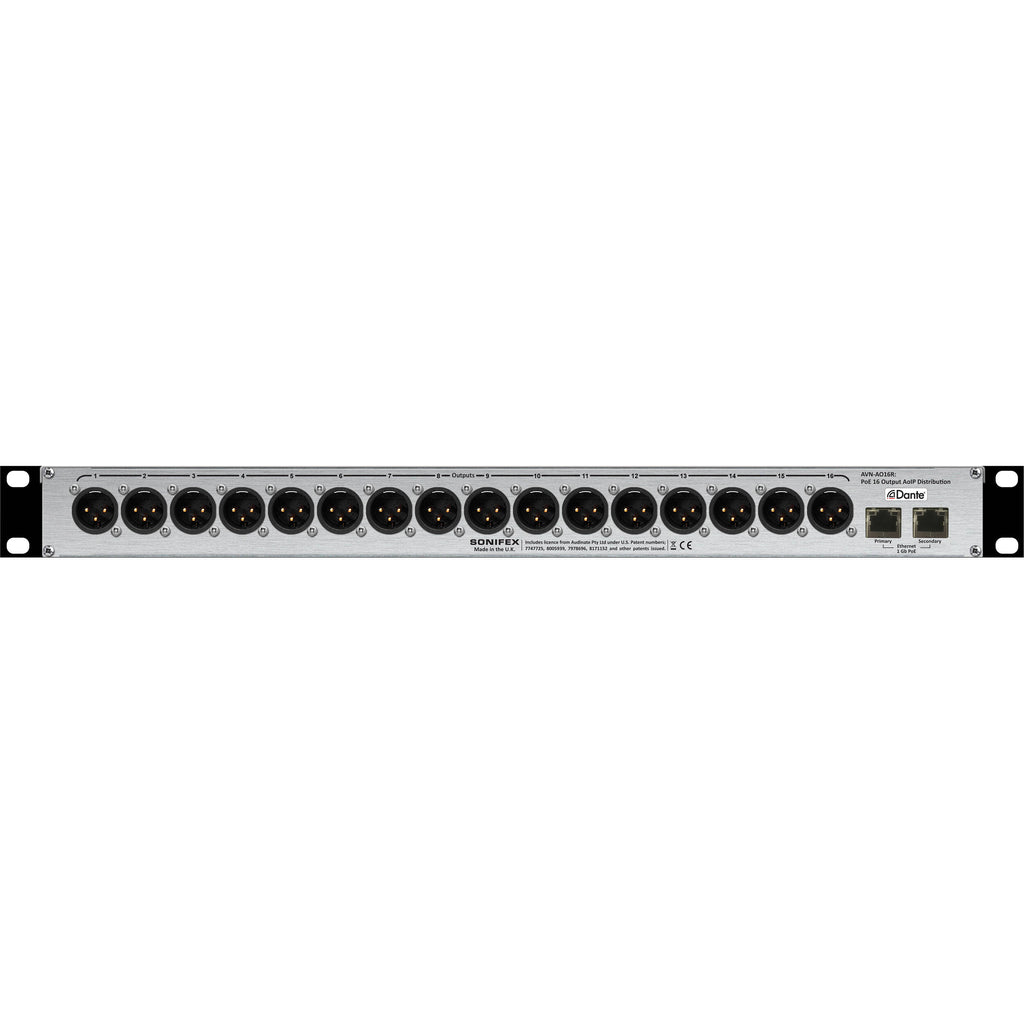

From Sonifex, the AVN-AO16R 16-Output Dual Dante Interface converts up to 16 analog outputs from the Dante Audio-over-IP networking standard. Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections. This 1 RU rackmount unit offers an easy solution for AV professionals and system integrators. All setup except line-up levels is done via the standard Dante Controller software, and power is provided via PoE. All analog outputs are Neutrik XLR connectors, and there are front-panel status/confidence LEDs for PoE, Link, and Clock.
In the Box
- Sonifex AVN-AO16R 16-Output Dual Dante Interface with PoE
Sonifex AVN-AO16R Specs
Key Specs
| Form Factor |
Rackmount (Rack-Mountable with Included Hardware)
|
| Converter Type |
D/A Converter
|
| Number of Channels |
16x D/A
|
| Maximum Sampling Rate |
192 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
16x XLR 3-Pin Balanced Line Output
|
| Digital Audio I/O |
No
|
| Converter Type |
D/A Converter
|
| Number of Channels |
16x D/A
|
| Conversion Formats |
Dante
|
| Display |
3x Color LED
|
| Maximum Sampling Rate |
192 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Expansion Slots |
No
|
| Gain/Trim Range |
+12 dBu Up to +24 dBu
|
Connectivity
| Analog Audio I/O |
16x XLR 3-Pin Balanced Line Output
|
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Sync I/O |
No
|
| Network I/O |
2x RJ45 Dante
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
20 Hz to 20 kHz +0/-0.5 dB
|
| Impedance |
XLR Line Outputs:
< 50 Ohms |
| SNR |
XLR Line Outputs:
-107 dBFS (20kHz BW,) |
| THD+N |
XLR Line D/A Converters:
< -107 dBFS (20Hz to 20kHz, 20kHz BW) |
| Crosstalk |
< 100 dB
|
Digital Audio
| Sample Rates |
Output:
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (D/A Conversion) |
| Sample Rate Conversion |
No
|
| Bit Depths |
16 / 24 / 32-Bit
|
| Sync Sources |
Dante
|
| Clocking |
Dante:
|
Compatibility
| OS Compatibility |
Windows 10
|
| Mobile App Compatible |
No
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
Available Ethernet Port
|
Power
| Power Requirements |
PoE
|
| Power Consumption |
15.4 W (Maximum)
|
Physical
| Rackmount Size |
1 RU (with Non-Included Hardware)
|
| Dimensions |
18.9 x 4.3 x 1.7" / 48 x 11 x 4.3 cm
|
| Weight |
3.1 lb / 1.4 kg
|
Packaging Info
| Package Weight |
3.215 lb
|
| Box Dimensions (LxWxH) |
22.9 x 9.6 x 2.5"
|
