Description
SOMA Laboratory PULSAR-23 Overview

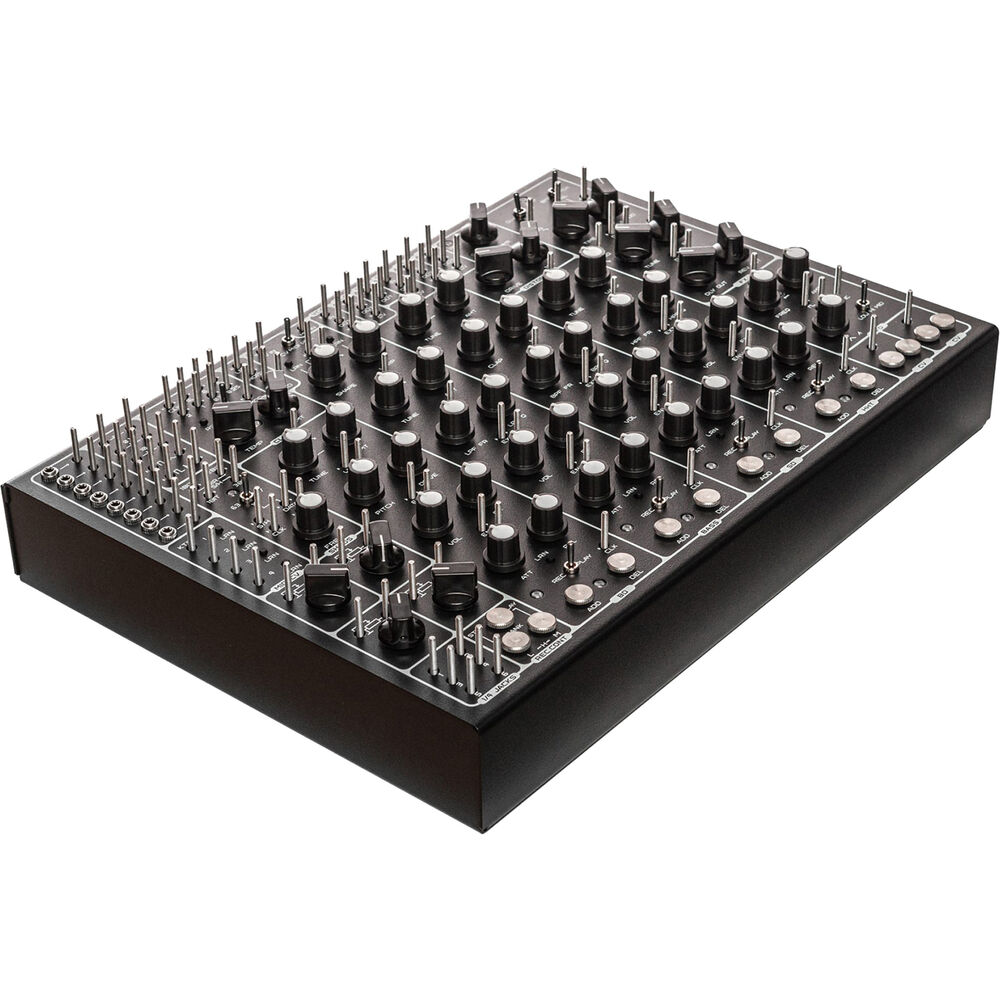

The Pulsar-23 Organismic Drum Machine with Screws (Black) from SOMA Laboratory is an organismic drum machine created by Vlad Kreimer with a semi-modular structure, consisting of 23 independent modules. Percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog effects can all be created and manipulated to the edges of the user's imagination.
The Pulsar functions in three different modes: standalone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination. Two controlled VCAs, CV-controlled gates. and two controllable inverters offer the user a versatile integration experience with other equipment. Additionally, it offers live circuit bending capabilities and the use of the artist's body conductivity to create modulations and patches. Pulsar continues the line of organismic synthesizers begun by LYRA-8, expanding those principles into a percussion synthesizer.

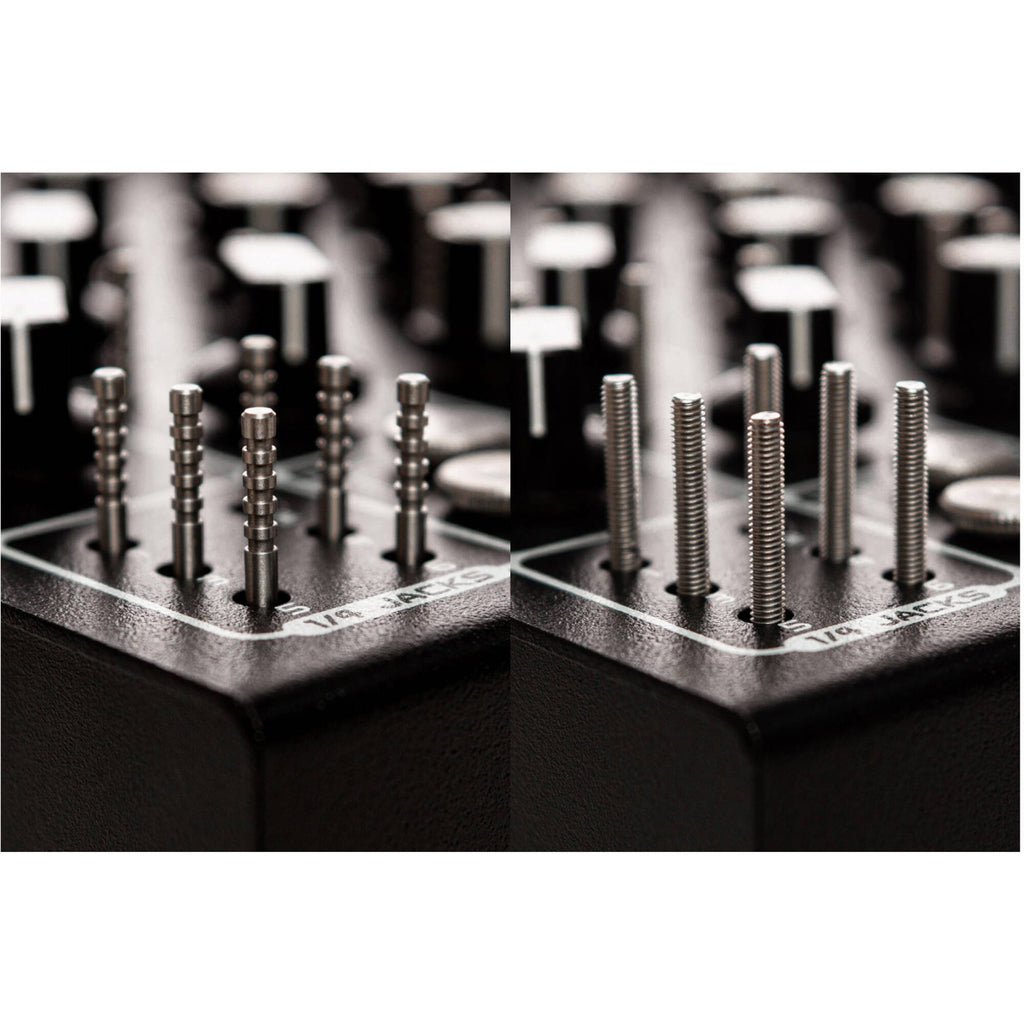

this version of the Pulsar-23 is identical to standard versions except for the use of more affordable screws for the controls instead of expensive custom turrets.
- 4 drum channels: bass drum, bass\percussion, snare drum, cymbals, hi-hat
- 4 envelope generators with the ability to generate a sustain for the drum channels, making them noise\drone synthesizers
- 4 independent loop recorders that record triggering events, with the option for individual clocking
- Clock generator with an array of dividers
- Wide range LFO (0.1 to 5000 Hz) with variable waveform
- Shaos?a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold, and more
- Effects processor with CV control of the entire DSP?s sample rate
- Distortion
- 2 CV-controlled gates
- 2 CV-controlled VCA
- 2 controllable inverters
- MIDI control and sync
- 4 assignable attenuators and 2 dynamic CV sensors

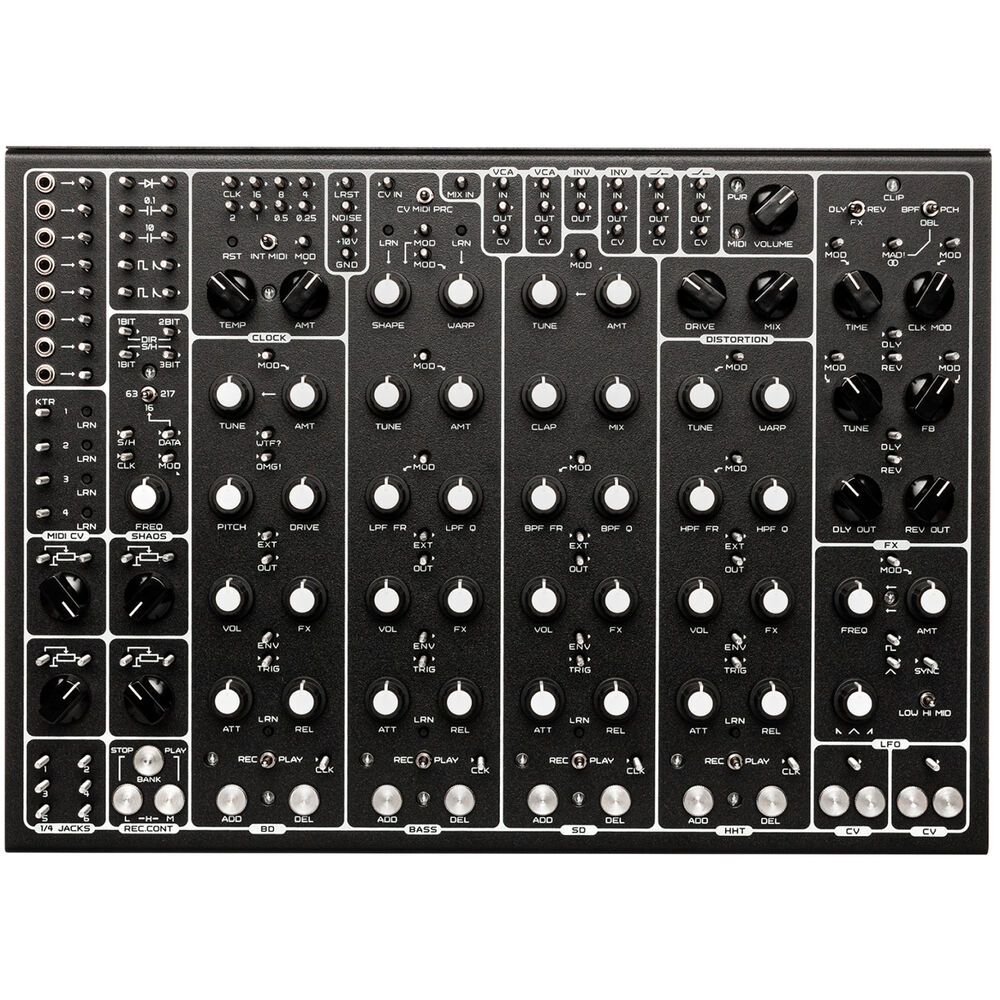

- 55 knobs, 11 switches, and over 100 inputs and outputs for patching
- Eurorack integration, external mixing and processing
- SOMA Laboratory Pulsar-23 Organismic Drum Machine with Screws (Black)
- 22 Multi-Color Cables with Alligator Clips (65cm)
- 8 Multi-Color Cables with Alligator Clips (30cm)
- Power Supply
- Travel Bag
No additional resources available
SOMA Laboratory PULSAR-23 Specs
| Sound Generation |
Analog
|
| Number of Sounds, Kits, or Samples |
4x Drum Kit
|
| Maximum Polyphony |
Monophonic
|
| Audio I/O |
1/4" / 1/8" (3.5 mm) Headphone
|
| MIDI I/O |
1x DIN 5-Pin Input
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm CV Output
|
| Patch Points |
No
|
| Synth Type |
Desktop Synth Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Number of Sounds, Kits, or Samples |
4x Drum Kit
|
| Maximum Polyphony |
Monophonic
|
| Built-In Effects |
Yes
|
| Performance Functions |
Sequencer
|
| Built-In Speaker |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
4x Envelope Generator
|
| Filters |
No
|
| LFOs |
Number of LFOs: 1
LFO Rate: 0.1 to 5000 Hz |
| Glide/Portamento |
No
|
| Sequencer |
Yes
|
| Arpeggiator |
No
|
| Supported MIDI Standards |
GM
|
| Media/Memory Card Slot |
No
|
| Audio I/O |
1x 1/4" Main Output
6x 1/4" Modular/Eurorack Output 1x 1/8" / 3.5 mm Headphone Output |
| Pedal Support |
No
|
| MIDI I/O |
1x DIN 5-Pin Input
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm CV Output
|
| Control Voltage Level |
0 to +10 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Bluetooth |
No
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC/DC Power Adapter |
12 VDC (Included)
|
| Current Consumption |
0.3 A
|
| Color |
Black
|
| Included Accessories |
No
|
| Dimensions |
15 x 11 x 3.1" / 380 x 280 x 80 mm
|
| Weight |
8.8 lb / 4 kg
|
| Package Weight |
14.93 lb
|
| Box Dimensions (LxWxH) |
22.7 x 14.9 x 6.8"
|
