Description
Solid State Logic Revival 4000 Overview
Encapsulating the sonic excellence and features of the legendary Solid-State Logic 4000 series consoles of the '80s in a 1 RU form factor, the Revival 4000 is an all-analog channel strip featuring a Jensen transformer-balanced mic pre, a B series de-esser, a discrete VCA dynamics section, and iconic 4-band parametric EQ. With flexible routing, this channel strip offers striking versatility.
Starting at the mic pre section, the Jensen transformer of the mic preamp provides a rich sound and pristine clarity. The de-esser section provides a 10:1 ratio and helps to tame harsh sibilance on a wide range of sound sources. The Dynamics section, derived from the E series consoles, offers smooth, Class-A VCA dynamics/gate functionality with soft-knee, fast attack, and linear release functions, along with typical threshold, release, ratio, and range controls, plus a 5-segment gain-reduction meter. The 4-band EQ section features the option to switch between the classic E series Brown Knob or the Black Knob based on the 242 EQ. This section provides parametric EQ control over low, low-mid, high-mid, and high frequencies, adjustable Q, and the option to engage a fixed-Q bell curve for the high and low bands. You can use the Route section to place the Dynamics and De-Esser sections post EQ, to activate external side-chain triggering or stereo side-chain linking to a second Revival 4000 series unit. Finally, the master control section provides ?20 dB of output volume control, insert control, and the ability to switch the source used for the 5-segment master LED meter.
- Manual In button inserts de-esser into signal chain
- +10 to -20 dB gain control
- 3-segment LED meter
Flexible controls allow you to bypass the soft-knee curve, activate a fast attack mode, and choose between logarithmic or linear release curves. Together, these features offer a wide palette of tonal shaping options, capturing the distinctive voicings that helped craft countless classic records on a variety of E Series consoles.
Developed in 1983, the 242 EQ circuit in collaboration with the legendary George Martin for the first SSL console installed at AIR Studios. Known as the Black Knob EQ, it introduced wider cut and boost ranges (?18 vs. ?15 dB), a refined control response, and a steeper 18 dB/octave high-pass filter?offering tighter low-end control and greater tonal flexibility.

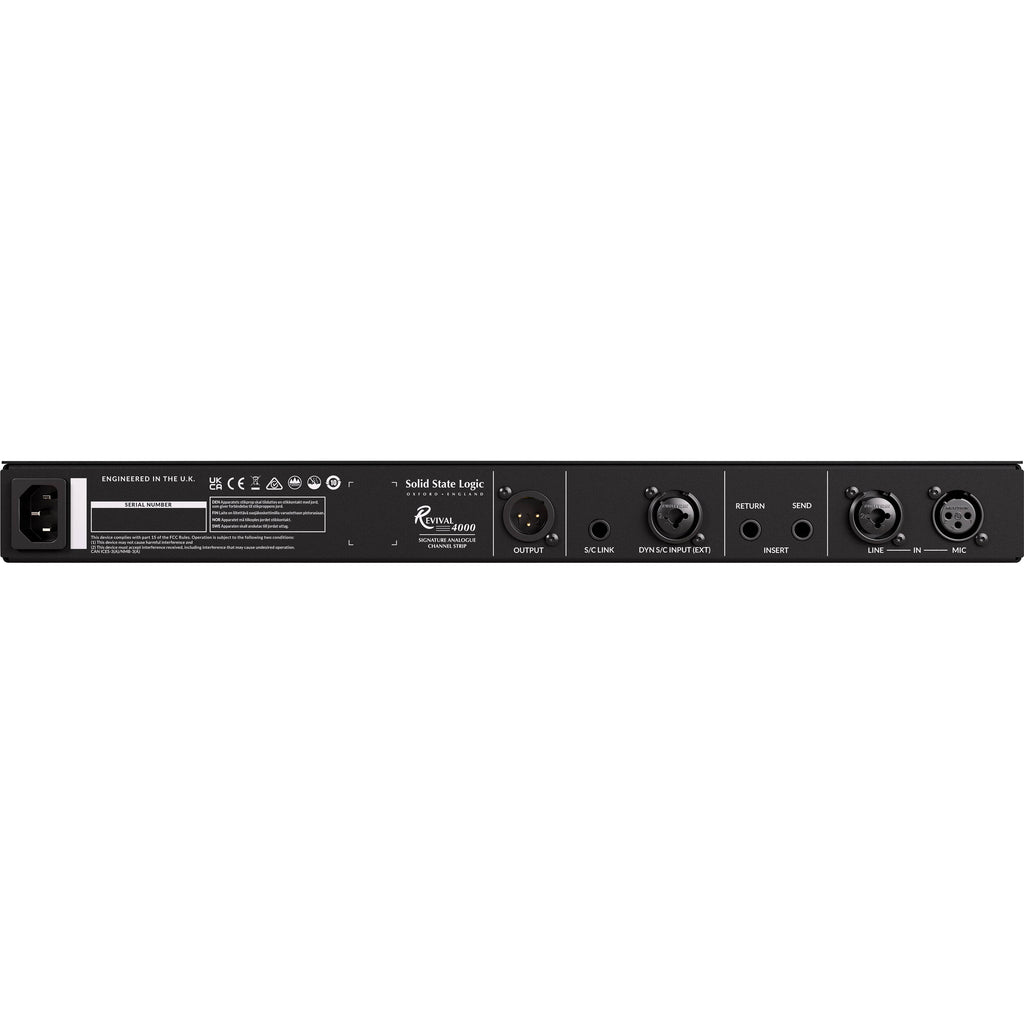

- XLR 3-pin microphone input
- XLR-1/4" combo input for line / Hi-Z input
- 1/4" insert send and return jacks
- XLR-1/4" combo input for external side-chain trigger
- 1/4" jack for side-chain stereo link
- XLR balanced line output
Items Included
- Solid State Logic Revival 4000 Analog Channel Strip
- Limited 1-Year Manufacturer Warranty
Additional Resources
Solid State Logic Revival 4000 Specs
| Audio I/O |
1x XLR 3-Pin Mic Input (Balanced)
1x Combo XLR-1/4" 3-Pin Hi-Z/Instrument/Line Input 1x Combo XLR-1/4" 3-Pin Input (Side-Chain Trigger Input) 1x 1/4" TRS Input (Insert Return) 1x XLR 3-Pin Line Output (Balanced) 1x 1/4" TRS Output (Insert Send) 1x 1/4" Output (Side-Chain Link) |
| Power Source |
AC Input
|
| Mounting |
Front: 4x Standard Rack Screw
|
| Color |
Black / Gray
|
| Material of Construction |
Metal
|
| Dimensions |
19" / 48.3 cm (1 RU)
|
| Package Weight |
12.705 lb
|
| Box Dimensions (LxWxH) |
24.7 x 14.8 x 4.3"
|
