Description
Features & Specs
- Input voltage: 5.5V maximum, 1.8V minimum
- Maximum current draw: 2A continuous, 4A peak (fuse protected)
- SIL2308 N&P-Channel MOSFET
- 70mΩ (0.070 Ohm) typical P-Channel on-resistance
- Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled
- Hard override: push and hold the button for ~10 seconds
- Supports battery charging

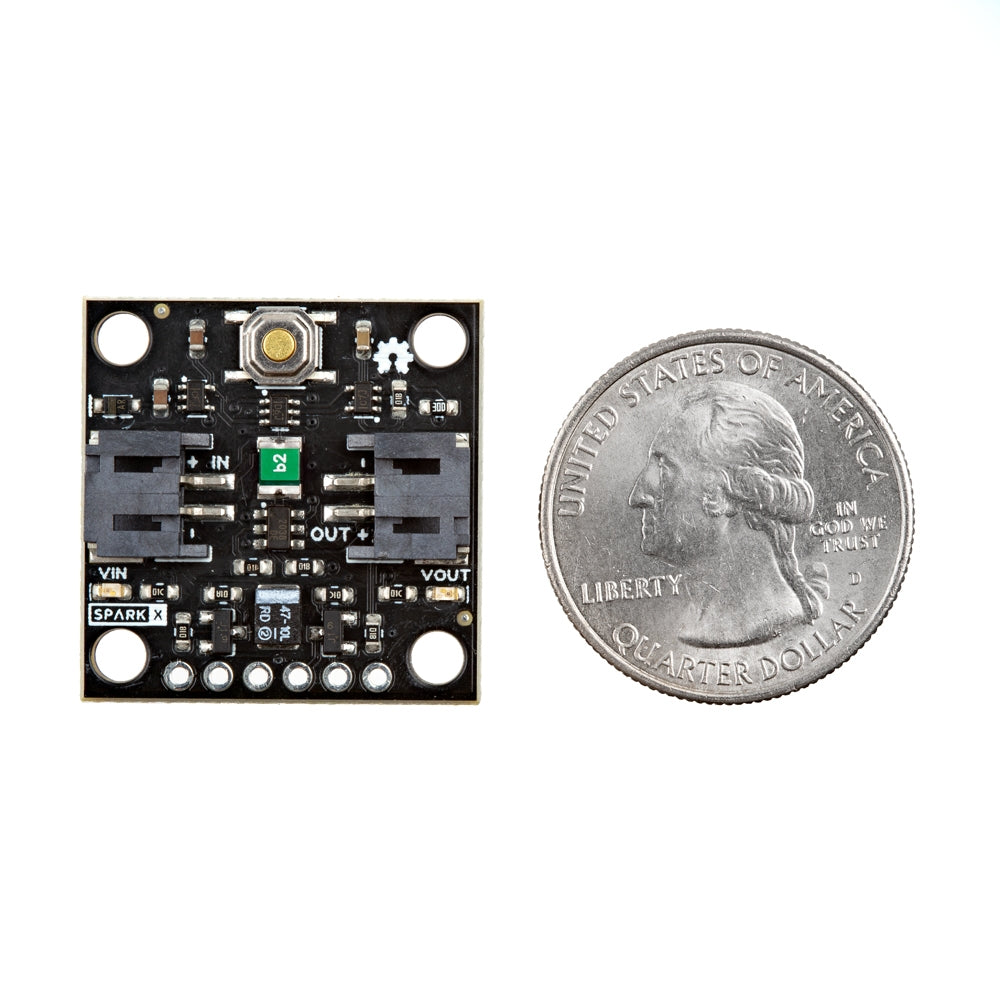

- 1" x 1" PCB
- LEDs: VIN and VOUT (can be disabled if desired)

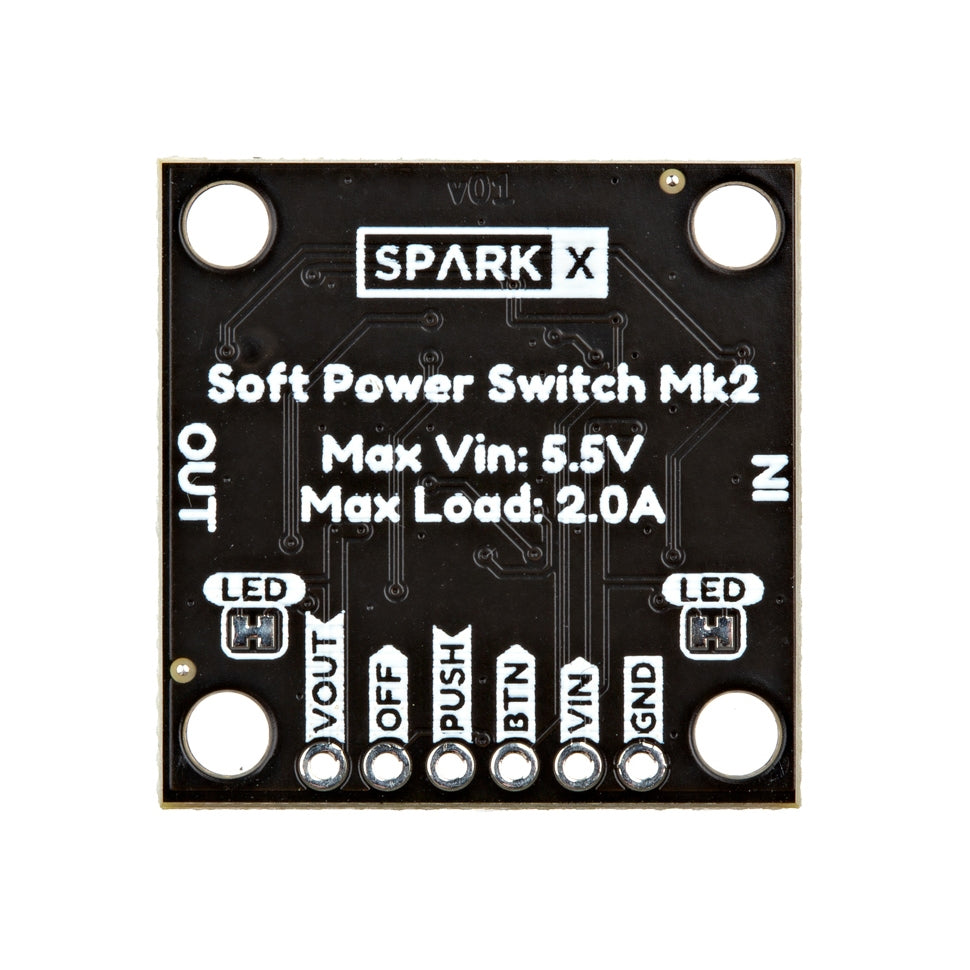

- Breakouts:
- GND, VIN, VOUT
- BTN: if desired, connect an external button between BTN and GND
- PUSH: open-drain output, requires pull-up, low indicates button is pushed
- OFF: drive high to turn the output off
Features & Specs
- Input voltage: 5.5V maximum, 1.8V minimum
- Maximum current draw: 2A continuous, 4A peak (fuse protected)
- SIL2308 N&P-Channel MOSFET
- 70mΩ (0.070 Ohm) typical P-Channel on-resistance
- Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled
- Hard override: push and hold the button for ~10 seconds
- Supports battery charging
- 1" x 1" PCB
- LEDs: VIN and VOUT (can be disabled if desired)
- Breakouts:
- GND, VIN, VOUT
- BTN: if desired, connect an external button between BTN and GND
- PUSH: open-drain output, requires pull-up, low indicates button is pushed
- OFF: drive high to turn the output off
