- Extra-Low Dispersion (ED) Glass
- Phase-Corrected Roof Prisms
- Anti-Reflection Fully Multicoated Optics
- Ergonomic Open-Bridge Configuration
- Fiberglass-Reinforced Polycarbonate Body
- Knurled Center Focus Wheel
- Nitrogen-Filled, Water and Fogproof
- Twist-Up Eyecups for Custom Eye-Relief
- Protective Rubberized Armor
- Tripod Mountable with Optional Adapter

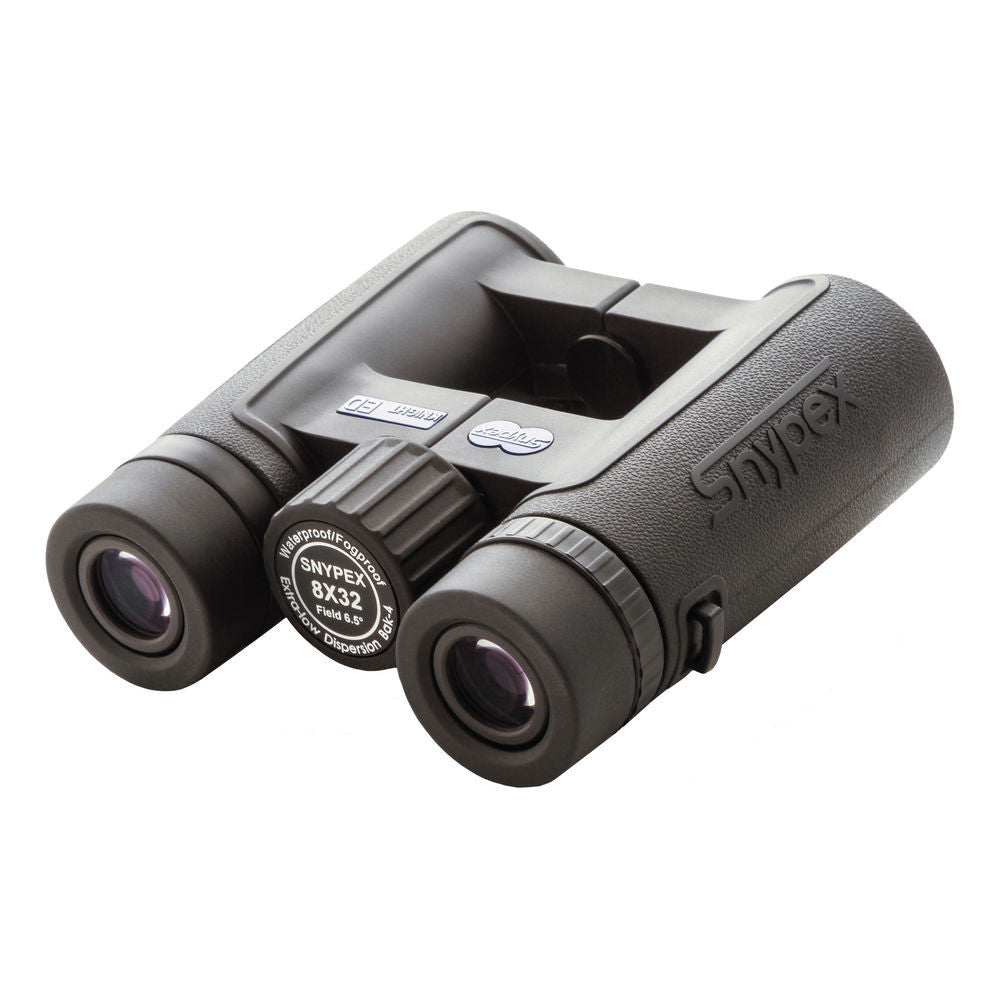

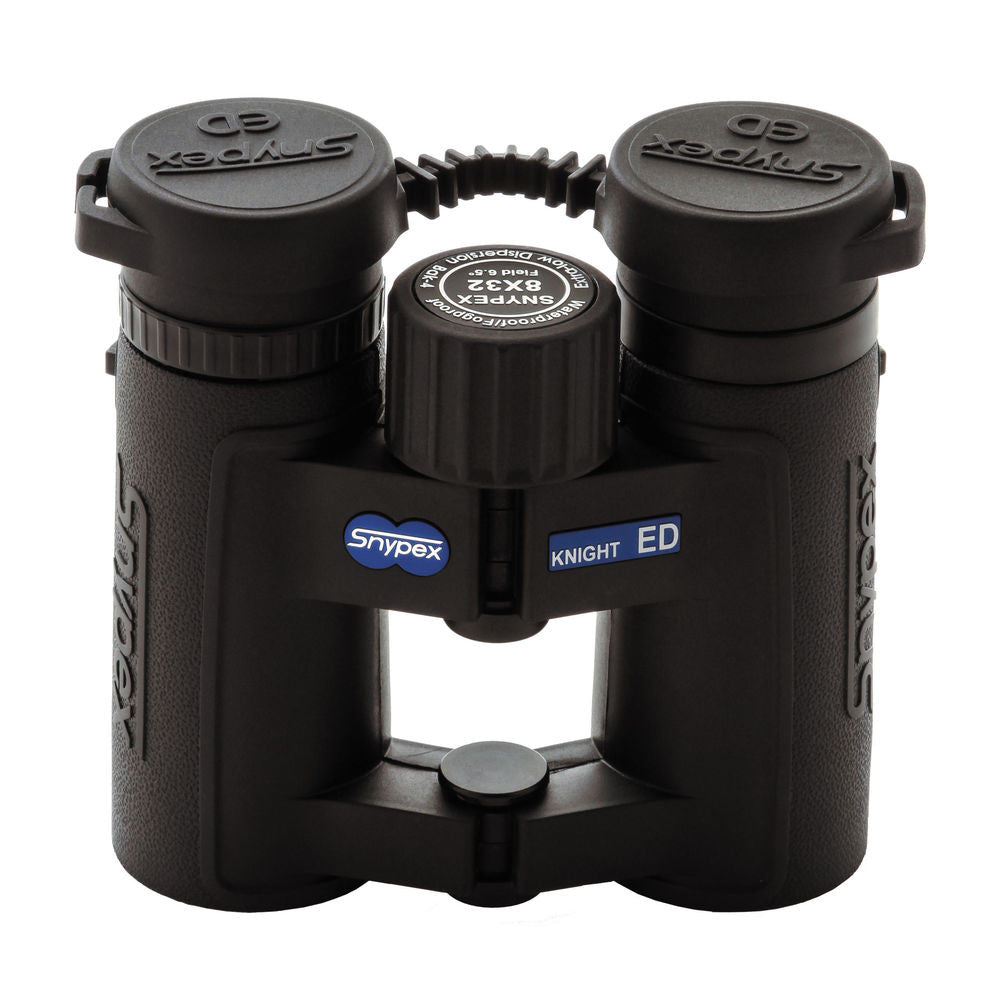

The 8x32 Knight ED Binocular from Snypex features Extra-low Dispersion (ED) glass and dielectric-coated phase-corrected BaK4 roof prisms that work together to virtually eliminate chromatic aberration and produces images with true color fidelity across the entire field of view and enhanced contrast. Complementing the glass and prisms are anti-reflection fully multicoated optics that improves light transmission for bright and clear images. The objective and ocular lenses are designed in a 3-group/4-element configuration to precisely control the light path
The Knight's open-bridge design helps to reduce weight without sacrificing strength, and provides a large surface area to hold, even with the compact housing. Rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight fiberglass-reinforced polycarbonate housing is nitrogen-filled and o-ring sealed for fogproof performance and makes it submersible to 3.3ft for up to 15 minutes. The twist-up eyecups provide a custom-fit eye relief for use with or without eye-wear.
- Optical Performance
-
- 8x magnification
- 32mm objective lens diameter
- BaK 4 roof prism optical design
- Apochromatic lenses and extra-low dispersion (ED) glass virtually eliminates chromatic aberration for true color transmission across the entire field of view
- Phase-corrected and dielectric coated BaK4 prisms provide improved light reflection with high-contrast and true color fidelity
- Anti-reflection fully multicoated optics enhances light transmission for brighter views
- 3-group/4-element objective and ocular lenses
- 351ft field of view at 1000yd
- 53.6° apparent field of view
- Use and Handling
-
- Large knurled center focus wheel
- Open-bridge design reduces weight and provides a more comfortable grip
- Twist-up eyecups for use with or without eye-wear
- Right-eye locking diopter adjustment
- Tripod mountable with optional adapter
- Close focus distance of 4ft
- Construction Details
-
- Durable and lightweight fiberglass-reinforced polycarbonate housing
- Nitrogen-filled and o-ring sealed for water and fogproof performance
- Submersible to 3.3' (1 m) for up to 15 minutes
- Water-repellent lens coatings bead moisture off lenses
- Protective rubberized housing armor
UPC: 854725004009
| Prism Type | Roof |
| Magnification | 8x |
| Objective Lens Diameter | 32mm |
| Angle of View | 6.7° (actual) |
| Field-of-View | 351' @ 1000 yd / 116.53 m @ 1000 m |
| Minimum Focus Distance | 4' / 1.22 m |
| Exit Pupil Diameter | 4 mm |
| Eye Relief | 16.8 mm |
| Interpupillary Adjustment | Not Specified By Manufacturer |
| Dioptric Correction | Not Specified By Manufacturer |
| Focus Type | Center |
| Tripod Mount | Yes (Adapter Optional) |
| Dimensions | 4.6 x 4.3 x 1.6" / 11.68 x 10.92 x 4.06 cm |
| Weight | 13.4 oz / 380 g |
| Packaging Info |
| Package Weight | 1.95 lb |
| Box Dimensions (LxWxH) | 6.772 x 6.614 x 2.756" |
In the Box
SNYPEX 8x32 Knight ED Binocular
- Lens Cloth
- Binocular Strap
- Hard Case with Strap
- Ocular Rainguard
- 2 x Objective Lens Covers
- Limited 5-Year Warranty
