Description

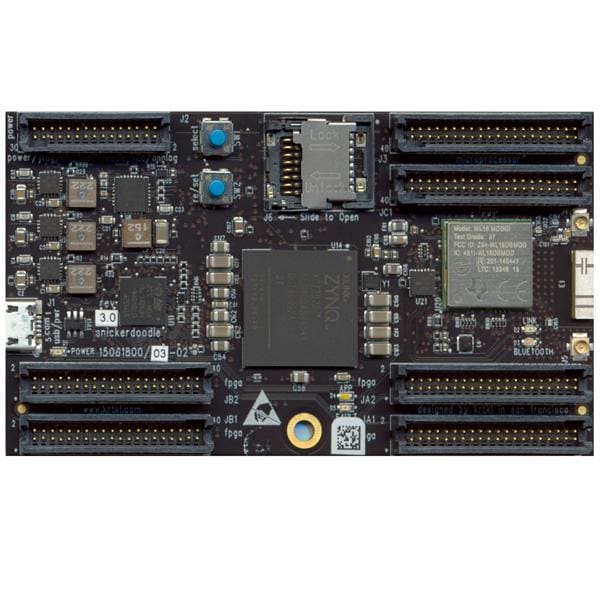

Snickerdoodle One System-on-Module is a business-card-sized, Zynq-based computer module with Wi-Fi®, 512MB RAM, 16MB flash, 155 I/O, and an SD card cage.
Features & Specs
- Chipset: Xilinx Zynq-7010
- CPU: 32-bit Dual-Core ARM Cortex-A9 with 640kB Cache and 2x 128-bit NEON Coprocessors
- Performance: 3335 DMIPS/2.6 GFLOPS at 667MHz
- Flash: 16MB XIP NOR + up to 200GB SDIO NAND via Captive MicroSD Card Cage
- DRAM/bandwidth: 512MB/25.6Gbps
- SRAM/bandwidth: 256kB/28.4Gbps
- FPGA: 430K gates/17600 LUT-6
- 32-bit performance: 143,150 MIPS at 350MHz
- Distributed RAM: 270kB/3354Gbps
- DSP performance: 74 GMACs/31.8 GFLOPS at 461MHz
- Total user GPIO: 155
- FPGA I/O performance: 16x ADC/100x GPIO/46.2Gbps
- Fixed GPIO: 33x GPIO, 4x I2S Audio, 14x I2C, 1x ADC, 2x DAC
- Wi-Fi: 150Mbps SISO 2.4GHz 802.11n
- Antenna: Dual-band antenna, Switched U.FL ports
- Serial interfaces: 2x Gigabit Ethernet, 2x CAN, 2x I2C, SPI, UART, USB 2.0 High-Speed, MicroUSB Console/JTAG
- Analog interfaces: 2x 1MSPS 12-bit ADCs w/16 Channel Multiplexer, 2x 1MSPS 12-bit DACs
- Other peripherals: 5x LEDs, 2x Pushbuttons, Secure Cryptographic Key/Certificate Storage
- Software support: Ubuntu Linux, Python, C/C++, Java, ROS, FreeRTOS
- Power: 5V via microUSB or 3.7V to 17V via power pins
- Dimensions: 2.0" x 3.5" (50.8mm x 88.9mm)
Features & Specs
- Chipset: Xilinx Zynq-7010
- CPU: 32-bit Dual-Core ARM Cortex-A9 with 640kB Cache and 2x 128-bit NEON Coprocessors
- Performance: 3335 DMIPS/2.6 GFLOPS at 667MHz
- Flash: 16MB XIP NOR + up to 200GB SDIO NAND via Captive MicroSD Card Cage
- DRAM/bandwidth: 512MB/25.6Gbps
- SRAM/bandwidth: 256kB/28.4Gbps
- FPGA: 430K gates/17600 LUT-6
- 32-bit performance: 143,150 MIPS at 350MHz
- Distributed RAM: 270kB/3354Gbps
- DSP performance: 74 GMACs/31.8 GFLOPS at 461MHz
- Total user GPIO: 155
- FPGA I/O performance: 16x ADC/100x GPIO/46.2Gbps
- Fixed GPIO: 33x GPIO, 4x I2S Audio, 14x I2C, 1x ADC, 2x DAC
- Wi-Fi: 150Mbps SISO 2.4GHz 802.11n
- Antenna: Dual-band antenna, Switched U.FL ports
- Serial interfaces: 2x Gigabit Ethernet, 2x CAN, 2x I2C, SPI, UART, USB 2.0 High-Speed, MicroUSB Console/JTAG
- Analog interfaces: 2x 1MSPS 12-bit ADCs w/16 Channel Multiplexer, 2x 1MSPS 12-bit DACs
- Other peripherals: 5x LEDs, 2x Pushbuttons, Secure Cryptographic Key/Certificate Storage
- Software support: Ubuntu Linux, Python, C/C++, Java, ROS, FreeRTOS
- Power: 5V via microUSB or 3.7V to 17V via power pins
- Dimensions: 2.0" x 3.5" (50.8mm x 88.9mm)
