Description
SmartSystem Zen Overview
- 1Description
- 2Multiaxial Digital Level
- 3Multiple Sensors
- 4Single and Multiaxial Views
- 5Zeroing
- 6Multicolor LED Bars
- 7Display Features
- 8Power Options
- 9Durable Construction

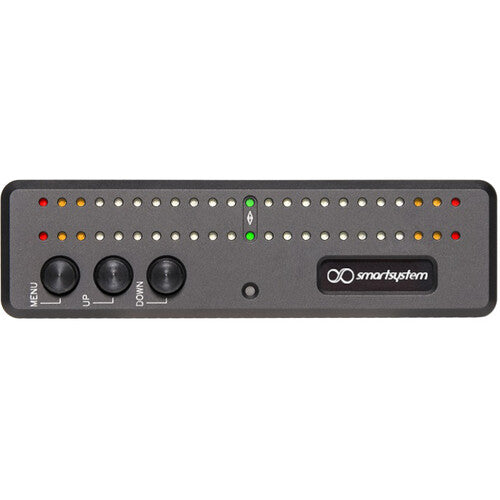

The SmartCAM Zen Digital Level from SmartSystem provides accurate level readings for your Steadicam or other stabilizer systems. This system uses dual LED bands to display up to two axes simultaneously. In addition to roll, tilt, and pan, the Zen can display roll/tile, roll/pan, tilt/pan, and roll/side-to-side combinations. Four display speeds, auto-zeroing, and a beta-zeroing by gesture function make it easy to set the display for multiple takes. The Zen digital level can be powered via USB or a 2-pin LEMO input.
Multiaxial Digital Level
Digital level designed for use with Steadicams and other stabilizers
Multiple Sensors
Multicore CPU and six sensors for accurate leveling
Single and Multiaxial Views
Choose between:
- Roll, Tilt, or Pan
- Roll + Tilt
- Roll + Pan
- Tilt + Pan
- Roll + Side to Side
Zeroing
- Reset all axes or just those currently displayed
- Beta version of gesture zeroing
- Selectable countdown time to zeroing
Multicolor LED Bars
- Display up to two axes simultaneously
- Fixed or automatic ambient brightness adjustment
Display Features
- Selectable maximum ranges
- Realtime, Fast, Medium, Slow, and Sloth response speeds
- Display flip mode
- Moving Dot and Sliding Bar
- Set marker limits
- Selectable center space LED
Power Options
- 5 to 20V 2-pin LEMO power option with daisy chaining
- USB power and updating port
- Auto-shutdown feature for over/underpowering
- Reverse polarity protection
Durable Construction
- Milled from solid aluminum
- Anodized finish
In the Box
- SmartSystem SmartCAM Zen Digital Level System
- Zen Cage
- 1/4"-20 Screw
- Adhesive Pad Kit
- Limited 1-Year Warranty
- Limited 5-Year Total Warranty with Registration
Table of Contents
- Description
- Multiaxial Digital Level
- Multiple Sensors
- Single and Multiaxial Views
- Zeroing
- Multicolor LED Bars
- Display Features
- Power Options
- Durable Construction
SmartSystem Zen Specs
| Power Input | 2-Pin LEMO |
| Voltage Range | 5 to 20 VDC |
| Power Consumption | 1.6 W |
| Material of Construction | Anodized Aluminum |
| Operating Temperature Range | 14 to 113°F / -10 to 45°C |
| Operating Humidity Range | 10 to 80% |
| Dimensions (WxHxD) | 4.1 x 1.4 x 1.1" / 104 x 35.6 x 29 mm |
| Weight | 3.5 oz / 100 g |
Packaging Info
| Package Weight | 1.79 lb |
| Box Dimensions (LxWxH) | 11.2 x 10.4 x 4.1" |
