Description
SmartSystem SmartCAM Tempo Overview
- 1Description
- 2Buffering and Reclocking
- 3OLED Screen
- 4Polarity
- 515mm Rod Bracket
- 6Durable Housing with Dual Power
The SmartCAM Tempo Rugged 12G-SDI Splitter and Reclocker from SmartSystem divides a single BNC video input into two buffered and reclocked BNC outputs. The Tempo supports up to 12G-SDI signals and features a high-contrast OLED status screen, an aluminum housing with a heat sink, and a single 15mm rod mount. Its dual 2-pin DC power inputs feature dual polarity and can be daisy-chained when using multiple units.
Buffering and Reclocking
This single-input splitter provides two fully buffered and reclocked outputs for up to 12G-SDI video signals.
OLED Screen

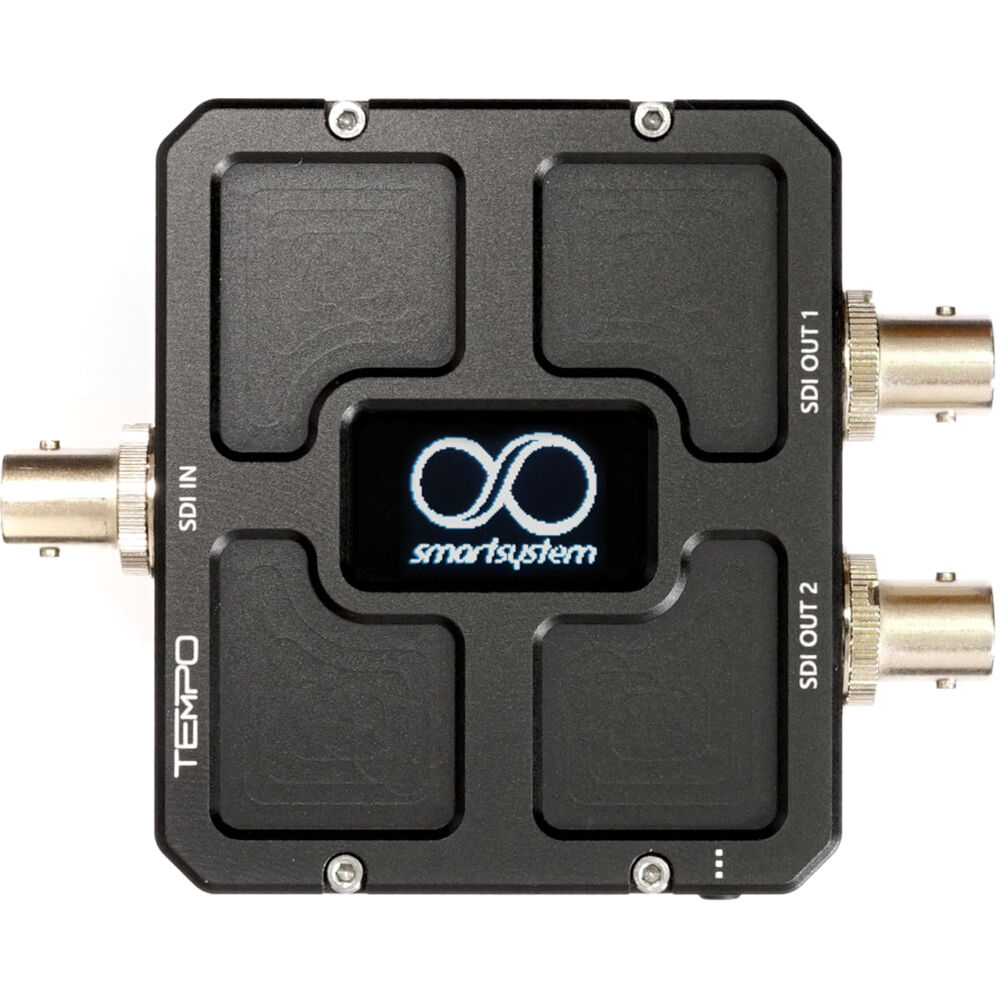

A high-contrast OLED screen provides signal type, signal quality, link quality, equalization amount, and temperature information at a glance.
Polarity
The Tempo's two-pin power input port is designed with agnostic polarity for easier use.
15mm Rod Bracket
The included 15mm rod bracket enables you to easily mount the Tempo on your camera rig.
Durable Housing with Dual Power

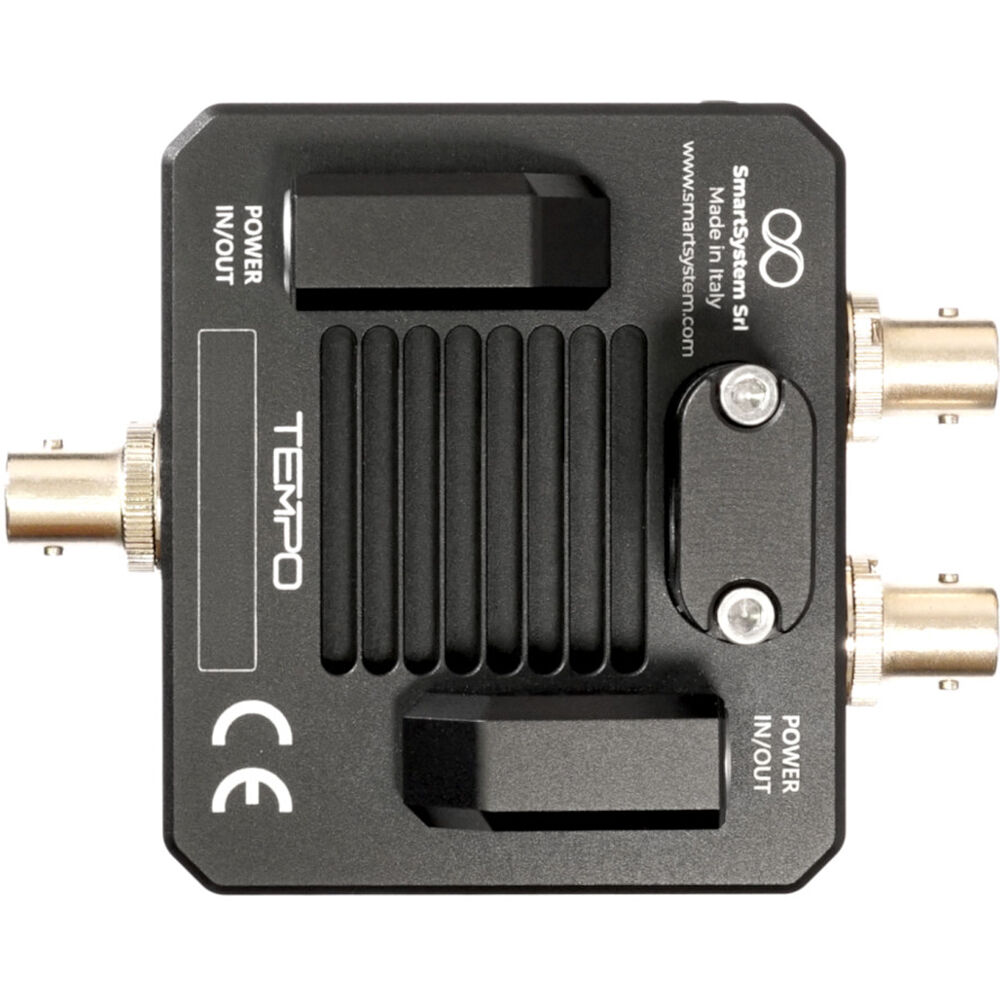

This splitter has a durable aluminum housing and two power input/output ports that enable daisy-chaining of multiple units.
In the Box
- SmartSystem SmartCAM Tempo Rugged 12G-SDI Splitter and Reclocker
- 15mm Rod Bracket
- 2.5mm Hex Key
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Buffering and Reclocking
- OLED Screen
- Polarity
- 15mm Rod Bracket
- Durable Housing with Dual Power
SmartSystem SmartCAM Tempo Specs
Key Specs
| Inputs |
1 x BNC (3G-SDI / 6G-SDI / 12G-SDI)
|
| Embedded Audio |
No
|
| Outputs |
2x BNC (3G-SDI / 6G-SDI / 12G-SDI)
|
| Video Format |
SDI
UHD 4K |
Interfaces
| Inputs |
1 x BNC (3G-SDI / 6G-SDI / 12G-SDI)
|
| Embedded Audio |
No
|
| Outputs |
2x BNC (3G-SDI / 6G-SDI / 12G-SDI)
|
| Other I/O |
1x Mini-USB Input
|
Standards
| Reclocking |
Yes
|
| HDR Compatibility |
No
|
| HDCP Support |
No
|
| EDID Support |
Yes
|
Transmission
| Video Format |
SDI
UHD 4K |
Power
| Power I/O |
2x LEMO 2-Pin (10 to 17 VDC) Input/Output
|
| Power Consumption |
(5 W)
|
| ESD Protection |
No
|
Environmental
| Operating Temperature |
14 to 113°F / -10 to 45°C
|
| Operating Humidity |
10 to 80%
|
General
| Material of Construction |
Aluminum
|
| Dimensions |
3.6 x 28.9 x 1.6" / 91.0 x 733.0 x 40.0 mm (Including Connector)
|
| Weight |
5.9 oz / 168 g
|
