Description
SmartSystem Matrix One Overview
Add a complete vest, arm, and sled stabilizer system to your DJI Ronin 2 or other gimbal rigs with this Matrix One R2 Lite Bundle from SmartSystem. The R2 bundle includes the Arm X1, the Vest Lite, and the Matrix Sled R2 Lite, which includes an LCD monitor bracket, a V-mount battery plate, a docking bracket, an adjustable carbon fiber center post, and a hard-shell case with custom foam to carry the entire kit.

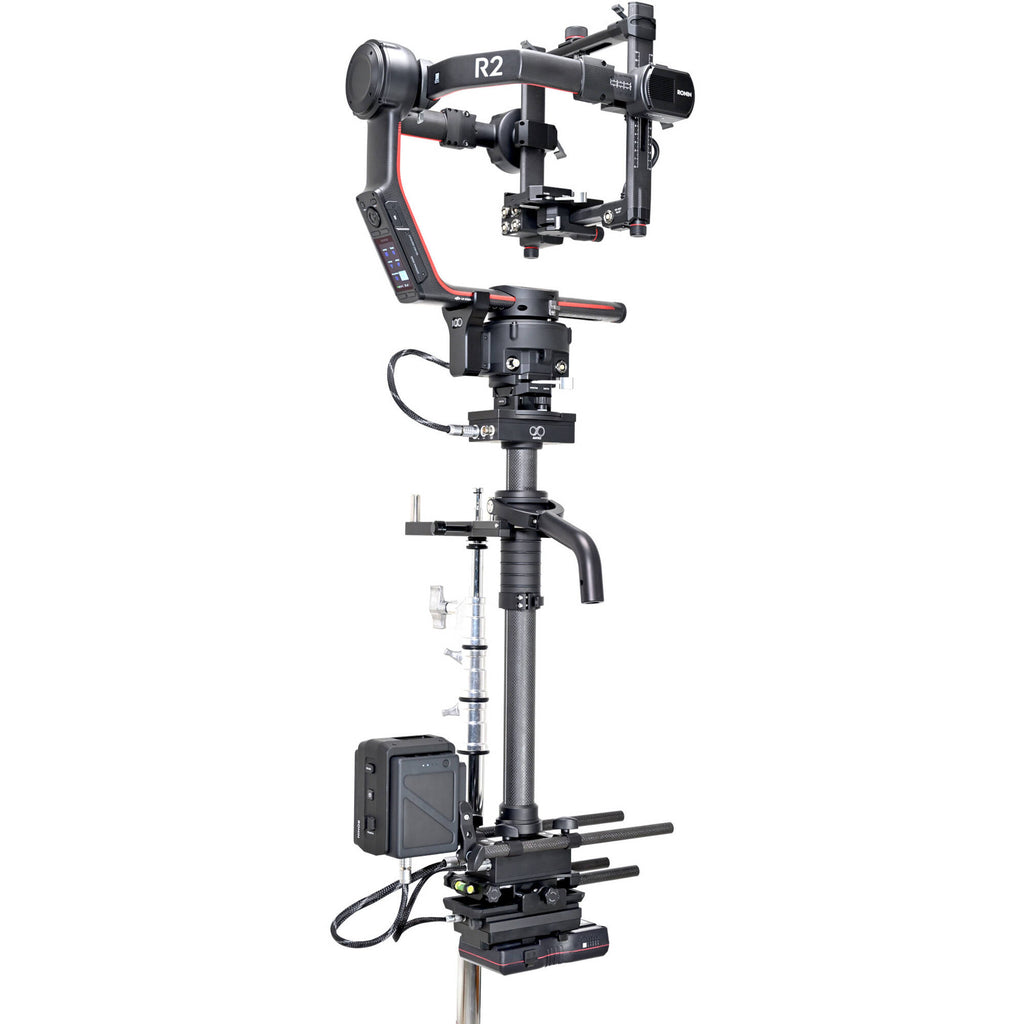

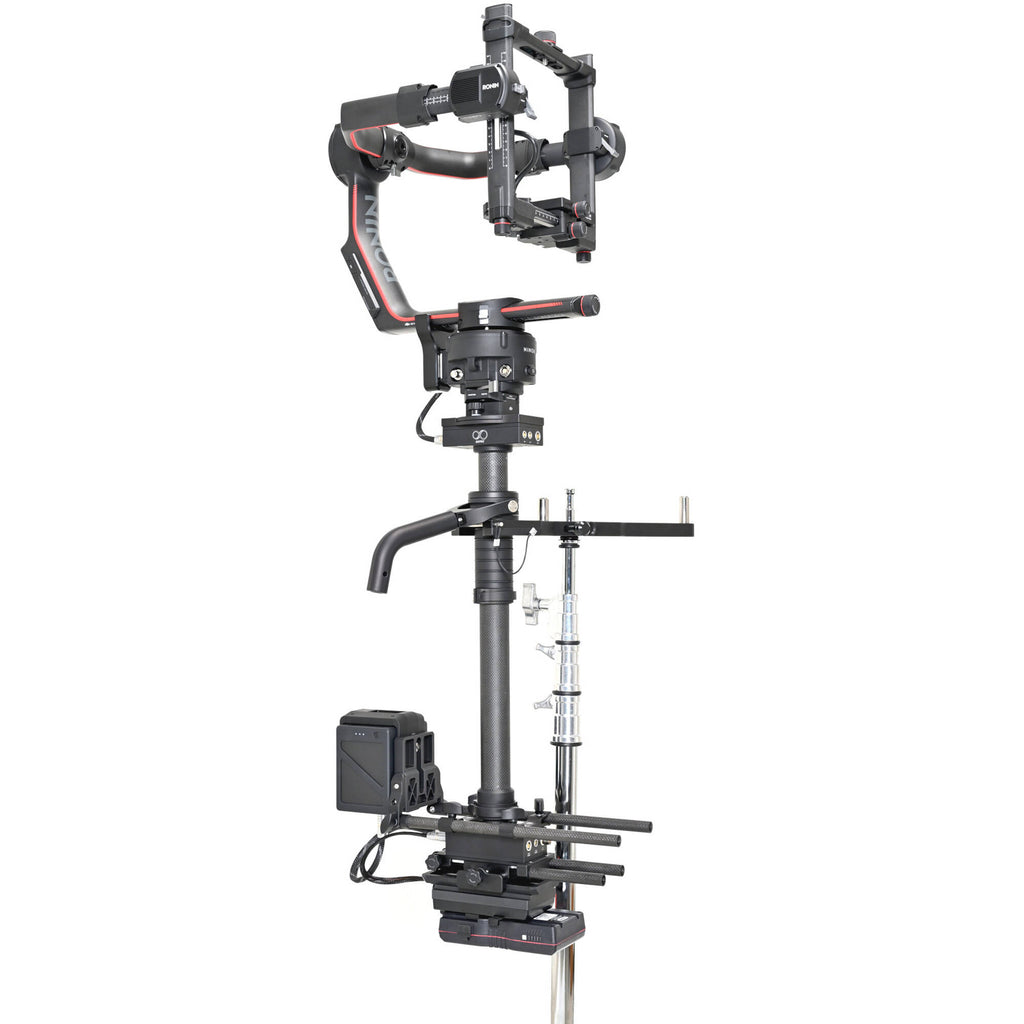

The heavy-duty Sled R2 Lite offers gimbal mounting designed for the DJI Ronin 2, or it can run in standard gimbal mode, and it includes a V-mount battery plate for power at the base, and the camera or gimbal mounts onto the micrometric camera platform. The slim aluminum Arm X1 provides a sturdy stabilizer arm that features advanced damping and a standard stabilizer mounting post, and it has interchangeable springs for different levels of tension to support loads up to 9.92 lb. The arm mounts onto the Vest Lite for right- or left-handed operators, and the quick release vest features foam padding, weight distribution, and washable fabric parts.

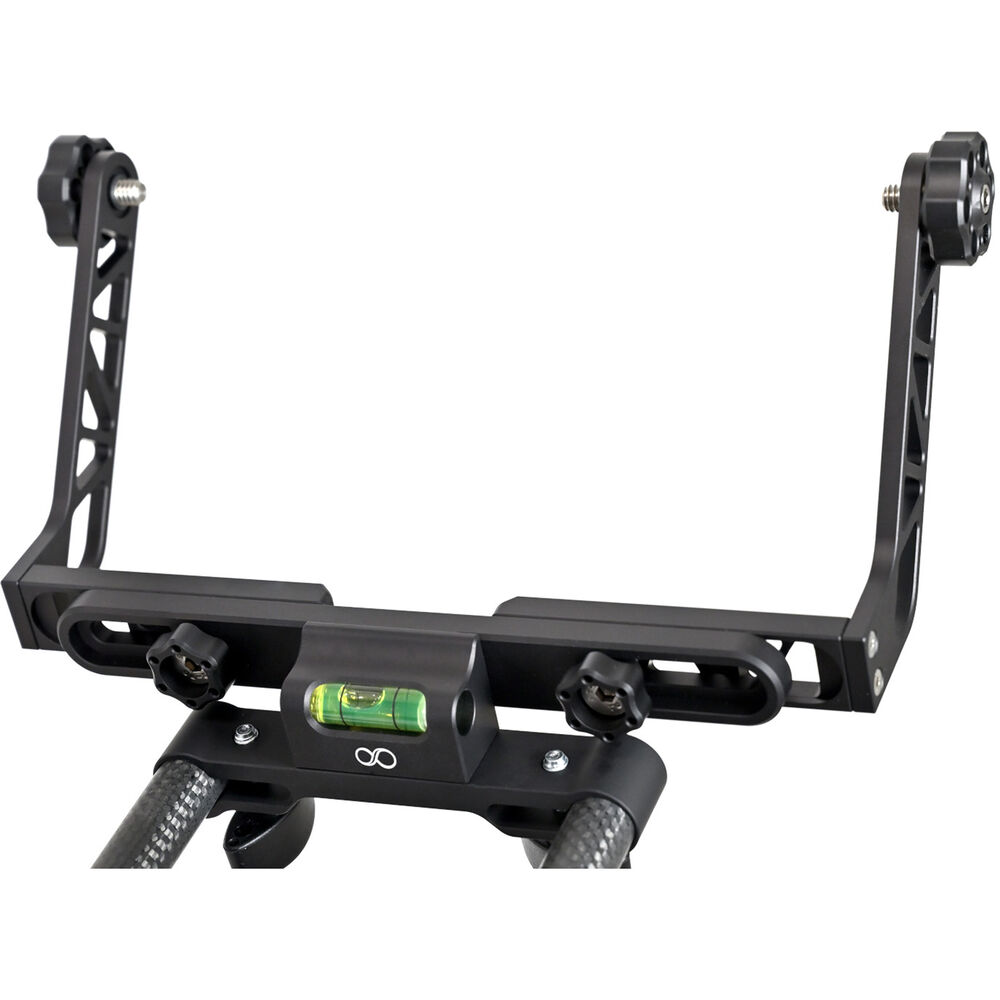

The LCD bracket allows you to mount your camera monitor, so your monitor view is always balanced with your camera setup. The whole system fits into the included wheeled hard-shell case that features IP67 water resistance, a pressure release valve, a folding pull handle, and custom-cut foam.

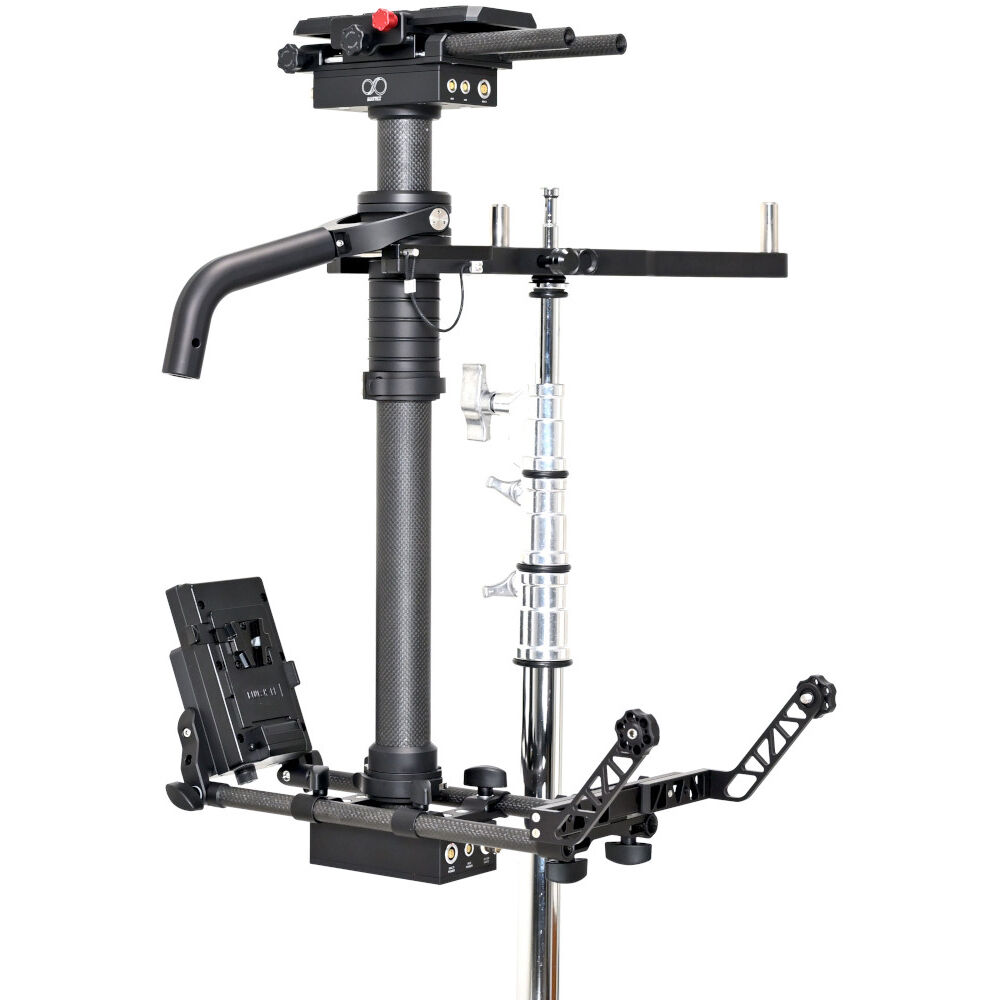

Add professional-level stability and smoothness to your videos when using the DJI Ronin 2 gimbal stabilizer with this Matrix R2 Sled Lite from SmartSystem. The Matrix R2 Lite sled is designed to stabilize your camera footage when mounted on the DJI Ronin 2 gimbal, and it differs from the Matrix R2 as it is designed to use a smaller monitor with your rig, and this rig comes with a small counterweight set. The sled features a telescoping carbon fiber center post, a micrometric head, a monitor LCD holder, a V-mount battery plate, a Ronin 2 plate adapter, a Ronin 2 battery holder, a Ronin 2 yaw lock, an extended docking bracket, a U-bracket, a counterweight plate, ten counterweights, and a hard-shell carry case for the entire system.
The micrometric head allows you to mount the gimbal on the top or bottom of the sled to create a variety of shooting angles. The carbon fiber center post is height adjustable for working in a variety of production environments, and it features a docking bracket to dock the sled for balancing or for when it's not in use. The monitor mount allows you to install and adjust an onboard monitor to the system. The U-bracket allows you to distance the sled from an optional stabilizing arm or vest. The counterweight with ten counterweights mounts onto the bottom to help balance a heavier rig setup.

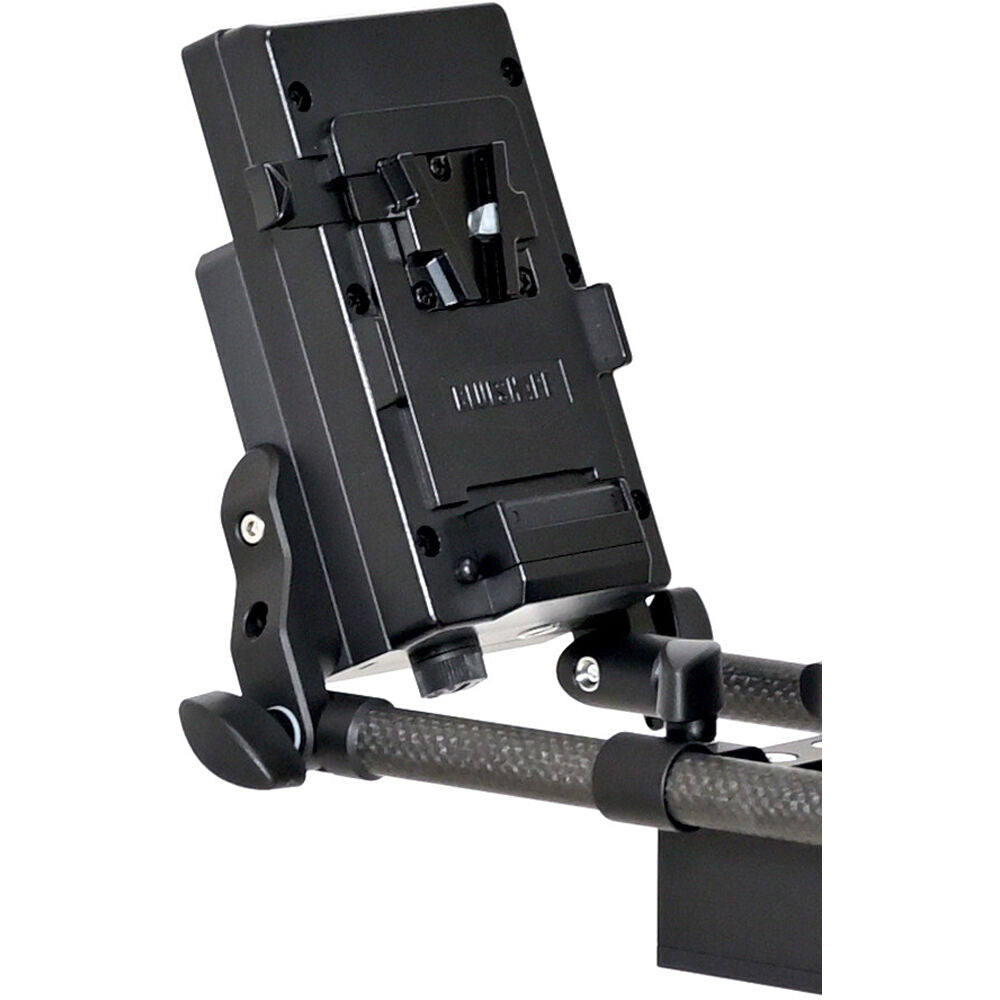

The V-mount battery plate mounts on the bottom rods and runs power up through the center column to the head, so you don't have to run a mess of external cabling. The sled can be broken down and stored in the included hard-shell carry case.
Fly your cine camera with precision and confidence using the Arm X1 Professional Stabilization Arm from SmartSystem. Its fine-tuning system enables you to perfectly match the mass of your rig with the appropriate level of resistance, resulting in the state of equilibrium known as critical damping.
Its 7075 aluminum alloy, rated higher than aircraft-grade, has the Brinnell hardness, fatigue strength, and tensile strength of carbon steel yet without the weight. It is outfitted with an industry-standard mating block that can easily be switched from regular to goofy.
In the Box
- SmartSystem Matrix R2 Sled Lite (V-Mount)
- Micrometric Head
- 2-Section Carbon Fiber Center Post
- DJI Ronin 2 Plate Adapter
- DJI Ronin 2 Battery Holder
- DJI Ronin 2 Yaw Lock
- V-Mount Battery Plate
- Extended Docking Bracket
- LCD Monitor Mount
- U-Bracket
- Counterweight Plate
- 10 x Counterweight
- Hard-Shell Carry Case
- SmartSystem Arm X1 Professional Stabilization Arm
- Standard 5/8" Arm Post
- 4 x Blue Spring
- 4 x Black Spring
- Allen Key #5 for Spring Preload and XTune
- Allen Key #3 for Arm Post Friction Tuning
- Hard Case
- Vest Lite
SmartSystem Matrix R2 Sled Lite (V-Mount) Specs
| Stabilizer Type | Single-Grip Handheld |
| Height | 20.9 to 37.0" / 53 to 94 cm |
| Center Column Diameter | 1.6" / 40.0 mm |
| Number of Sections | 2 |
| Counterweights | None |
| Battery Type | 1 x V-Mount |
| Material of Construction | Carbon Fiber |
SmartSystem Arm X1 Professional Stabilization Arm Specs
| Compatibility | Not Specified by Manufacturer |
| Boom Range | 28.5 in |
| Minimum Load | 13.2 lb / 6 kg |
| Mounting | 1 x Industry Standard Mating Block |
| Material of Construction | 7075 Aluminum |
| Dimensions | 1.77" / 44.96 mm (Arm Width) |
| Weight | 9.92 lb / 4.5 kg (In Heaviest Configuration) |
| Package Weight | 27.545 lb |
| Box Dimensions (LxWxH) | 34.1 x 18.2 x 6.8" |
