Description

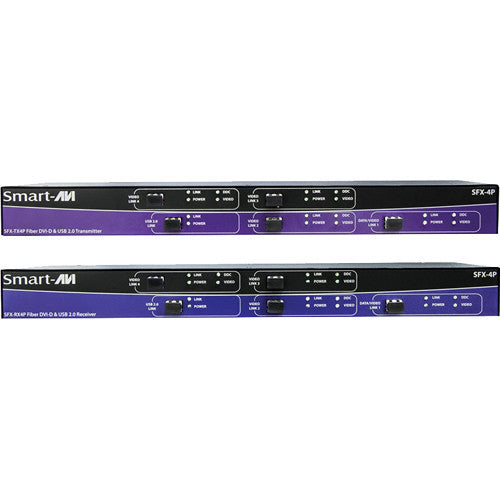

The Smart-AVI SFX-4P 4-Port DVI-D and USB 2.0 Fiber Extender Set extends 4 DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500� away. It supports high-resolution DVI-D video and all USB device types from high-speed Web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras, and game controllers.
This SFX-4P Extender Set is immune to electromagnetic interference, making it suitable for use in situations where there is considerable interference. It is also very secure because its fiber optic signals cannot be easily tapped.
- Good signal quality at maximum extension
- Over multimode fiber (1,500') plug type LC
- DVI-D video resolutions up to 1920 x 1200 WUXGA at 60 Hz
- Automatic learning DDC for Mac/PC
- Supports USB 1.1 (12 Mb/s) and USB 2.0 (480 Mb/s) data rates
- Supports all USB device types transparently (no emulation) from high-speed Web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers, and more
- Integrated 4-port hub in the receiver
- Compatible with all operating systems
- Extends stereo audio
- Extends RS-232 signals
- Plug and play
- Applications: Corporate or educational presentations, financial (remote servers/user control), call centers, industrial (long-range workstation isolation), information terminals/kiosks, airport installations (air traffic control/passenger information), KVM extension where very good quality of signal is crucial, medical (remote operation away from sensitive/magnetic equipment), recording (for large studios where editing/mixing stations are compact and/or require complete silence)
In the Box
Smart-AVI SFX-4P 4-Port DVI-D and USB 2.0 Fiber Extender Set
- SFX-2P-TX Transmitter
- SFX-2P-RX Receiver
- 2 x 6' CCPWR06USA Power Cable
- Limited 1-Year Warranty
| Format | Video: DVI-D single line |
| Maximum Pixel Clock | Video: 165 MHz |
| Interface | Video Input (Transmitter): 2 x DVI-D 29-pin female Output (Receiver): 2 x DVI-D 29-pin female USB Input (Transmitter): 1 x USB type B (female) Output (Receiver): 4 x USB type A (female) RS232 Input (Transmitter): DB9 female Output (Receiver): DB9 male |
| Resolution | Video: Up to 1920 x 1200 @ 60 Hz |
| DDC | Video: 5 Vpp (TTL) |
| Input Equalization | Video: Automatic |
| Cable Length | Video Input: Up to 20.0' (6.1 m) Output: Up to 20.0' (6.1 m) |
| Signal Type | USB: EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) Audio: Stereo audio |
| Bandwidth | 15 MHz, 0 dB |
| Impedance | Audio: 10 k? |
| Connector | Audio: 3.5 mm stereo mini female |
| Speed | RS232: Up to 115 kb/s |
| Fiber | Optical: Duplex, multi mode |
| Connector Type | Optical: Duplex LC |
| Data Rate | 2 x 2.5 Gb/s (2.5 Gb/s per single wavelength) |
| Transmission Power | Optical: -5 dB (minimum) |
| Receiver Sensitivity | Optical: -21 dB (maximum) |
| Distance | Optical: Maximum 1,640.42' (500.00 m) |
| Power | Internal 100 to 240 VAC |
| Temperature | Operating: 32 to 131�F (0 to 55�C) Storage: -4 to 185�F (-20 to 85�C) |
| Humidity | Up to 95% |
| Dimensions (W x H x D) | 17.00 x 1.70 x 7.00" (431.8 x 43.18 x 177.8 mm) |
| Weight | 8.00 lb (3.63 kg) |
