Description
- DVI Rackmount Transport Chassis
- Accommodates Up to (16) Inputs & Outputs
- Transmission Up to 220' (67m)
- Use with Modular Input & Output Cards

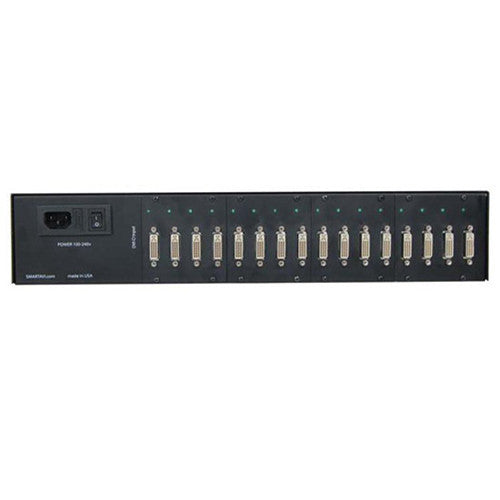

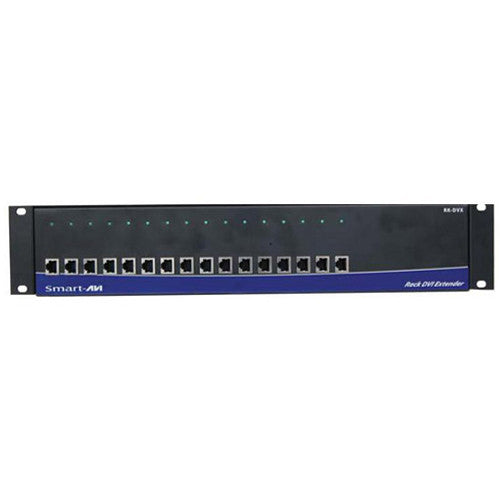

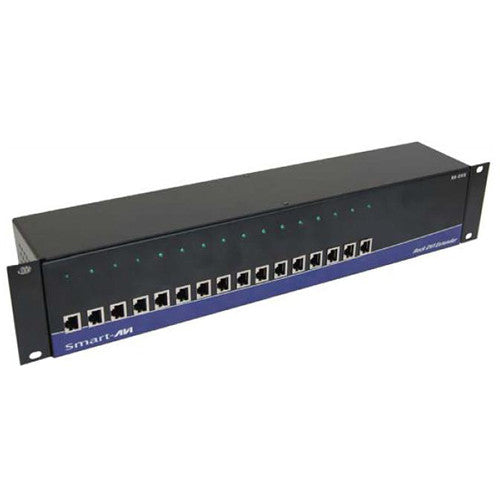

The RACK-DVX200 Modular Rackmount DVI Transport System from Smart-Avi is a high-resolution video extender system (transmitter and receiver) designed to broadcast high-definition DVI-D signals more than 220' (67m) using inexpensive CAT6 cabling. This unit accommodates up to (16) inputs and (16) outputs of DVI signals, which can be configured by purchasing separately available, modular cards. This system allows you to extend and customize functionality piece by piece with only one unit of equipment and a single power supply.
- This unit is designed to provide superior images at any resolution
- It supports resolutions up to 1920 x 1200 @ 60Hz
- Its maximum transmission distance is supported through resolutions of 1280 x 1024 @ 75Hz
- This solution allows the user to select DDC information used from the remotely located monitor, the local monitor, or an internal DDCT table
- It supports transmission distances of 220' using CAT6 STP cable
- It is compatible with all operating systems
- This unit is compatible with all virtually all major KVM switches
- A multiple rackmount option is available
In the Box
Smart-AVI RACK-DVX200 Modular Rackmount DVI Transport System
- One-Year Limited Warranty
| Standard | DVI-D single link |
| Resolution | 1920 x 1200 @ 60Hz 1280 x 1024 @ 75Hz |
| Power | Universal Switchmode PSU, 90 to 240V input, 5VDC |
| Dimensions (HxWxD) | 5.31 x 3.43 x 17.06" (134.87 x 87.12 x 433.32mm) |
| Weight | Not specified by manufacturer |
