Description

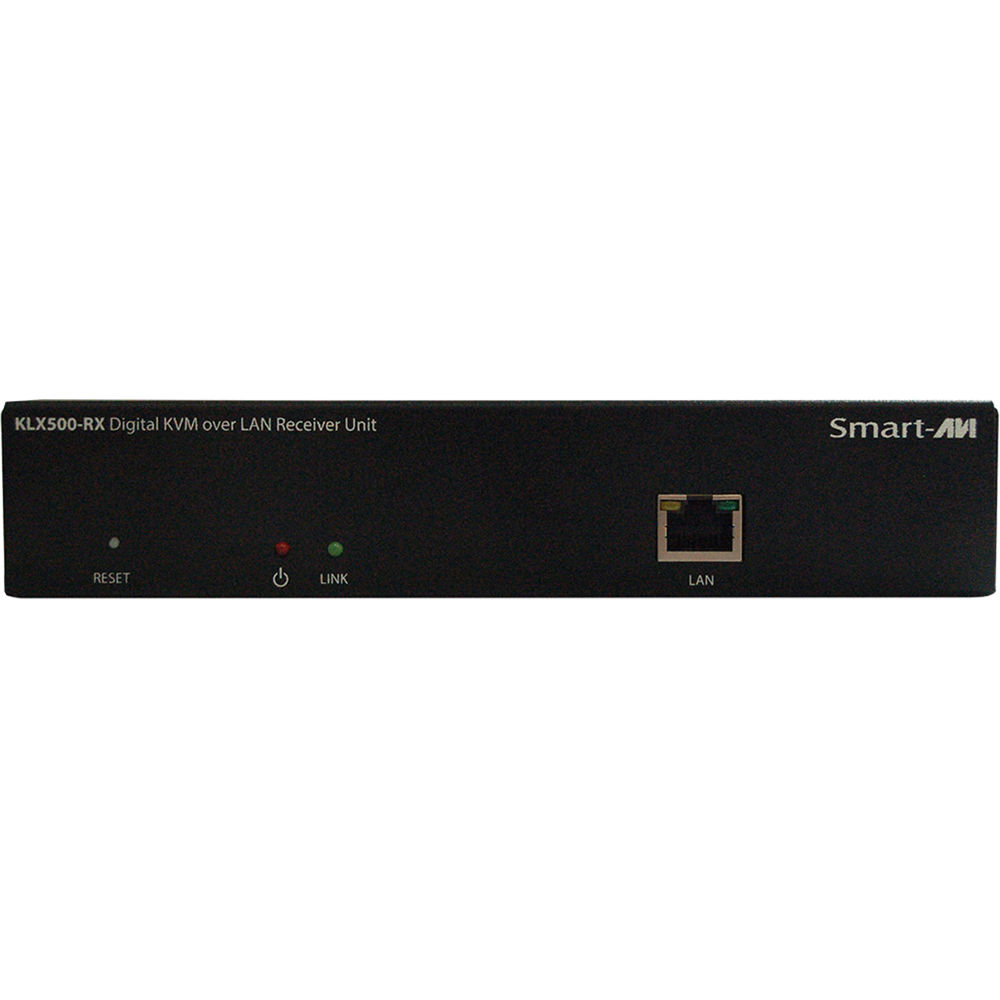

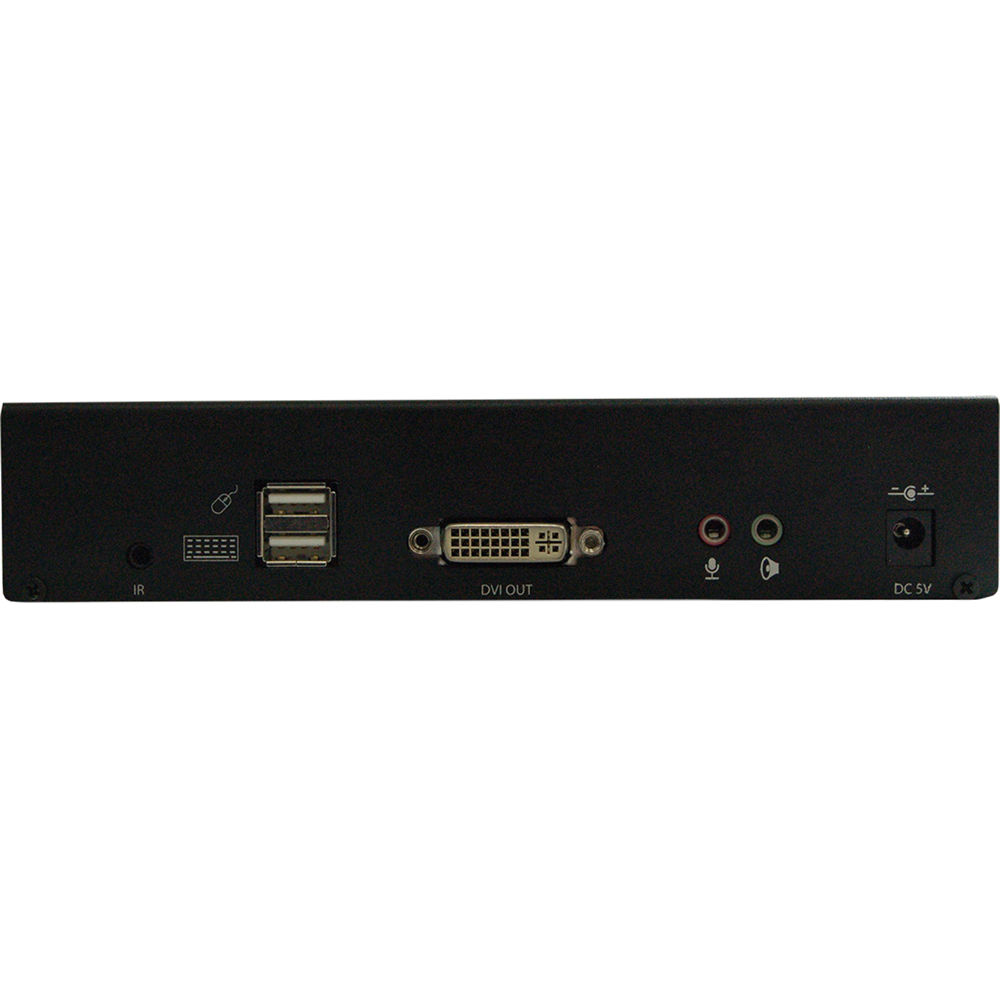

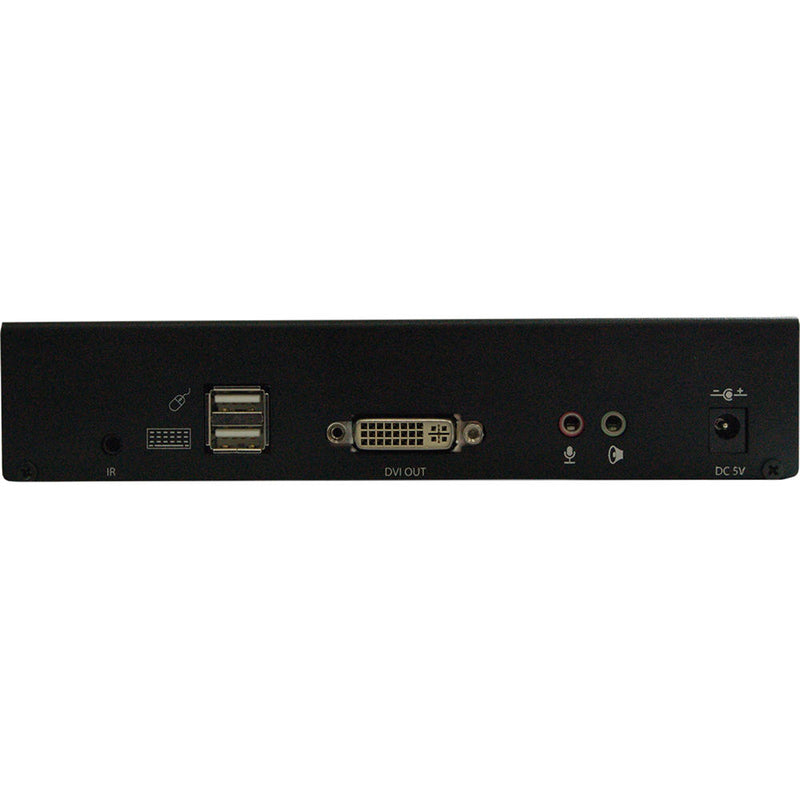

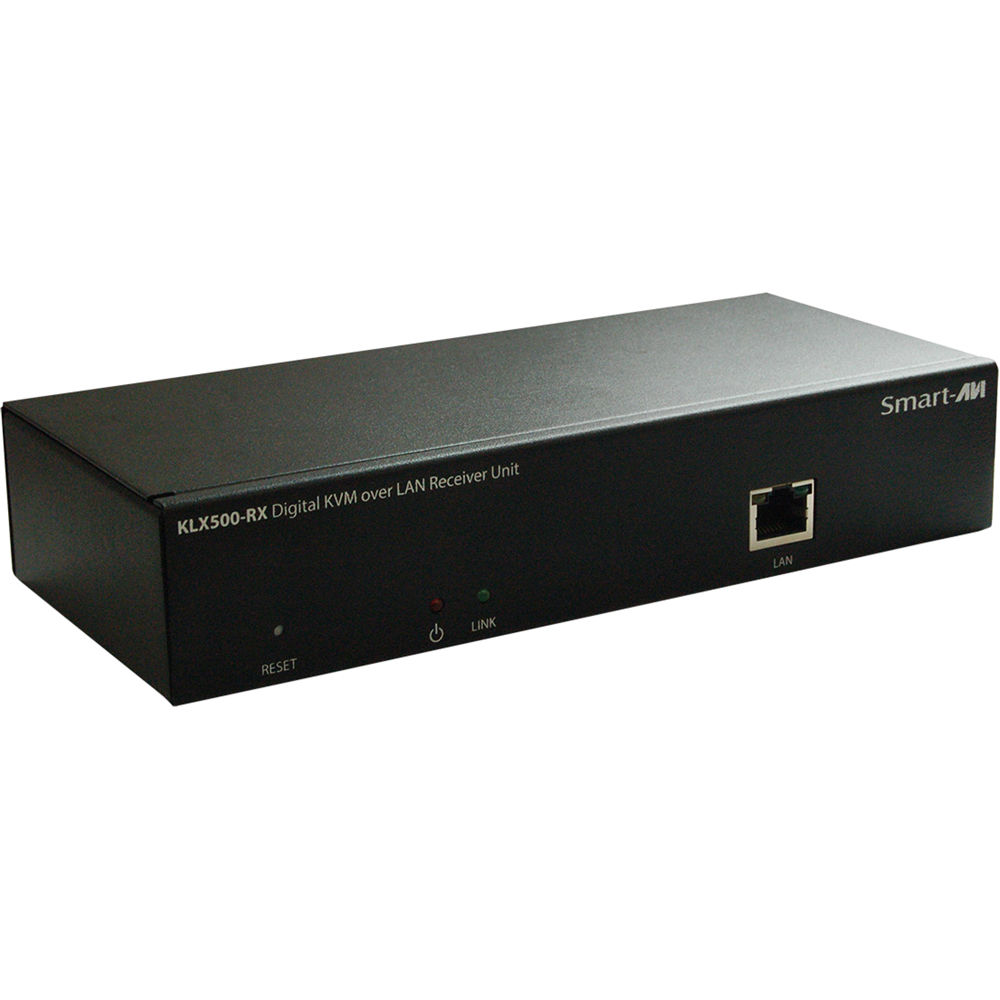

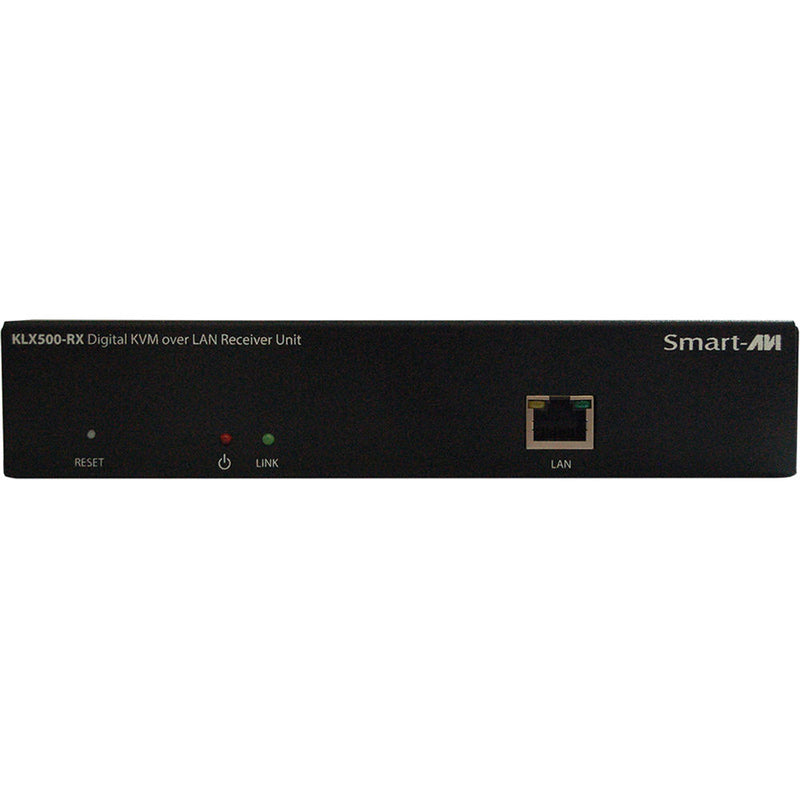

Smart-AVI KLX-RX500 Overview
The KLX-RX500 Chainable DVI/VGA KVM Receiver from Smart-AVI receives DVI/VGA, KVM, and IR signals up to 500' via LAN. It is designed for use with the KLX-TX500 Transmitter. You can set up you own extension cabling or utilize the pre-existing LAN infrastructure you have access to.
The KLX-RX500 Receiver compresses data to utilize Cat5e/6 cables, but you will see no degradation of signal when using one Gigabit Internet connections and up. When utilizing pre-existing LAN connections, implementing a one Gigabit switch allows for full resolution extension. If you use smaller bandwidth, you will experience compressed signals, if you choose to forgo the additional switch.
With no software or driver required, you can easily extend DVI/VGA, KVM, and IR signals. The KLX-RX500 Receiver supports USB emulation and Full HD 1080p video at 60 Hz, and can be controlled with an IR remote control (not included). The receiver is a compact unit that is suitable for use in pre-configured work environments.
In the Box
- Smart-AVI KLX-RX500 Chainable DVI/VGA KVM Receiver
- Limited 1-Year Manufacturer Warranty
Smart-AVI KLX-RX500 Specs
| Format | DVI-D |
| Resolutions | HDTV: 480p, 720p, 1080i, 1080p / 60 Hz / 48-bit TV: 480i |
| Output Connectors | 1 x DVI-I 2 x USB type A female |
| Output Cable Length | Up to 40' (12.2 m) |
| Format | Stereo |
| Output Connectors | 1 x 3.5 mm phone jack female |
| Signal Type | 38 kHz |
| Connector | RJ45 |
| Cable Requirements | CAT5/5e/6 |
| Maximum Length | 500' (152.4 m) |
| Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W |
| Approvals | UL, CE, ROHS compliant |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 80% |
| Dimensions | 7.0 x 1.4 x 3.3" (17.8 x 3.6 x 8.4 cm) |
| Weight | 0.6 lb (0.3 kg) |
