Description
Smart-AVI HLX-RX500 Overview

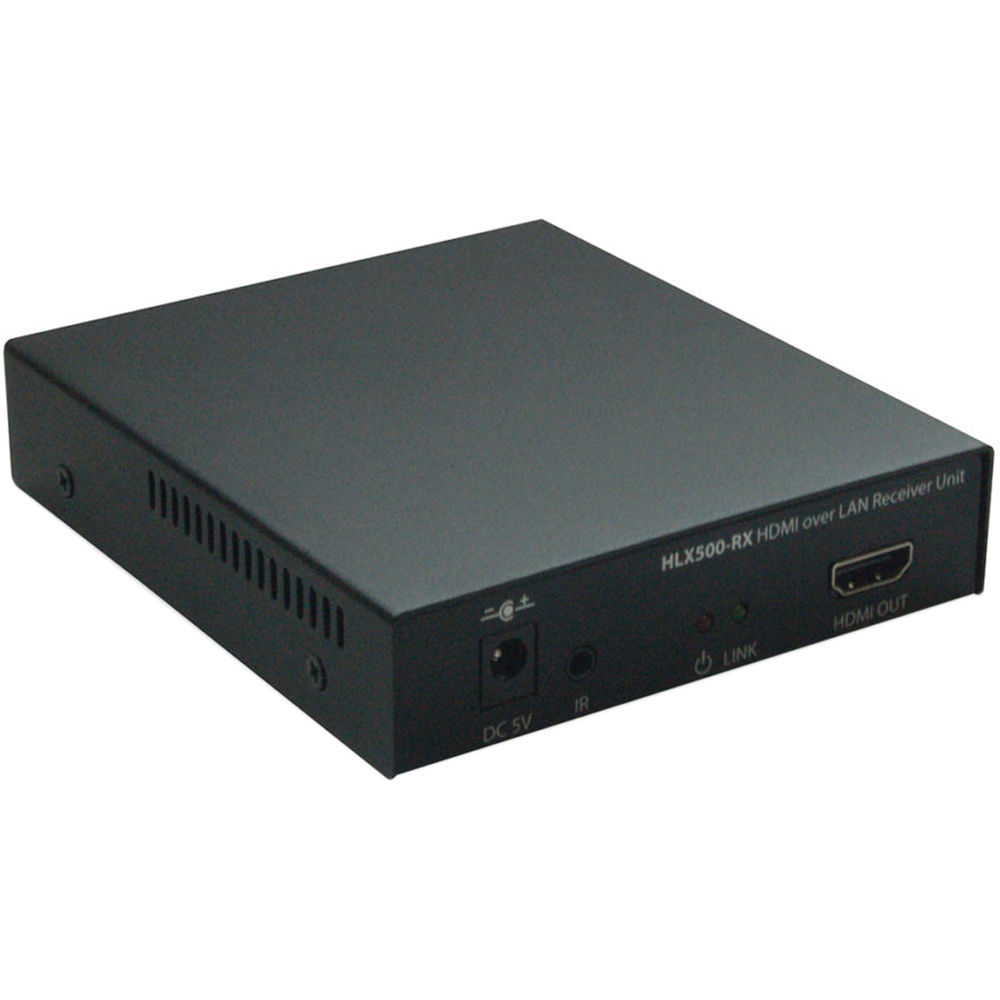

The HLX-RX500S Chainable HDMI Extender Receiver from Smart-AVI receives HDMI signals up to 500' via Cat5e/6. It is designed for use with the HLX-TX500 Transmitter. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to.
The HLX-RX500S Receiver compresses data to utilize the Cat5e/6 cables, but users see no degradation of signal when using 1Gb Internet connections and up. For users utilizing pre-existing LAN connections, implementing a 1Gb switch allows for full-resolution extension. Users with lesser bandwidth will experience compressed signals.
With no software or driver required, users can easily extend HDMI signals from sources such as HDTVs, Blu-ray players, and video game consoles. The HLX-RX500S Receiver supports up to Full HD 1080p60 video, and can be controlled with an IR remote control (not included). The receiver is a compact unit that can be easily integrated into a digital display network at retail stores, restaurants, and office spaces.
In the Box
- Smart-AVI HLX-RX500S Chainable HDMI Extender Receiver with Power Supply
- Smart-AVI PS5VD2A 5V 2A Power Supply
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Transmitters & Receivers (Not Included)
Smart-AVI HLX-RX500 Specs
| Format | HDMI 1.3 and HDCP compliant |
| Resolutions | 1080p60 / 48-bit 1080i 720p 480p 480i |
| Output Interface | HDMI type A 19-pin, female |
| Output Cable Length | Up to 40' / 12.2 m |
| Format | Dolby TrueHD, DTS-HD MA |
| Output Interface | HDMI (integrated) |
| Signal Type | 38 kHz |
| Connector | 3.5 mm jack, female |
| Baud Rate | Up to 19,200 bps |
| Output Interface | DB-9 (serial), female |
| Interface | RJ45 |
| Cable Requirements | Cat5/5e/6 |
| Maximum Length | 500' / 152.4 m |
| Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W |
| Approvals | UL, CE, ROHS compliant |
| Operating Temperature | 32 to 131°F / 0 to 55°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Humidity | Up to 95% |
| Dimensions | 4.0 x 1.0 x 4.3" / 10.2 x 2.5 x 10.9 cm |
| Weight | 0.6 lb / 0.3 kg |
