Description
Smart-AVI HDX-W100 Overview

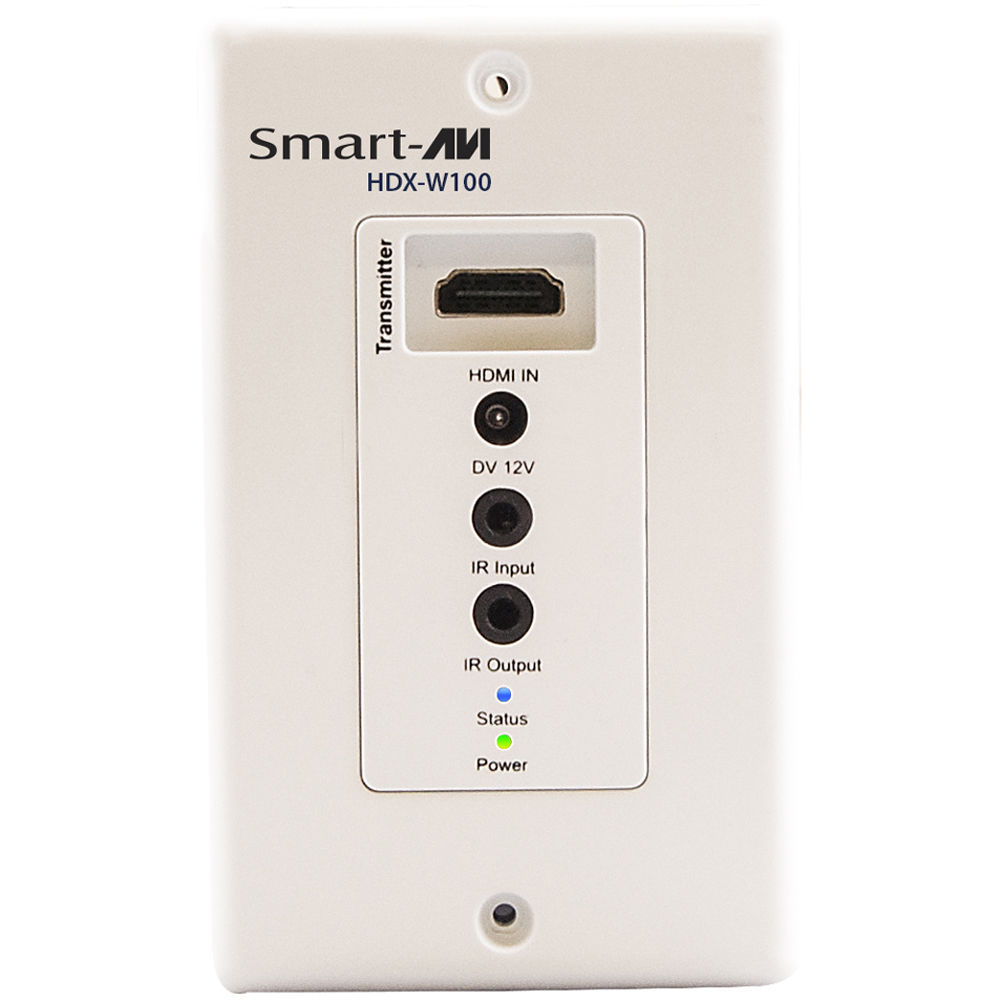

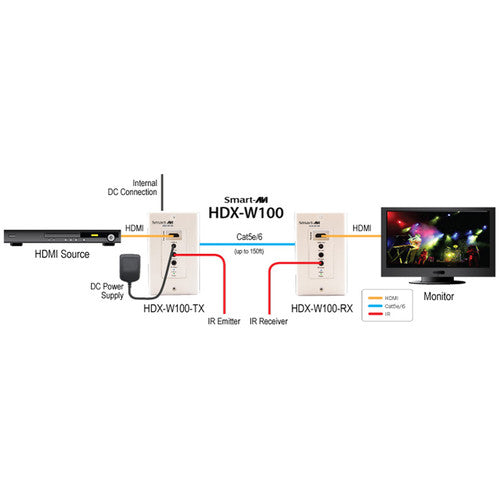

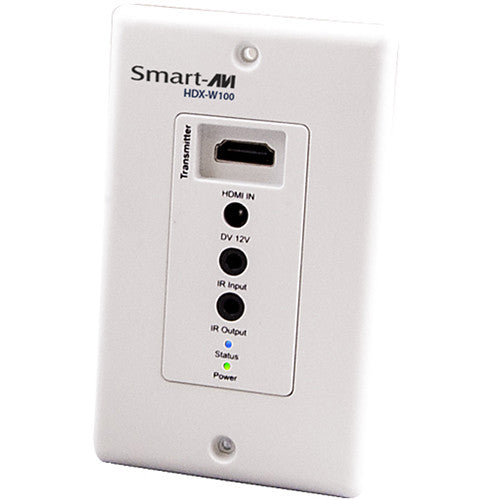

The HDX-W100 HDMI over Cat5e/6 Wall Plate Transmitter from Smart-AVI transmits HDMI signals from 150' away via a single Cat5e/6 cable. The trasmitter supports high-resolution video up to 1080p 60 Hz, and features bidirectional IR communication so you can easily control the video source. The unit is powered via the included 12V power adapter.
Extends HDMI signals via a single Cat5e/6 cable
Supports uncompressed HD video up to 1080p @ 60 Hz
HDMI 1.3 and HDCP compliant
Supports bidirectional IR communication
Supports automatic EDID callback
Compatible with DVI-D with converter
Cascadable for additional extensions
VESA DDC and hot swap technology (HPD)
Power over Ethernet (PoE)
UPC: 813280021951
In the Box
- Smart-AVI HDX-W100 HDMI over Cat5e/6 Wall Plate Transmitter
- PS12V2A Power Adapter
- Limited 1-Year Manufacturer Warranty
Smart-AVI HDX-W100 Specs
| Video Resolution | UP to 1080p @ 60 Hz |
| Audio Format | Up to PCM 8-channel, Dolby Digital, TrueHD, and DTS-HDMaster Audio |
| IR Range | 38 kHz |
| Video Bandwidth | 4.95 Gbps |
| Input Video Signal | 1.2 Vpp |
| Input DDC Signal | 5 Vpp |
| Input Connectors | 19-Pin HDMI type A 3.5 mm Mini jack, IR receiver 12 VDC power input barrel |
| Output Connectors | RJ45 3.5 mm Mini jack, IR emitter |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Compliance | FCC, CE, RoHS |
Packaging Info
| Box Dimensions (LxWxH) | 10 x 8 x 6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 24446.1 |
| 3-5 | ₹ 24196.65 |
| 5-10 | ₹ 23697.75 |
| 10+ | ₹ 23198.85 |
Bulk discount will be automatically applied during checkout based on quantity.
