Description
Smart-AVI HDX-PLUS Overview
Product Demo

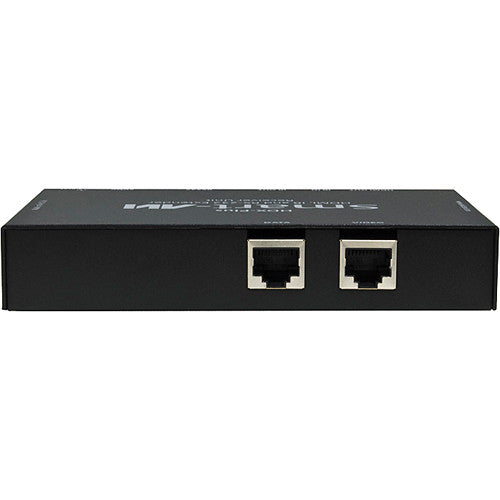

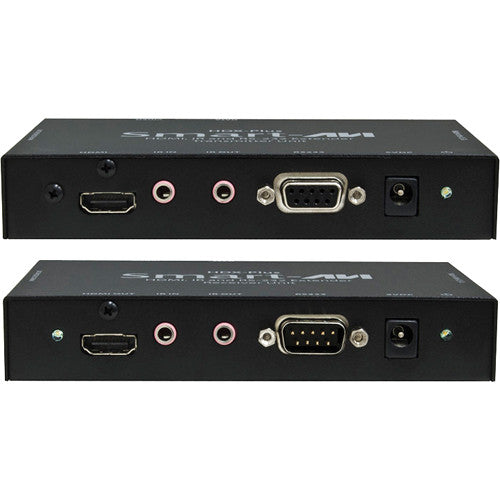

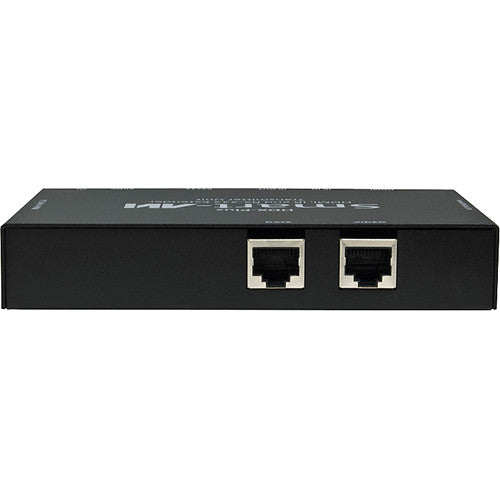

The Smart-AVI HDX-PLUSS HDMI, IR, and RS-232 Point to Point CAT5 Extender uses 2 CAT5 UTP cables to extend HDMI signals such as HDTV output over 200� (60 m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling your video source is easy with this extender. Whether it�s for a home entertainment system or a commercial installation, this extender delivers flexibility and control.
Extends HDMI output over 2 CAT5/5e/6 UTP cables
Extends IR and RS-232 control signals for remote control
Delivers uncompressed HD video up to 1080p @ 60 Hz @ 48 bits and 3D
Data signals up to 3.4 Gbps
HDMI 1.3 and HDCP compliance
IR and RS-232 communication are bi-directional
Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
Transmits 1080p resolution over 200' (60 m) from the source
Possible applications include home theater, corporate or educational presentations, call centers, industrial (long-range workstation isolation), information terminals/kiosks, airport installations (air traffic control/passenger information), and educational environments with remote displays
UPC: 813280021838
In the Box
- Smart-AVI HDX-PLUSS HDMI, IR, and RS-232 Point to Point CAT5 Extender
- HDX-Plus Transmitter
- HDX-Plus Receiver
- 2 x Smart-AVI PS5VD2A 5V 2A Power Supply
- Infrared Receiver
- Infrared Emitter
- 1-Year Warranty
Smart-AVI HDX-PLUS Specs
| Format | HDMI 1.3 and HDCP compliant (video) |
| Resolutions | HDTV Resolutions: 480p, 720p, 1080i, 1080p / 60 Hz / 48 bit TV Resolution: 480i (video) |
| Video Interface | Input Interface (Transmitter): HDMI type A 19-pin female TMDS Output Interface (Receiver): HDMI type A 19-pin female TMDS |
| Cable Length | Input Video (Transmitter): Up to 40' (12.19 m) Output Video (Receiver): Up to 40' (12.19 m) |
| Audio | Format: Dolby TrueHD, DTS-HD MA Input / Output Interface: HDMI (integrated) |
| IR | IR Signal Type: 38 kHz IR Interface: 3.5 mm jack socket (female) |
| RS-232 Baud Rate | Up to 19,200 bps |
| RS-232 | Input Interface (Transmitter): DB-9 (serial) female Output Interface (Receiver): DB-9 (serial) male |
| System | |
| Interface | RJ-45 |
| Cable Requirements | CAT5/5e/6 |
| Maximum Length | 200' (60 m) |
| Other Specs | |
| Power | External 100 to 240 VAC / 5 VDC 2 A @ 10 W |
| Approvals | UL, CE, ROHS Compliant |
| Temperature | Operating: 32 to 131°F (0 to 55°C) Storage: -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Dimensions (W x H x D) | Transmitter / Receiver: 5 x 1.3 x 4.13" (127 x 33.02 x 104.9 mm) |
| Weight | Transmitter / Receiver: 0.6 lb (0.27 kg) |
