Description
- 8-port DVI-D Matrix
- 8 Computer / Display Switching Support
- Multiple EDID Support
- 1920 x 1200 Resolution Support
- RS-232 / Infrared Support
- USB / Ethernet Control
- Remote Control via Software

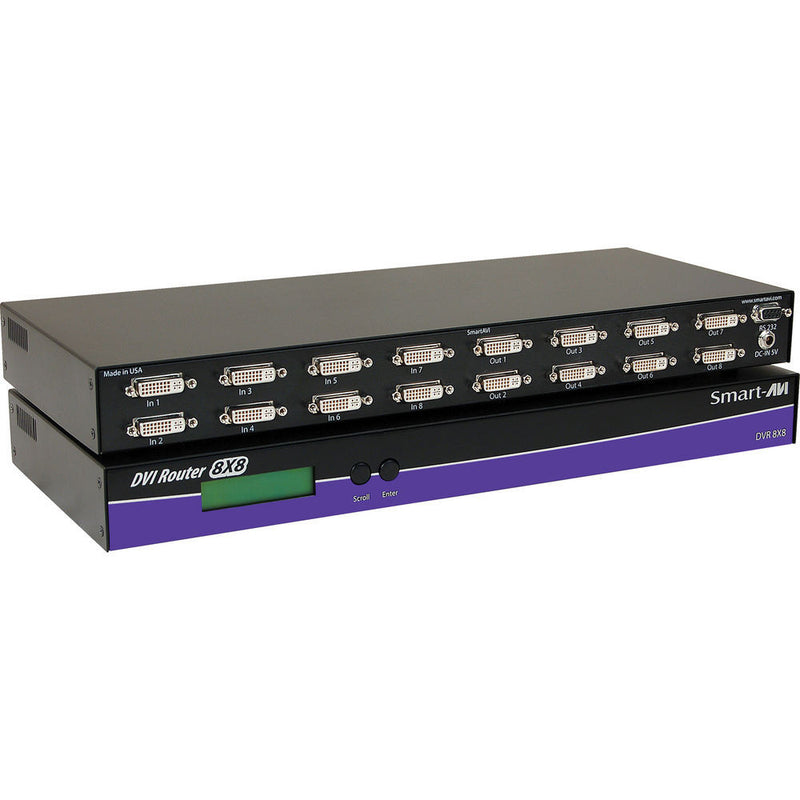

The Smart-AVI Dual Link DVI-D 8x8 Router is an 8-port non-blocking, dual link DVI-D matrix switch that supports switching of 8 computers with 8 displays. Also provided is multiple EDID (Extended Display Identification Data) support allowing the displays to describe their capabilities to the connected computers.
You are offered a resolution of 1920 x 1200 for each display. The Dual Link DVI-D 8 x 8 Router is compliant with RS-232 and infrared standards, and provides USB and Ethernet control options. You can remotely control the router switching operation via easy-to-use MS Windows-based software.
- 8-port non-blocking, dual link DVI-D matrix switch
- Supports switching of 8 computers and displays
- Provides multiple EDID support allowing the displays to describe their capabilities to the connected computers
- Offers 1920 x 1200 resolution support
- Compliant with RS-232 and infrared standards
- Offers USB and Ethernet control options
- Allows remote control of router switching operation via easy-to-use MS Windows-based software
In the Box
Smart-AVI Dual Link DVI-D 8x8 Router
- Software (SM-CSW)
- Power Supply (PS5VD5A)
- 1 Year Warranty
| Resolution | Up to 1920 x 1200 |
| Control | Front panel or RS-232 |
| Input | (8) DVI-I, 29-pin, female |
| Output | (8) DVI-I, 29-pin, female |
| Input Signal | Input Video Signal: 1.2Vp-p Input DDC Signal: 5Vp-p (TTL) |
| Bandwidth | 165MHz |
| Control | RS-232, DB-9, female |
| Power | 5VDC, 2A |
| Dimensions (HxWxD) | 1.8 x 12 x 6.5" (46 x 305 x 165mm) |
| Weight | 4.1 lbs (1.9kg) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 811489.0 |
| 3-5 | ₹ 803208.5 |
| 5-10 | ₹ 786647.5 |
| 10+ | ₹ 770086.5 |
Bulk discount will be automatically applied during checkout based on quantity.
