For Mirrorless & DSLR Cameras15mm LWS Rod Support0.94" of Vertical AdjustmentArca-Style Quick Release Plate The Universal Baseplate with 15mm LWS Rod Clamp from SmallRig provides 15mm LWS rod-based accessory support for your mirrorless or DSLR camera. This baseplate features an Arca-type quick release camera plate with both 1/4"-20 and 3/8"-16 screws.

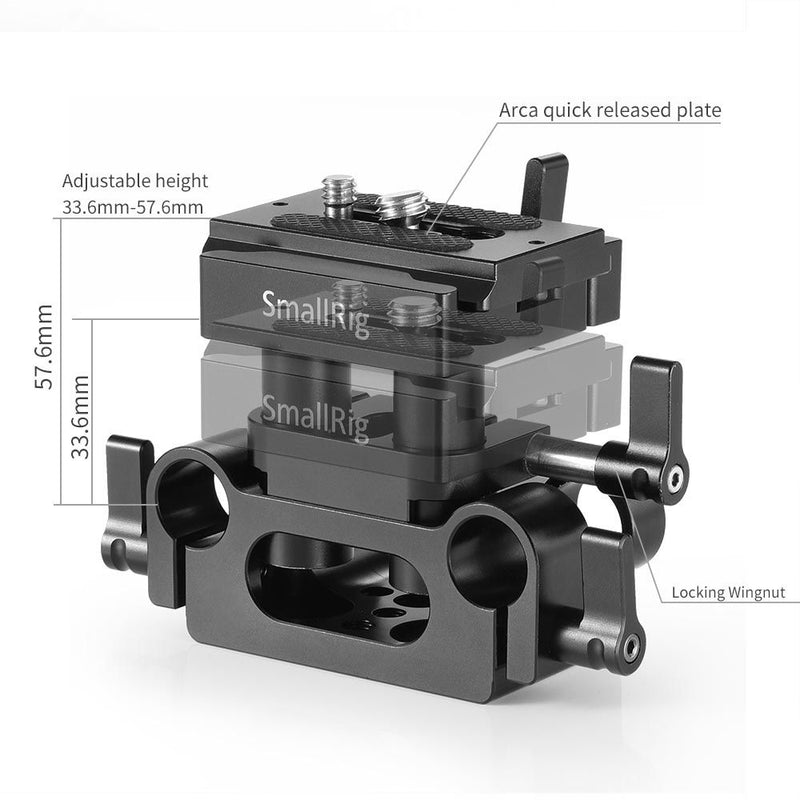

Two rods provide up to 0.94" of vertical adjustment, enabling optimal positioning of camera accessories such as a lens support, FIZ motor, follow focus, or matte box. The integrated 15mm rod bracket tightens using thumbscrew levers, and the baseplate can be mounted on a tripod plate or cage using the bottom 1/4"-20 and 3/8"-16 threads. See below for the list of cameras that are recommended by the manufacturer for use with this baseplate.
Compatibility Including but not limited to:
- Canon 5D Mark IV, M50, M5, M3, M6, EOS R, EOS RP
- Fujifilm X-H1, X-T1, X-T2, X-T20
- Nikon Z7, Z6
- Olympus E-M1 Mark II
- Panasonic GH3, GH4, GH5, G80, GX85, G7, G85, G9
- Sony a6000, a6300, a6400, a6500, a7, a7 II, a7S II, a7s III, a7R II, a9, a7 III, a7R III
Features Adjusts up to 0.94" vertically for compatibility with various cameras Arca-type quick release camera plate with 1/4"-20 and 3/8"-16 screws Integrated 1/4"-20 and 3/8"-16 tripod threads
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Camera Compatibility | Universal, Canon EOS 5D Mark IV, Canon EOS M3, Canon EOS M5, Canon EOS M50, Canon EOS M6, Canon EOS RP, FUJIFILM X-H1, FUJIFILM X-T20, Nikon Z6, Nikon Z7, Panasonic DC-G9, Panasonic DC-GH5, Panasonic DMC-G7, Panasonic DMC-G85, Panasonic DMC-GH3, Panasonic DMC-GH4, Panasonic DMC-GH5, Panasonic DMC-GX85, Sony a6000, Sony a6300, Sony a6400, Sony a6500, Sony a7 / a7 II, Sony a7R / a7R II, Sony a7R III, Sony a7S / a7S II |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | None |
| Camera Mounting | Arca-Type Plate with 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread
Baseplate: 3/8"-16 Thread |
| Rod Ports | Baseplate: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Construction | Aluminum |

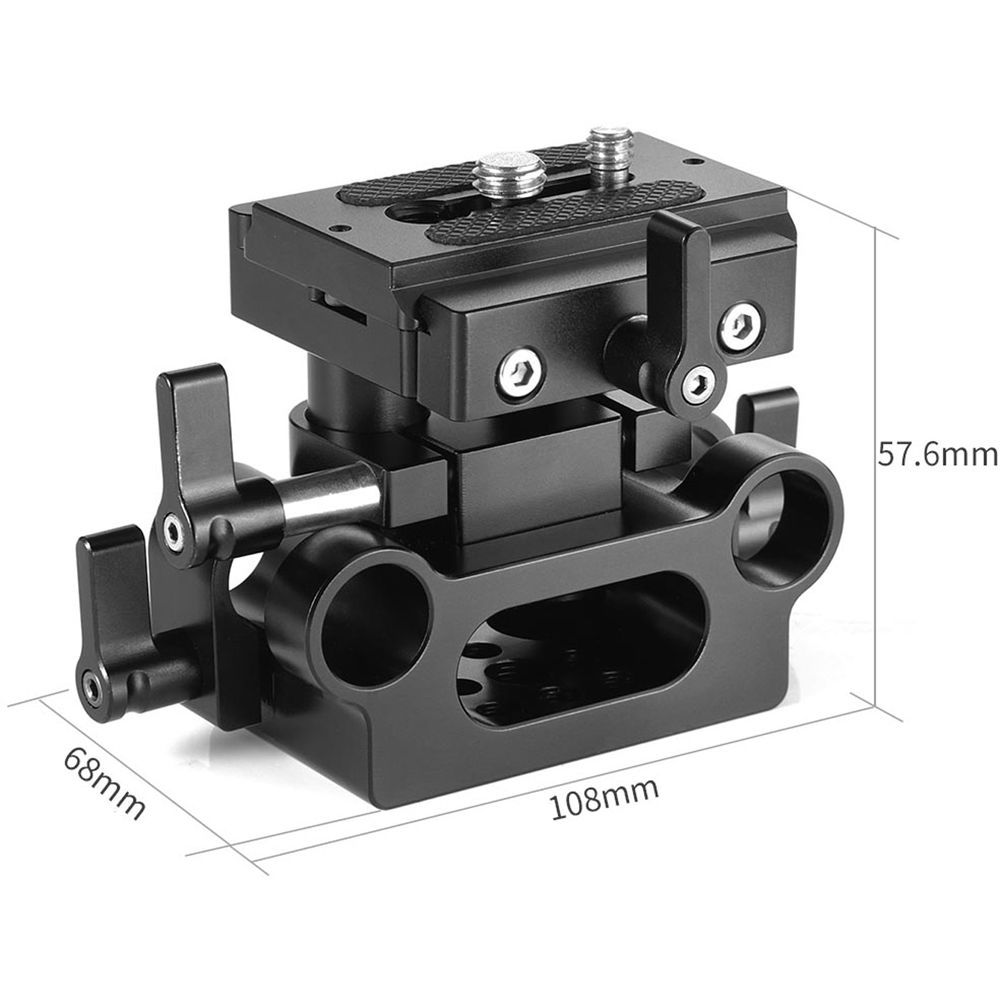

| Dimensions | 4.25 x 2.68 x 2.13" / 108 x 68 x 54 mm |
| Weight | 9.42 oz / 267 g |
| Package Weight | 0.81 lb |
| Box Dimensions (LxWxH) | 5 x 4.4 x 3.5" |

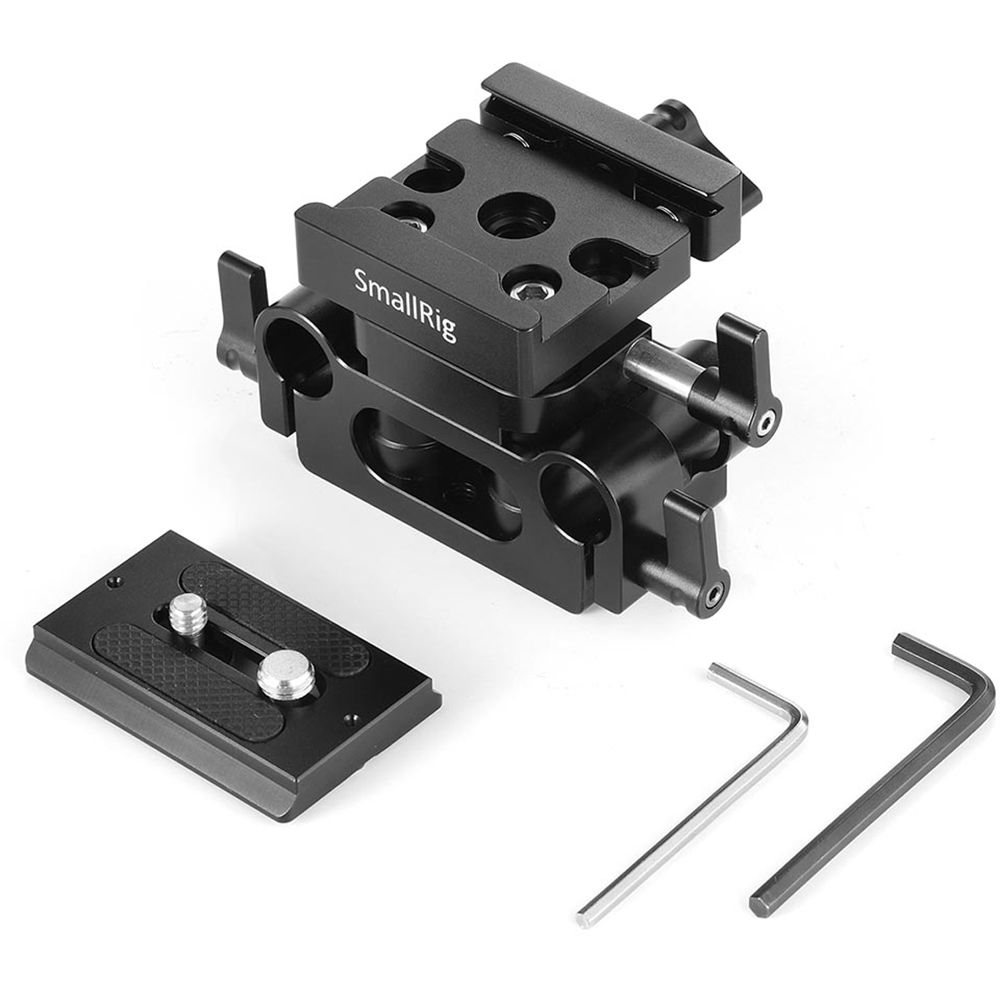

In the Box
- SmallRig Universal Baseplate with 15mm LWS Rod Support
- Arca-Type Camera Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- 2 x Allen Wrench
- Limited 2-Year Warranty
