Description
SmallRig 4274 Overview
- 1Description
- 2SmallRig Shoulder Pad Pro
- 3SmallRig 1870 Adjustable Extension Arm with Two ARRI Rosettes
- 4SmallRig Rubber Handgrip with ARRI Rosette (Pair)

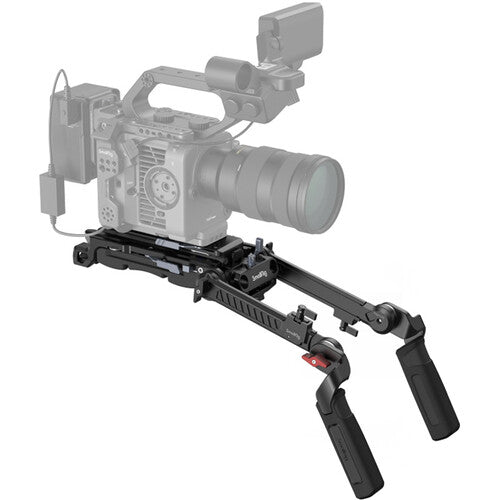

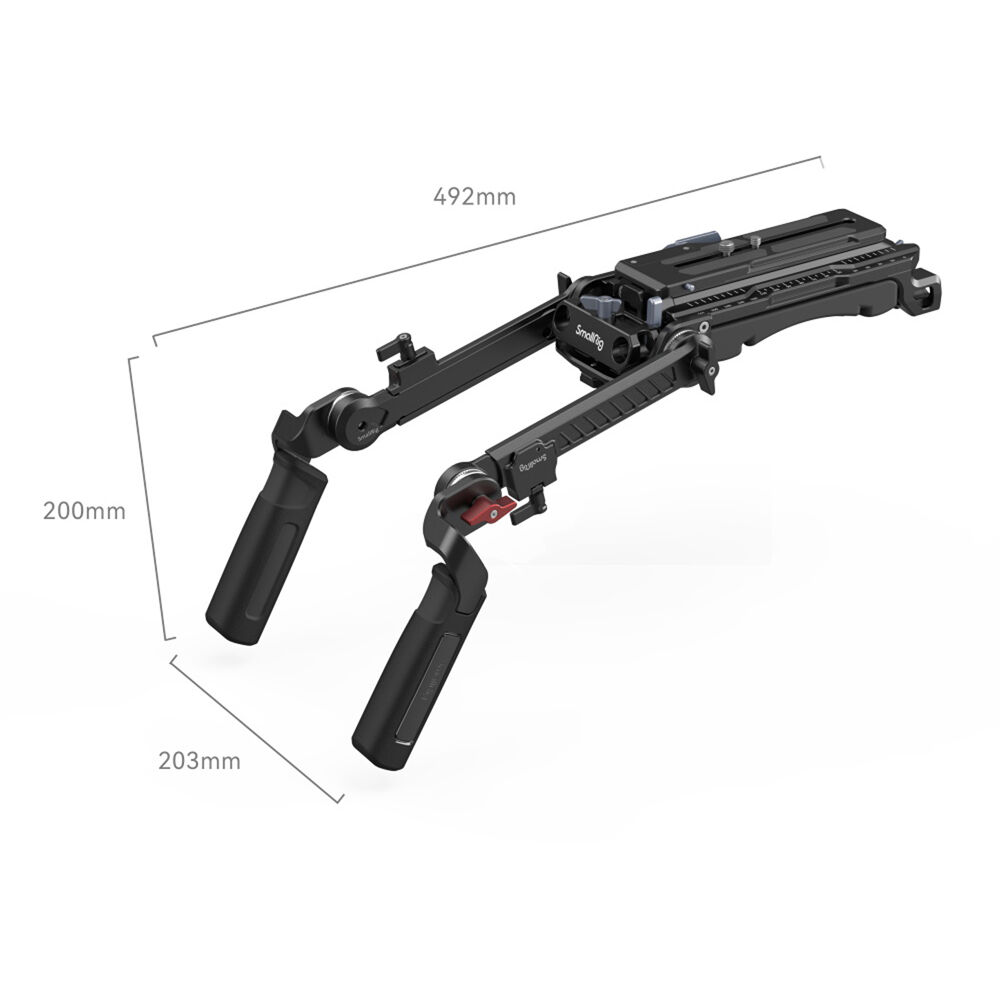

The SmallRig Shoulder Rig Pro Kit provides you with all the tools you need for comfortable and intuitive shoulder-mounted shooting with your Sony, Blackmagic, Canon, or Panasonic cinema camera. Included in the kit is a shoulder pad with VCT-14 tripod plate compatibility, two adjustable extension arms, and two rubberized handles with ARRI rosettes. Once assembled, the rig offers compatibility with 15mm LWS rods and quick release systems for efficient transition between handheld and tripod-mounted shooting.

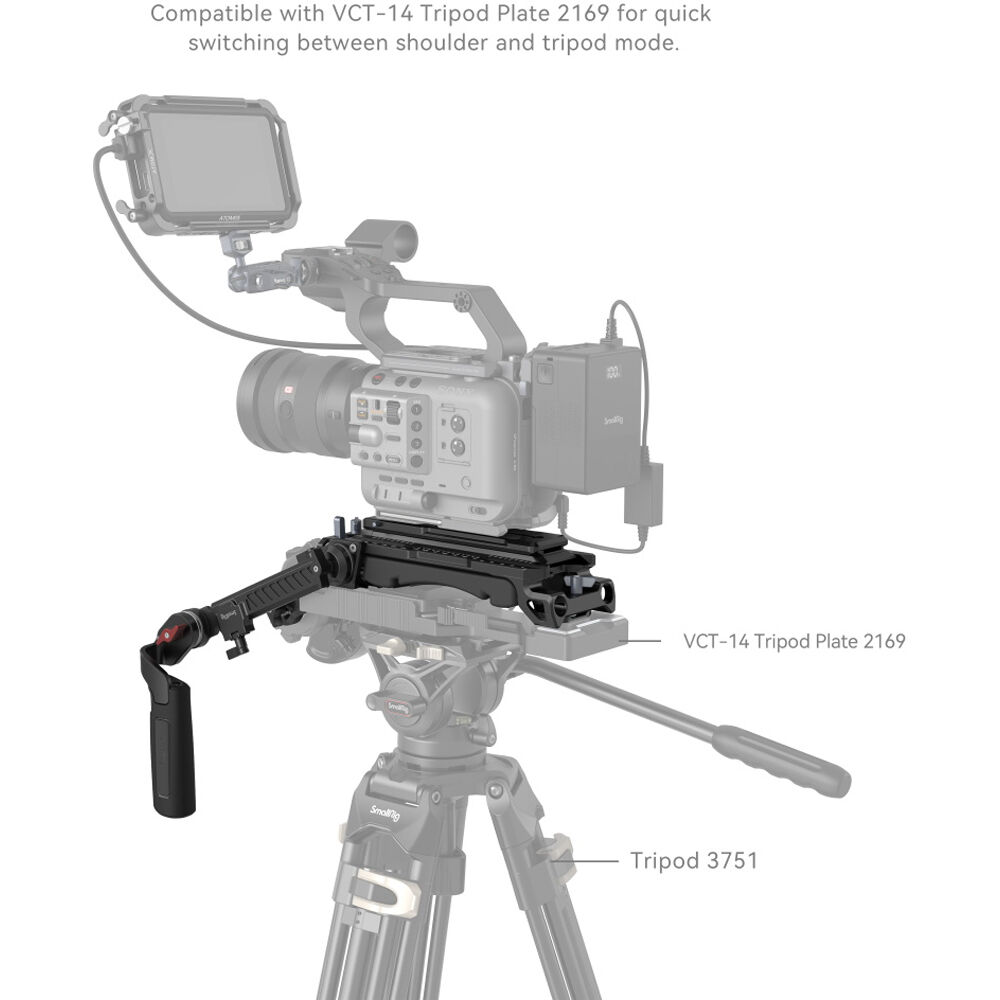

Use the Shoulder Pad Pro from SmallRig to quickly switch between handholding your cinema camera and mounting it on a separately available VCT-14 tripod adapter plate. The Shoulder Pad Pro features a durable aluminum baseplate, and a comfortable, integrated silicone shoulder pad allows you to handhold your camera for long periods. The baseplate features include front and back 15mm LWS rod support, ARRI-style rosettes on both sides, and multiple 1/4"-20 accessory threads. The bottom of the plate features a V-lock-style VCT-14 wedge to mount onto an optional VCT plate.

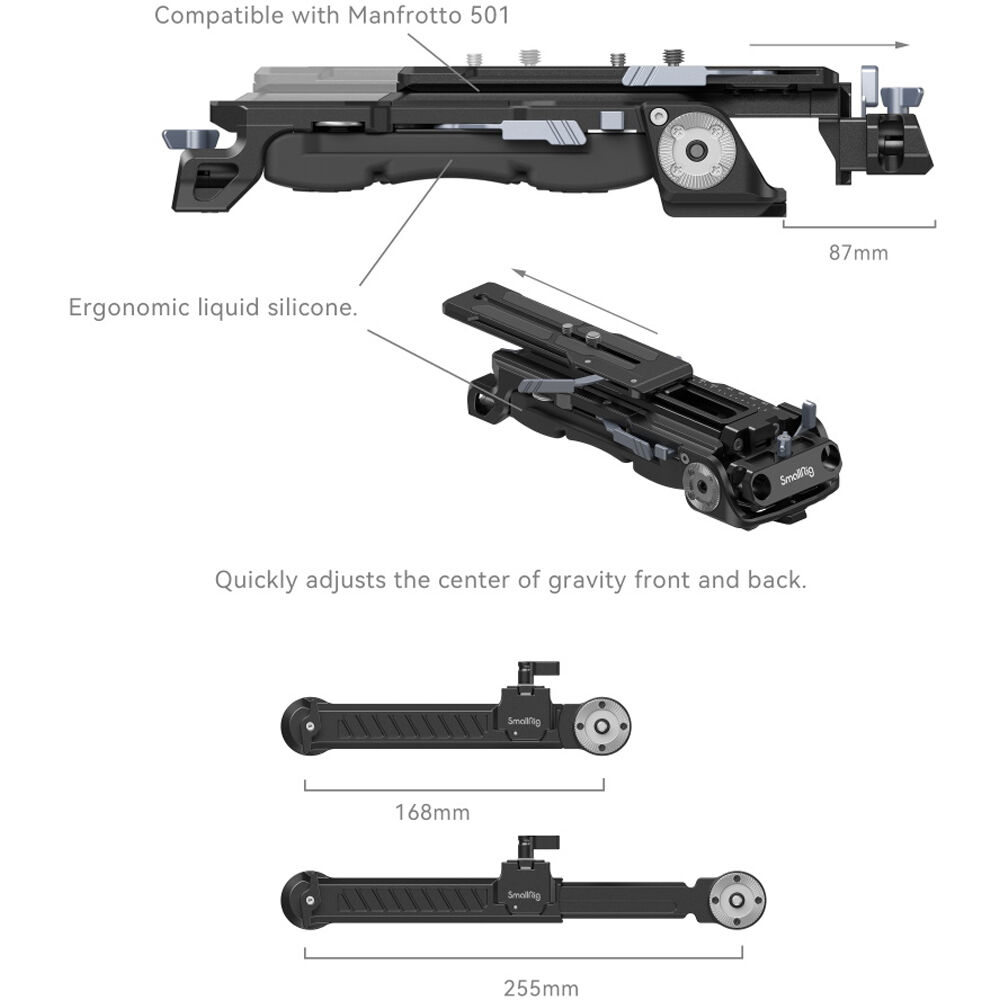

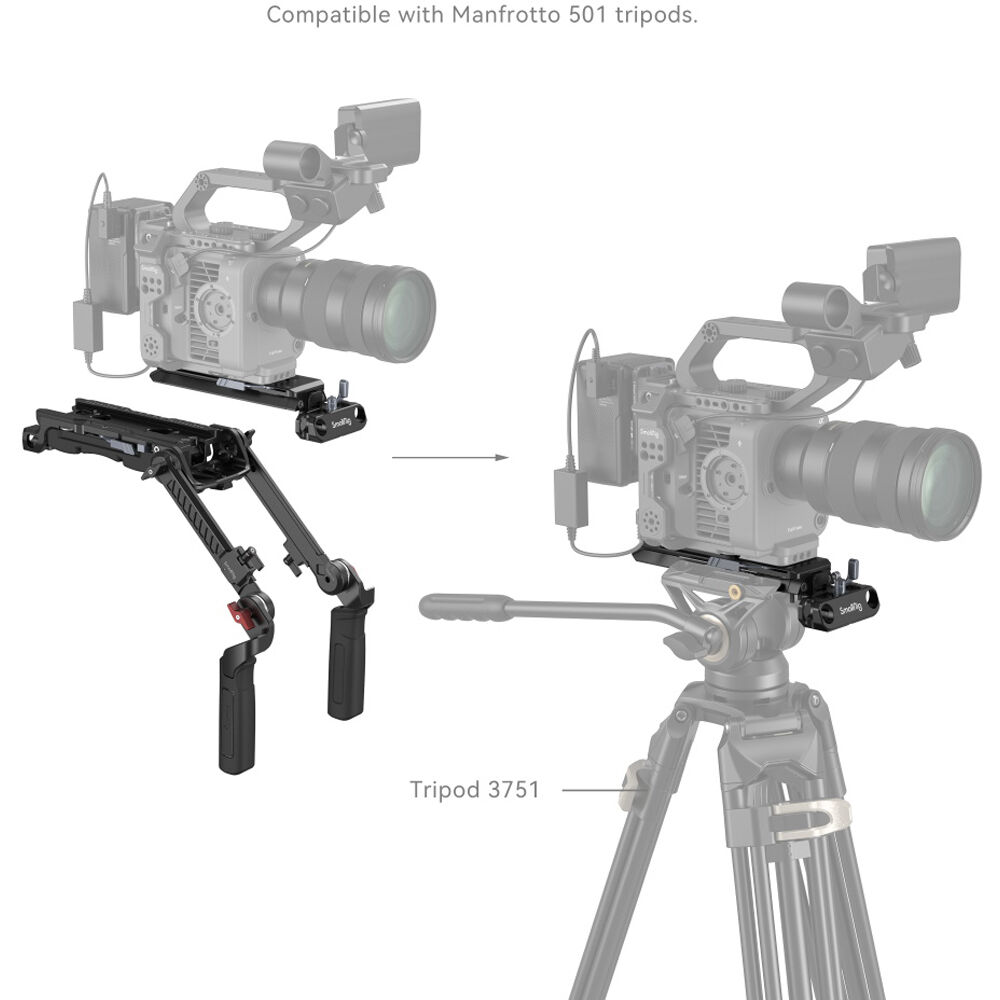

The included Manfrotto 501 plate features measurement markings, and it slides back and forth up within a 3.1" range to balance your camera on your shoulder or rig. The front 15mm rod clamp can be adjusted vertically 1.1" to ensure the proper 15mm rod height for certain cinema cameras. The Manfrotto plate features 1/4"-20 and 3/8"-16 camera mounting screws and a flat wrench that stores under the baseplate secures the camera screws.
- Sony FS5, FS5II, FS7, FS7II, and FX9
- Blackmagic Design Pocket Cinema Camera 6K and 4K
- Blackmagic Design URSA Mini
- Canon EOS C100, C200, C300, and C500
- Panasonic EVA-1
- SmallRig 9" Carbon Fiber 15mm Rods (2-Pack) 1690
- SmallRig Shoulder Rig Handle Kit 2002
- SmallRig Cheese Handle 1810
Position your handgrip at just the right length with the 1870 Adjustable Extension Arm from SmallRig. The arm provides 6.6 to 10.2" of added length for an ARRI rosette-mounted handgrip.
This aluminum arm features a rosette with an M6 thumbscrew on each end, with each rosette providing 360° of rotation.
Add a handgrip to your cage or rig with this Rubber Handgrip with ARRI Rosette pair from SmallRig. This pair of ergonomic rubber-lined aluminum handgrips attach to a cage, crossbar, rod clamp, or rig via ARRI-style rosettes with M6 screws. When mounted, the handgrip rosettes can rotate 360° for the best placement. The handgrips are specifically designed for the right and left sides of your rig and have a slightly different design on each.
Also compatible with but not limited to:
SmallRig Extension Arm with ARRI-Style Rosette 1684
SmallRig 15mm Rod Clamp with ARRI-Style Rosette Mount 1898

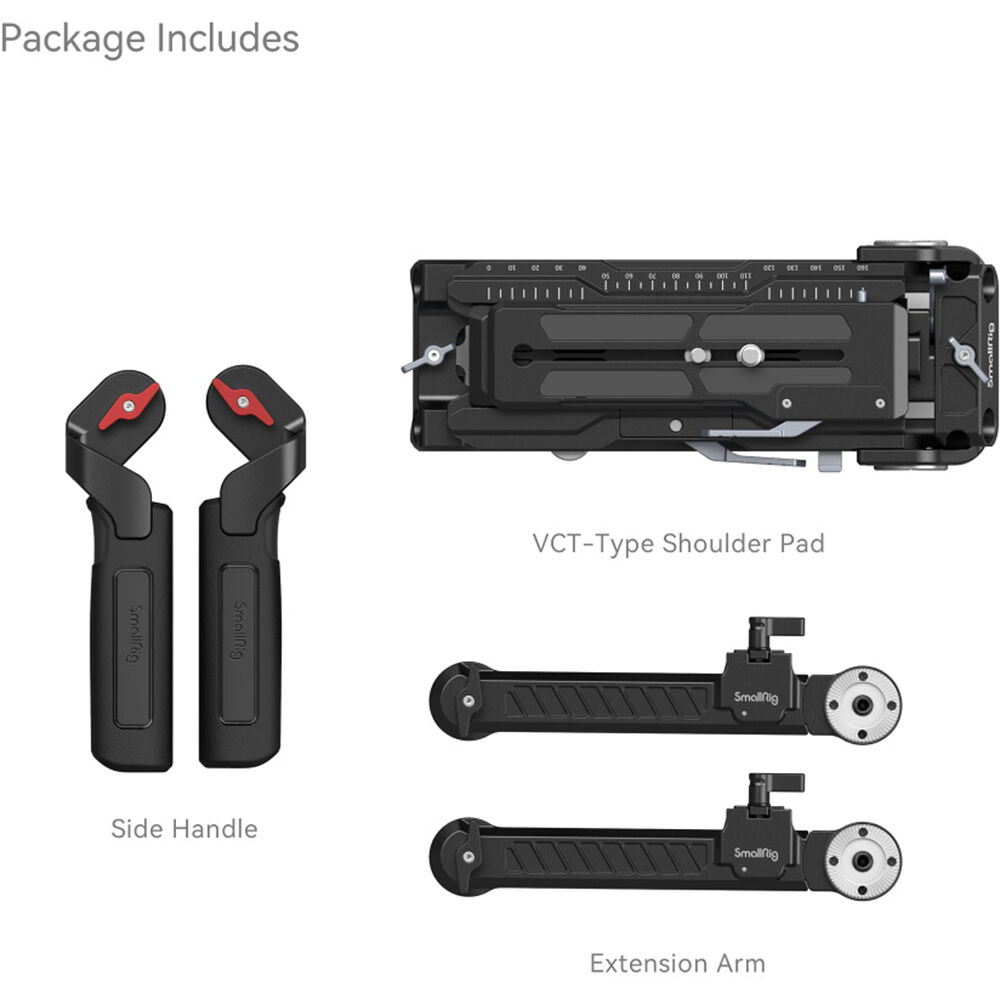

In the Box
- SmallRig Shoulder Pad Pro
- Manfrotto 501 Quick Release Plate
- 1/4"-20 Camera Mounting Screw
- 3/8"-16 Camera Mounting Screw
- Flat Wrench
- Limited 2-Year Manufacturer Warranty
- 2 x SmallRig 1870 Adjustable Extension Arm with Two ARRI Rosettes
- Limited 2-Year Manufacturer Warranty
- SmallRig Rubber Handgrip with ARRI Rosette (Pair)
- Limited 2-Year Manufacturer Warranty
- Description
- SmallRig Shoulder Pad Pro
- SmallRig 1870 Adjustable Extension Arm with Two ARRI Rosettes
- SmallRig Rubber Handgrip with ARRI Rosette (Pair)
SmallRig Shoulder Pad Pro Specs
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Battery Plate Type |
No
|
| Accessory Mounting |
Baseplate: Multiple x 1/4"-20 Female Thread
|
| Camera Mounting |
Manfrotto 501 Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
| Tripod Mounting |
Baseplate: V-Lock, VCT-14
|
| Rod Ports |
Baseplate, Front: 2 x 15 mm Rod Port
Baseplate, Rear: 2 x 15 mm Rod Port |
| Shoe Mounting |
No
|
| Rosettes |
2 x ARRI Rosette w/ M6 Female Thread
|
| Support Type |
Baseplate, Rod Support System, Shoulder Support
|
| Grip Type |
No
|
| Camera Compatibility |
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K, Blackmagic URSA Mini, Canon EOS C100, Canon EOS C200, Canon EOS C300 / C500, Panasonic AU-EVA1, Sony PXW-FS5, Sony PXW-FS7, Sony PXW-FS7 Mark II, Sony PXW-FX9, Universal
|
| Materials |
Aluminum, Silicone
|
| Dimensions |
9.9 x 3.9 x 2" / 25.1 x 9.8 x 5.1 cm
|
| Weight |
1.6 lb / 740 g
|
| Package Weight |
2.515 lb
|
| Box Dimensions (LxWxH) |
12.1 x 4.7 x 2.8"
|
SmallRig 1870 Adjustable Extension Arm with Two ARRI Rosettes Specs
| Rosette Type |
ARRI-Standard
|
| Material of Construction |
Aluminum Alloy
|
| Extension Range |
6.6 to 10.2" / 16.8 to 26.0 cm
|
| Dimensions |
8 x 2 x 1.4" / 20.3 x 5.0 x 3.5 cm
|
| Weight |
5.6 oz / 158 g
|
| Package Weight |
0.55 lb
|
| Box Dimensions (LxWxH) |
8 x 5.65 x 1.55"
|
SmallRig Rubber Handgrip with ARRI Rosette (Pair) Specs
| Item Type |
Dual Handgrips
|
| Attachment Method |
Attaches via Rosette
|
| Rosettes |
1 x ARRI Rosette w/ M6 Thread (per Handgrip)
|
| Rotation |
Yes, 360°
|
| Built-In Controls |
No
|
| Attachment Method |
Attaches via Rosette
|
| Shoe Mounting |
No
|
| Rosettes |
1 x ARRI Rosette w/ M6 Thread (per Handgrip)
|
| Rail Mounting |
No
|
| Materials |
Aluminum, Rubber
|
| Dimensions |
6.7 x 1.8 x 1.5" / 171 x 46 x 37 mm
|
| Weight |
13.8 oz / 390 g (Total)
|
| Package Weight |
1.02 lb
|
| Box Dimensions (LxWxH) |
7.5 x 4.7 x 2.5"
|
