SmallRig 3322 Overview

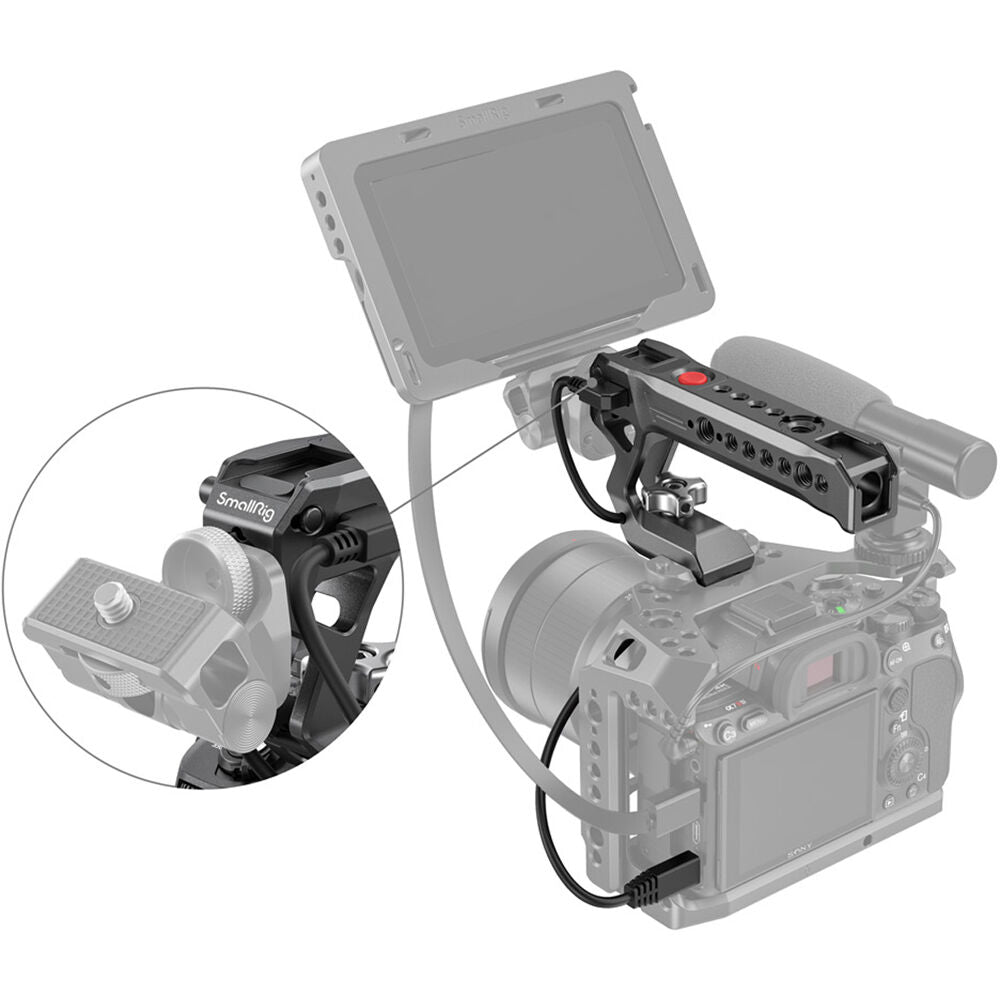

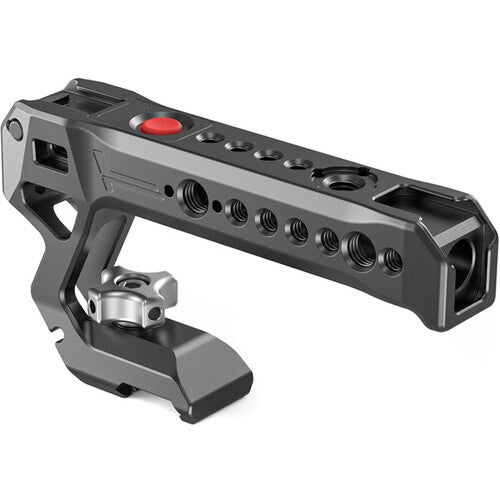

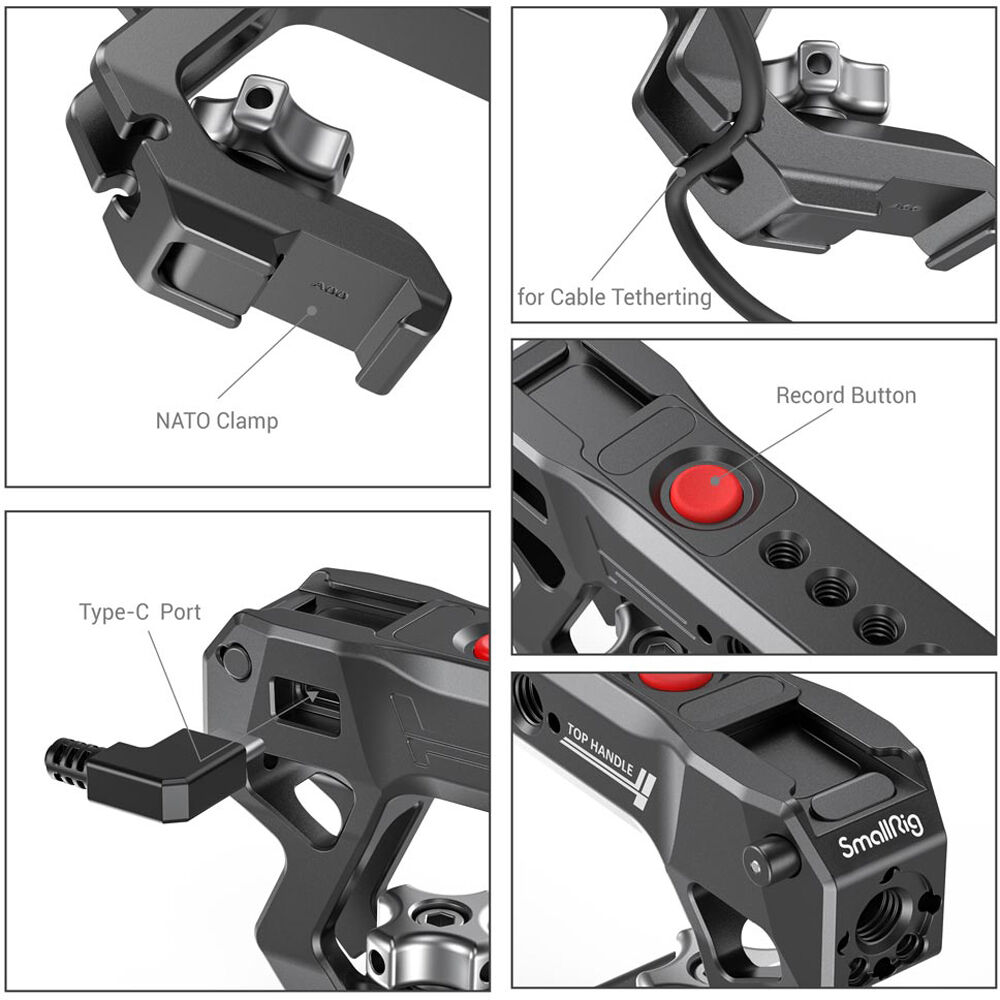

Add a top handle with start/stop capability to your Panasonic, Fujifilm, Sony, Z CAM, or Panasonic camera or rig with this NATO Top Handle with Record Start/Stop Remote Trigger from SmallRig. The handle mounts onto your cage or rig using a NATO clamp that allows you to mount it onto any camera or rig with a standard NATO rail. The top handle features a top-mounted start/stop record button placed where your thumb would usually rest. The USB port on the side of the handle allows you to use one of the three included cables to connect to your camera and control the record start/stop.
The handle has multiple 1/4"-20 and 3/8"-16 threaded accessory mounting points, as well as three shoe mounts. The front shoe mount has an anti-slip mechanism that helps hold your accessory in the shoe. Additionally, four of the 3/8"-16 threaded holes feature anti-twist divots. This handle is made from machined aluminum, allowing it to be lightweight and durable. It has a slotted cable pathway that lets you route your cable neatly around the top handle for a clean appearance with a minimum chance of cable snag.
a7, a7R, a7S, a7 II, a7R II, a7S II, a7 III, a7R III, a7S III, a7R IV, a9, a9 II, a5100, a6000, a6100, a6300, a6400, a6500, a6600, RX100 III, RX100 IV, RX100 V, RX100 VI, RX100 VII
S5, S1, S1R, S1H, GH4, GH5, GH5S, G9, G95
Compatible with but not limited to:
SmallRig Monitor Mount 2348
SmallRig Monitor Mount 2346

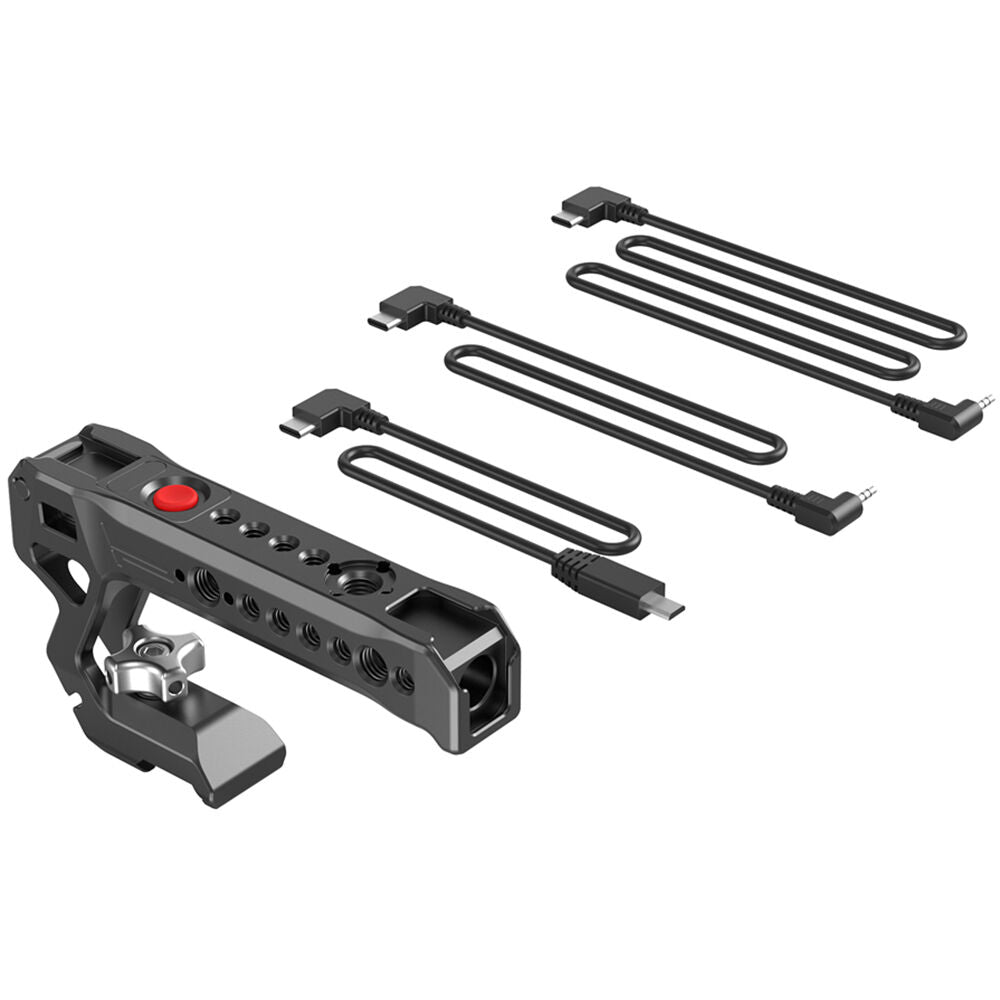

In the Box
- SmallRig NATO Top Handle with Record Start/Stop Remote Trigger

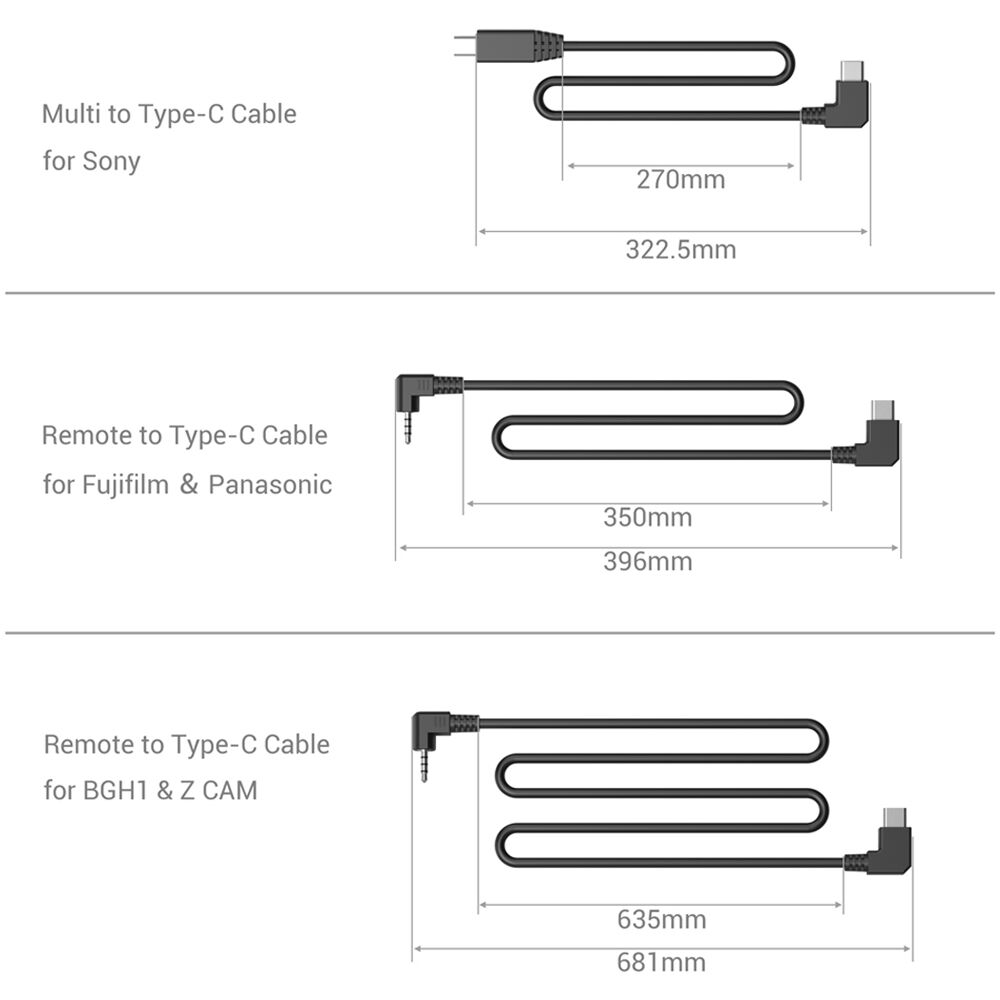

- Sony Multi to USB Type-C Remote Cable
- Fujifilm/Panasonic LANC to USB Type-C Cable
- Panasonic/Z CAM LANC to USB Type-C Cable
SmallRig 3322 Specs
| Item Type |
Topside Handle |
| Rotation |
No |
| Built-In Controls |
Remote Trigger |
Mounting
| Attachment Method |
Attaches via 1 Rail Clamp |
| Accessory Mounting |
Multiple x 1/4"-20 Thread
Multiple x 3/8"-16 Thread
Multiple x Anti-Twist 3/8"-16 Thread |
| Shoe Mounting |
3 x Built-In Cold Shoe Slot |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail Clamp |
General
| Inputs/Outputs |
1 x USB-C |
| Materials |
Aluminum |
| Dimensions |

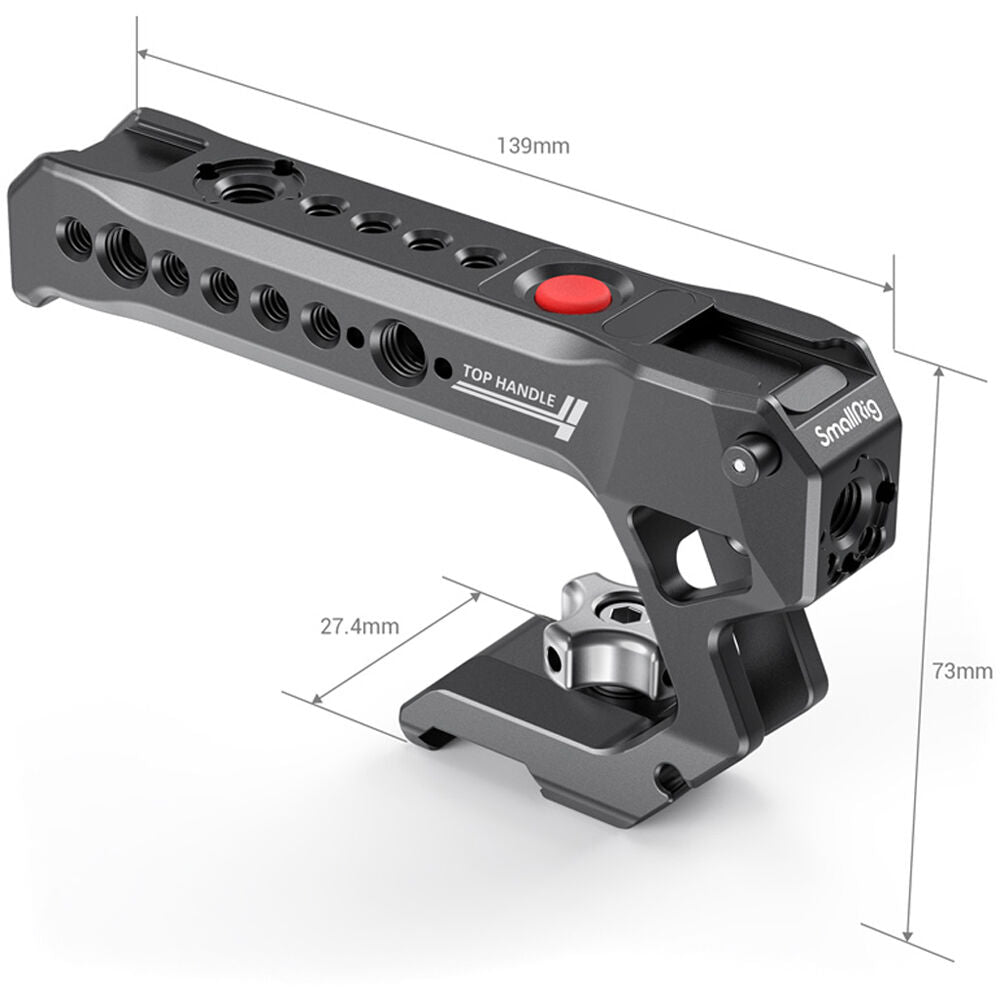

5.5 x 2.9 x 1.1" / 139 x 73 x 27.4 mm |
| Weight |
7.5 oz / 214 g |
Packaging Info
| Package Weight |
0.635 lb |
| Box Dimensions (LxWxH) |
7 x 4.1 x 1.7" |
