SmallRig CCC2803 Overview

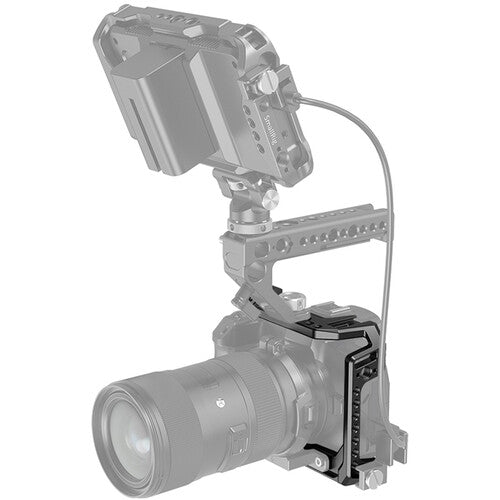

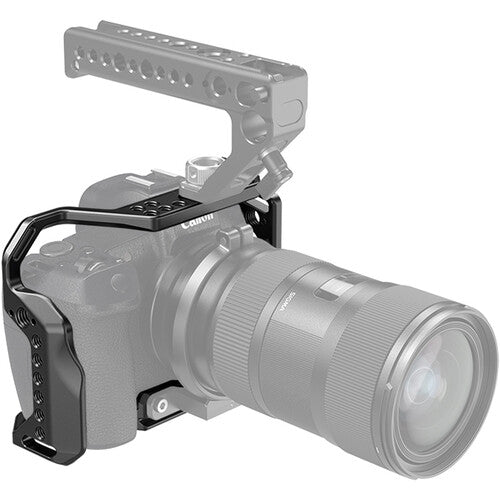

This formfitting Cage for Canon EOS R Camera from SmallRig is a protective frame that enables you to mount accessories onto your camera without stressing its body. The cage features one cold shoe mount, a NATO rail, and multiple 1/4"-20 and 3/8"-16 threaded accessory-mounting holes. The 3/8"-16 threaded holes feature anti-twist divots.
Access to the camera's controls, compartments, and connectors is maintained when the cage is fitted to the camera. The cage incorporates two locating pins and a rubber pad for a snug fit when your camera is mounted. It also features strap holes to add a hand strap or neck strap. The underside of the cage incorporates both 1/4"-20 and 3/8"-16 threaded holes, and a magnetic flat screwdriver attaches to the cage for tightening or loosening the camera tie-down screw.
The cage features numerous 1/4"-20 threaded accessory mounting holes along the top and both sides
The 3/8"-16 threaded accessory mounting holes have anti-twist divots
A cold shoe is incorporated into the cage's body
The left side of the cage has an integrated NATO rail
The base of the cage is an Arca-type QR plate
In the Box
- SmallRig Cage for Canon EOS R Camera
- Magnetic Flat Screwdriver
- Captive 1/4"-20 Tie-Down Screw
- 2 x Anti-Twist Pin
- Limited 2-Year
SmallRig CCC2803 Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Canon EOS R |
Mounting
| Accessory Mounting |
Cage, Sides: 15 x 1/4"-20 Thread, 2 x Anti-Twist 3/8"-16 Thread
Cage, Top: 9 x 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread |
| Camera Mounting |
1/4"-20 Screw |
| Tripod Mounting |
Cage: 1/4"-20 Thread, 3/8"-16 Thread, Built-In Arca-Type Plate |
| Shoe Mounting |
Cage, Top: 1 x Cold Shoe |
| Rosettes |
None |
| Rail Mounting |
Cage, Side: 1 x NATO Rail |
General
| Dimensions |

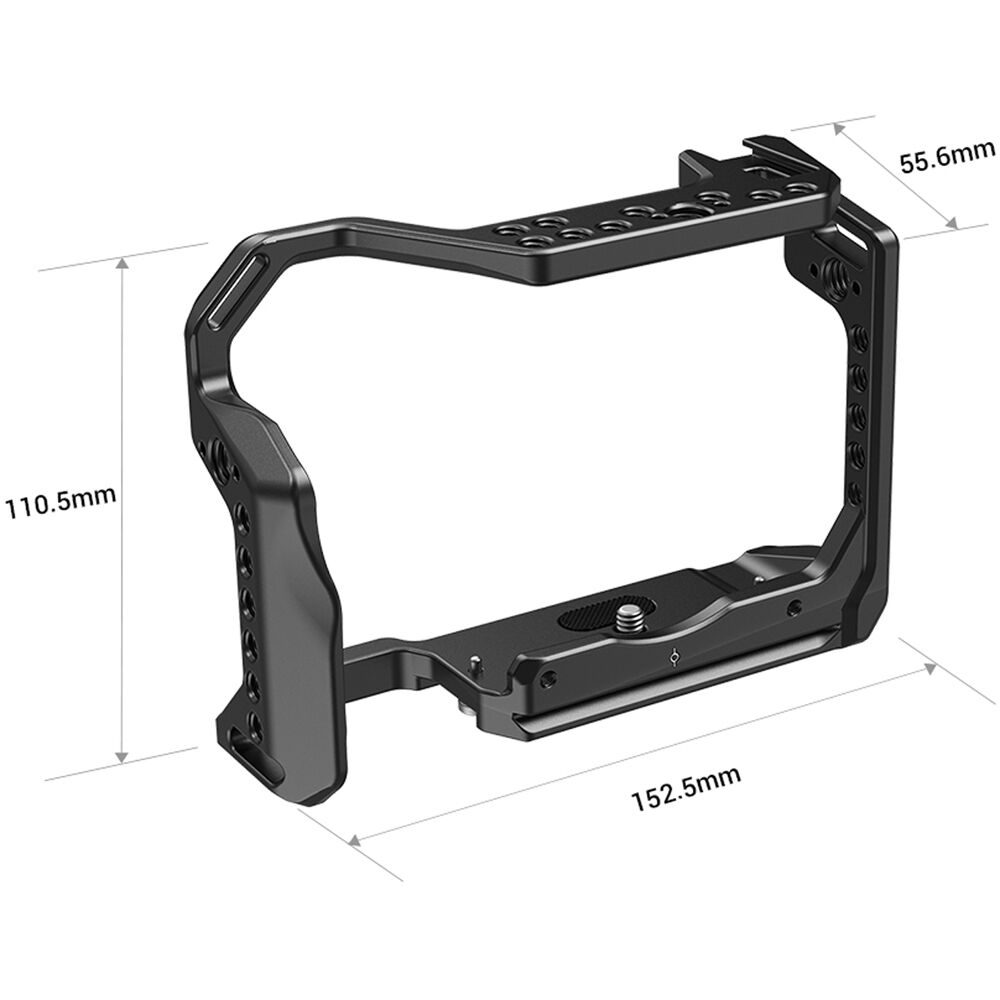

6 x 4.4 x 2.2" / 152.5 x 110.5 x 55.6 mm |
| Weight |
6.9 oz / 195 g |
Packaging Info
| Package Weight |
0.64 lb |
| Box Dimensions (LxWxH) |
8.3 x 5.6 x 2.3" |
