Description
SmallHD Vision 4K Monitor Overview
- 1Description
- 2Key Features
- 3SmallHD OS4.1
- 4Power Options

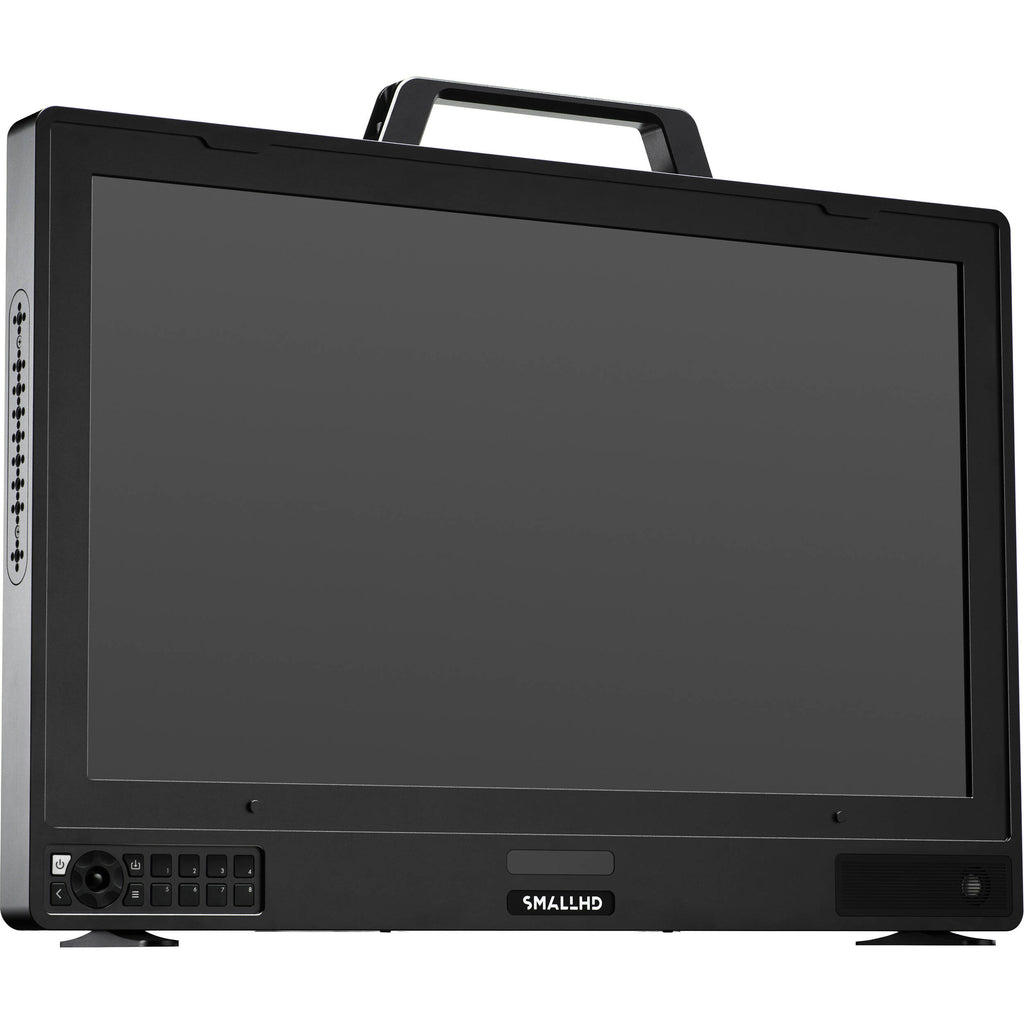

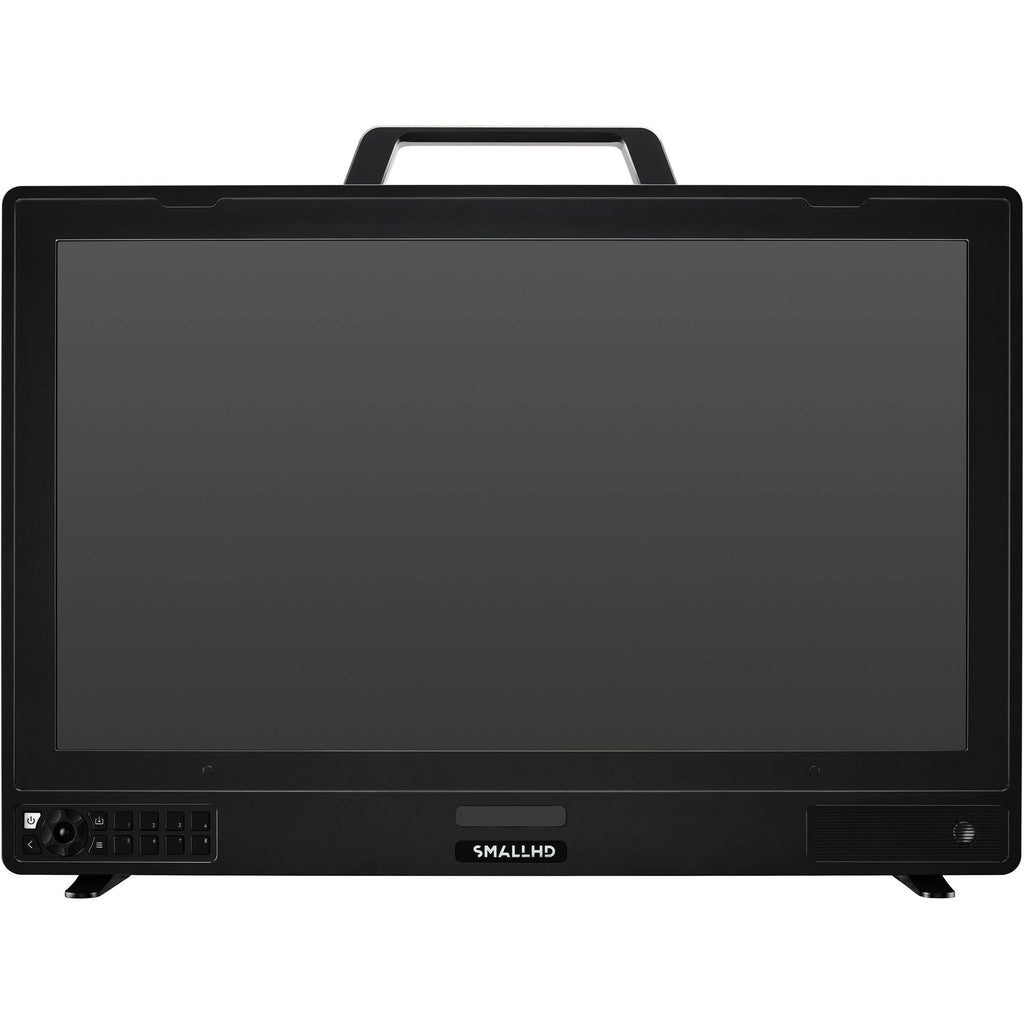

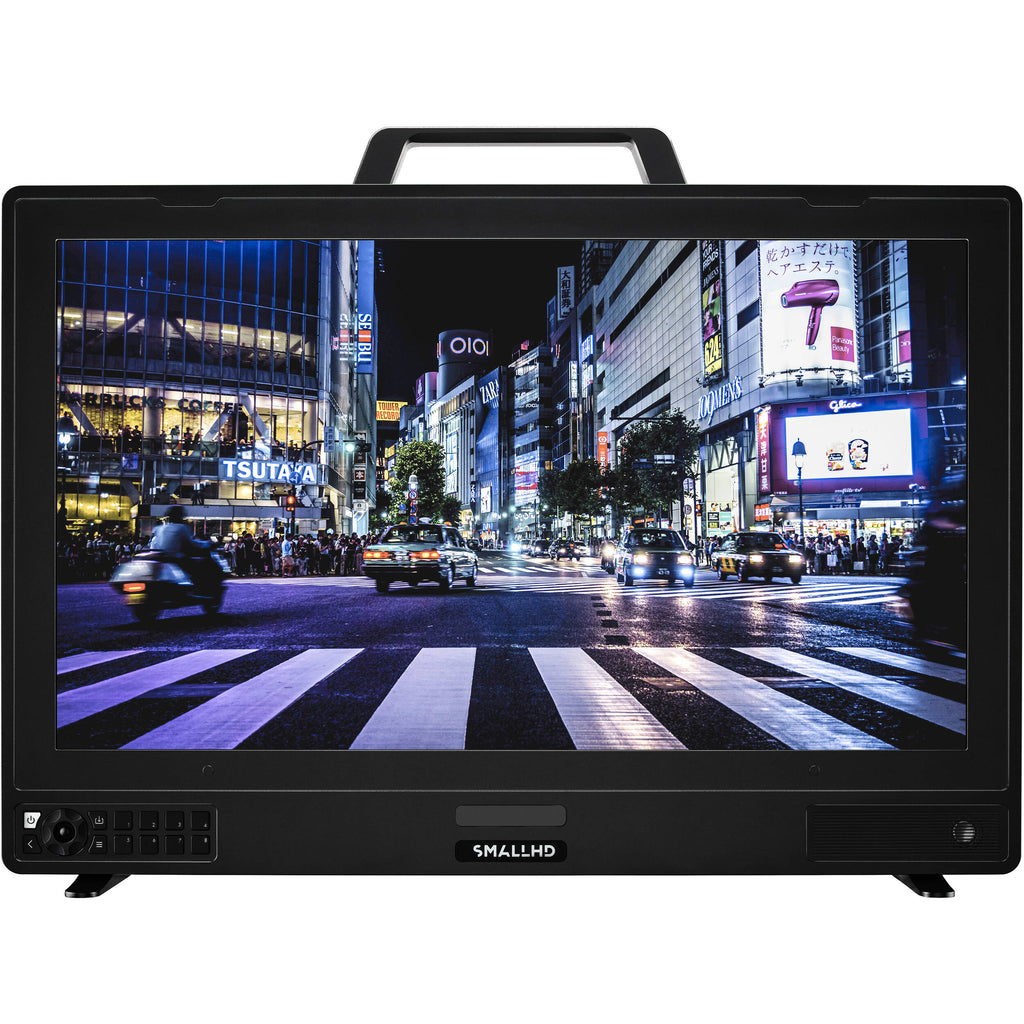

Add a professional DCI 4K monitor to your studio with the Vision 24" 4K HDR Pro Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp image with 10-bit DCI-P3 color intelligence, 1000 cd/m² brightness, and a 1,000,000:1 contrast ratio.
The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1 that features a fully redesigned UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with OS4 are 4K waveforms and scopes with regions of interest, with more functions to be introduced with future firmware updates.

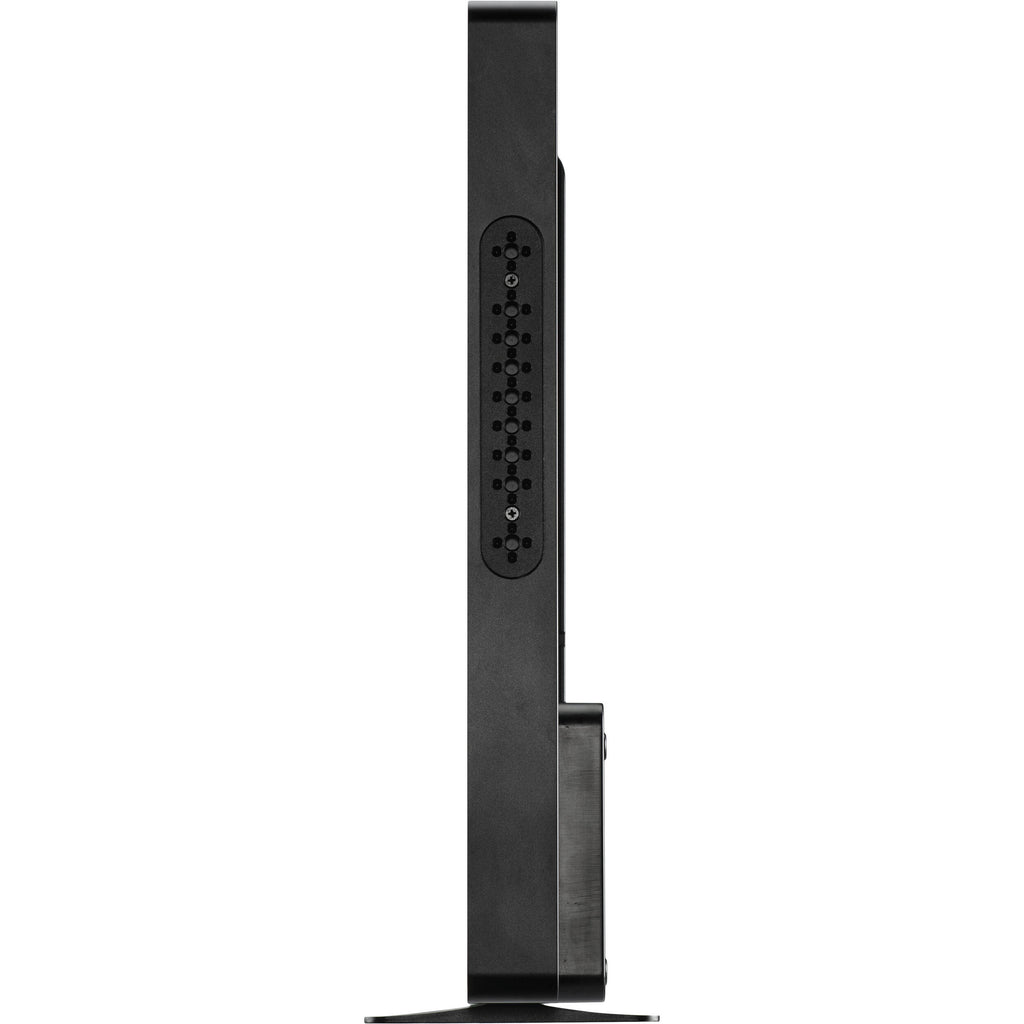

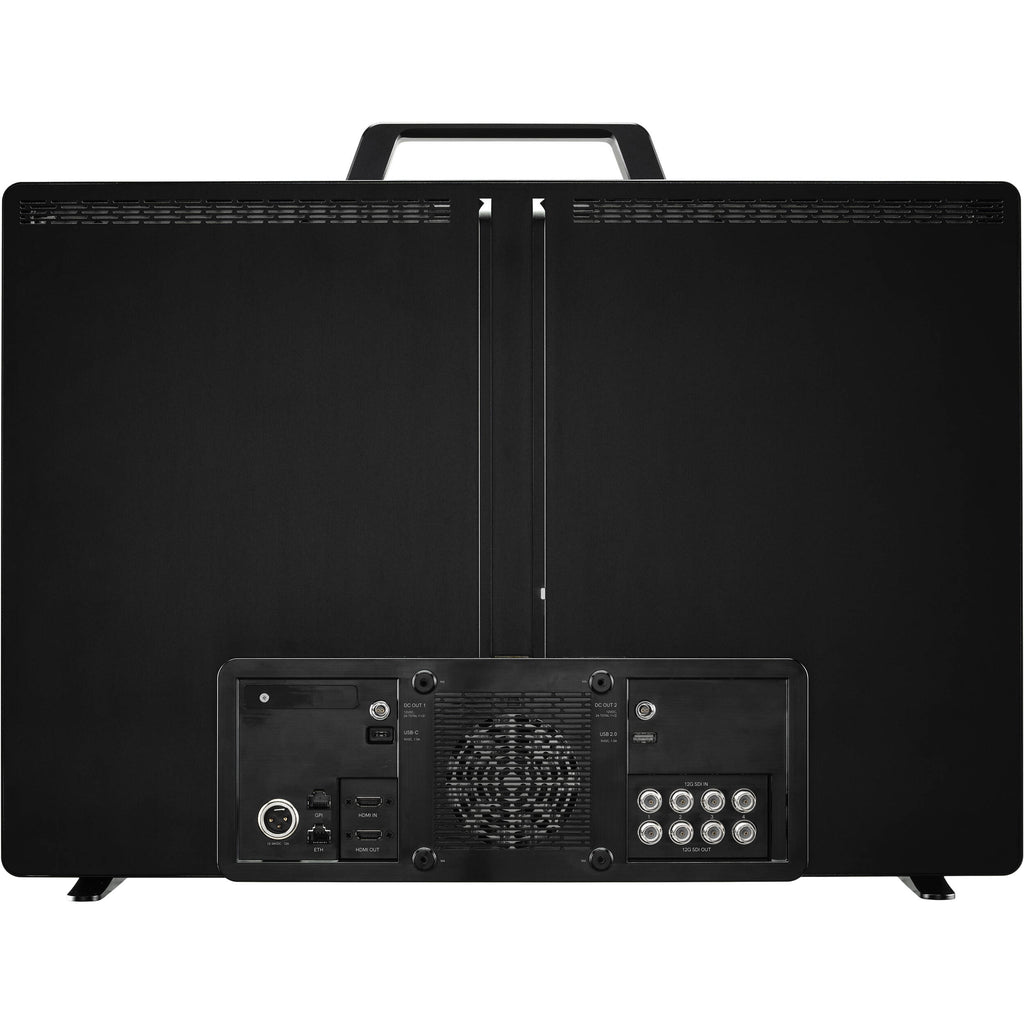

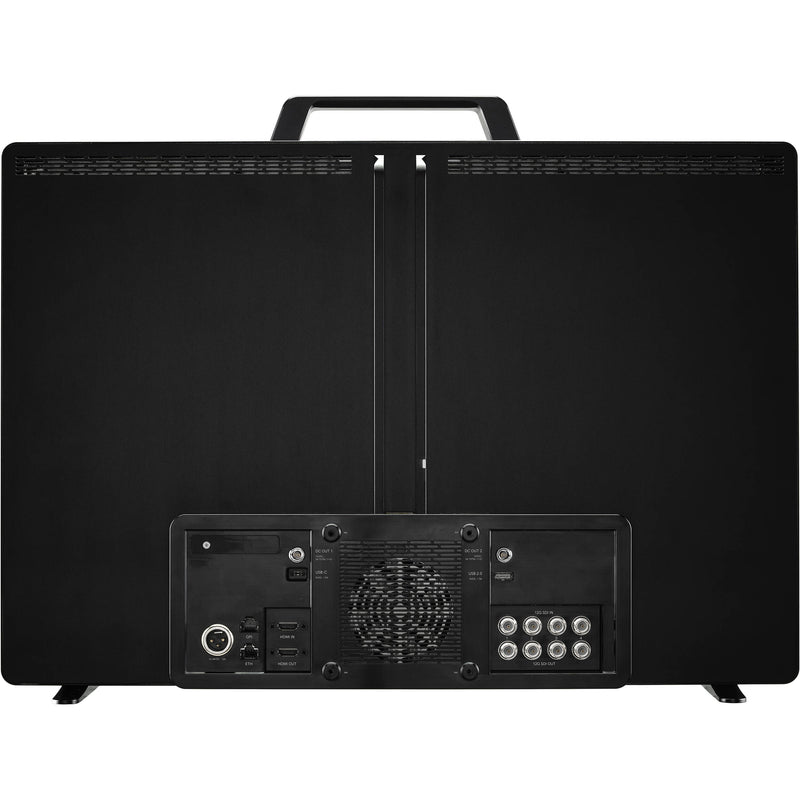

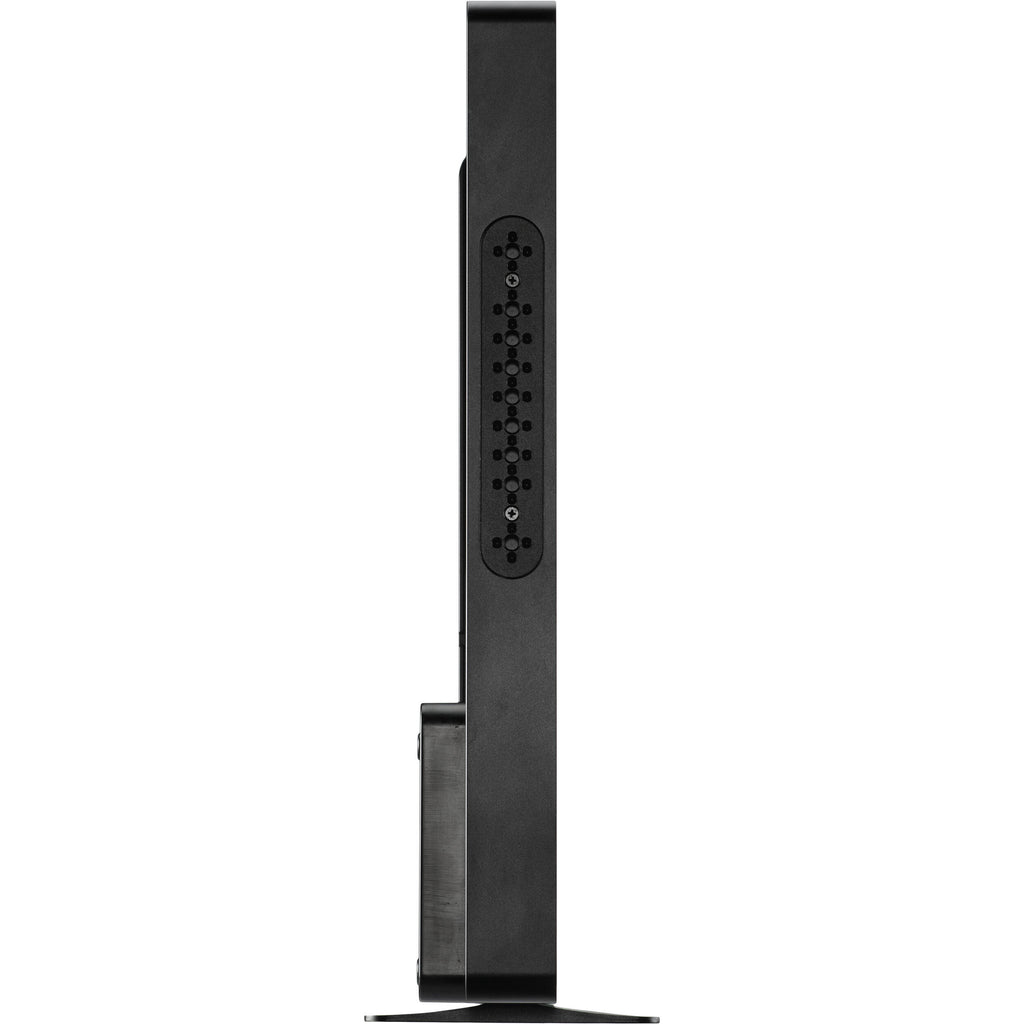

The monitor can be mounted using the 110mm VESA pattern on the back or by thirty-six 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.
Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.
The monitor includes numerous accessories such as an acrylic screen protector, a 3' long HDMI cable, two 1/4"-20 cheese-style accessory mounting sticks, two 1/4"-20 and 3/8"-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth.
Key Features
- 24" DCI 4K monitor
- 1,000,000:1 contrast ratio
- 1000 cd/m² brightness
- Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
- One HDMI 2.0 input and one HDMI 2.0 output
- SD card slot for 3D LUTs
- One RJ45 Ethernet port
- One RJ45 GPI port
- 110mm VESA mounting on the back
- Thirty-six 1/4"-20 mounting threads on top and sides
- Smartrail mounting options
- 1/4"-20 and 3/8"-16 cheese-style mounting sticks included
SmallHD OS4.1
- Internal calibration wizard
- Color pipe color-space formatting
- Settings dashboard for easy access to common settings
- Preconfigured pages
- Page tabs
- Customizable false color overlays
- Customizable 4K waveform with region-of-interest highlighting
- Improved function buttons
- Pixel zoom, focus assist, peaking
- Total UI overhaul
Power Options
- One 3-pin XLR 12 to 24V, 12A input
- Two 2-pin LEMO 12V, 2A outputs
- Two USB Type-A 5V, 2.4A outputs
- Two USB Type-C 5V, 1.5A outputs
- Separately available V-mount or Gold mount battery plates
- XLR and battery options are hot-swappable
In the Box
- SmallHD Vision 24" 4K HDR Pro Monitor
- Acrylic Screen Protector
- HDMI Cable (3')
- 2 x Cheese Stick Mount (1/4"-20)
- 2 x Combo Cheese Stick Mount (1/4"-20 & 3/8"-16)
- Monitor Feet
- Monitor Handle
- 3-Pin XLR Power Supply
- 8GB SD Card
- Microfiber Cleaning Cloth
- Limited 1-Year Warranty
- Description
- Key Features
- SmallHD OS4.1
- Power Options
SmallHD Vision 4K Monitor Specs
| Panel Type | LCD |
| Display Size | 24.00" / 61.0 cm |
| Resolution | 4096 x 2160 |
| Aspect Ratio | 16:9 |
| Touchscreen | No |
| Maximum Brightness | 1000 cd/m2 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 93 ppi |
| Color Gamut | 115% DCI-P3 |
| Image Controls | False Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform |
| Video | 1 x HDMI Type A (HDMI 2.0) Input 4 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Input 1 x HDMI Type A (HDMI 2.0) Output 4 x BNC (12G-SDI/6G-SDI/3G-SDI) Output |
| Embedded Audio | HDMI SDI |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x XLR 3-Pin (12 A / 34 VDC) Input 2 x LEMO 2-Pin (2 A / 12 VDC) Output 2 x USB Type-A (2.4 A / 5 VDC) Output 1 x USB Type-C (1.5 A / 5 VDC) Output |
| Other I/O | 1 x GPI (RJ45) Input/Output 1 x LAN (RJ45) Input/Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | HDMI DCI 4K: 60 SDI UHD 4K: 60 |
| DC Input Power | 12 to 34 VDC at 26 A |
| Battery Type | 2 x V-Mount, Gold Mount (Interchangeable Mount) |
| Power Consumption | 225 W (Typical) 306 W (Maximum) |
| Mounting-Hole Pattern | 100 x 100 mm |
| Mounting | 36 x 1/4"-20 Female |
| Weight | 19.7 lb / 8.94 kg |
