Description

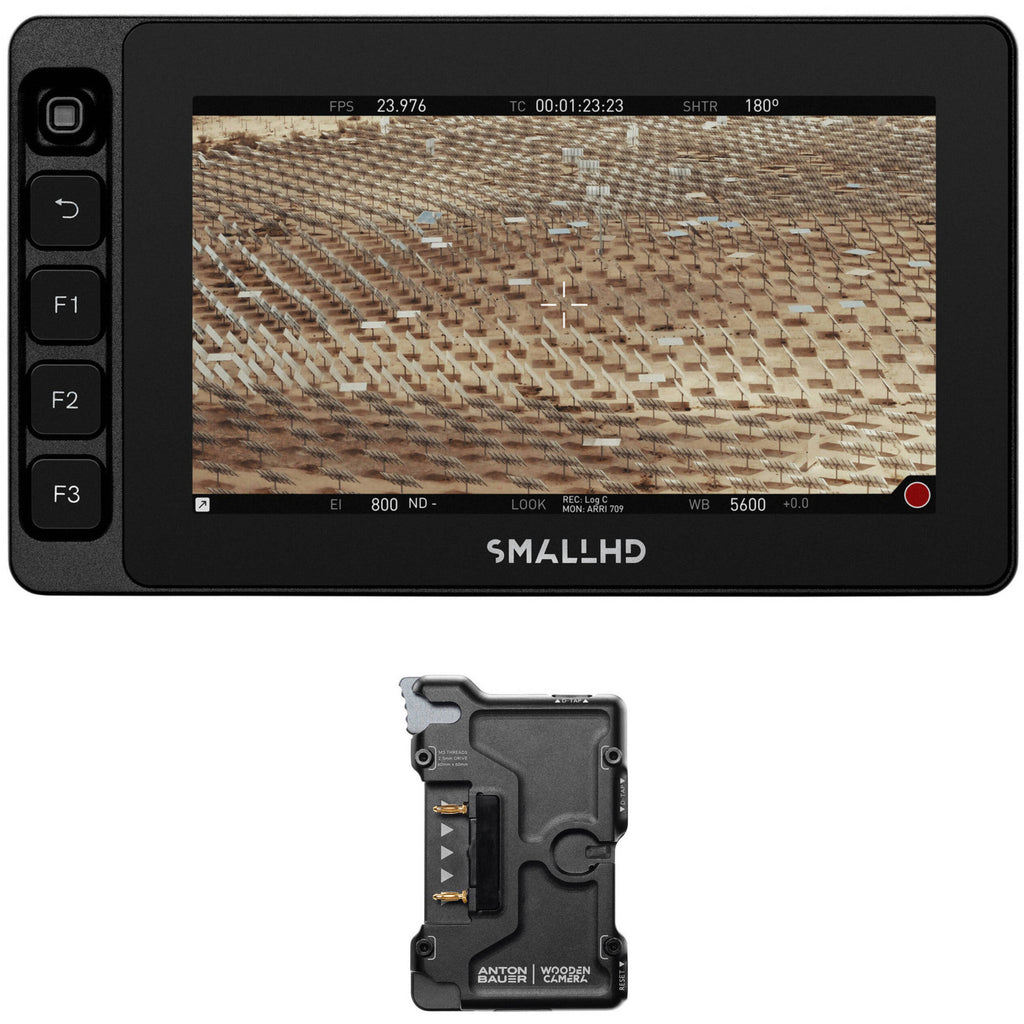

This SmallHD ULTRA 5 On-Camera Monitor and Battery Plate Kit from provides you with a 5" ultrabright touchscreen monitor and a Gold mount micro battery plate that mounts directly onto the back of it. Power the 1920 x 1080 monitor with a Gold mount battery as well as additional accessories via the integrated D-Tap ports.

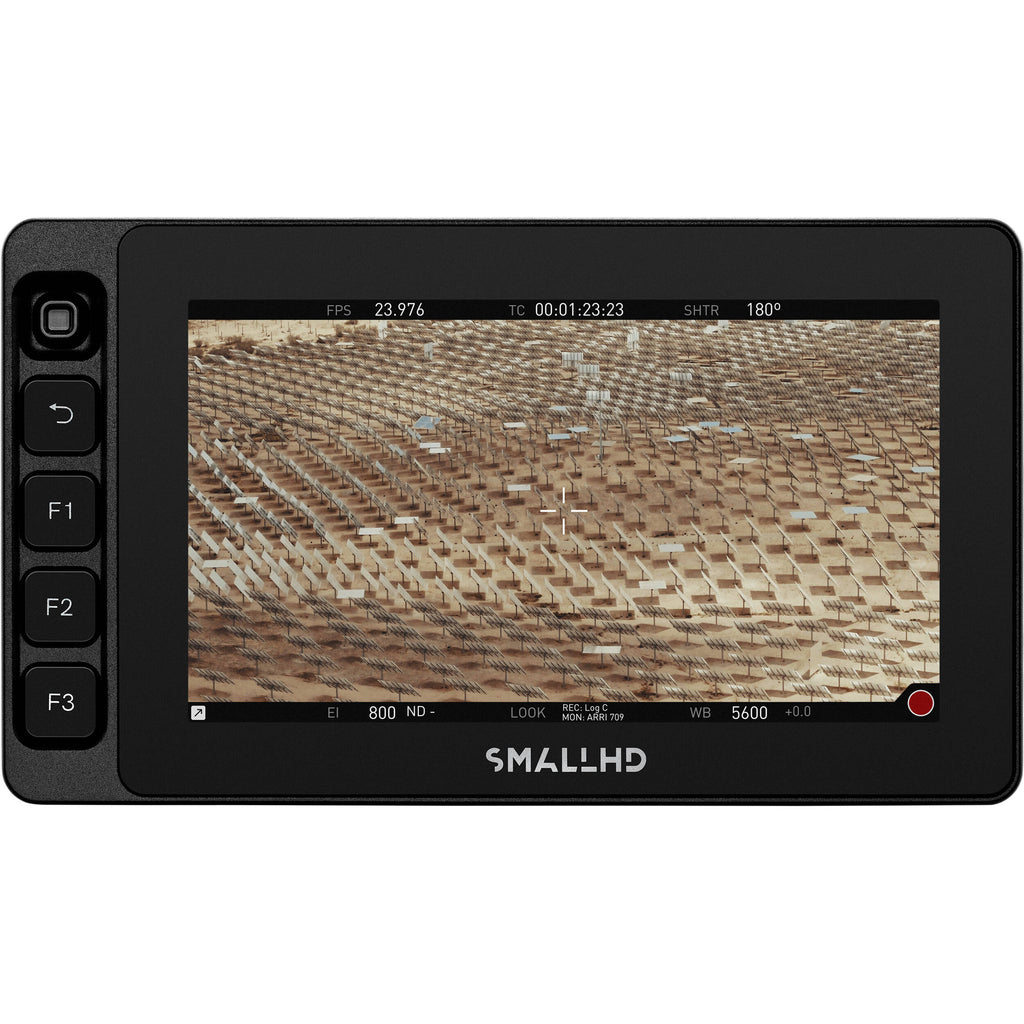

Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m? display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.
The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, features a 5-pin USB port for optional RED camera control, and has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels

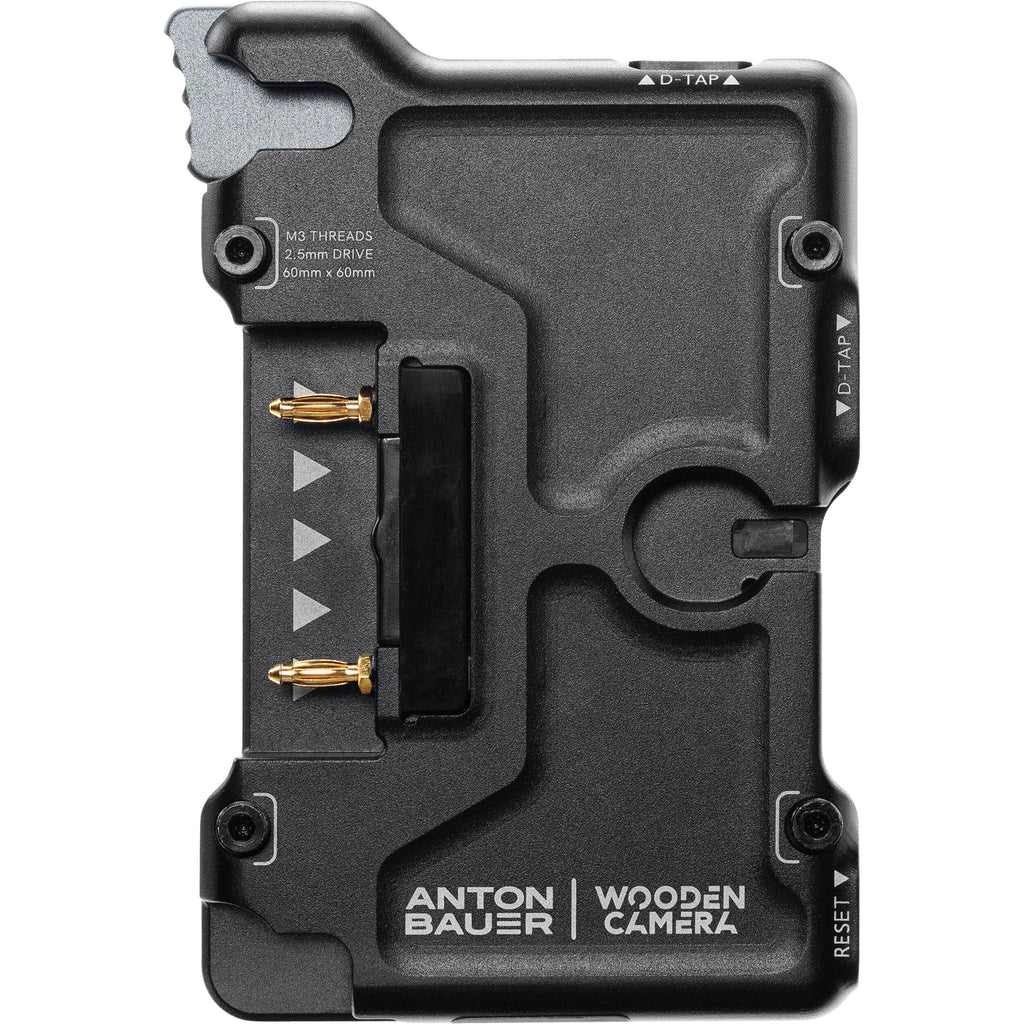

Power your Ultra series monitor using a Gold mount battery with this Micro Battery Plate from SmallHD. The battery plate mounts directly onto your monitor using included captive mounting screws, and it provides power to the monitor from a separately available standard or micro-sized Gold mount battery.
The battery plate also features two D-Tap outputs that provide 11 to 17 VDC of power for additional accessories. The ports have a 5.8V digital E-fuse that is resettable, providing current protection that will shut the ports down if they are overloaded, without affecting the monitor power.
Items Included
- SmallHD ULTRA 5 Bright Touchscreen Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- Limited 1-Year Manufacturer Warranty
- SmallHD Micro Battery Plate for Ultra Series Monitor (Gold Mount)
- Mounting Screw Set
- Limited 1-Year Manufacturer Warranty
Additional Resources
SmallHD ULTRA 5 Bright Touchscreen Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Battery |
No
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Input Power |
10 to 34 VDC at 2.1 A
|
| Battery |
No
|
| Tripod/Accessory Mounting |
6x 1/4"-20 Female
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm
|
| Weight |
1.11 lb / 504.00 g
|
| Package Weight |
1.985 lb
|
| Box Dimensions (LxWxH) |
9.5 x 7 x 2.5"
|
