Description

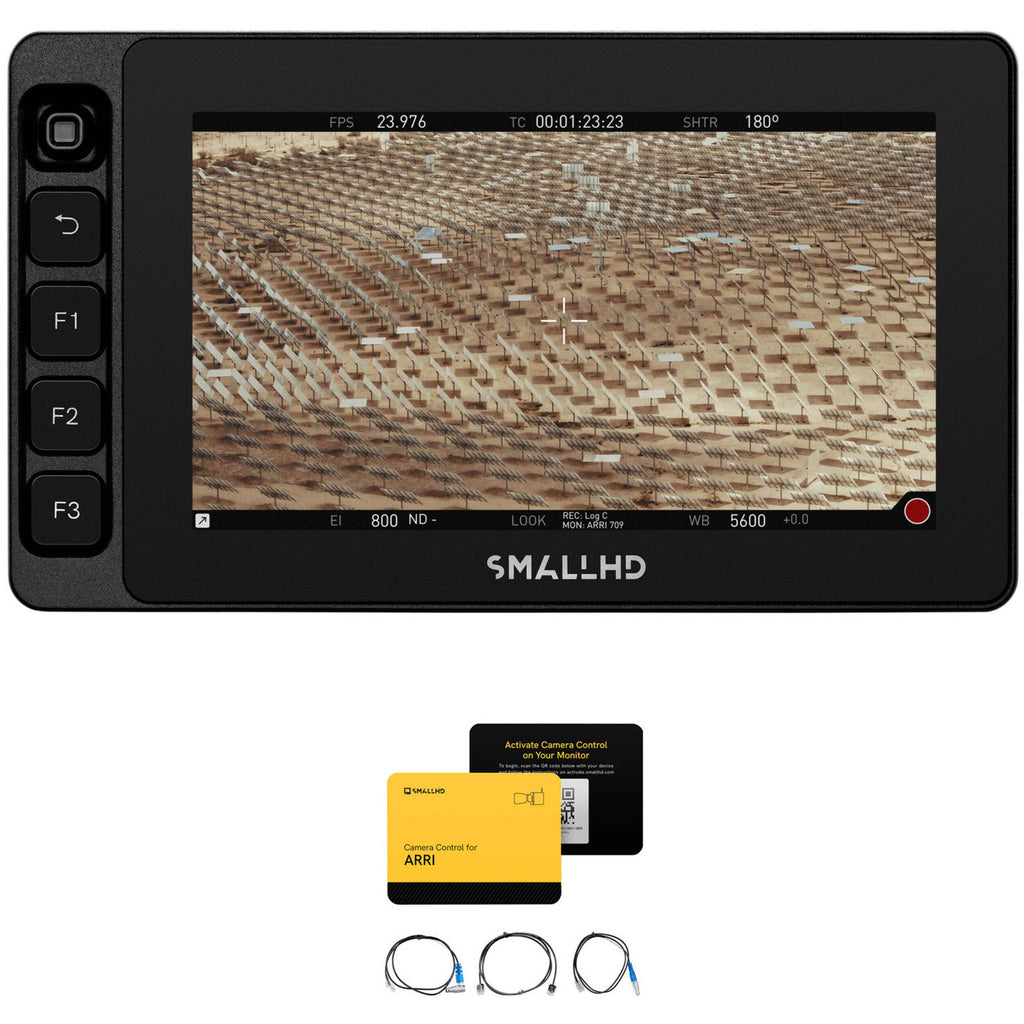

Use the compact SmallHD ULTRA 5 Bright Touchscreen Monitor with Control Kit for ARRI put together by to provide professional monitoring and remote control for your ARRI ALEXA Mini, ALEXA Mini LF, or AMIRA camera with a sharp 5" display suitable for indoor or outdoor use. The kit includes the ULTRA 5 bright 5" touchscreen monitor and the ARRI camera control kit that includes software and a LEMO-to-Ethernet control cable and Ethernet patch cable.
The indoor/outdoor 5" monitor provides 3000 cd/m? brightness and 1920 x 1080 resolution for optimal visualization. The ARRI control software loads onto the monitor and allows you to control camera functions protocol such as RecordStart, RecordStop, Playback Control, Set & Read TC, and much more via the SmallHD monitor touchscreen.

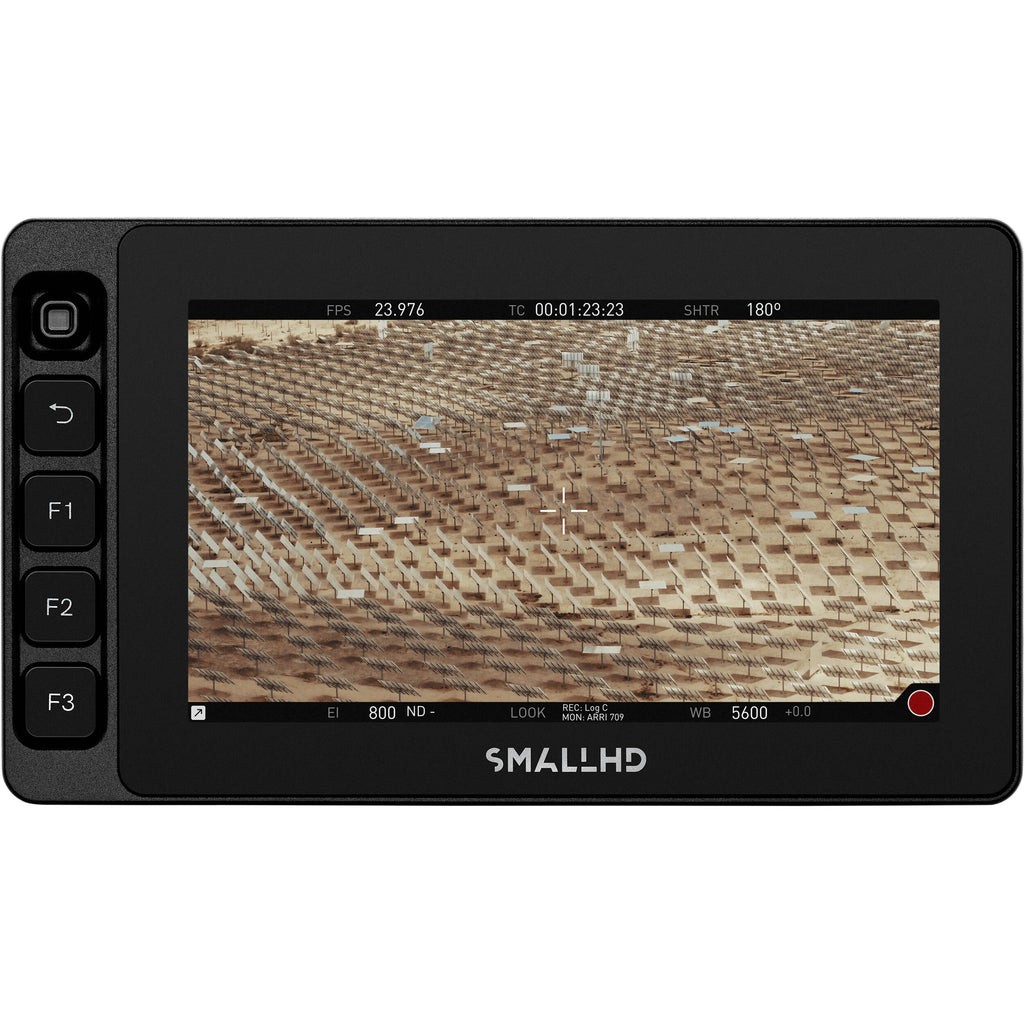

Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m? display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.
The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, features a 5-pin USB port for optional RED camera control, and has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels

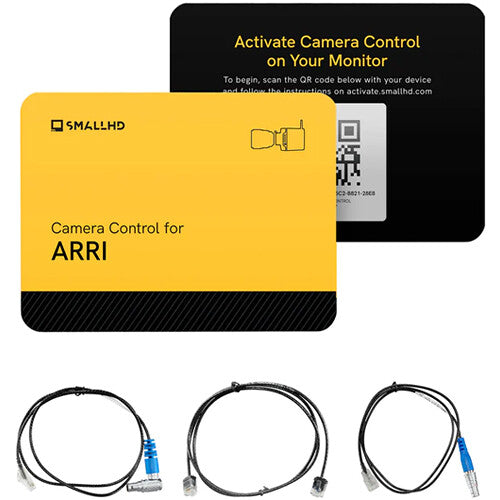

Control your ARRI ALEXA 35, ALEXA Mini, ALEXA Mini LF, or AMIRA cinema camera functions using your Ultra 5 or Cine 7 monitor with this Camera Control Kit from SmallHD. The kit includes a software license that provides full control via ARRI control protocol over your camera functions and settings, as well as two 10-pin LEMO-type to Ethernet camera control cables and an Ethernet patch cable. This software allows you to access and control all camera functions available, such as run/stop, playback, menu control, and more, via the SmallHD monitor touchscreen.
- Record/Start, Record/Stop, Playback Control
- Set and Read TC; Set and Read Project Rate
- Read and Set System Date/Time, Read Clip List from Medium
- Camera Type, Camera Serial, Camera State
- Look Filename, Color Temperature, Tint Variable
- Exposure Index, Sensor FPS List, Sensor FPS
- Shutter Angle List, Shutter Angle
- Exposure Time List, Exposure Time, Exposure Index List
- ND Filter List, ND Filter, White, Balance List
- Media Status, Recording Mode, Clip Scene, Clip Take
- Medium Type, Model, Name, Serial Number, Clip Count
- Current Reel, Medium Size, Medium Status
- Write Protection, Clip, Count, Current Reel
- Free Capacity, Clip Filename, Clip UUID
- Clip Project Rate, Clip Start TC, Clip Duration TC
Items Included
- SmallHD ULTRA 5 Bright Touchscreen Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- Limited 1-Year Manufacturer Warranty
- SmallHD Camera Control Kit for ARRI
- ARRI Camera Control Software Upgrade
- Locking 10-Pin ALEXA to Ethernet Camera Control Cable (36")
- SmallHD Camera Control Cable with Right-Angle LEMO for ARRI ALEXA Cameras (36")
- Micro Ethernet Patch Cable
- Limited 1-Year Manufacturer Warranty (on Hardware)
Additional Resources
SmallHD ULTRA 5 Bright Touchscreen Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Battery |
No
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Input Power |
10 to 34 VDC at 2.1 A
|
| Battery |
No
|
| Tripod/Accessory Mounting |
6x 1/4"-20 Female
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm
|
| Weight |
1.11 lb / 504.00 g
|
| Package Weight |
1.985 lb
|
| Box Dimensions (LxWxH) |
9.5 x 7 x 2.5"
|
